Vevor Vinyl Cutter 53" with Stand Adjustable Speed and Force Plotter SignMaster Software COM/USB Connectivity New
Manufacturer: Vevor
SKU: KZJHSMCSK13503XB3V1
Max Paper Feed Options
QTY
(888) 999-1522
$ 326.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Vevor Vinyl Cutter 53" with Stand Adjustable Speed and Force Plotter SignMaster Software COM/USB Connectivity New
Product Overview
The Vevor 53-inch vinyl cutter offers a large cutting area and precise performance with its powerful stepper motors and steel roller shaft, ensuring accuracy for up to 400 inches of paper feed. Equipped with an illuminated LCD panel and computer connectivity options, it supports various formats and Windows systems for efficient operation. Complete with multiple vinyl rolls, accessories, and a mobile stand.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- 53in Large Cutting Area: Max Paper Feed: 53.2 in / 1350 mm; Max Cutter Width: 49.6 in / 1260 mm. This excellent vinyl cutter machine features a thickened, high-quality aluminum body with powerful 42 stepper motors. Enable users to cut away the excess medium from the design that is not needed, leaving just the contour feature around your design.
- Steel Roller Shaft: Compared with a traditional aluminum shaft, our steel-made shaft boasts a high accuracy, which won't deviate after the paper feeds up to 400 in / 10 m. This device will offer you a sensitive and intelligent operation with 10-500g cutting pressure, 10-800 mm/s cutting speed, and 0.0004 in / 0.01 mm blade accuracy. Feel every cut and achieve precise results.

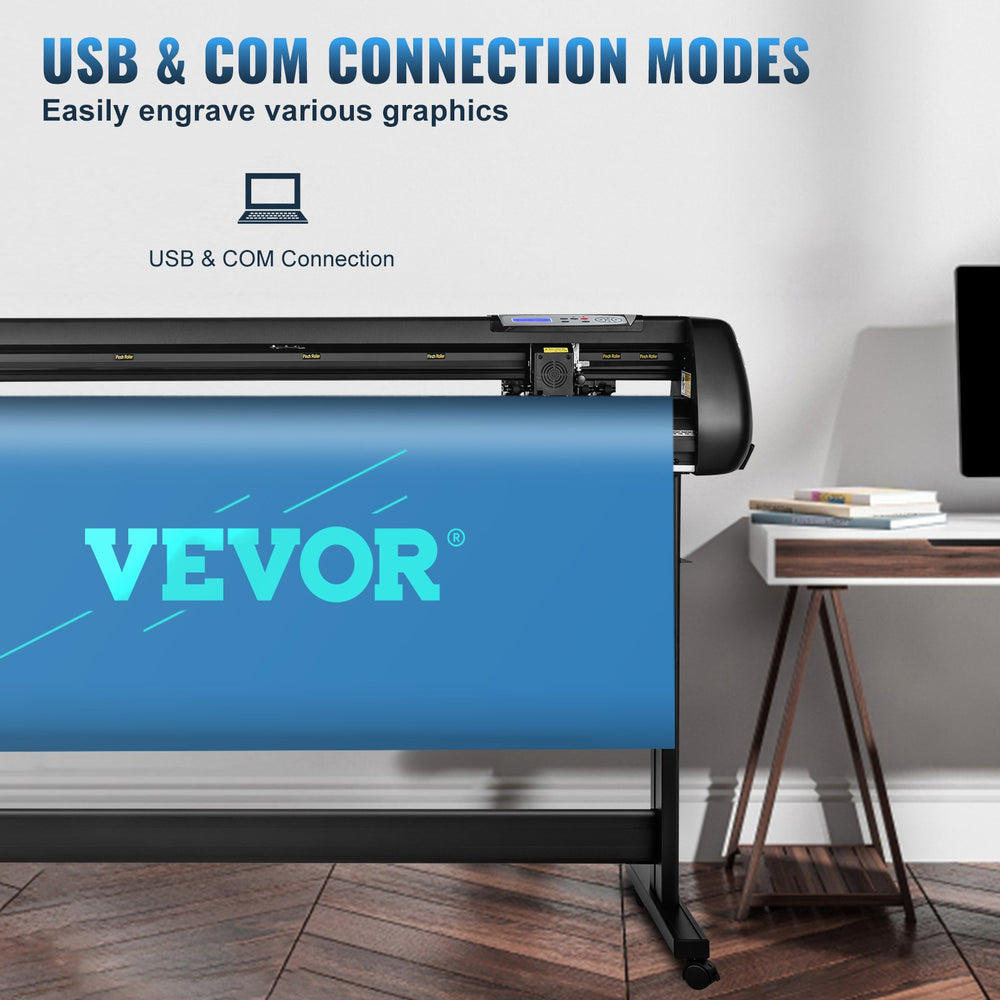

- Efficient LCD Panel: Coming with an illuminated LCD interface and a large control panel, this plotter cutter makes the operation more explicit. Besides, you can also connect this cutter to computers by USB or COM cable. Format Language: DM/PL, HP/GL; System: Pentium processor-based PC or Windows XP / Vista / 7 / 8 / 10 / 11. Advance your cuts with computer compatibility and increase efficiency. It will feel like you have a team working alongside you.
- Unmatched All-in-one Accessories: With 5 exclusive rolls of vinyl (black, white, red, blue, and yellow), a utility knife, a ball pen core, 2 holders, 3 replaceable blades, and other items, this practical plotter machine bundle will definitely enjoy a good reputation for its multiple accessories and perfectly satisfy your various DIY requirements.
- Powerful Design for Multiple Uses: Our intricately designed cutting plotter is equipped with a heavy-duty sheet metal floor stand featuring 4 caster wheels for convenient movement. Besides, inside fuses can decrease the possibility of injury. This vinyl cutter machine can be applied to advertise engraving, heat transfer, wall decoration, plate making and many other fields.
Specifications
| Model # | SK-1350L |
| Max Paper Feed | 53.2 in / 1350 mm |
| Max Cutter Width | 49.6 in / 1260 mm |
| Cutting Accuracy | 0.0004 in / 0.01 mm |
| Software | SignMaster |
| Compatible System | Windows XP / VISTA / 7 / 8 / 10 / 11 |
| Interface | USB & COM |
| Number of Pinch Rollers | 5 |
| Language | DM/PL, HP/GL |
| Contour Type | Manual Contour |
| Memory | 16MB |
| Cutting Force | 10-500g |
| Cutting Speed | 10-800mm/s |
| Number of Blades | 3 |
| Motherboard | ARM |
| Blade Diameter | 0.08 in / 2 mm |
| Blade Length | 0.91 in / 23 mm |
| Blade Angle | 45 Degrees |
| Vinyl Size | 118.1 x 23.6 in / 300 x 60 cm |
| Drive Motor | 42 Stepper Motor |
| File Formats | PLT, EPS, SVG, DXF, AI |
| Compatible Softwares | Signmaster, Signcut, ARTCUT, Graph-Cut, Coreldraw |
| Material | Aluminum Alloy |
| Vinyl Size | 118.1 x 23.6 in / 300 x 60 cm |

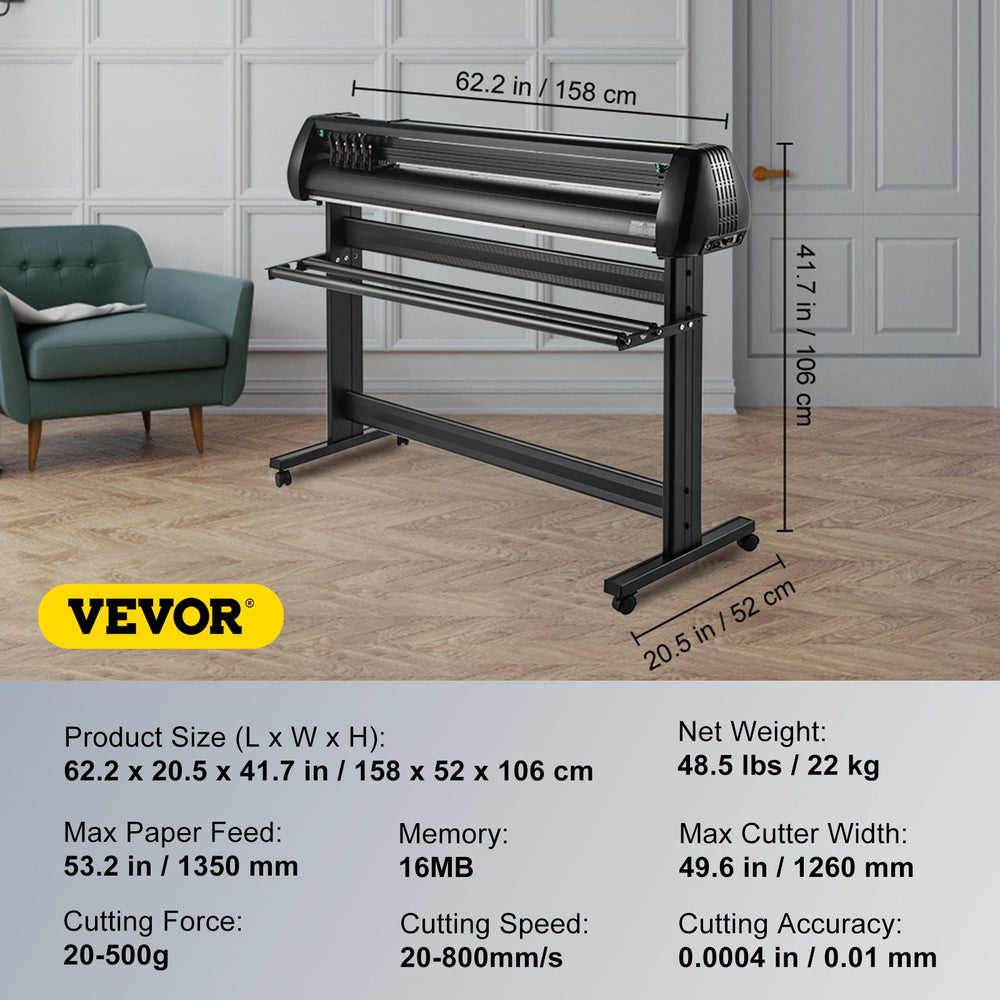

| Product Size (L x W x H) | 62.2 x 20.5 x 41.7 in / 158 x 52 x 106 cm |
| Net Weight | 48.5 lbs / 22 kg |

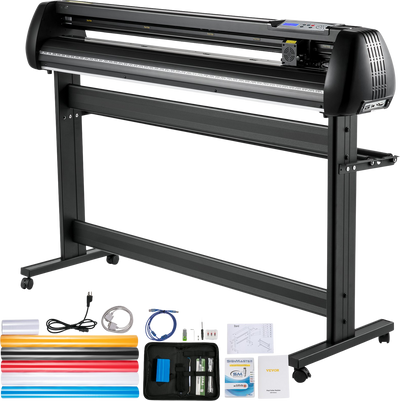

Package Contents
Vevor Vinyl Cutter 53 in. with Stand
SignMaster Software
Floor Stand
(5) Rolls of Vinyl
Power Cord
USB Flash Disk
Set of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
