Product Overview

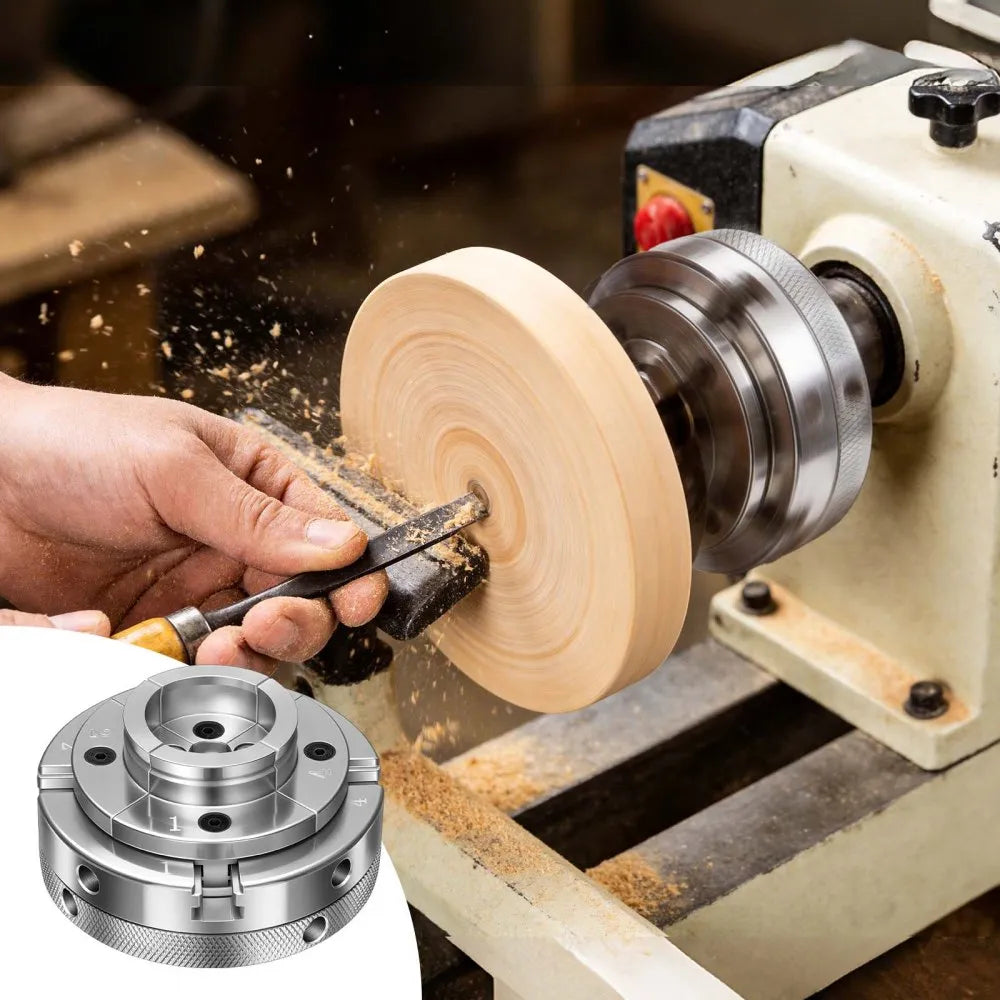

The Vevor 4-inch wood lathe chuck is designed for efficient woodturning with a 4-jaw self-centering design that helps keep workpieces aligned during operation. It features adjustable inside clamping and outside support for handling different workpiece shapes. Built from high-hardness steel with a nickel-plated finish, it is made for durability and corrosion resistance. The set fits 1" x 8 TPI wood lathe spindles with the included adapter and comes with accessories for quick installation and removal.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

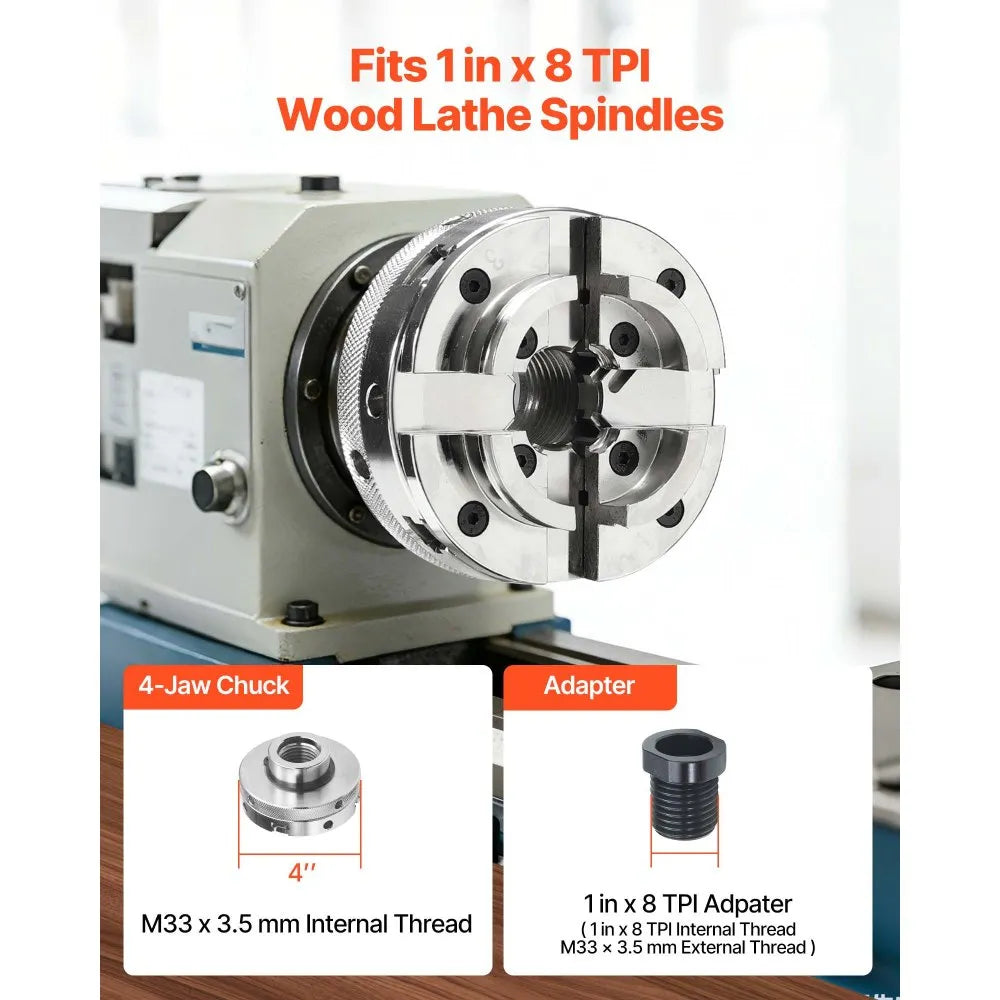

- Fits 1" x 8 TPI Wood Lathes: This 4-jaw wood lathe chuck features a 4-inch outer diameter and an M33 x 3.5 mm internal thread. The 1" x 8 TPI adapter fits 1" x 8 TPI lathe spindles, making it ideal for most medium and large woodworking lathes

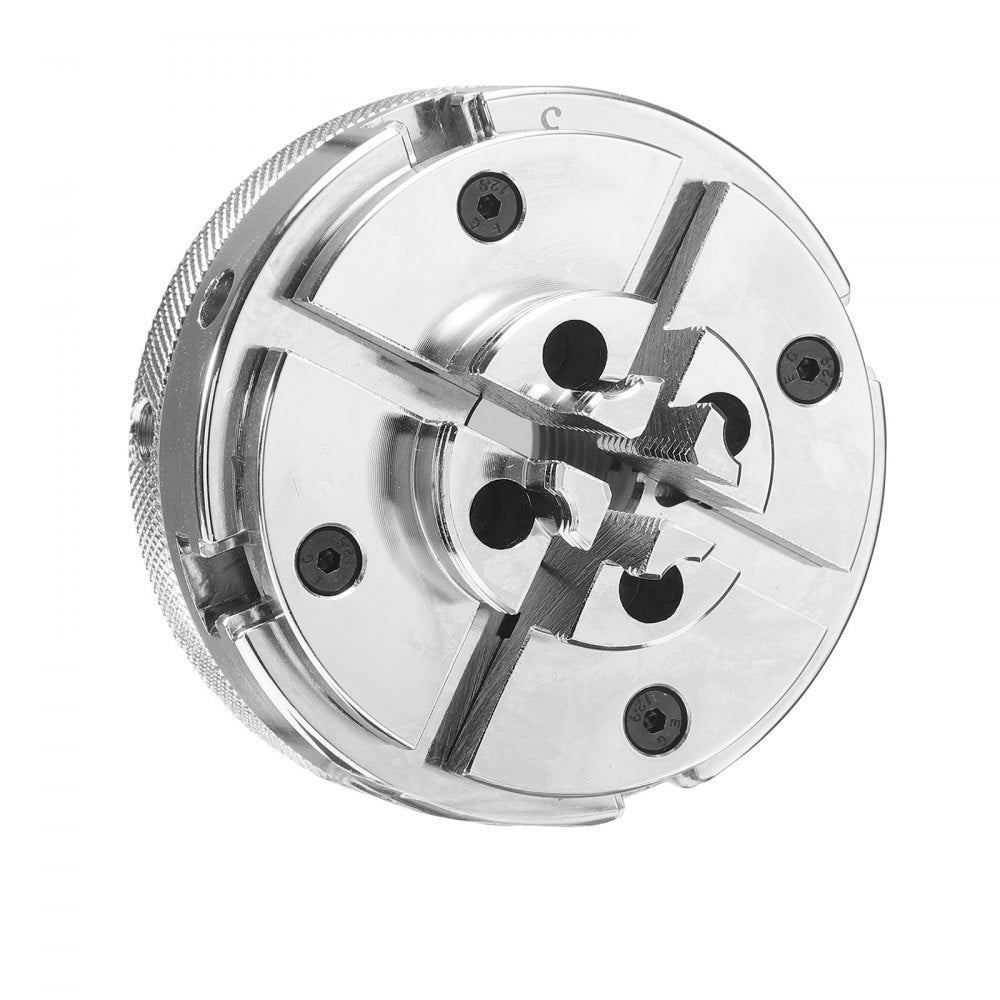

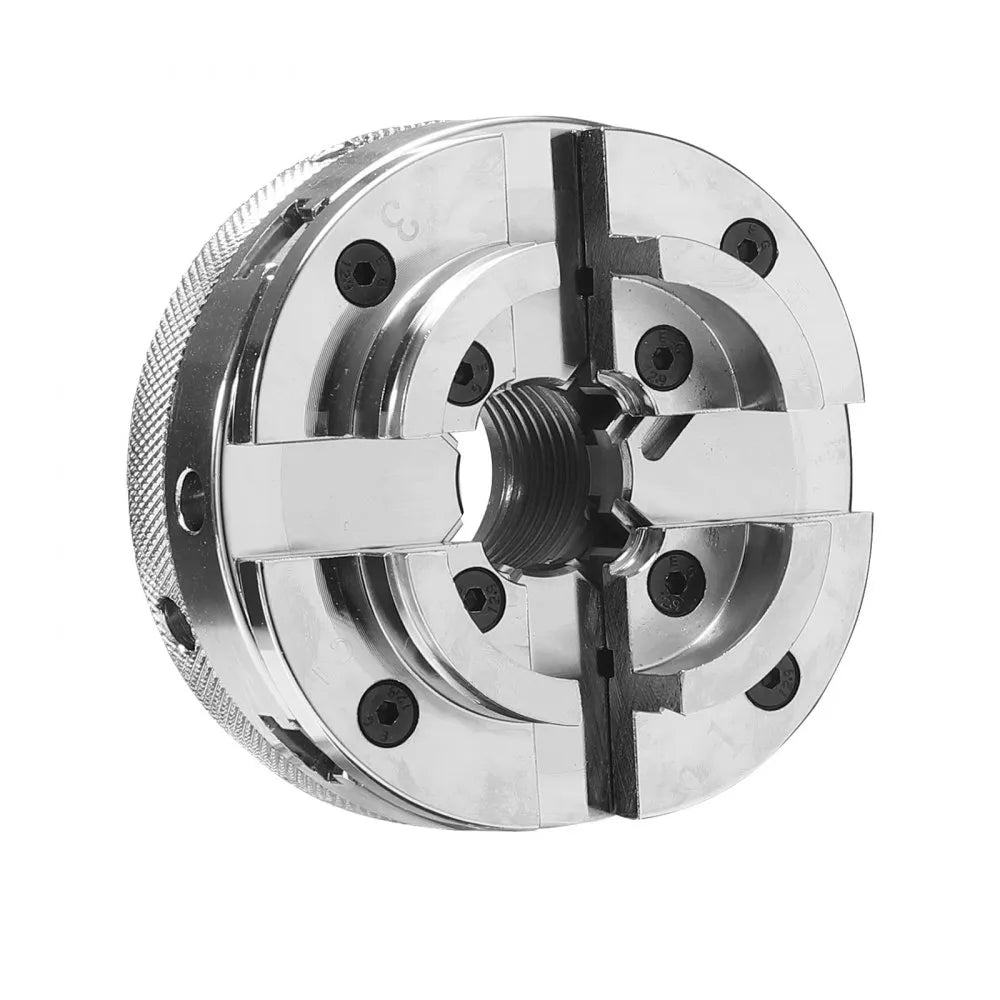

- Inside Clamping, Outside Support: 4-jaw adjustment via two locking bars. With a 1.5-2.8 in/39-72 mm inside clamping range and a 2-3.5 in/50.5-89 mm outside support range, this wood lathe chuck holds different workpiece shapes firmly
- Self-Centering Design: Our self-centering lathe chuck automatically keeps your workpiece centered during high-speed rotation. It minimizes misalignment without repeated manual adjustments, improving machining efficiency

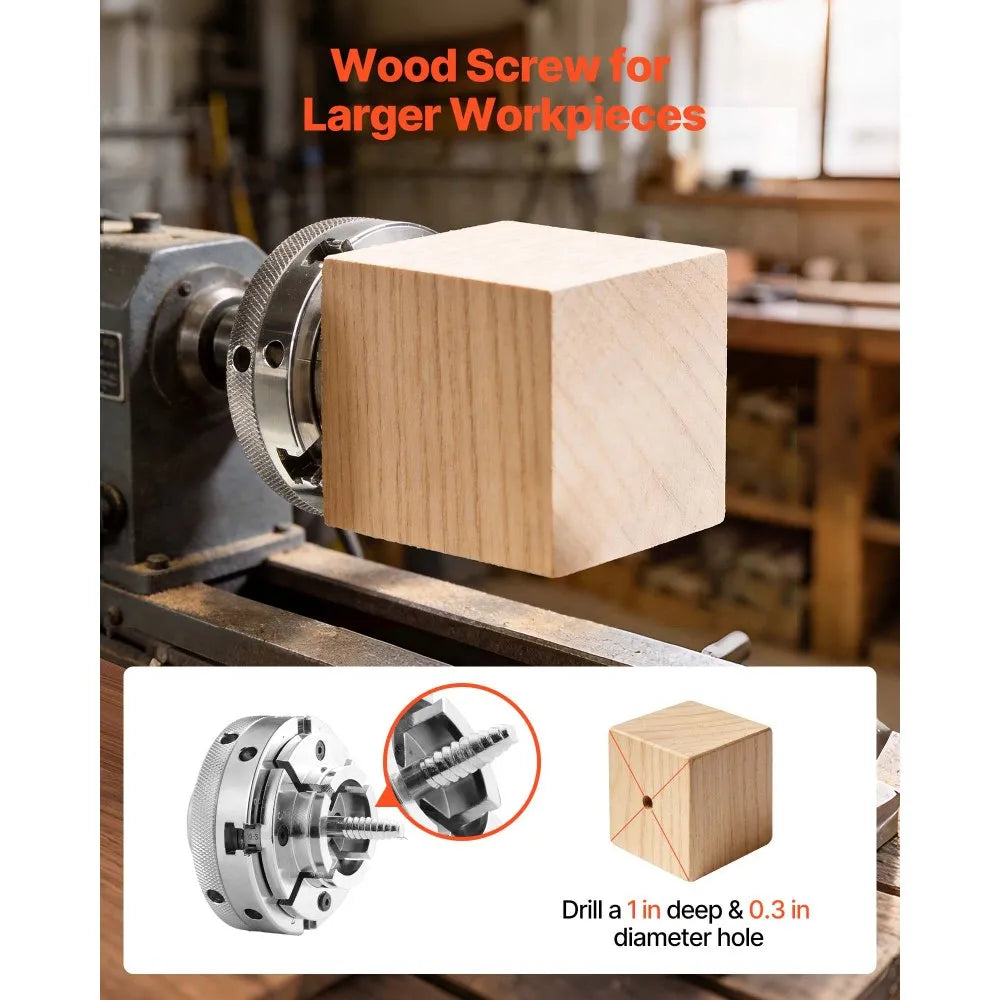

- Wood Screw Mounting: The wood turning lathe chuck includes a tapered screw designed for large, flat wooden workpieces. You can quickly secure the workpiece by drilling a 1 in deep, 0.3 in diameter hole at its center
- Heavy-Duty Durability: Made of high-hardness steel with a corrosion-resistant nickel-plated finish, the lathe chuck for woodturning reduces the damage caused by dampness or dust. It stays strong through long-term cutting and carving tasks
Specifications
| Product Type | Wood Lathe Chuck |
| Chuck Size | 4" |
| Jaw Configuration | 4-Jaw |
| Centering Type | Self-Centering |
| Compatible Lathe Thread | 1" x 8 TPI |

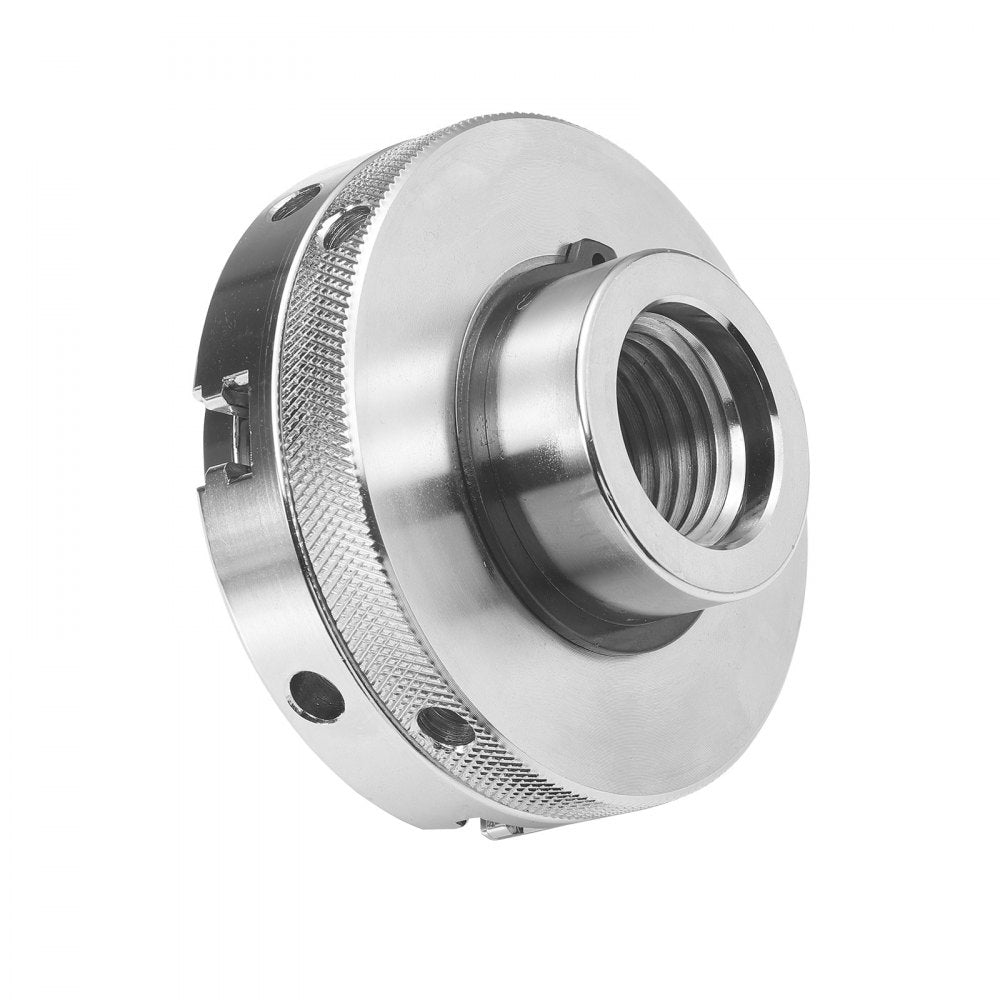

| Internal Thread | M33 x 3.5 mm |
| Inside Clamping Range | 1.5-2.8" |
| Outside Support Range | 2-3.5" |
| Material | High-Hardness Steel |
| Finish | Nickel-Plated |

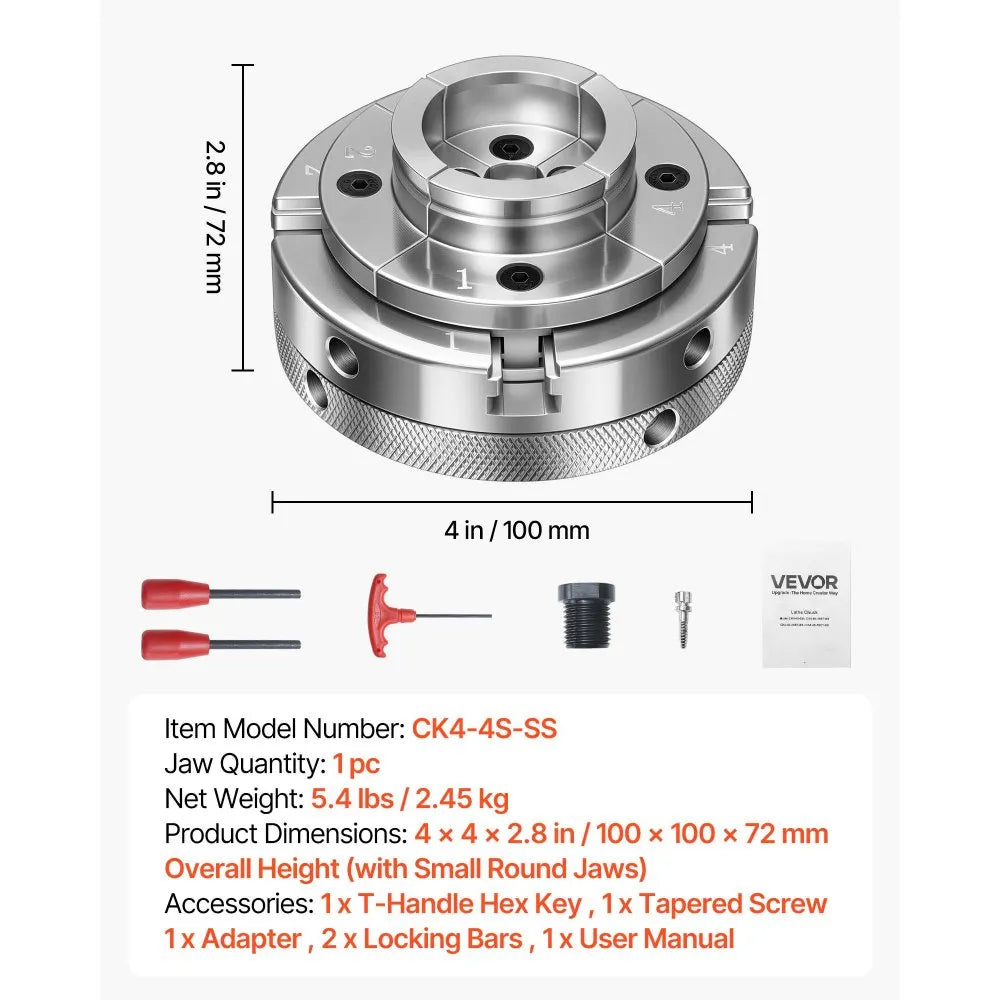

| Net Weight | 5.4 lbs |
| Dimensions | 4 x 4 x 2.8" |
| Model Number | CK4-4S-SS |

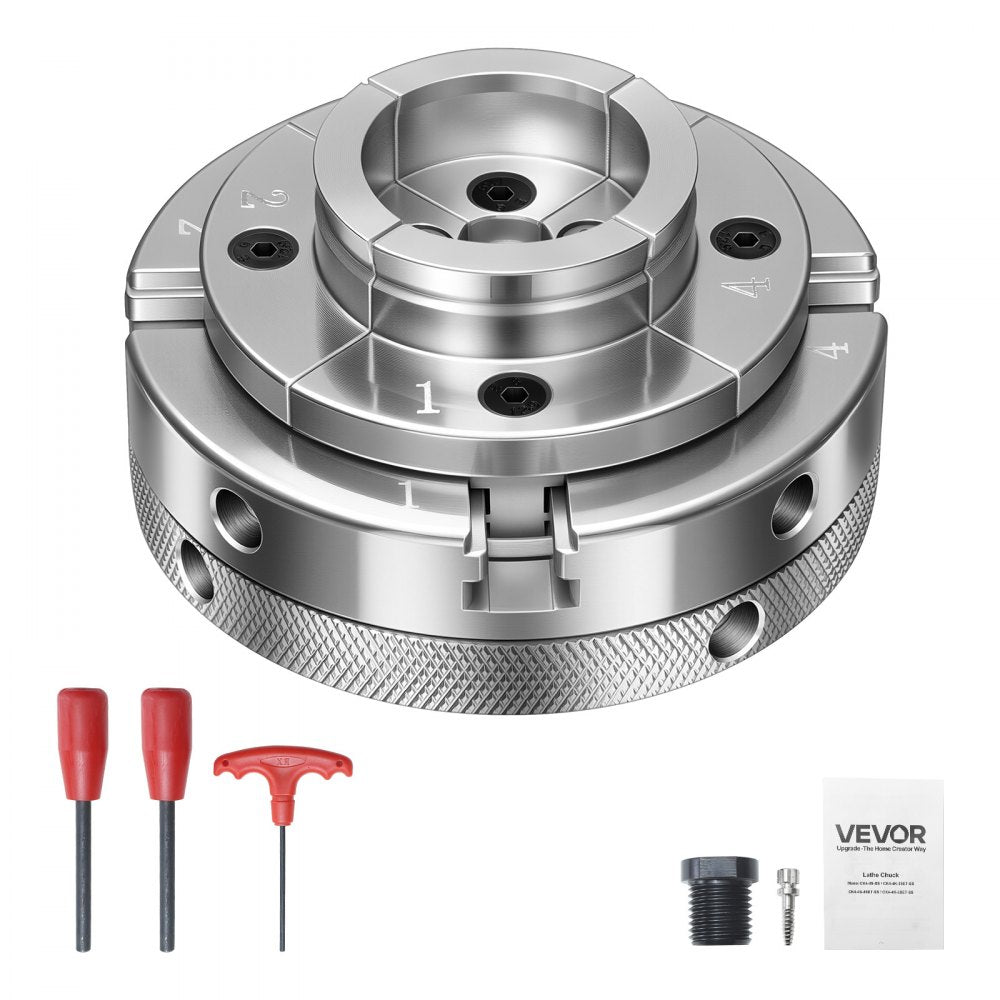

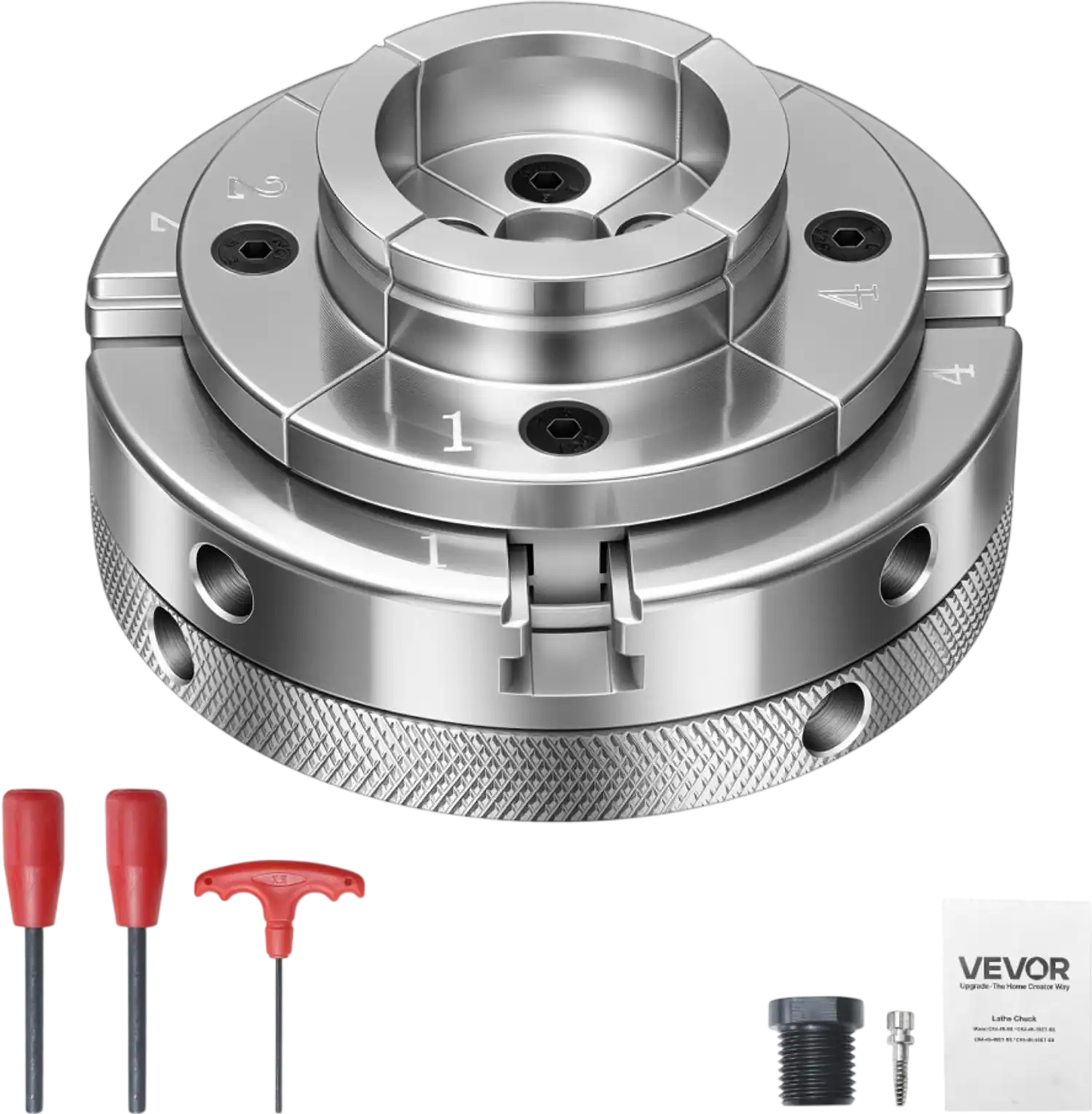

Package Contents
4" wood lathe chuck
1" x 8 TPI adapter
Tapered wood screw
Accessories for installation and detachment
Warranty
This item comes with a 1 year factory warranty.
