Victron PIN243020000 Energy Phoenix 24/3000 230V Inverter New
No reviews
Share
Add To Compare
Remove From Compare
Add To Wishlist
Remove From Wishlist
Product Overview
Brand new in box
Manufacturer direct shipping From TX
5 year limited manufacturer's warranty
Authorized Victron dealer
Free shipping

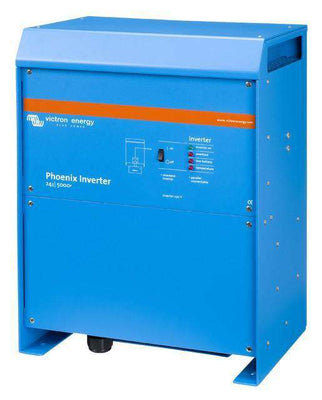

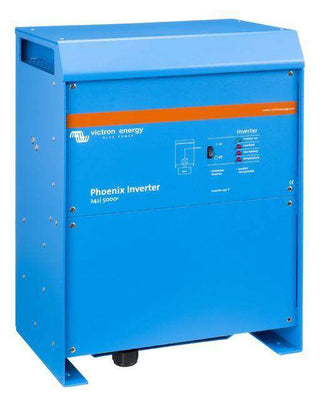

Victron PIN243020000 Energy Phoenix 24/3000 230V Smart Inverter
Phoenix Inverter
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Features:
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SINUSMAX - SUPERIOR ENGINEERING
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
PARALLEL AND 3-PHASE OPERATION CAPABILITY
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
This inverter produces pure sine wave power with 3000 VA output at 120 Volts 60 Hz from a 12 volt DC input. Multiple units can be ganged together for more ouput or for three phase, split phase use. (Requires optional connection cable)
Professional duty marine grade sine wave inverter
3000 VA continuous output, 2500 Watts at 120 Volts 60 Hz
Peak power 6000 Watts
DC input 9.5 - 17 Volts
93% max efficiency and 15 Watts no load power consumption
Can be ganged together for greater output, or for split phase or three phase use
Features and Specifications:Specifications/Efficiency:
Built-In Bluetooth Smart: Monitor or update the controller via smartphones or other devices. (No longer requires a dongle)
12 / 24 / 48V Auto Select (software tool needed to select 36V)
Ultra-fast Maximum Power Point Tracking (MPPT) and 99% peak efficiency
Multi-stage charging with intelligent battery management
5 Year Warranty
TECHNICAL SPECIFICATION
Country of Manufacture
India
Dimensions (mm)
362 x 258 x 218
Grid Voltage
230V
IP Rating
IP21
Mounting
Surface/Wall Mount
Output Connector
Hard-Wire
Power (Watts)
3000
SKU
PIN243020000
Voltage
24V
Weight (kgs)
18
As a Victron authorized dealer, we offer a 5 year limited factory warranty on this item.
Victron Solar Charge Controllers have a 5 year warranty.
