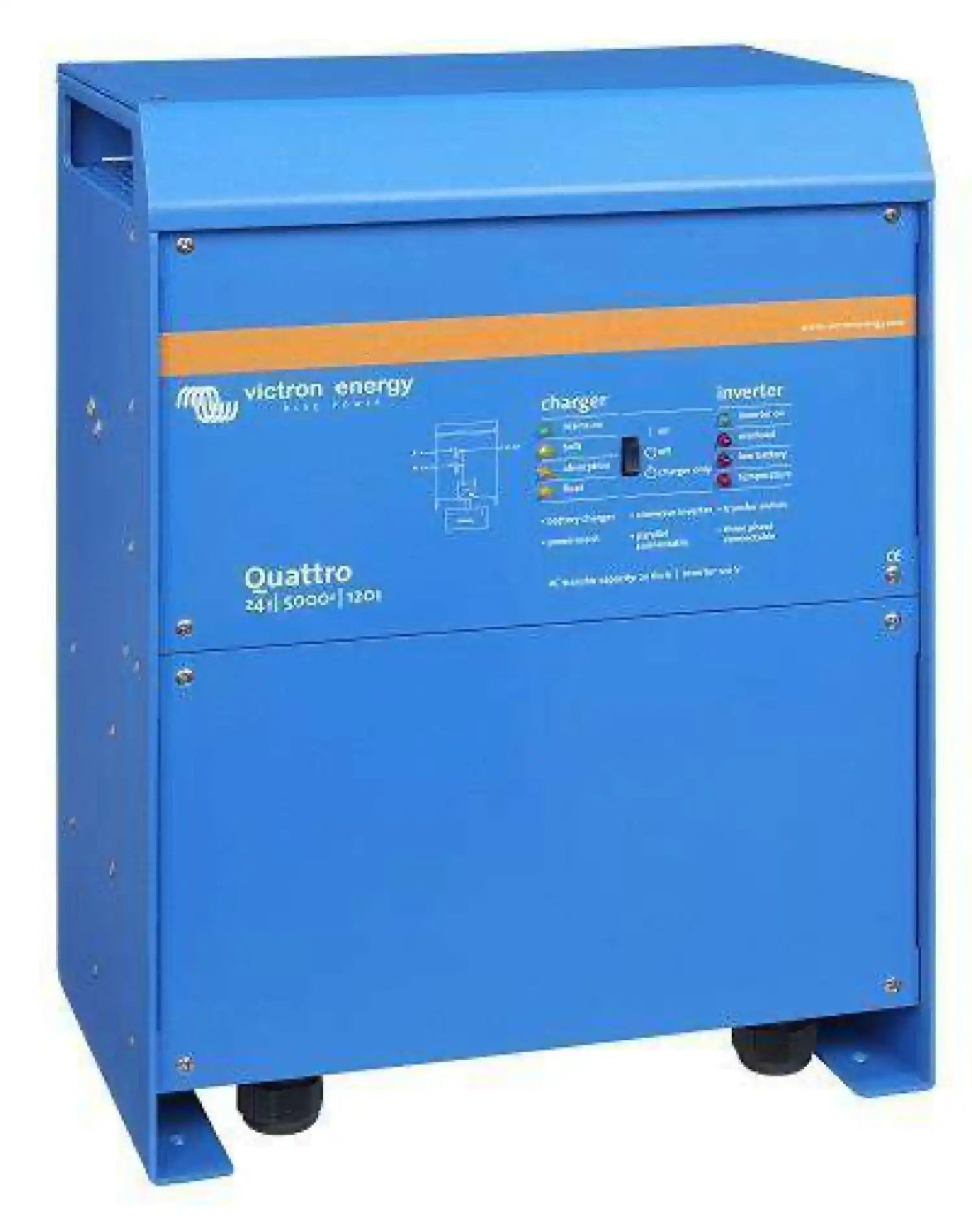

Victron QUA245021011 Quattro 24/5000/120-100/100 120V Inverter Charger
Features:
- Multifunctional: Inverter, Adaptive Charger and Transfer Switch all in one unit
- Two AC Inputs
- Two AC Outputs
- Up to (6) units can be connected in parallel for more power!
- Split-Phase capaility
- Three Phase capabillity
- Hybrid style technology called PowerAssist and PowerControl
- Four Sage adaptive charging
- Dual Battery Bank charging capability
Inverter Specifications:
- Continuous Power: 5000VA / 4000W
- Peak Power: 10,000W
- Input Voltage Range: 19V - 33 V
- Output Voltage: 120 VAC ± 2%
- Output Frequency: Frequency: 60 Hz ± 0.1%
- Maximum Efficiency: 94%
- Zero Load Power: 30W
- Zero Load Power in AES Mode: 25W
- Zero Load Power in Search Mode: 10W
Charger Specifications:
- Charging Current: 120A
- AC Input Voltage Range: 90VAC - 140VAC
- AC Input Frequency Range: 45 - 65Hz
- Charging Voltage (Absorption): 28.8V
- Charging Voltage (Float): 27.6V
- Storage Mode: 26.4V
Enclosure:
- Dimensions: 17.5" x 13" x 9.6" (444mm x 328mm x 240mm)
- Unit Weight: 66 lbs (30 kg)
- AC Terminal Connection: M6 Bolts
- Battery Connection: (4) M8 Bolts
