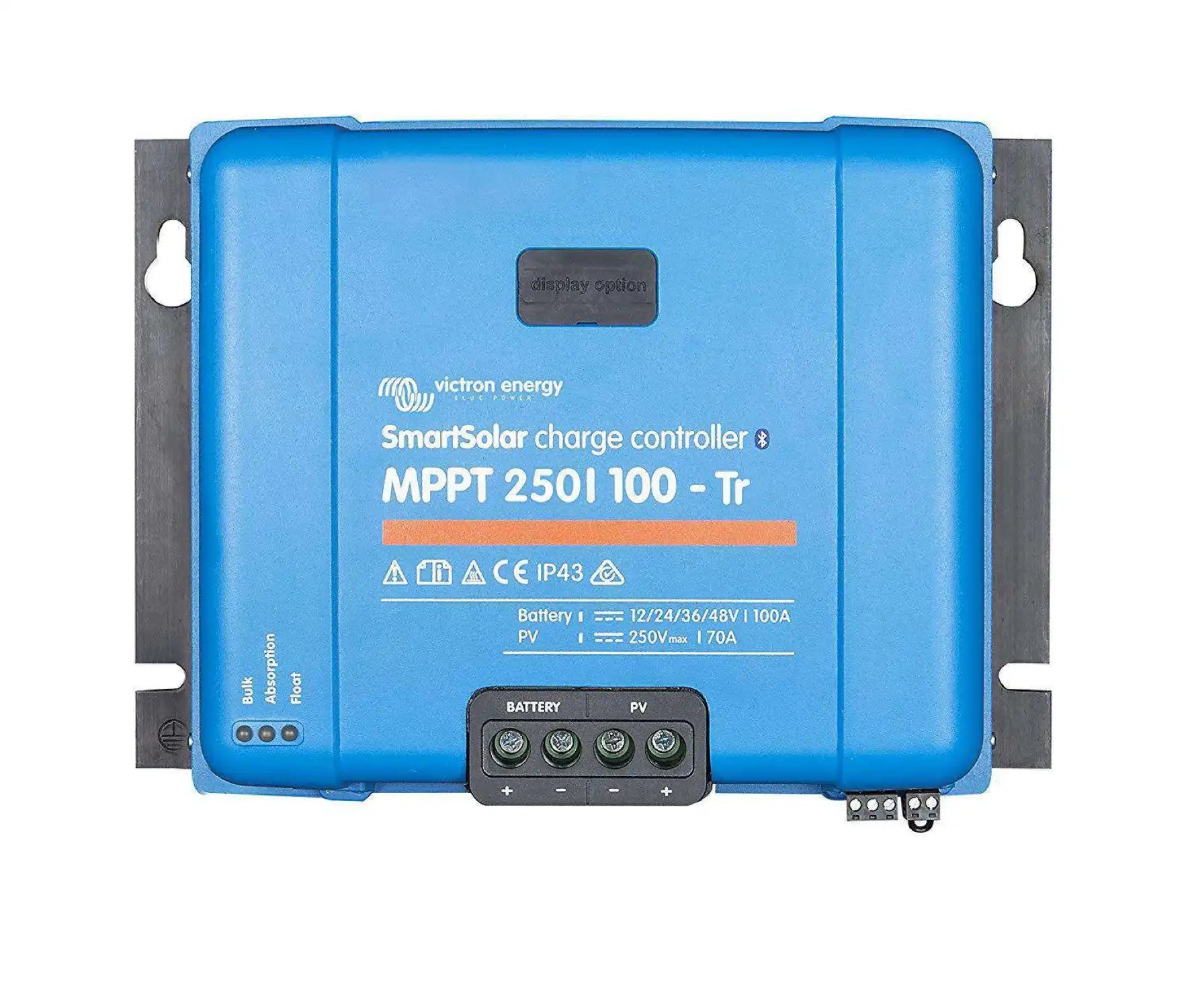

Victron SCC125110210 SmartSolar 250/100-Tr MPPT Charge Controller New

  • Model: Victron
  • SKU: SCC125110210
Victron SCC125110210 SmartSolar 250/100-Tr MPPT Charge Controller New

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in!
92900
bread
Pay Over Time

Select Bread as your payment option at checkout

In Stock
Ships Same or Next Day
If ordered by 12PM EST
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.



Brand new in box
Manufacturer direct shipping From TX
5 year limited manufacturer's warranty
Authorized Victron dealer
Free shipping

    VictronConnect

    VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

    Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

    Victron Energy 100A MPPT Solar Charge Controller

    A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

    By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

    Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

    By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

    Features and Specifications:

    • Ultra-fast Maximum Power Point Tracking (MPPT)
    • Advanced Maximum Power Point Detection in case of partial shading conditions
    • Outstanding conversion efficiency
    • Flexible charge algorithm
    • Internal temperature sensor
    • Bluetooth Smart built-in: dongle not needed
    • Programmable relay
    • Optional: pluggable LCD display
    • Battery voltage: 12, 24, 48 Volts DC (36VDC can be set up with software tool)
    • Rated charge current: 100 Amps
    • Max. PV short circuit current: 70 Amps
    • Maximum PV open circuit voltage: 250 Volts absolute maximum coldest conditions, 245 Volts startup and operating maximum
    • Maximum wire size: #2 AWG
    • Weight: 9.92 lbs (3 kg)
    • Dimensions (inches / millimeters): 8.5" x 11.61" x 4.06" / 216 x 295 x 103 mm
    • 5 year warranty

    Specifications/Efficiency:

    • Built-In Bluetooth Smart: Monitor or update the controller via smartphones or other devices. (No longer requires a dongle)
    • 12 / 24 / 48V Auto Select (software tool needed to select 36V)
    • Ultra-fast Maximum Power Point Tracking (MPPT) and 99% peak efficiency
    • Multi-stage charging with intelligent battery management
    • 5 Year Warranty

    As a Victron authorized dealer, we offer a 5 year limited factory warranty on this item.

    Victron Solar Charge Controllers have a 5 year warranty.
