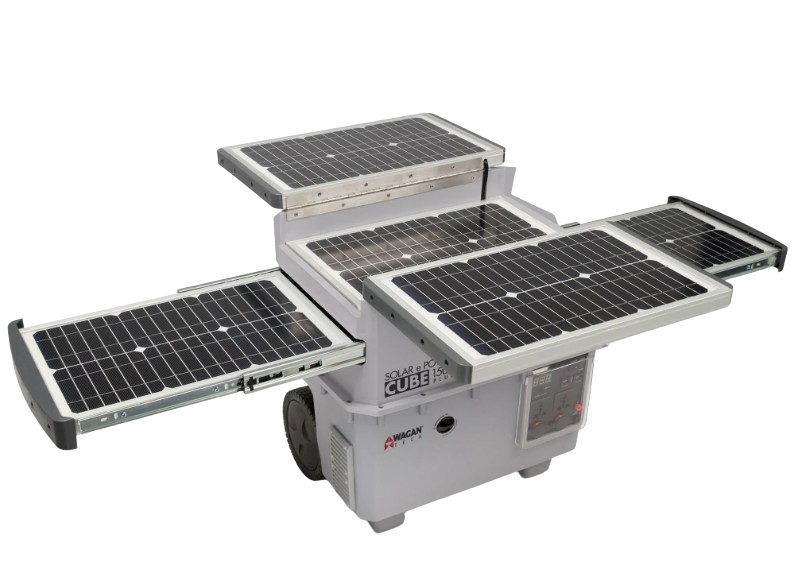

Wagan 2546 Solar ePower Cube 1500 Solar Generator New
Product Overview
The Solar ePower Cube Solar Generator features a 1500 watt power inverter, two 115V AC outlets, two 12V accessory outlets for powering DC appliances, two USB power ports (5V 2.1 amp total), and a digital LED voltmeter display for checking battery status.
Includes both AC and DC adapters to recharge the built-in 55 AH AGM/gel hybrid battery. It is ideal for deep cycle applications. Its continuous AC output power capacity is 1500 watts with 3600 watts peak surge of power.
Brand new in box
Manufacturer direct shipping from CA
1 year manufacturer's warranty
Authorized Wagan dealer
Features
- 1500 watt Power Inverter (3600 watts peak)
- Two AC Outlets
- Two 12 volt Automotive Outlets for powering DC appliances (loads to 15 amps)
- Two USB Power Ports for charging/operating cell phones, PDAs, and MP3 players
- AC Charging Adapter with 5 amp output
- DC Charging Adapter (fused)
- Digital LED Voltmeter for checking battery status
- Battery Status Push-Button
- Battery Disconnect Switch
- Solar Panel Terminals to connect solar panels to the internal Solar Charge Controller
- Terminals to connect additional batteries
- Storage Hatch for chargers and cables
- Shape molded handles for easy lifting/wheels for positioning the Solar e Power Cube.
- 55Ah Gel/AGM hybrid battery for long life
- 80 Watts (5 × 16 watts) of solar panels for charging the internal battery.
Specifications
| AC input frequency | 47–63 Hz |
| DC output voltage | For 12 volt batteries |
| DC output current charge current maximum | 5.0 amps |
| AC Charging Adapter Indicator LED (red/green) | Red-Charging Green-Charging Complete/Float Charge |
| Output connector | DC plug (automotive) |
| DC cable length | 100 cm (39 in.)DC internal replaceable fuse |
| Active panel materials (5 × 16 watts) | Monocrystalline |
| Voltage output range | 16–22 volts |
| Panel wattage maximum | 80 watts |
| Panel efficiency | 17% |
| Internal Solar Controller maximum panel wattage | 150W |
| Controller max panel current | 10A |
| Dimensions (solar panels retracted/folded closed) | 20.9 × 20.9 × 14.7 in. (53 × 53 × 37 cm) |
| Weight | 84 lbs (38.2 kg) |
| Internal battery type | Hybrid sealed lead-acid AGM with GEL |
| Internal battery voltage (nominal) | 12V |
| Internal battery capacity | 55 Ah |
| Maximum load current through 12 volt DC Accessory Outlet (continuous) | 15A |
| DC Accessory Outlet circuit breaker rating (internal, automatic reset) | 15A |
| USB max output current | 2.0A |
| AC output voltage (nominal) | 115V 220V |
| AC output frequency | 60 Hz ± 4 Hz 50 Hz ± 4 Hz |
| Maximum continuous AC output power | 1500W (3 min. without extra batteries) |
| Momentary AC surge power | 3600W |
| AC output waveform | Modified sine wave |
| Battery drain with no load/outlets on | Less than 0.5A |
| Operating/storage temperature | 32–104 °F (0–40 °C) |
| Low battery alarm trigger (nominal) | 10.5 V ± 0.5V |
| Low battery shutdown (nominal) | 9.5 V ± 0.5V |
| AC input voltage range | 90–230V AC |
Package Contents
Wagan Solar ePower Cube 1500
User Manual
Warranty
The manufacturer warranties this product for 1 year.
