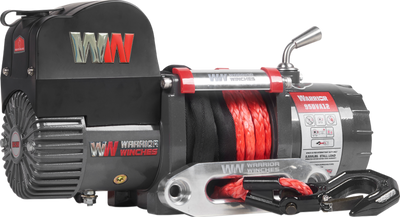

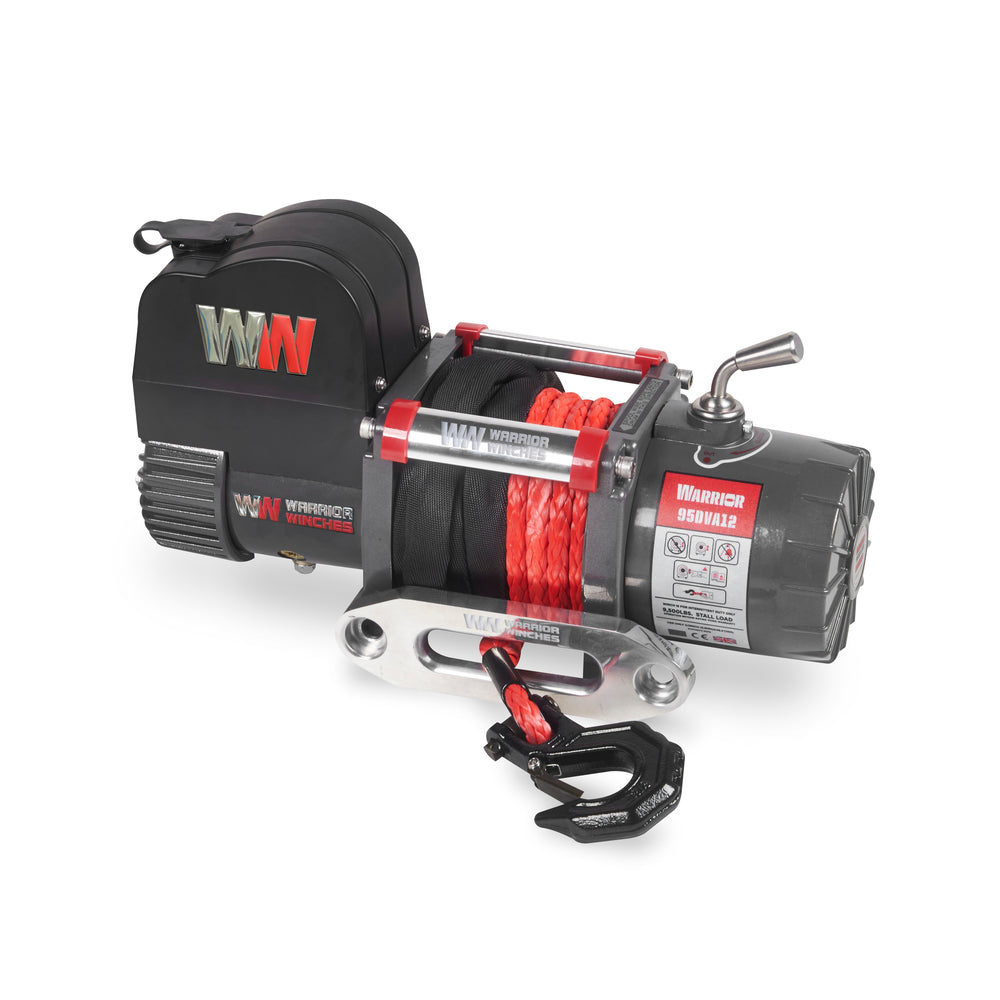

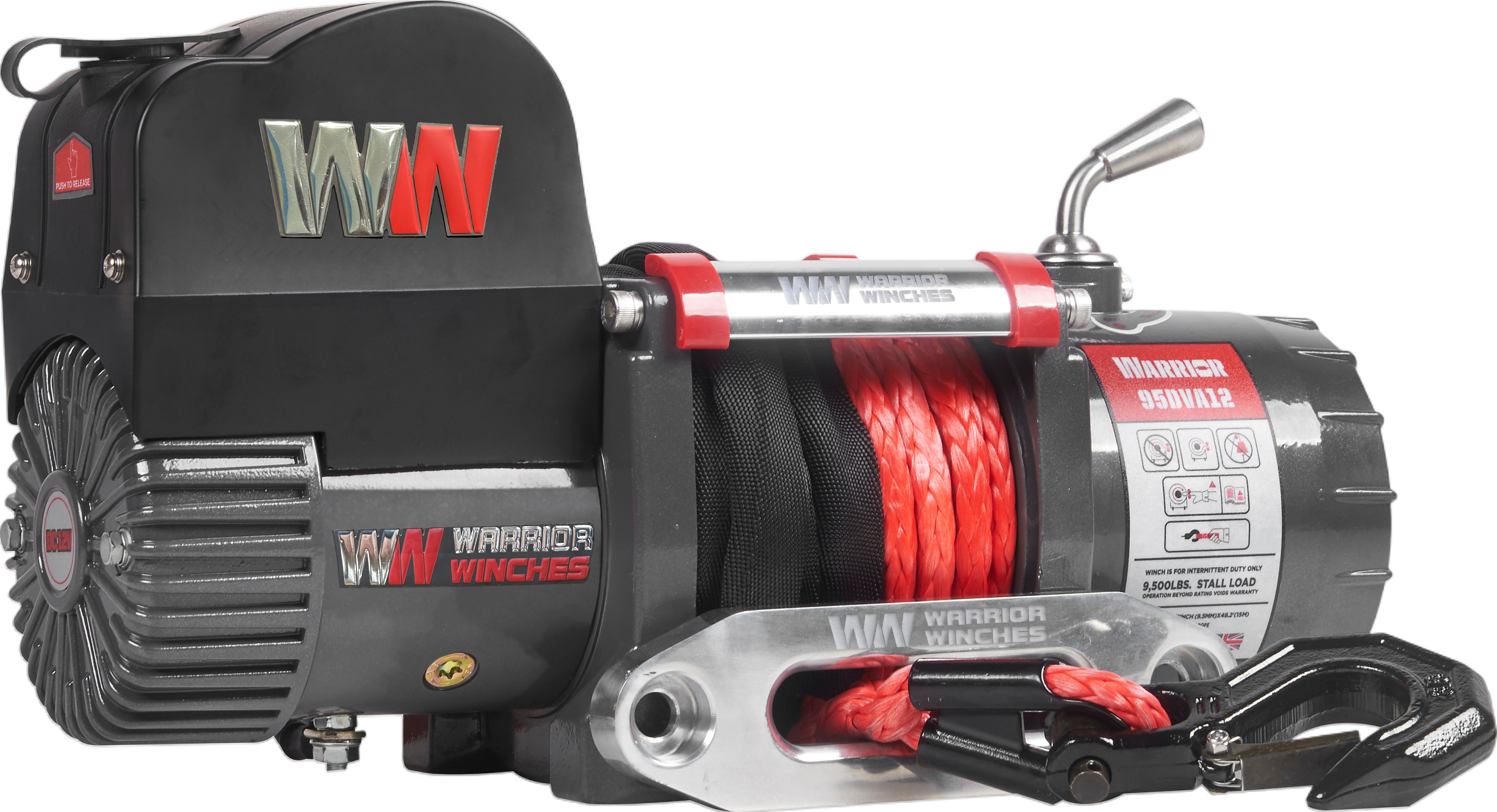

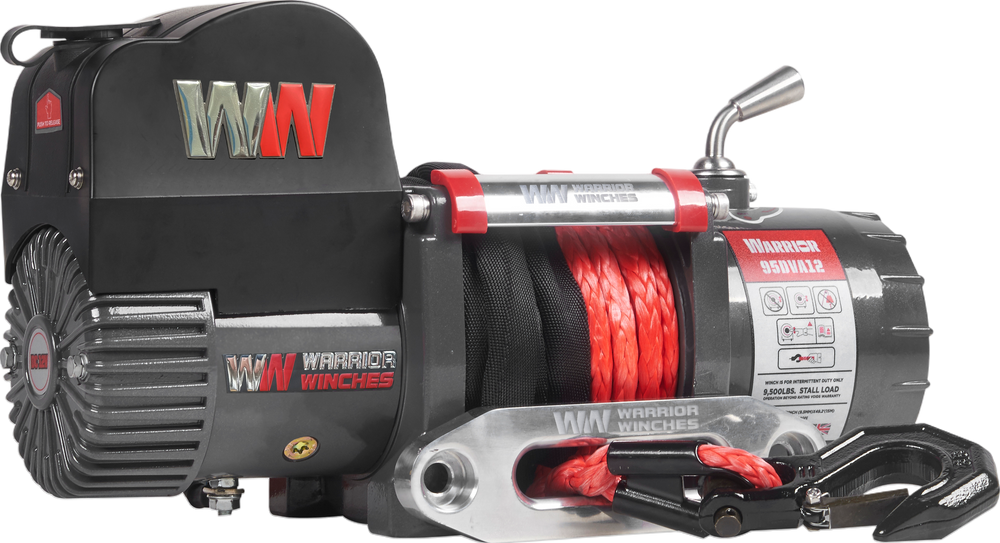

Warrior Winches Samurai Electric Winch Short Drum 9,500 Lb 12-Volt Synthetic Rope New
Product Overview
The next generation Samurai winch is designed for maximum power, speed, and efficiency. It pulls faster, draws less current, and delivers unstoppable performance when it matters most. At its core is a revolutionary external brake system, giving you superior load holding and smooth, controlled pull while eliminating heat buildup in the drum. This winch comes fully equipped with a premium fairlead and fittings, and an integrated wireless remote.
This short drum version features a total width of 456 mm, ensuring a perfect fit for limited spaces.
Brand new
5 year limited warranty
US orders ship from TX
CA orders ship from Ontario
Manufacturer direct shipping
Authorized Warrior Winches Dealer
Features
- 4.72" Short Drum: Ideal for installations in tight spaces with compact dimensions.
- Revolutionary Design External Brake: Provides superior control and safety during operation.

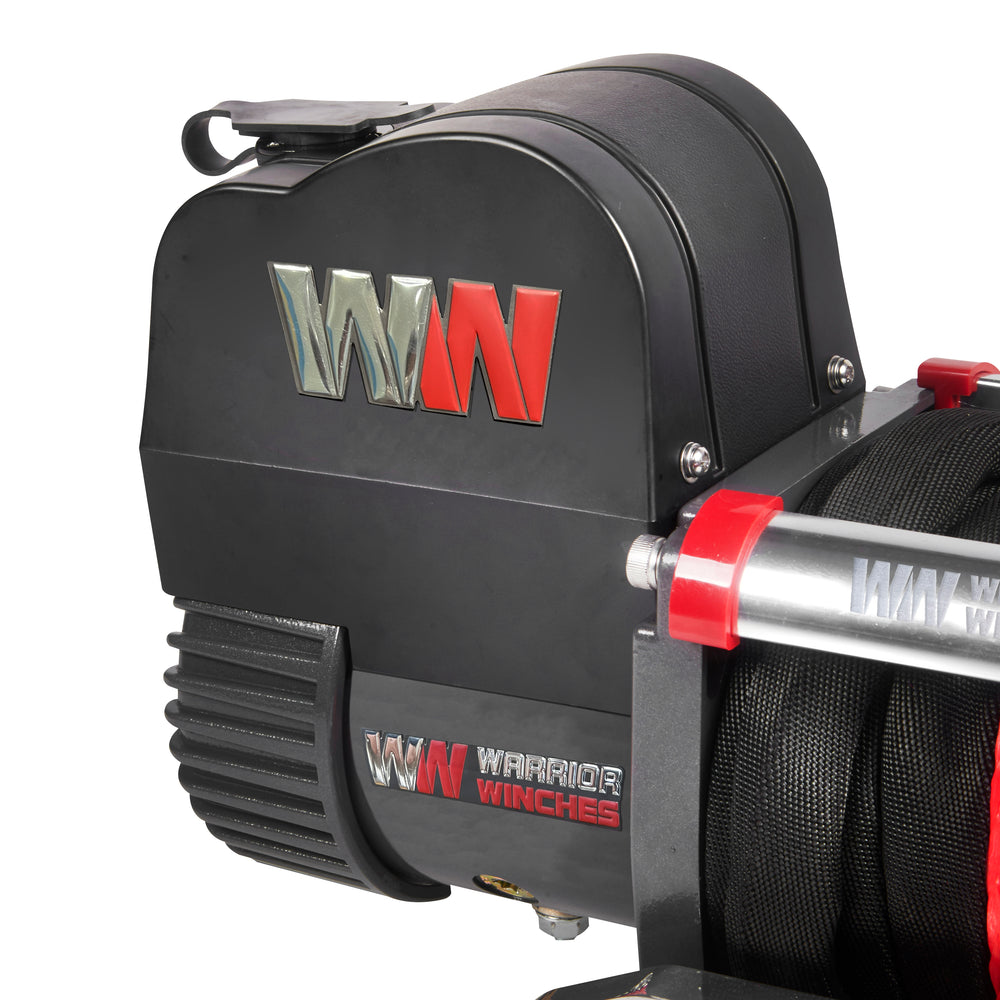

- Silver Copper Motor with Copper Brush Holders: Ensures enhanced durability and efficient operation.
- 600 Amp Silver Tip Contactor: Delivers reliable, high-performance electrical connections.
- IP67 Waterproof Sealing: Offers comprehensive protection against dust and water for dependable performance in extreme conditions.
Specifications
| Rated Lift | 9500 LBS |
| Motor Type | 12V: Input: 4.6 kW / 6.1 HP; Output: 2.1 kW / 2.8 HP |
| Gearing | 196:1 |
| Gearing System | Planetary |
| Braking Action | External Brake |
| Drum Size (Diameter x Length) | 2.48" x 4.72" |
| Cable Material | Synthetic |
| Cable Size | 45.93 ft. x 0.37 in. |
| Fairlead | Hawse |
| Mounting Pattern | 5.94" x 4.5" |
| Dimensions | 17.95" x 6.3" x 9.76" |
| Weight | 60 lbs |

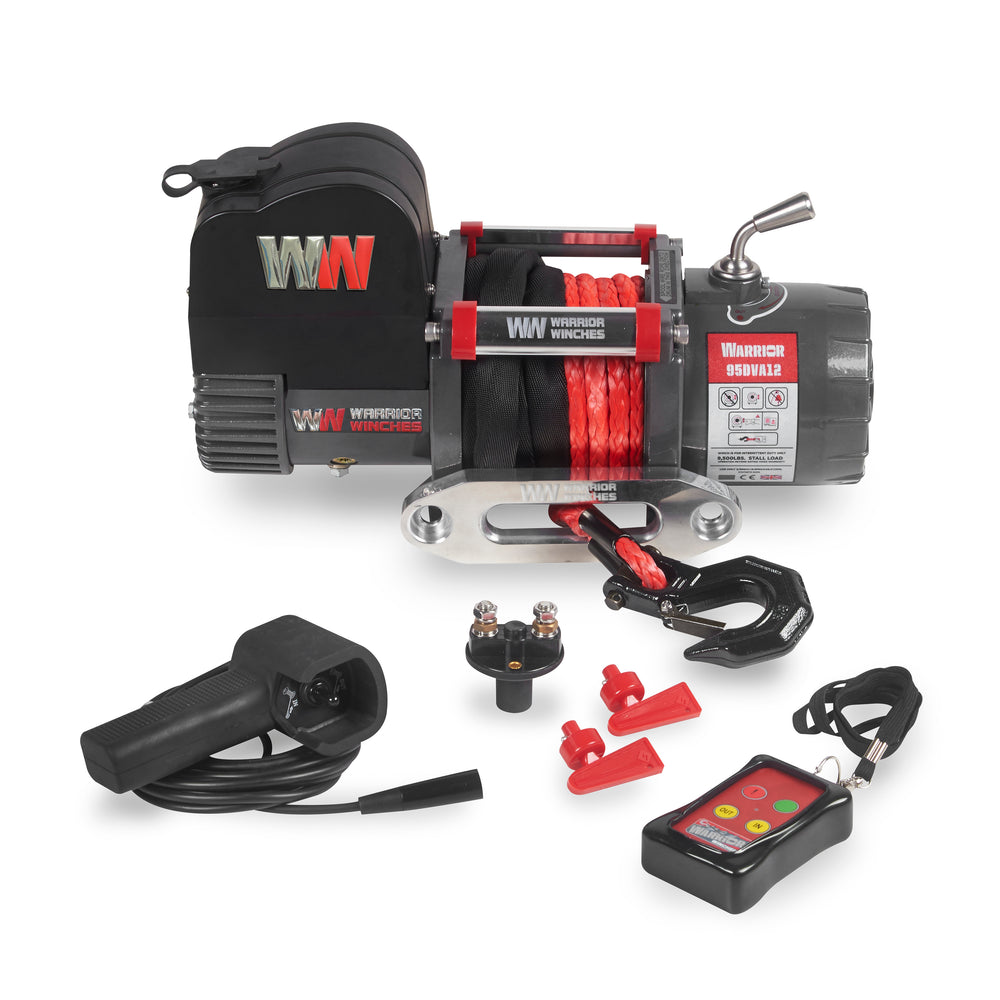

Package Contents
Samurai Winch Short Drum
Fairlead

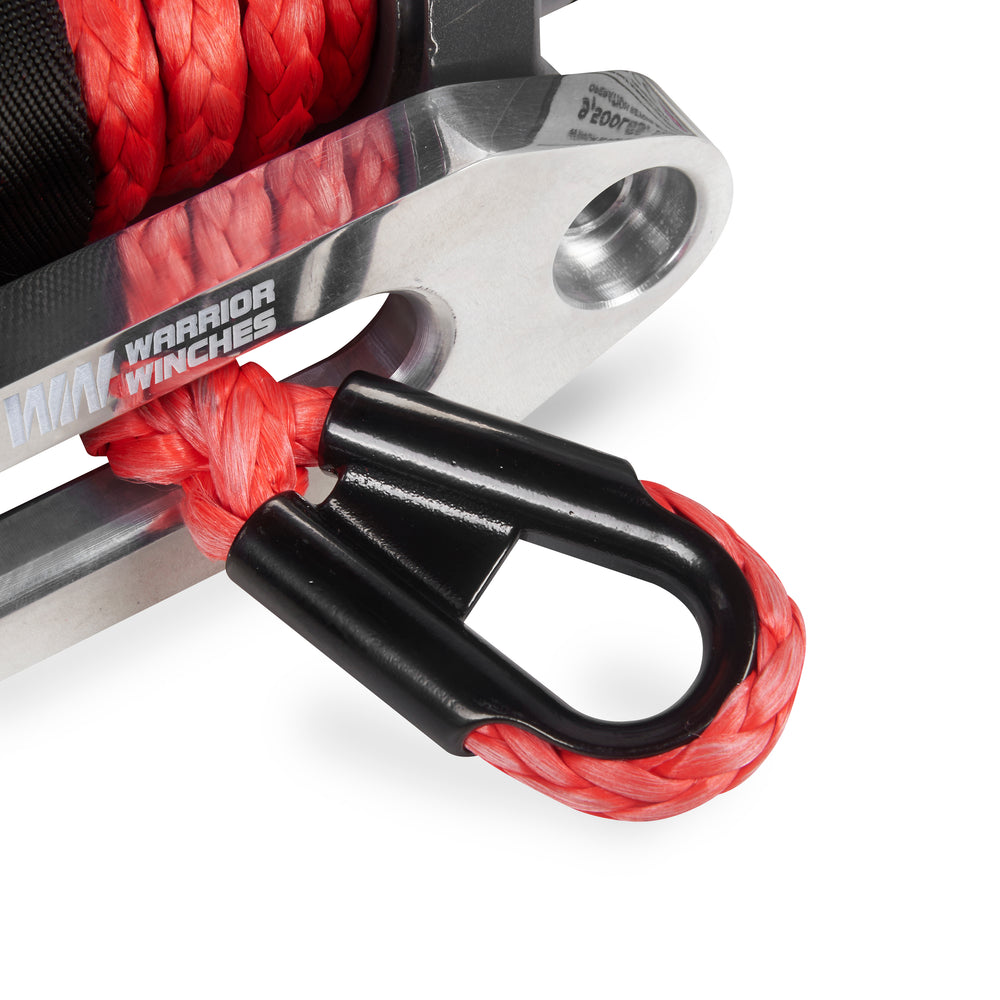

Synthetic Rope
HD Battery Leads
12.4FT Wired Remote Handset
Wireless 2.4G Remote

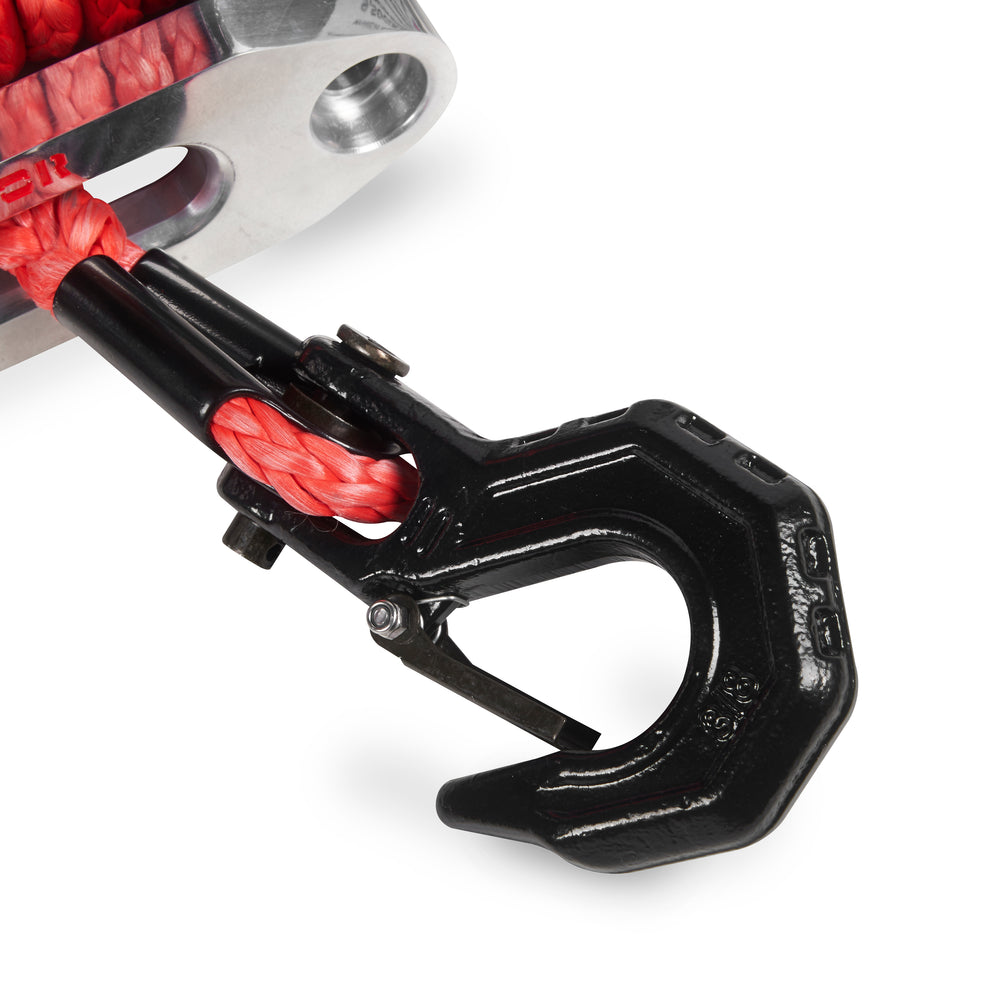

Removable Heavy Duty Hook
Isolation Switch
Stainless Steel Mounting Hardware
User Manual
Warranty
This item comes with a 5 year limited warranty.
