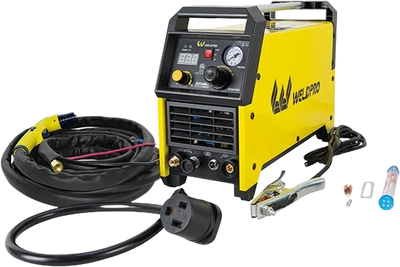

Weldpro CUT40HSV Plasma Cutter 40 Amp Inverter with High-Frequency Pilot Arc Dual Voltage 220V/110V L14007 New
Manufacturer: Weldpro
SKU: L14007
QTY
(888) 999-1522
$ 649.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

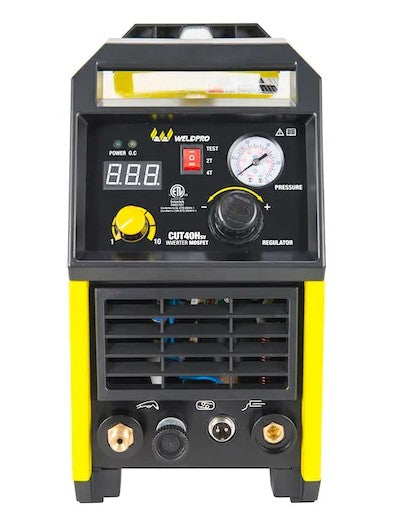

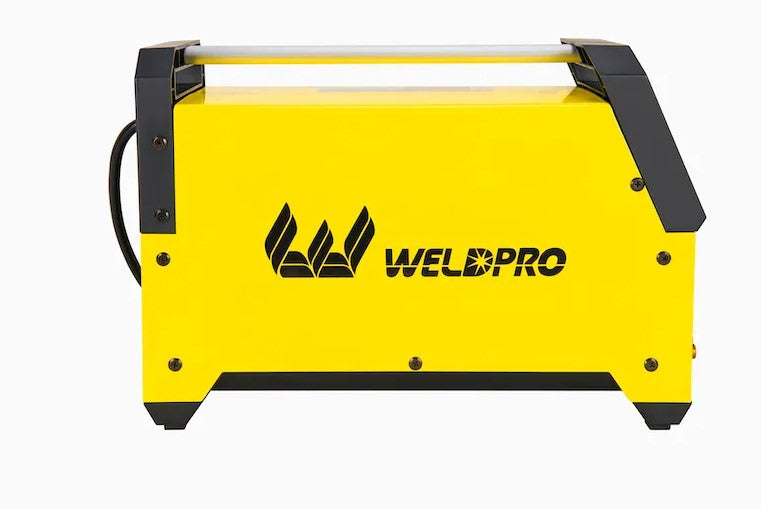

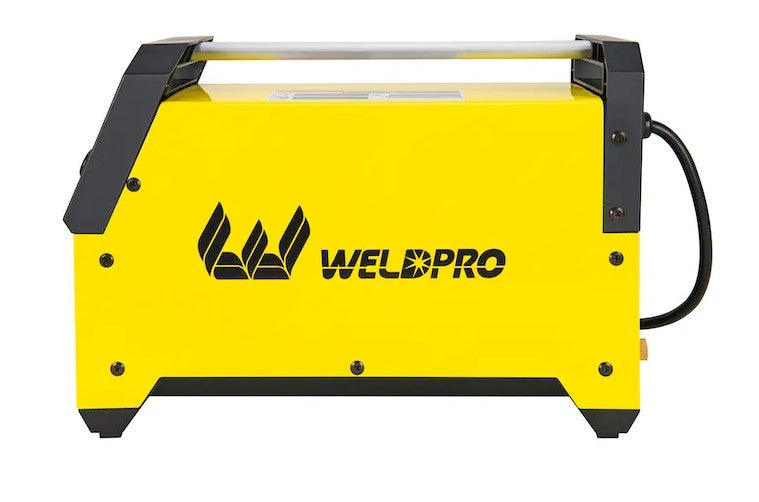

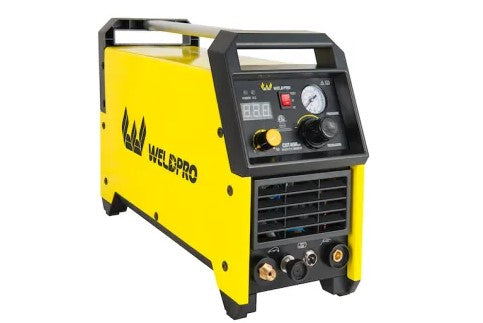

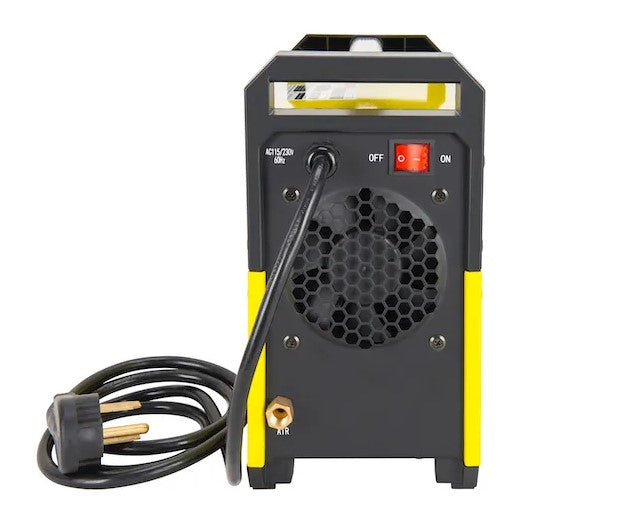

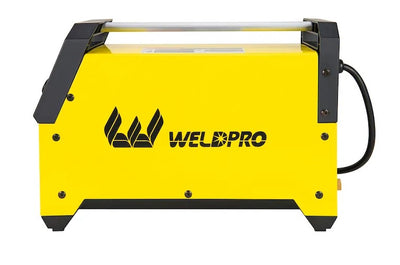

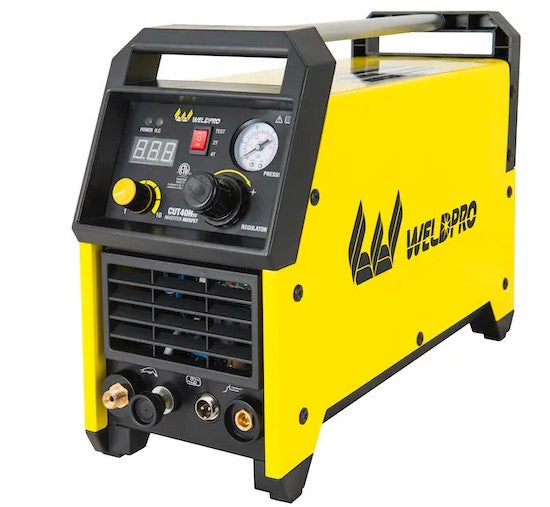

Weldpro CUT40HSV Plasma Cutter 40 Amp Inverter with High-Frequency Pilot Arc Dual Voltage 220V/110V L14007 New
Product Overview
This 40 amp Plasma Cutter is designed for fabrication work, farm work, auto body repairs, and any of your DIY projects requiring the latest inverter technology. It features HF start with Pilot arc, which helps to make clean, fast cuts through rusty, painted, or expanded metal such as stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge or as thick as 1/2 in., with an air compressor that puts out 50.7-58 psi.
The dual voltage 115-Volt/230-Volt design allows it to be used almost anywhere there is power available (120-Volt restricts total amp output and cutting capacity).
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- 15-40 Amp output, with 60% at 40 Amp rated duty cycle
- Lightweight and portable, easily carried by 1 person (22.05ib)
- 2T/4T modes, which is useful when having a long cut to do as it saves work of holding the trigger down the whole time.
- Making clean, fast cuts through stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 1/2 in.
- High temp and overload protection with indication
- Dual voltage 115-Volt/230-Volt 10% design
- It is designed for fabrication work, farm work, auto body repairs and DIY job
- HF pilot arc start, which helps making clean, fast cuts through rusty, painted, or expanded metal
Specifications
| Supply voltage (V) | 1 phase 115V±15% 1 phase 230V±15% |
| Frequency (Hz) | 60 |
| Rated input current (A) | 20/40 |
| Open circuit voltage (V) | 266 |
| Output current (A) | 14-20 14-40 |
| Output voltage (V) | 85.6-92 85.6-96 |
| Duty cycle (%) | 60 |
| Power factor | ≥0.73 |
| Efficiency (%) | ≥80 |
| Arc starting mode | HF |
| Pressure of the air compressor (psi) | 50.7-58 |
| Nozzle orifice - inside (in) | .047 |
| Cutting thickness (in) | 1/4 1/2 |
| Housing protection class | Ip21 |
| Insulation class | F |
| Cooling method | Forced Air Fan |
| Weight (lb) | 22 |
| Dimensions (in) | 18.5 x 6.7 x 12.4 |

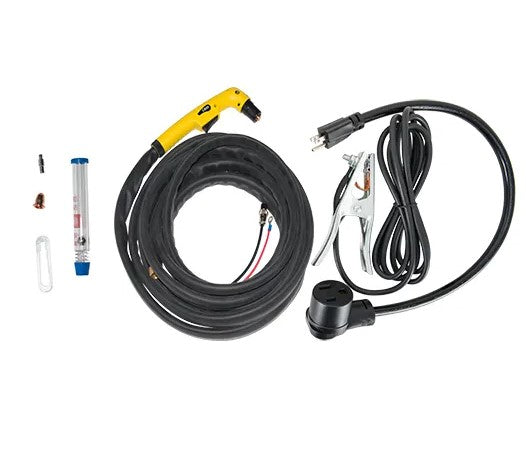

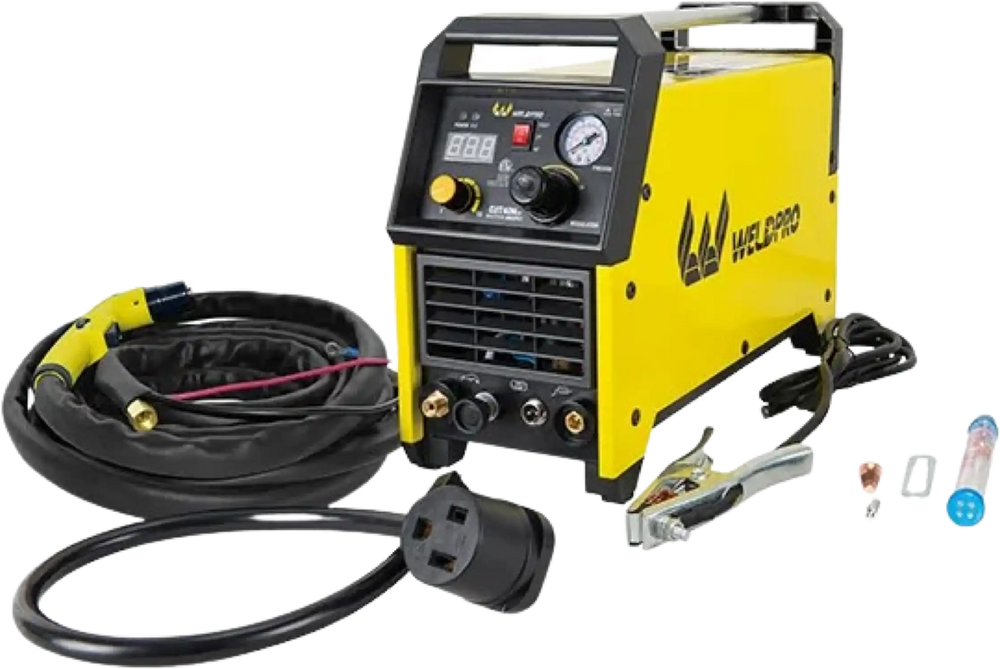

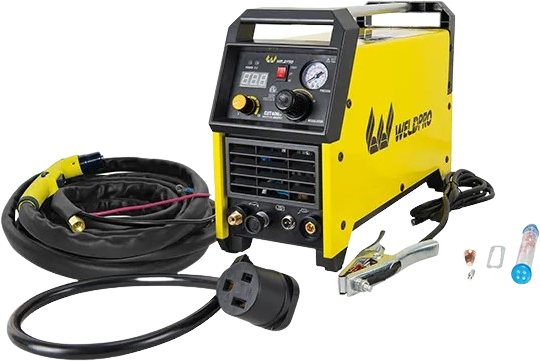

Package Contents
Inverter Plasma Cutter
Cutting Torch
Earth Clamp
Power Adapter
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
