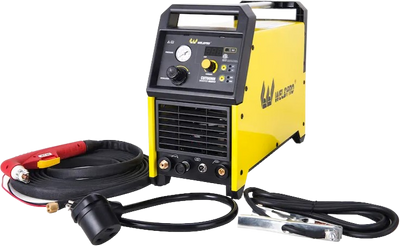

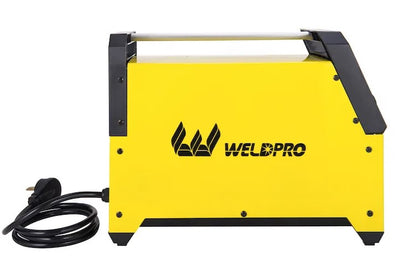

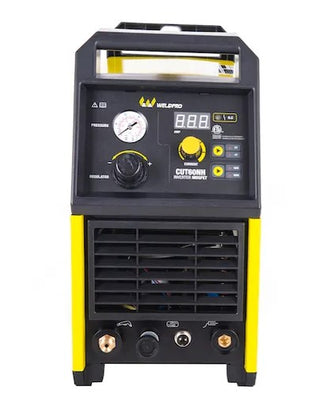

Weldpro CUT60NH Plasma Cutter 60 AMP Dual Voltage 220V and 110V L14005 New
Manufacturer: Weldpro
SKU: L14005
QTY
or
(888) 999-1522
$ 799.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

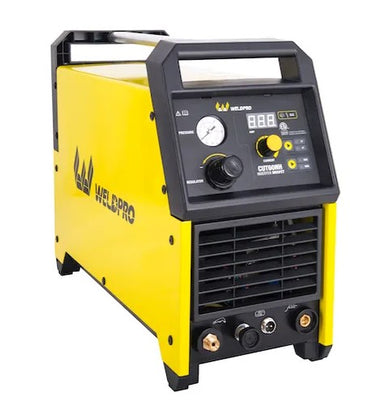

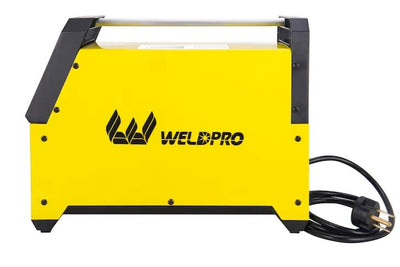

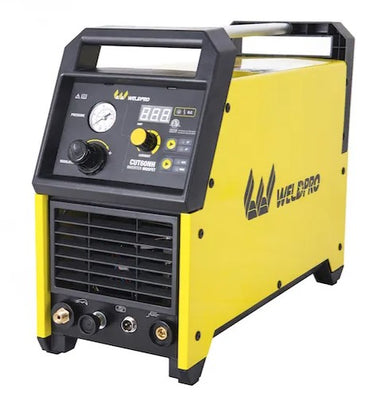

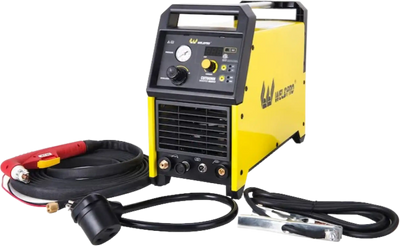

Weldpro CUT60NH Plasma Cutter 60 AMP Dual Voltage 220V and 110V L14005 New
Product Overview
The CUT60NH is built on an inverter platform. Easy starting with blow back pilot arc allows easy cutting of rusty, dirty and painted metals. such as stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 0.787 in. with any air compressor that puts out 50.7-65.3 psi. Blowback start starts arc without the need of high frequency which can interfere with surrounding electronics.
The dual voltage 115-Volt/230-Volt design allows it to be used almost anywhere there is power available (120-Volt restricts total amp output and cutting capacity).
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- 20 – 60 Amp output, with 60% at 60 Amp rated duty cycle
- It is an ideal choice for factory maintenance, fabrication work and farm work and auto body repairs
- Cutting through stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 0.787 in.
- Blowback/contact pilot arc start, which helps making clean, fast cuts through rusty, painted, or expanded metal. blowback start starts arc without the need of high frequency which can interfere with surrounding
- Using any air compressor that puts out 50.7-65.3 psi, you will be able to cut all exotic metals fast, clean, and effectively
- High temp and overload protection with indication
- Dual voltage 115-Volt/230-Volt 10% design
- 2T/4T modes, which is useful when having a long cut to do as it saves work of holding the trigger down the whole time
Specifications
| Supply voltage (V) | 1 phase 115V±10% 1 phase 230V±10% |
|---|---|
| Frequency (Hz) | 60 |
| Rated input current (A) | 41.1, 46.4 |
| No-load voltage (V) | 266 |
| Output current (A) | 20-30, 20-60 |
| Output voltage (V) | 92, 104 |
| Duty cycle (%) | 60 |
| Power factor | 80 |
| Efficiency (%) | 0.73 |
| Arc starting mode | Non-HF, non-contact arc starting |
| Pressure of the air compressor (psi) | 50.7-65.3 |
| Nozzle orifice - inside (in) | .038 |
| Cutting thickness (in) | .39, .79 |
| Housing protection class | IP21 |
|---|---|
| Insulation class | F |

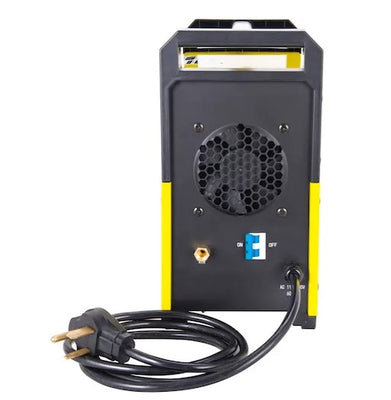

| Cooling method | Fan-cooled |
| Weight (lb) | 33.5 |
| Dimensions (in) | 20.1x8.1x15 |

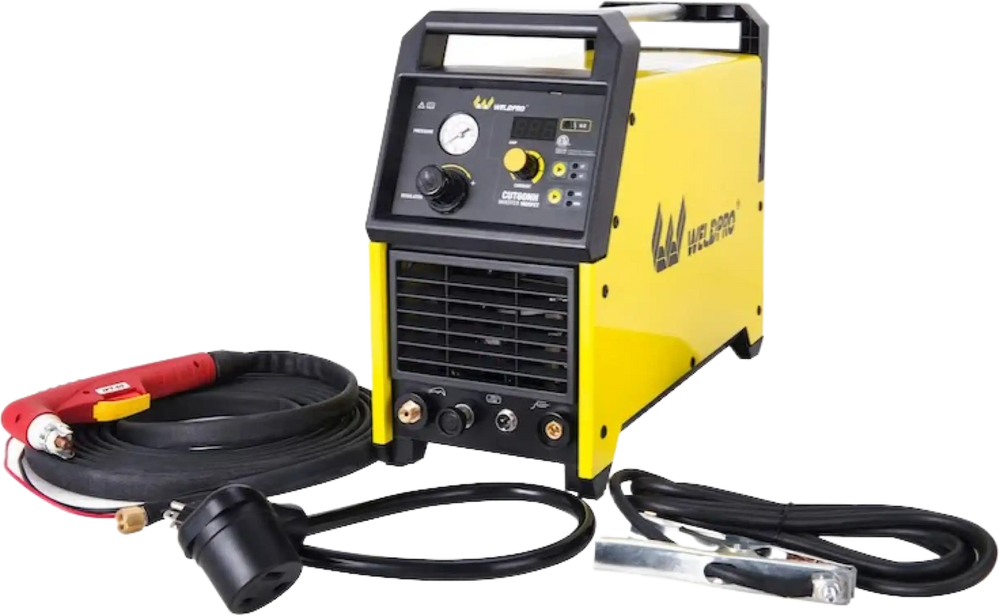

Package Contents
Inverter Plasma Cutter

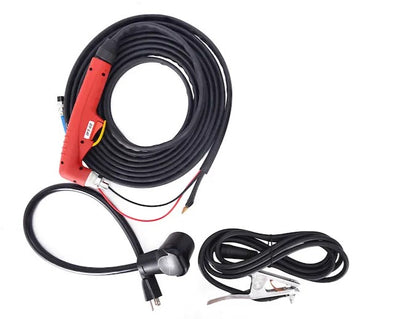

Cutting Torch
Earth Clamp
Power Adapter
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
