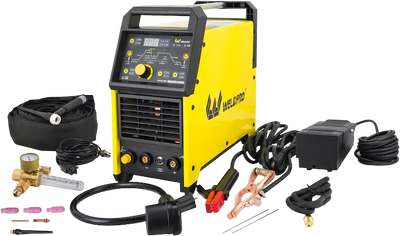

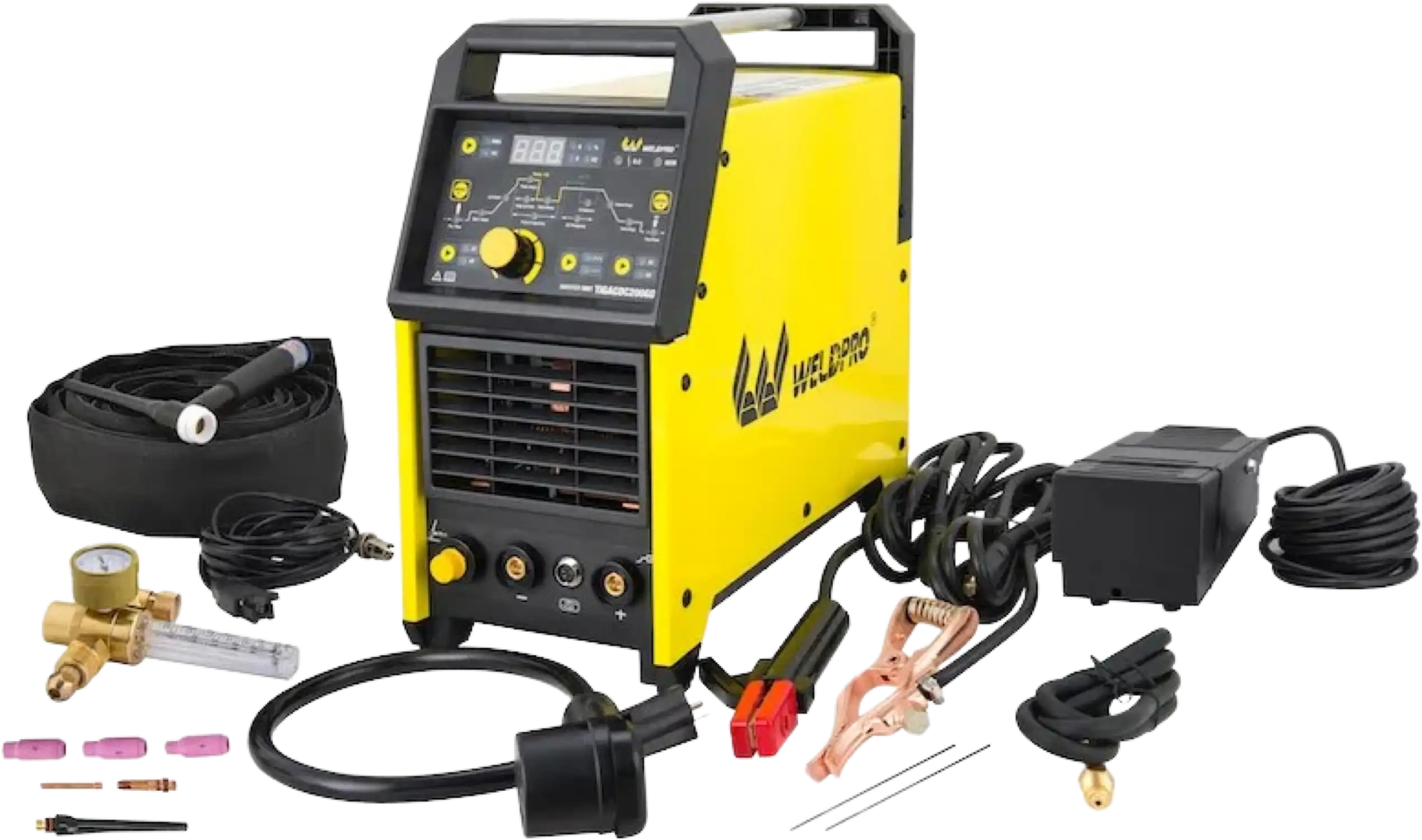

Weldpro TIGACDC200GD Digital AC/DC TIG Welder 200 Amp with Pulse CK17 Worldwide Superflex Torch with Trigger Switch Dual Voltage 220V/110V L12003 New
Manufacturer: Weldpro
SKU: L12003
Share
QTY
(888) 999-1522
$ 875.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Weldpro TIGACDC200GD Digital AC/DC TIG Welder 200 Amp with Pulse CK17 Worldwide Superflex Torch with Trigger Switch Dual Voltage 220V/110V L12003 New
Share
Product Overview
The WeldproTIGACDC200GD welder is an inverter based machine that utilizes the most advanced inverter technology. IGBT circuits along with PWM technology, along with the greatly reduced size and weight, enable this welder to not only be more efficient by 30%, but also as a result of the electronic circuitry, enables this ac/dc tig welding machine to afford the user far more and better range of settings for each specific weld.
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- The ACDCTIG200GD also has a 40% duty cycle at full amperage for DC TIG and a 60% duty cycle for AC TIG and is capable of welding with either AC or DC current.
- This allows the user to choose DC current welding for carbon steel, stainless steel, copper and many other metals, while also being equipped with the ability to switch over to AC welding used in welding aluminum and aluminum alloys.
- In addition to its advanced TIG welding functions, the ACDCTIG200GD is also a very good MMA / Stick welder.
- This AC/DC TIG welder adopts our company’s exclusive High Frequency technology as well as a pure square wave output, excellent arc force and a wide range of balance control for aluminum cleaning.
- This AC/DC TIG welder also offers a feature not always found in this price range. For example, 2T-4T touch control, start amps, end amps, upslope, downslope, pulse, AC Balance and a completely dedicated foot control pedal with no interim current control on the foot pedal.
- This design is a much sought after feature of advanced welders who dislike greatly the idea of inadvertently changing amperage settings while readjusting the foot pedal with their feet while changing their welding positions.
- This is no longer a concern with the Weldpro ACDCTIG200 since all amperage control settings are made from the console on the machines face.
- Weldpro’s flagship 200 amp AC/DC TIG welder that goes beyond simply welding steel and aluminum.
- The model 200 is also a digital designed TIG welder equipped with full function TIG welding features found on machines priced much higher.
- Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T
- Excellent Professional design rocker style foot pedal without annoying intermediate amperage control. And now available with the optional CK Worldwide superflex cable and flex head number 17F torch with independent trigger switch.
- Also fully capable MMA stick welding function with stinger included.
Specifications
| WEIGHT | 61 lbs |
| DIMENSIONS | 33 × 12 × 20 in |
| OUTPUT POWER TYPE | DC/AC |
| RATED ELECTRICAL INPUT | 110v / 240v 60 Hz |
| TIG AMPS RANGE | 5-200A |
| STICK AMPS RANGE (AC/DC) | 20-180A |
| PRE-FLOW (S) | 0.1-1 |
| UP SLOPE TIME RANGE (S) | 0-10 |
| DOWN SLOPE TIME RANGE(S) | 0-25 |
| POST FLOW (S) | 0-15 |
| PULSE PEAK ON TIME | 10-90% adjustable |
| PULSE FREQUENCY | 0.5-200 HZ |
| AC BALANCE | 30-70% |
| AC FREQUENCY | 40-200HZ |
| HOT START | Yes |
| HF START TIG | Yes |
| 2T/4T TORCH TRIGGER PANEL CONTROL | Yes |
| FOOT PEDAL | Yes |
| WEIGHT (LB) | 31.3 |
| DIMENSIONS (IN) | 17.6 × 7.9 × 16 |

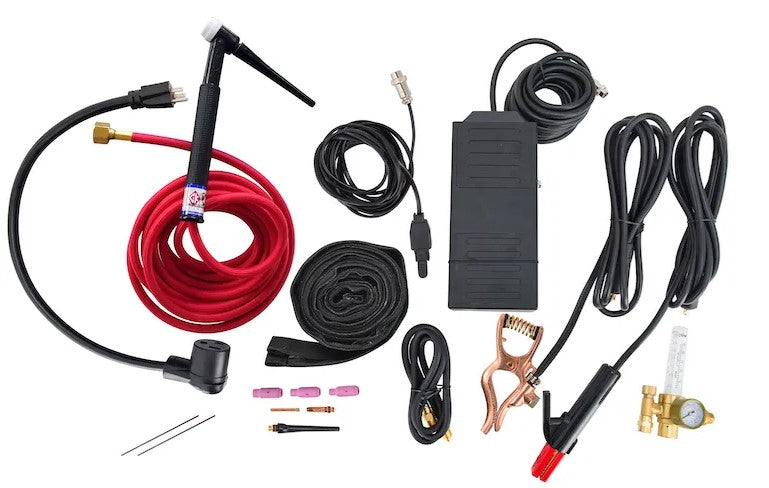

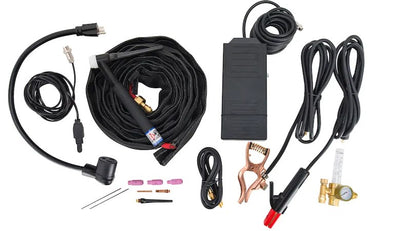

Package Contents
Weldpro TIGACDC200GD EURO Welder with CK17 Superflex Torch
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
