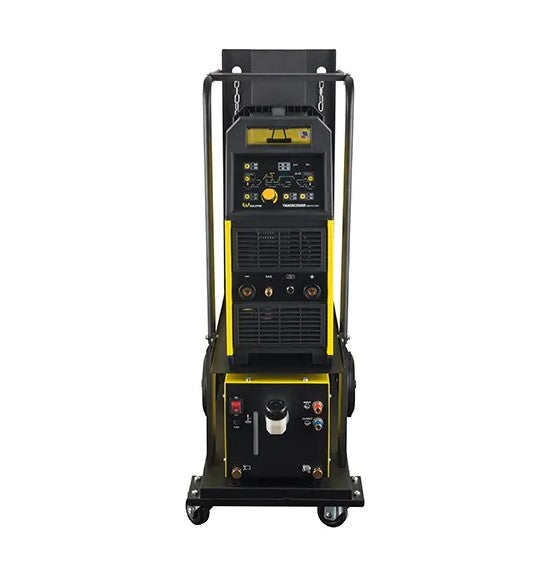

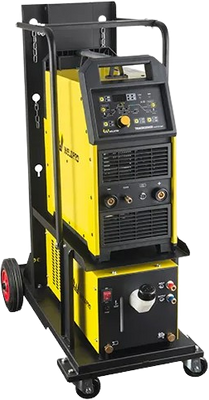

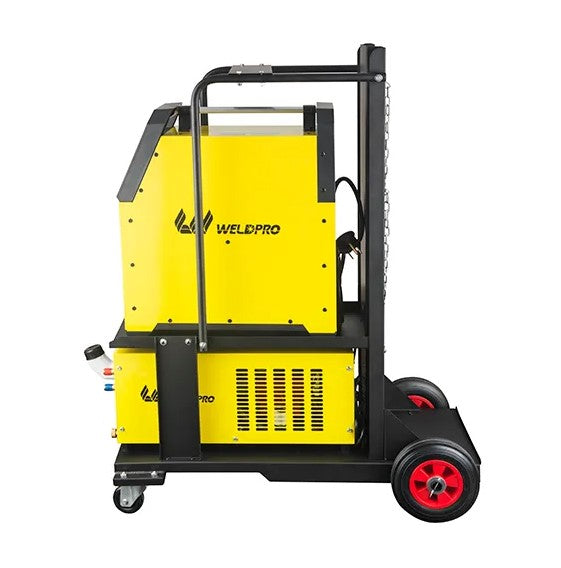

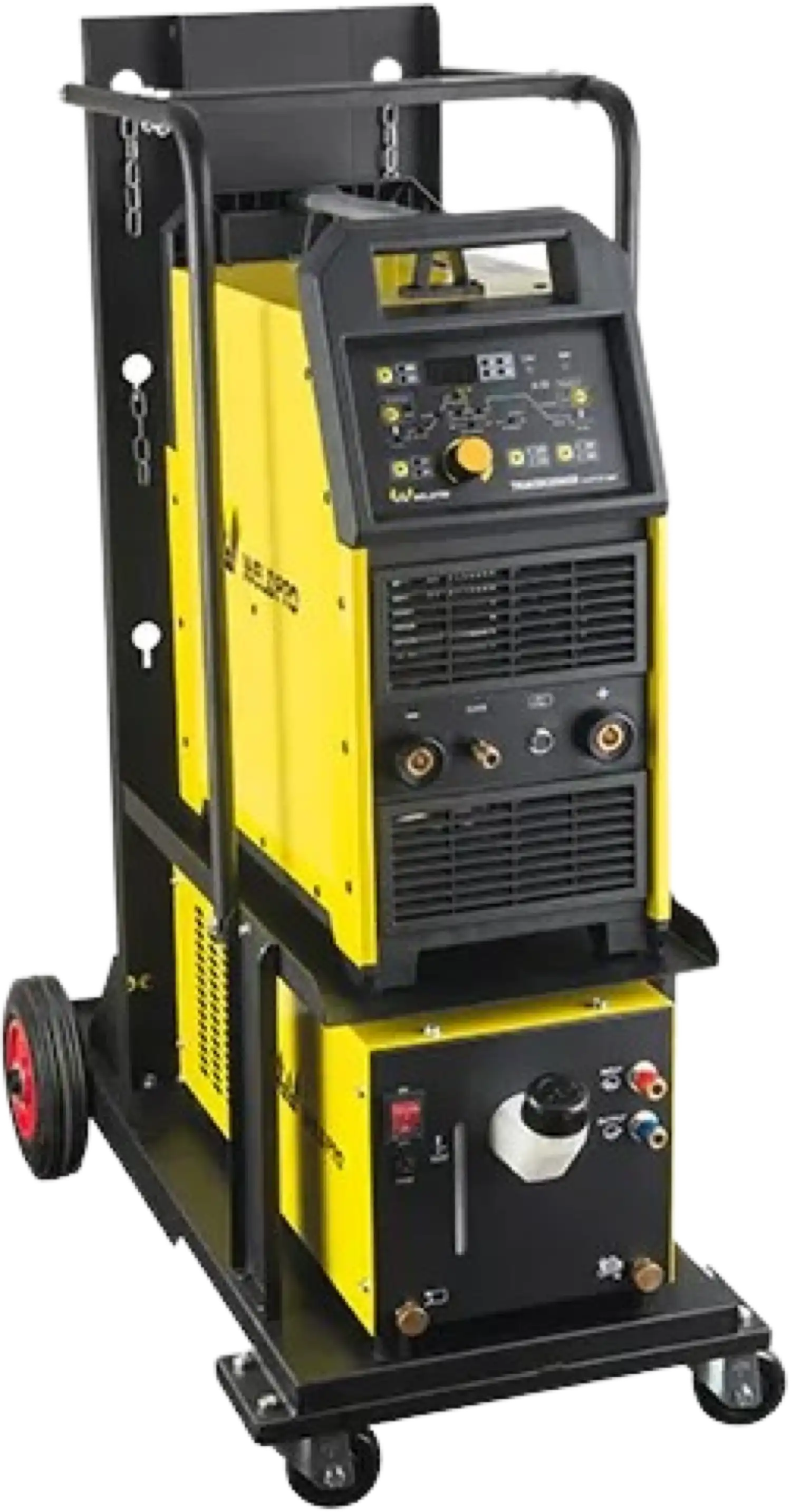

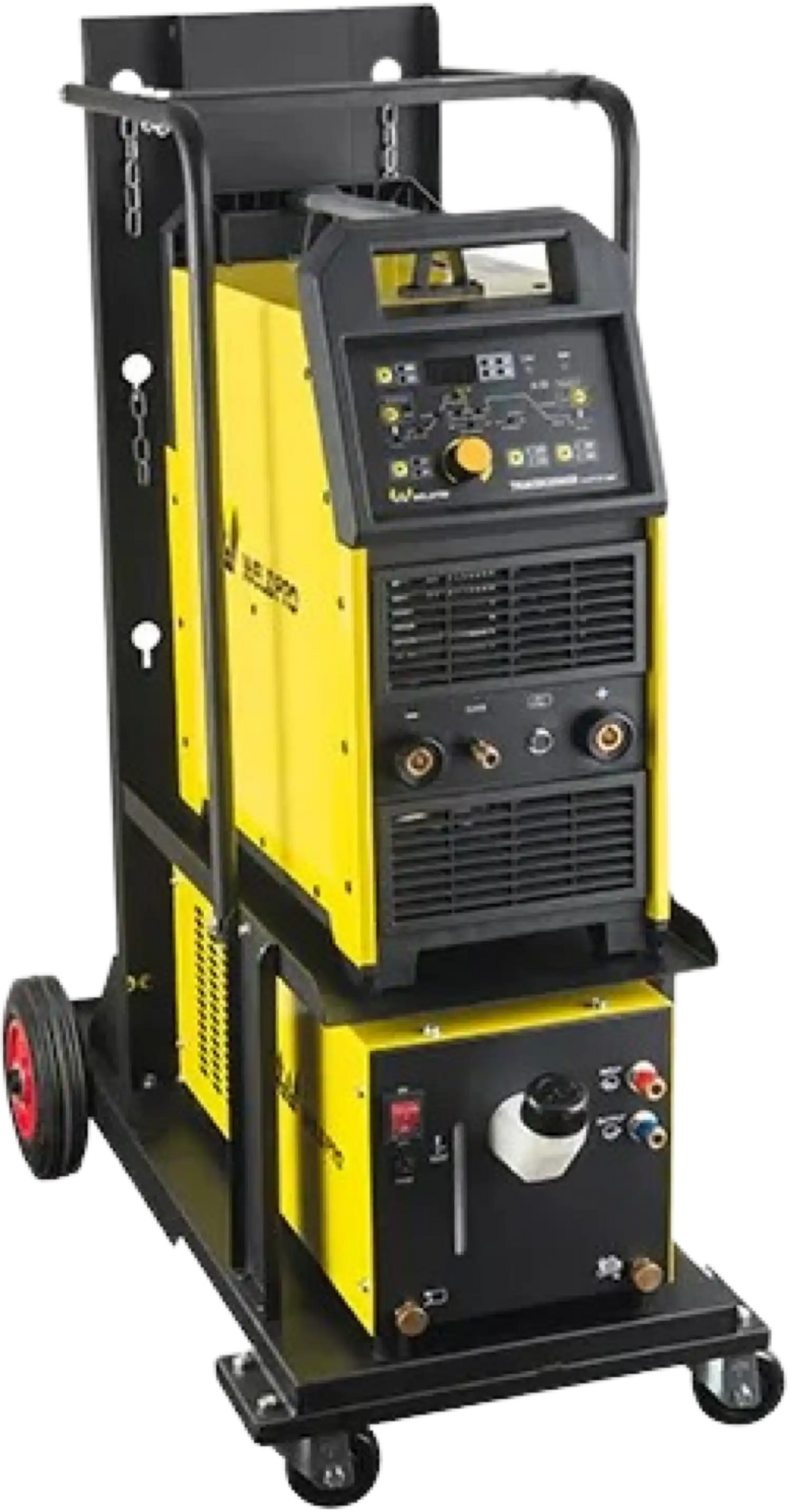

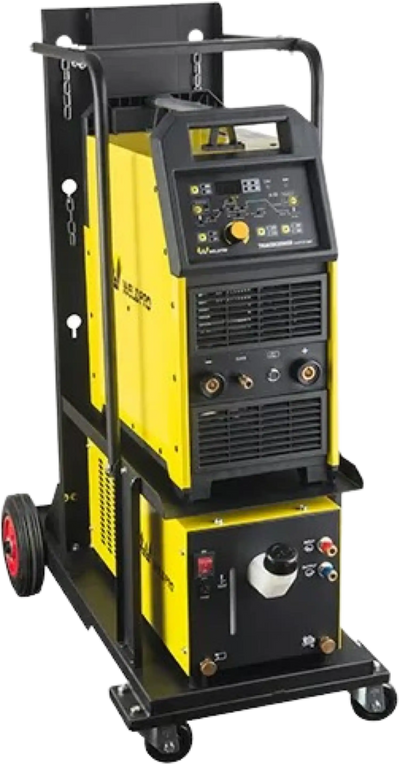

Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New

Manufacturer: Weldpro

SKU: SP2005

2
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
2
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New

QTY

(888) 999-1522

$ 2,283.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New

Weldpro TIGACDC250GD AC/DC CK20 Welder with W300 Water Cooled Torch and Cart SP2005 New

Product Overview

The WeldproTIGACDC250GD welder is an inverter based TIG welding machine that utilizes the most advanced inverter technology. IGBT circuits along with PWM technology, along with the greatly reduced size and weight, enable this welder to not only be more efficient by 30%, but also as a result of the electronic circuitry, enables this AC/DC TIG welding machine to afford the user far more and better range of settings for each specific weld. It is capable of both HF TIG and Stick welding.

vendor logo
divider
authorized dealer
checkmark

3 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Weldpro out of WA

checkmark

Authorized Weldpro

Features

  • The ACDCTIG250GD also has a 30% duty cycle at full amperage for DC TIG and a 60% duty cycle for AC TIG and is capable of welding with either AC or DC current.
  • This allows the user to choose DC current welding for carbon steel, stainless steel, copper and many other metals, while also being equipped with the ability to switch over to AC welding commonly used in welding aluminum and aluminum alloys, magnesium and even TIG brazing.
  • The new Memory Function allows users to save presets for all their most often used welding settings.
  • The model TIGACDC250GD is also a digital designed TIG welder equipped with full function TIG welding features. Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T, and now on our 250 amp version a memory function as well as a rear electrical receptacle to accommodate our optional liquid cooler.
  • Weldpro’s flagship 250 amp version of our extremely popular AC/DC TIG welder that goes beyond simply welding steel and aluminum and is ready for the welding demands of thicker metals. Electrical plug configuration is NEMA 6-50.
  • Excellent Professional design “best in the business” SSC rocker style foot pedal. And now also available with fully customizable TIG torch options which include choices of the Weldpro #20 water cooled torch, the CK Worldwide superflex #26 Trimline Flex Head air/gas cooled torch, or with the CK Worldwide #20 liquid cooled torch assembly both with independent trigger switch. Both CK options now designed with 25 foot cables!
  • Also fully capable MMA stick welding function in either AC or DC with stinger included.

Specifications

Supply voltage (V) 1 phase 115V±15% 1 phase 230V±15%
Frequency (Hz) 60
Rated input current (A) TIG: 26.4 MMA: 44.3, TIG: 37.2 MMA: 47.2
No-load voltage (V) 65
Output current (A) TIG: 120 MMA: 120, TIG: 250 MMA: 220
Output voltage (V) TIG: 14.8 MMA: 24.8, TIG: 20 MMA: 28.8
Arcing Way HF
Duty Cycle 30
Power factor 0.73
Efficiency (%) 80
Pre-flow (s) 0.1-1
Current Descending (S) 0-25
Post Flow 0-15
No-load Loss (W) 40
Housing protection class Ip21
Insulation class F
Weight (lb) 51.7
Dimensions (in) 20.3 x 9.7 x 22.6

Package Contents

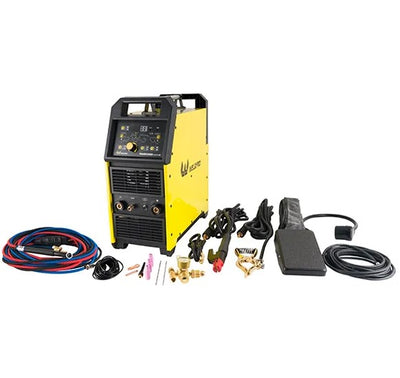

Weldpro TIGACDC250GD Welder with CK20 Water Cooled Torch Set

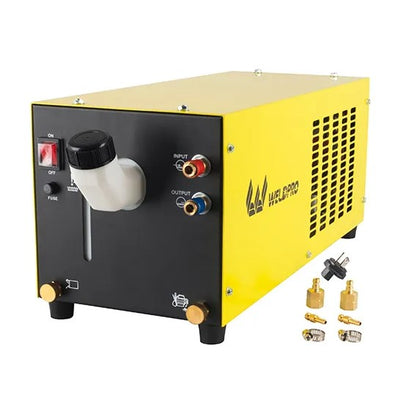

Weldpro Supercool W300 Water Cooler

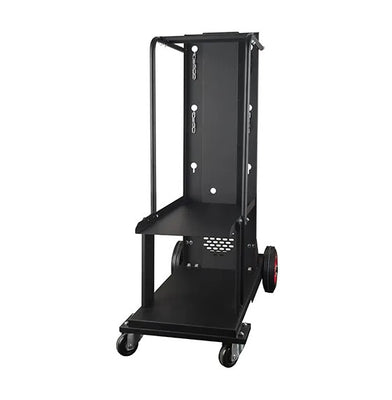

Heavy Duty Cart

Owner’s Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year factory warranty.
