Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New

Manufacturer: Weldpro

SKU: SP2004

9
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New





9
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New
Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New

QTY

$ 2,189.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY

Ships in 1-2 business days

Extended Warranty

×

Factory Warranty

  • This item comes with a 3 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 3 year factory warranty.

$169.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$209.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$249.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

The WeldproTIGACDC250GD welder is an inverter based TIG welding machine that utilizes the most advanced inverter technology. IGBT circuits along with PWM technology, along with the greatly reduced size and weight, enable this welder to not only be more efficient by 30%, but also as a result of the electronic circuitry, enables this AC/DC TIG welding machine to afford the user far more and better range of settings for each specific weld. It is capable of both HF TIG and Stick welding.

vendor logo
divider
authorized dealer
checkmark

3 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Weldpro out of WA

checkmark

Authorized Weldpro

Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New

Weldpro TIGACDC250GD AC/DC TIG20 Welder with W300 Water Cooled Torch and Cart SP2004 New

Features

  • The ACDCTIG250GD also has a 30% duty cycle at full amperage for DC TIG and a 60% duty cycle for AC TIG and is capable of welding with either AC or DC current.
  • This allows the user to choose DC current welding for carbon steel, stainless steel, copper and many other metals, while also being equipped with the ability to switch over to AC welding commonly used in welding aluminum and aluminum alloys, magnesium and even TIG brazing.
  • The new Memory Function allows users to save presets for all their most often used welding settings.
  • The model TIGACDC250GD is also a digital designed TIG welder equipped with full function TIG welding features. Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T, and now on our 250 amp version a memory function as well as a rear electrical receptacle to accommodate our optional liquid cooler.
  • Weldpro’s flagship 250 amp version of our extremely popular AC/DC TIG welder that goes beyond simply welding steel and aluminum and is ready for the welding demands of thicker metals. Electrical plug configuration is NEMA 6-50.
  • Excellent Professional design “best in the business” SSC rocker style foot pedal. And now also available with fully customizable TIG torch options which include choices of the Weldpro #20 water cooled torch, the CK Worldwide superflex #26 Trimline Flex Head air/gas cooled torch, or with the CK Worldwide #20 liquid cooled torch assembly both with independent trigger switch. Both CK options now designed with 25 foot cables!
  • Also fully capable MMA stick welding function in either AC or DC with stinger included.

Specifications

WEIGHT 91.5 lbs
DIMENSIONS 32.1 × 13.2 × 25.4 in
RATED ELECTRICAL INPUT 110v/240v 50/60 Hz
TIG AMPS RANGE 5-250A
STICK AMPS RANGE (AC/DC) 20-220A
PRE-FLOW (S) 0.1-1
UP SLOPE TIME RANGE (S) 0-10
DOWN SLOPE TIME RANGE(S) 0-25
POST FLOW (S) 0-15
PULSE PEAK ON TIME 10-90% adjustable
PULSE FREQUENCY 0.5-200 HZ
AC BALANCE 30-70%
AC FREQUENCY 40-200HZ
HOT START Yes
HF START TIG Yes
2T/4T Yes
FOOT PEDAL Yes

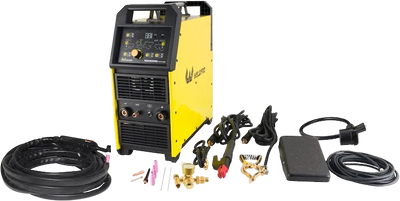

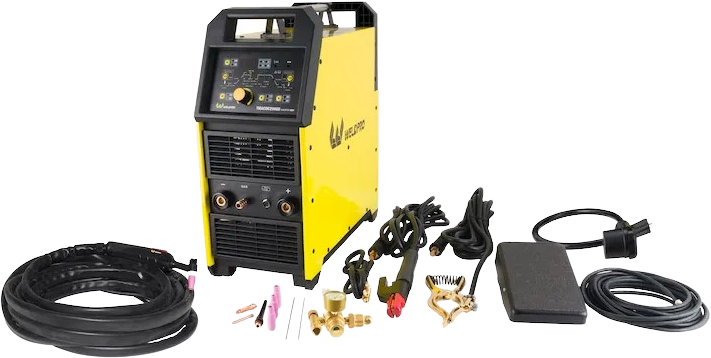

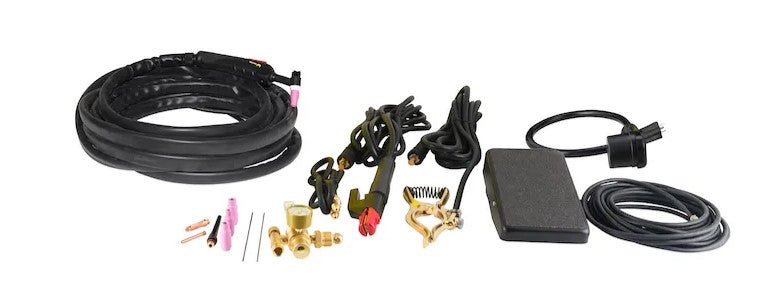

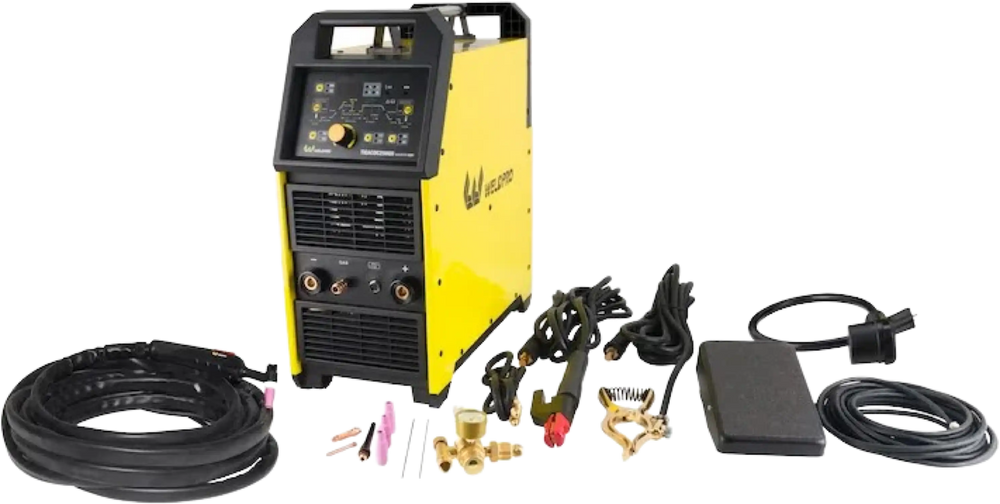

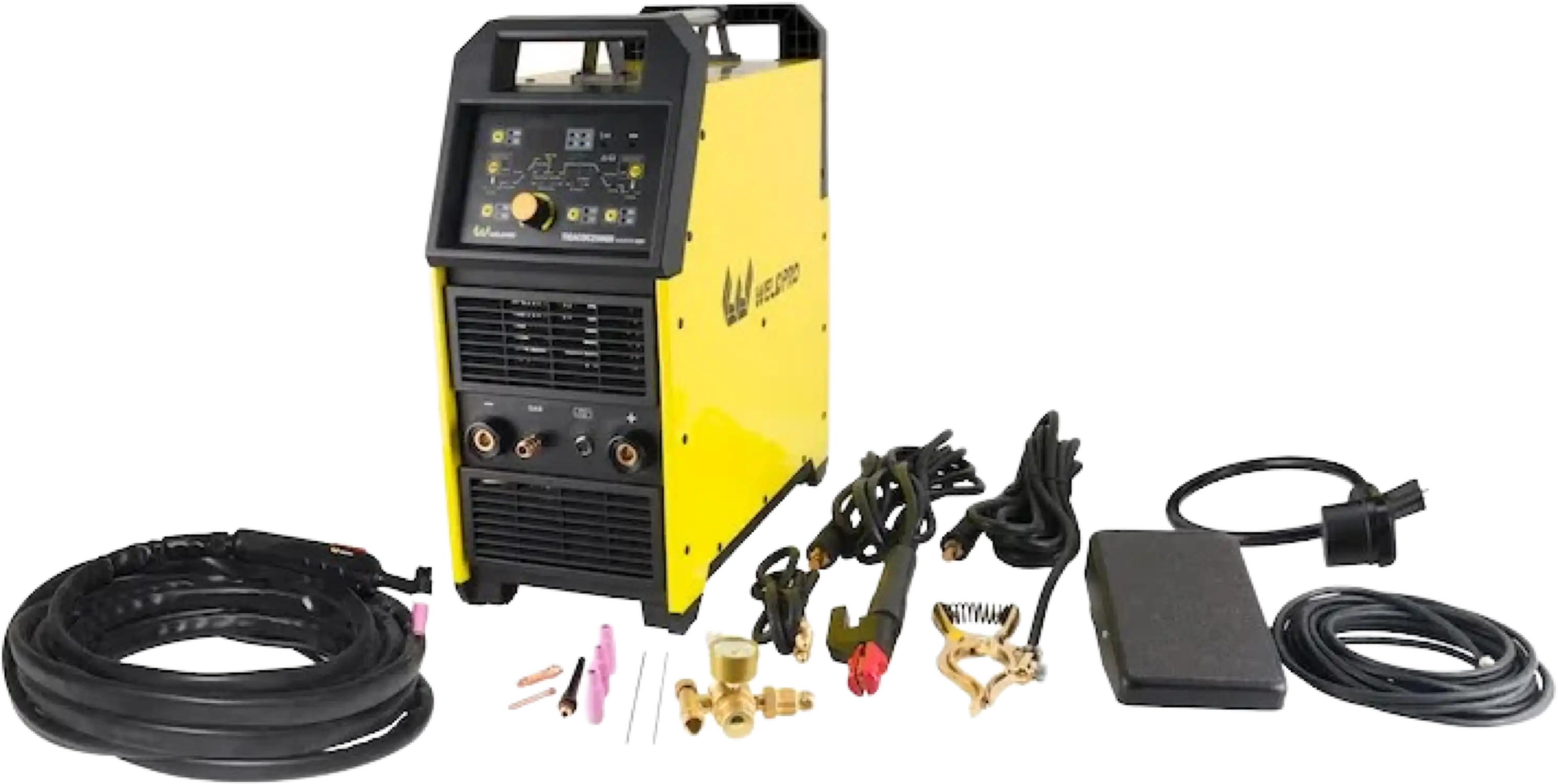

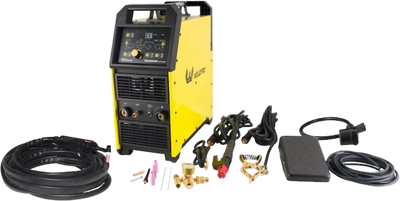

Package Contents

Weldpro TIGACDC250GD Welder with TIG20 Water Cooled Torch Set

Weldpro Supercool W300 Water Cooler

Heavy Duty Cart

Owner’s Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year factory warranty.
