Westinghouse WGen3600DFv Generator 3600W/4650W 30 Amp Recoil Start Dual Fuel New
Product Overview

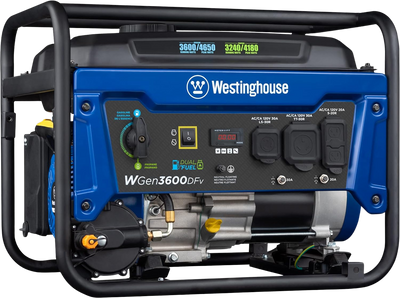

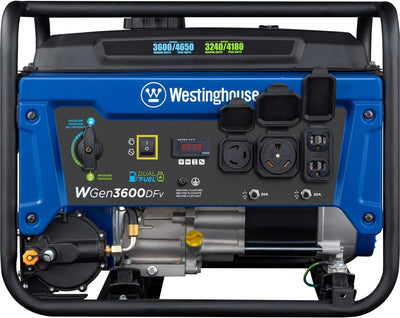

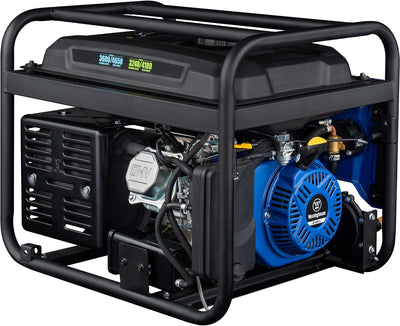

The Westinghouse WGen3600DFv Dual Fuel Portable Generator is a convenient solution to your power needs, on the road or at home. Easily swap between gasoline and propane without shutting off the generator for added convenience and versatility. The powerful 212cc 4-Stroke OHV Westinghouse engine produces up to 4,650 peak watts and 3,600 running watts on gasoline and 4,180 peak watts and 3,240 running watts on propane. The 4 Gal. gas tank with built-in fuel gauge allows the generator to run for up to 14 hours and 16.5 hours on a 20 lb. propane tank.
*Not for Sale in California*
Brand new in box
3 year limited factory warranty
Recoil start
Manufacturer direct shipping from CA
Fast shipping
Authorized Westinghouse dealer
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp Twist Lock
(L5-30R)
×1
120v 30 Amp RV Ready
(TT-30R)
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp Twist Lock
(L5-30R)
×1
120v 30 Amp RV Ready
(TT-30R)
Features
- The RV Ready TT-30R and L5-30R outlets easily hook to your travel trailer, with enough power to run a 15,000BTU air conditioner and other necessities all day long via the standard household outlets

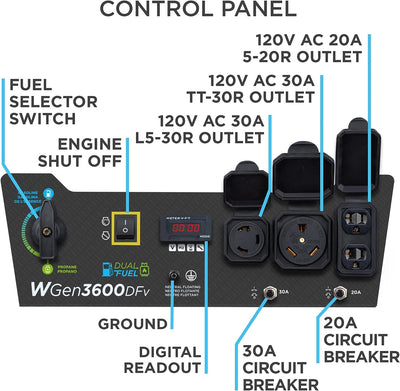

- The control panel features rubber outlet covers that provide added protection from dust and debris and a built-in Digital Readout that displays real-time information on voltage output, frequency, and lifetime hours
- Designed with safety and assurance in mind, the WGen3600DFv features automatic low oil shutdown, voltage regulation, and overload protection
- Complete with a 3-Year Limited Warranty
- Perfect as a portable power solution for travel trailers or a backup power source at home
- Dual fuel operation - easily switch from gas to propane without shutting off unit
- 4,650 peak watts, 3,600 running watts (gasoline); 4,180 peak watts, 3,240 running watts (propane)
- (1) 120-Volt duplex household outlets, (1) L5-30R, and (1) TT-30R RV Ready receptacle with rubber outlet covers
- Runs for up to 14 hours on a 4 gal. fuel tank with built-in fuel gauge; up to 16.5 hours on a 20 lb. propane tank
- Digital Readout gives you real time updates with the voltage output, frequency, and lifetime hours
- Powered by a 212cc 4-Stroke OHV Westinghouse Engine constructed with a cast iron sleeve for added durability
- Safe and convenient with automatic low oil shutdown, voltage regulation, and overload protection
- Weighing 104 lb. with as low as 68 dBA operating volume
- All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor
Specifications
| Gasoline Peak Watts | 4650 |
| Gasoline Running Watts | 3600 |
| Propane Peak Watts | 4180 |
| Propane Running Watts | 3240 |
| Gasoline Peak Amps | 38A |
| Gasoline Running Amps | 30A |
| Propane Peak Amps | 34.8A |
| Propane Running Amps | 27A |
| AC Voltage | 120V |
| AC Frequency | 60 Hz |
| Outlets | (1) 120V Duplex 5-20R, (1) 120V L5-30R, (1) 120V TT-30R |
| Total Harmonic Distortion | ≤23% |
| GFCI Outlets | No |
| Outlet Covers | Yes |
| Transfer Switch Ready | No |
| RV Ready | Yes |
| Display Type | Digital Readout |
| Noise Level | 68 dBA |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 4 gal. (15 L) |
| Gasoline Run Time @ 25% | 14 hrs. |
| Gasoline Run Time @ 50% | 10.5 hrs. |
| Propane Run Time @ 25% | 16.5 hrs. |
| Propane Run Time @ 50% | 14 hrs. |
| Starter Type | Recoil |
| Choke Type | Manual |
| Engine Displacement | 212cc |
| Engine Type | OHV 4 Stroke |
| Oil Capacity | 20.3 oz. (0.6 qt.) |
| Engine Oil Type | 10W30 |
| Automatic Low Oil Shutdown | Yes |
| Carbon Monoxide (CO) Sensor | No |
| Overload Protection | Yes |
| CARB Compliant | No |
| Grounding System | Floating Neutral |
| Battery Included | No |
| Included Accessories | Oil Bottle, Oil Funnel, Spark Plug Wrench, Propane Regulator/Hose |
| Warranty (Residential) | 3 Year Limited |
| Warranty (Commercial) | 1 Year Limited |
| Product Dimensions | 23.3L x 17.5W x 18.7H in. |
| Dry Unit Weight | 104 lb. (47.2 kg) |
| Packaging Dimensions | 24.2L x 18.5W x 19.5H in. |
| Shipping Weight | 111.4 lb. (50.5 kg) |

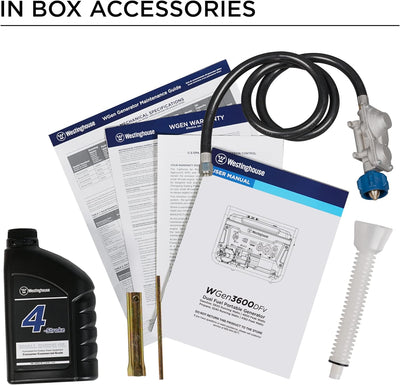

Package Contents
Generator
Quick Start Guide
LPG/Propane hose with regulator
0.63 Quart (0.6 Liter) bottle of SAE 10W-30 Oil
Spark plug socket wrench
Oil Funnel
User manual
Warranty
This product comes with a 3 year limited factory warranty.
