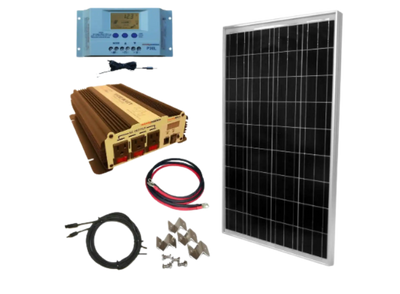

WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New

Manufacturer: WindyNation

SKU: SOK-100WPI-15

  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
  • WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New

QTY

$ 359.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships In 1-2 Business Days

Manufacturer Direct

Extended Warranty

×

Factory Warranty

  • This product comes with a 1 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

$0

(Included)

  • This product comes with a 1 year factory warranty.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$59.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$89.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New

WindyNation SOK-100WPI-15 Complete 100 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New

Product Overview

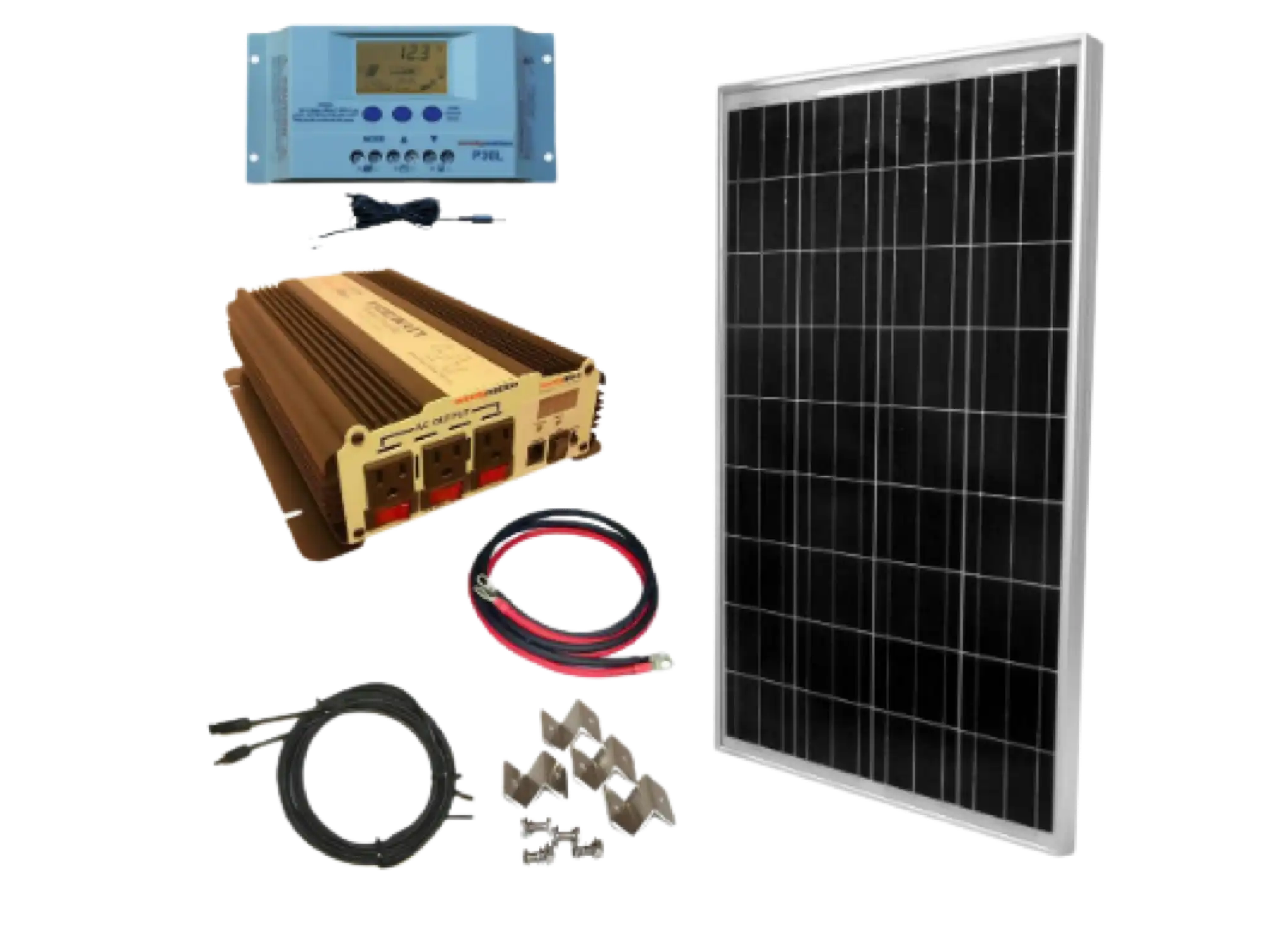

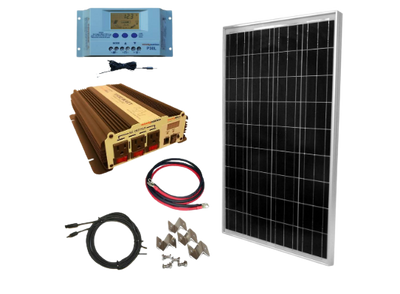

The Windy Nation 100 Watt Complete Solar Charging Kit + VertaMax 1500 Watt Power Inverter comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! WindyNation's 100 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 1 pcs 100 Watt Polycrystalline Solar Panels, 1500W VertaMax 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 30-Amp P30L Solar Charge Controller, 40 ft of UL Listed 12 AWG Solar Cable, all necessary MC4 Connectors for wiring, and all the necessary mounting hardware. Product photos above show pictures of all the included items and additional technical information. The WindyNation 100 Watt Solar Charging Kit with 1500W VertaMax Inverter is the ideal solution for providing back-up power or off-grid power when you need it! Kit will produce an average of 400 Watt Hours (Wh) or 33 Amp Hours (Ah) of charge per day (depends on sunlight availability).

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Fast shipping from CA

checkmark

Authorized WindyNation dealer

Features

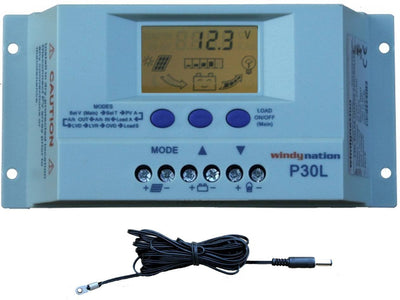

  • 30 Amp P30L Solar Charge Controller with LCD Display
  • WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel
  • LCD digital display provides system information (amperage, voltage, temperature, etc).
  • System settings are user adjustable by using the MODE and UP and DOWN buttons
  • Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included

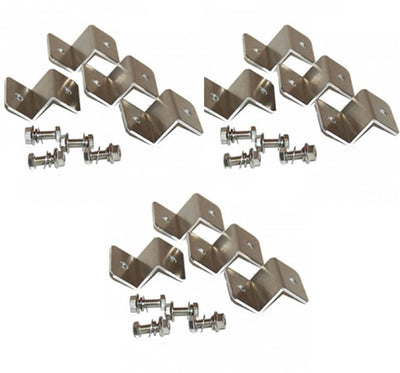

  • Solar Panel Mounting Bracket and Fastener Set
  • Includes four anodized aluminum Z-brackets and two sets of stainless steel fasteners
  • Quickly and easily mount the solar panel to a RV, boat or roof
  • Corrosion resistant materials (anodized aluminum and stainless steel)
  • Solar Branch Connectors
  • Three Pairs of Solar Branch Connectors
  • The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used

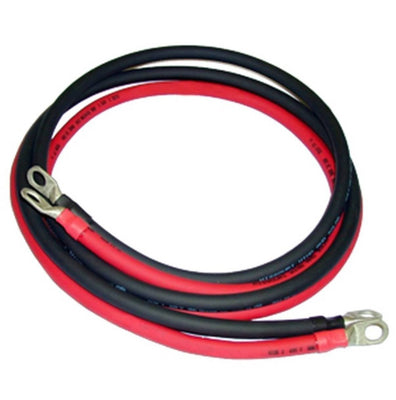

  • Inverter Battery Cables
  • Used to connect the inverter to the 12 volt battery. Capable of carrying high current.
  • One red 2 gauge cable 3 feet in length + one black 2 gauge cable 3 feet in length with pre-attached cable lugs

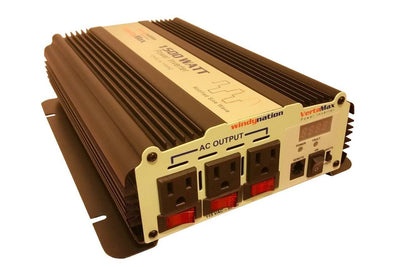

  • 1500 Watt (3000 Watt Surge) VertaMax Power Inverter
  • Input Voltage (Nominal) 12VDC  Output Voltage (Nominal) 120VAC

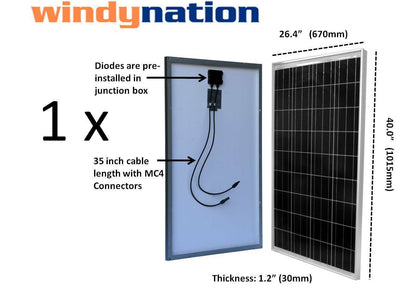

  • 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
  • Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
  • Outstanding electrical performance under high temperature and low irradiance conditions
  • See image in the photo gallery above for the technical specifications of the solar panel.
  • Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

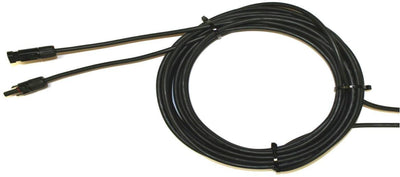

  • Solar Panel Cable and Solar Connectors
  • 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
  • One Pair of Solar Connectors
  • The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
  • (Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

Specifications

1500W VERTAMAX POWER INVERTER
PARAMETER PIN-1500-12M
CONTINUOUS RATED POWER 1500W
PEAK SURGE POWER 3000W
INPUT VOLTAGE (NOMINAL) 12-13 VDC
INPUT VOLTAGE (MIN-MAX) 11-15 VDC
OUTPUT VOLTAGE (NOMINAL) 115 VAC
OUTPUT FREQUENCY (NOMINAL) 60 HZ
OUTPUT WAVEFORM MODIFIED SINE WAVE
STNDBY CURRENT <0.80A
LOW BATTERY VOLTAGE ALARM 10.5 VDC (+/-0.3VDC)
LOW BATTERY VOLTAGE SHUTDOWN 10.0 VDC (+/-0.3VDC)
HIGH BATTERY VOLTAGE SHUTDOWN 16 VDC (+/-0.5VDC)
EFFICIENCY 85-90%
DIMENSIONS (L x W x H) 13.0" x 8.7" x 3.0"
UNIT WEIGHT 8.2 LBS
COOLING AUTO POWERED FAN
OPERATING TEMPERATURE 32°F - 140°F
STORAGE TEMPERATURE -13°F - 158°F
OPERATING HUMIDITY 20 TO 80% RELATIVE HUMIDITY (NONCONDENSING)
THERMAL PROTECTION >149°F

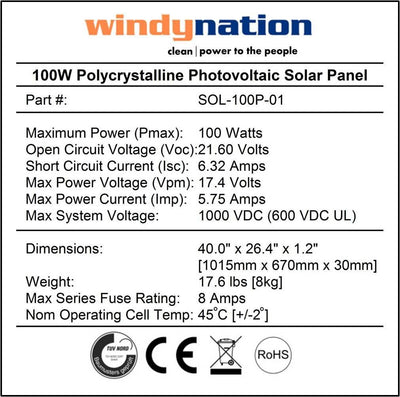

100W POLYCRYSTALLINE PHOTOVOLTAIC SOLAR PANEL
MAX POWER 100 WATTS
OPEN CIRCUIT VOLTAGE 21.60 VOLTS
SHORT CIRCUIT CURRENT 6.32 AMPS
MAX POWER VOLTAGE 17.40 VOLTS
MAX POWER CURRENT 5.75 AMPS
MAX SYSTEM VOLTAGE 1000 VDC (600 VDC UL)
MAX SERIES FUSSSE RATING 8 AMPS
NOM OPERATING CELL TEMP 45 C [+/-2]
DIMENSIONS 40" x 26.4" x 1.2"
WEIGHT 17.6 LBS

Package Contents

(1 pcs) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel

(1 pc) 30 Amp P30L Solar Charge Controller with LCD Display

(1 pc) 1500 Watt (3000 Watt Surge) VertaMax Power Inverter

(1 Set) Solar Panel Mounting Bracket and Fastener Set

Solar Panel Cable and Solar Connectors

Solar Branch Connectors

Warranty

vendor logo
divider
authorized dealer

This product comes with a 1 year factory warranty.
