WindyNation SOK-200WP-P20L 200 Watt Solar Panel Kit with LCD Charger Controller New
Product Overview
WindyNation takes the trouble and confusion out of adding a solar panel system to a battery bank with our 100% Complete Off-Grid Solar Kits! Great auxiliary power for RV’s and boats. Popular with commercial RV and marine retrofitters. Power devices in remote back country locations, excellent for use when camping or for remote cabins. An easy way to provide power for sheds, light poles and gates without the need for trenching and laying cables. Two or more panels can provide back-up power for critical appliances like a refrigerator during a power outage. This kit will produce an average of 800 Watt Hours (Wh) or 67 Amp Hours (Ah) of charge per day (depends on sunlight availability).
Brand new in box
1 year factory warranty
Fast shipping from CA
Authorized WindyNation dealer
Features

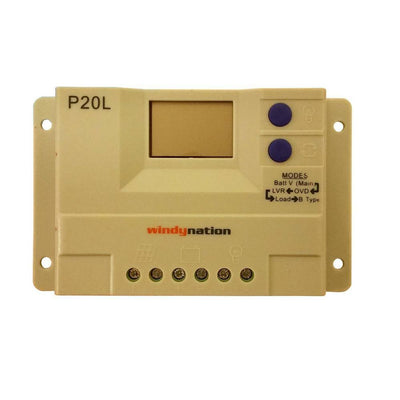

- 20 Amp P20L Solar Charge Controller
- Pulse Width Modulated (PWM) controlled with overload, short circuit and reverse polarity protection
- LCD digital display provides system information (voltage, state of charge, solar panel status, etc.)
- System settings are user adjustable by using the MODE and cycle buttons
- The P20L can safely handle up to 2pcs 100W solar panels (12V system) and up to 4pcs 100W solar panels (24V system)

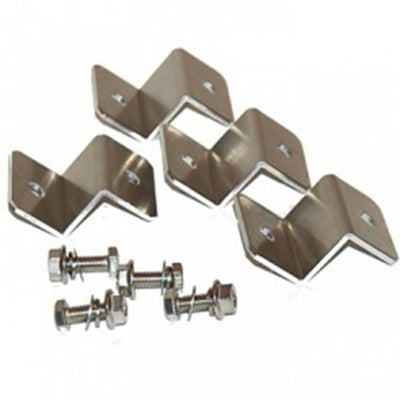

- Solar Panel Mounting Bracket and Fastener Set
- Includes eight anodized aluminum Z-brackets and four sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)
- Solar Branch Connectors
- One Pair of Solar Branch Connectors
- The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
- 100 Watt 12 volt Polycrystalline WindyNation Solar Panel
- Two panels are perfect for 12 or 24 Volt battery bank charging
- Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions
- See image in the photo gallery above for the technical specifications of the solar panel.
- Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

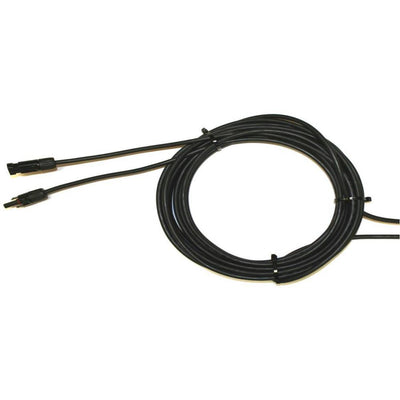

- Solar Panel Cable and Solar Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of Solar Connectors
- The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
(Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

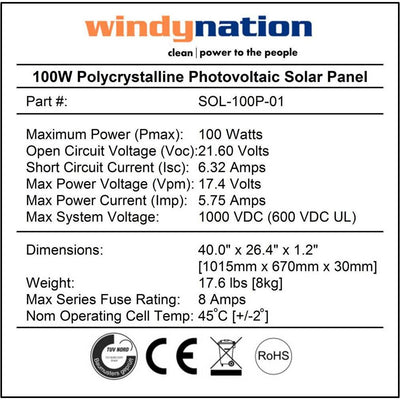

Specifications
| DIMENSIONS | 40" x 26.4" x 1.2" |
| WEIGHT | 17.6 LBS |
| PART # | SOL-100P-01 |
| MAX POWER | 100 WATTS |
| OPEN CIRCUIT VOLTAGE | 21.60 VOLTS |
| SHORT CIRCUIT CURRENT | 6.32 AMPS |
| MAX POWER VOLTAGE | 17.40 VOLTS |
| MAX POWER CURRENT | 5.75 AMPS |
| MAX SYSTEM VOLTAGE | 1000 VDC (600 VDC UL) |
| MAX SERIES FUSE RATING | 8 AMPS |
| NOM OPERATING CELL TEMP | 45 C [+/-2] |

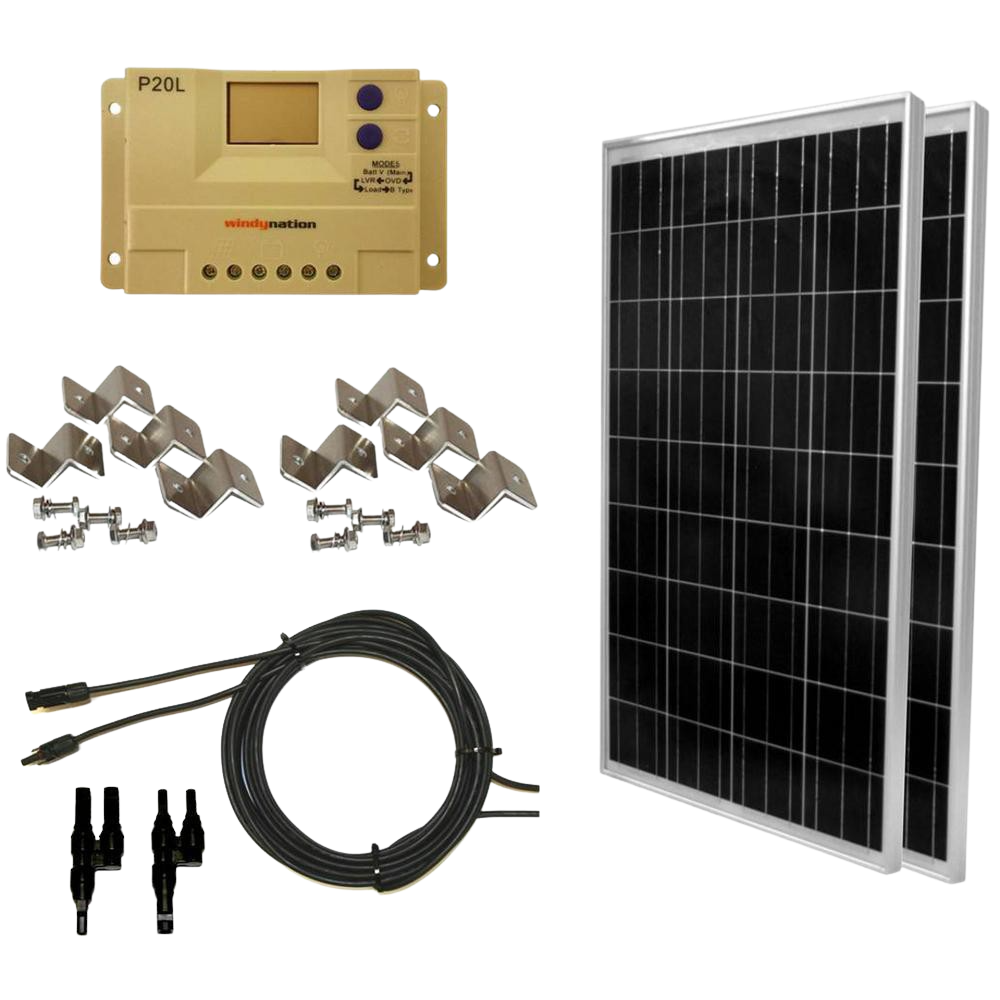

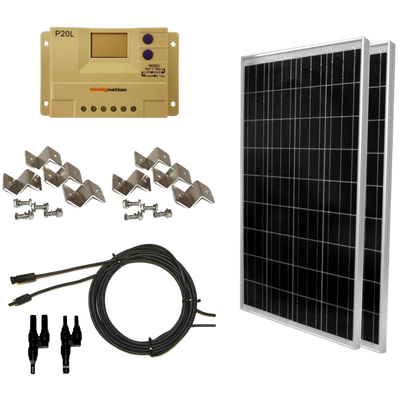

Package Contents
(2 pcs) 100 Watt 12 volt Polycrystalline WindyNation Solar Panel
(1 pc) 20 amp P20L Solar Charge Controller
(2 Set) Solar Panel Mounting Bracket and Fastener Set
Solar Panel Cable and Solar Connectors
Solar Branch Connectors
Warranty
This product comes with a 1 year factory warranty.
