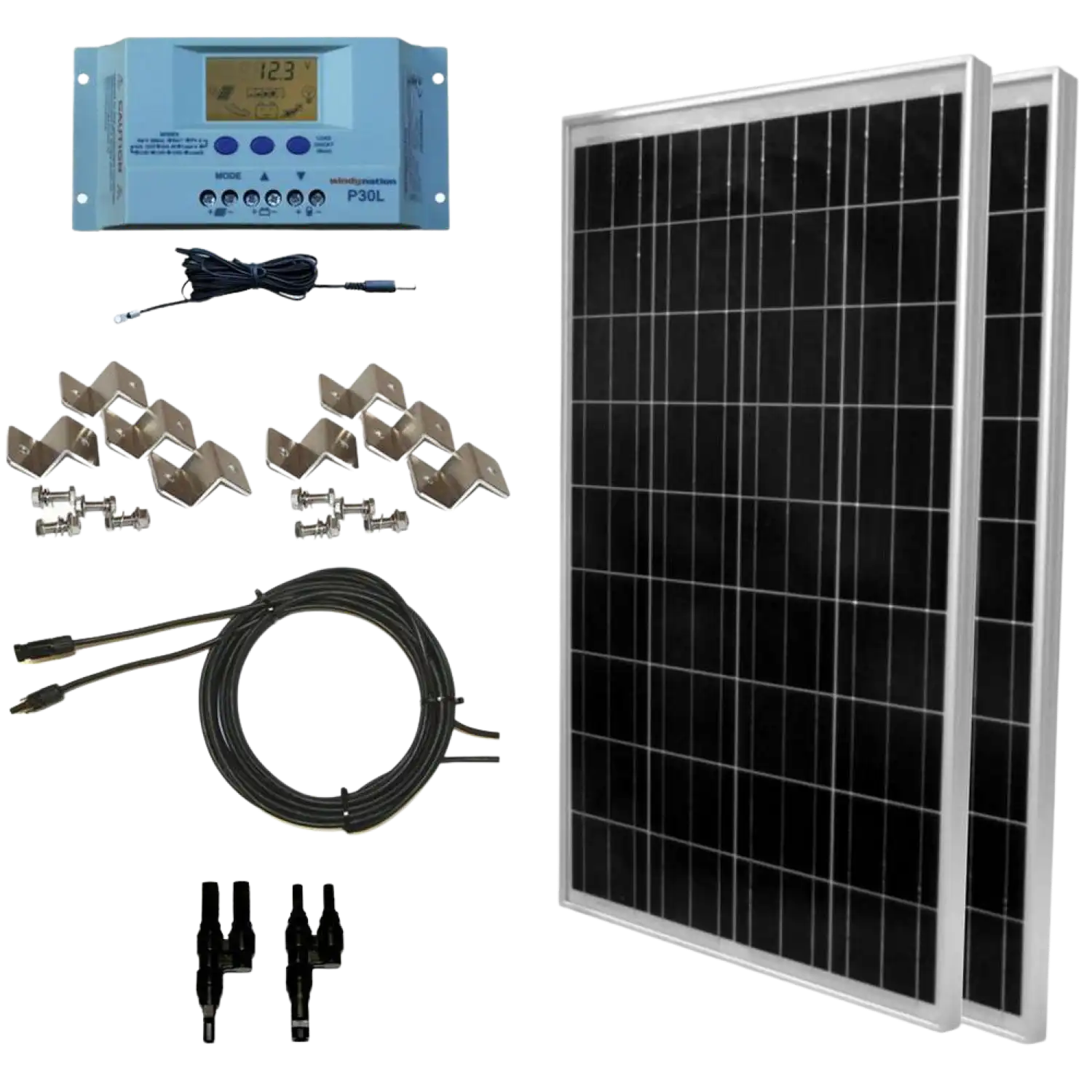

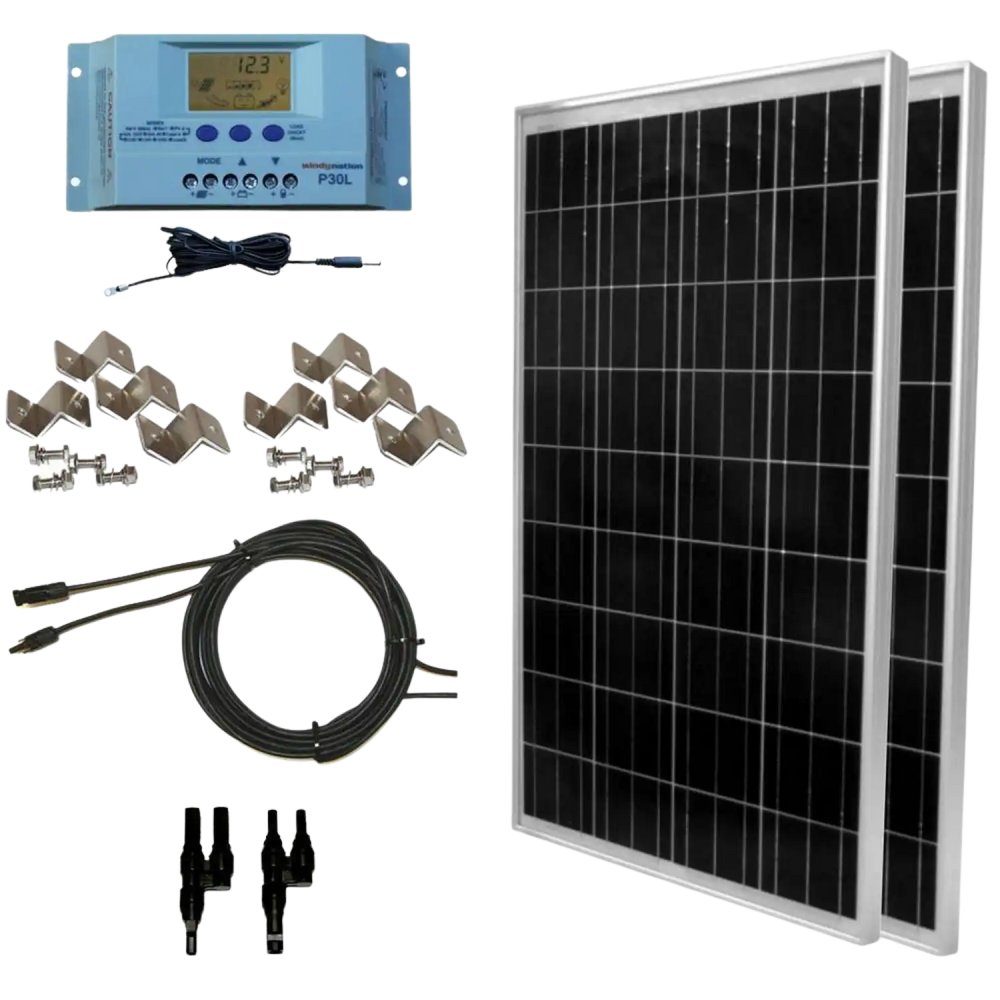

WindyNation SOK-200WP-P30L 200 Watt Solar Panel Kit With LCD Charge Controller New
Manufacturer: WindyNation
SKU: SOK-200WP-P30L
QTY
(888) 999-1522
$ 284.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Extended Warranty
Factory Warranty
- This product comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
WindyNation SOK-200WP-P30L 200 Watt Solar Panel Kit With LCD Charge Controller New
Product Overview
WindyNation takes the trouble and confusion out of adding a solar panel system to a battery bank with our 100% Complete Off-Grid Solar Kits! Great auxiliary power for RV’s and boats. Popular with commercial RV and marine retrofitters. Power devices in remote back country locations, excellent for use when camping or for remote cabins. An easy way to provide power for sheds, light poles and gates without the need for trenching and laying cables. Two or more panels can provide back-up power for critical appliances like a refrigerator during a power outage. This kit will produce an average of 800 Watt Hours (Wh) or 67 Amp Hours (Ah) of charge per day (depends on sunlight availability).
Brand new in box
1 year factory warranty
Fast shipping from CA
Authorized WindyNation dealer
Features

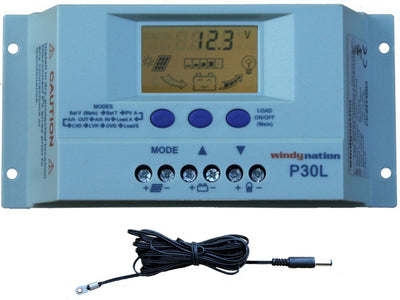

- Premium PWM 30 Amp Solar Charge Controller with LCD Display
- WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel
- LCD digital display provides system information (amperage, voltage, temperature, etc).
- System settings are user adjustable by using the MODE and UP and DOWN buttons
- Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included

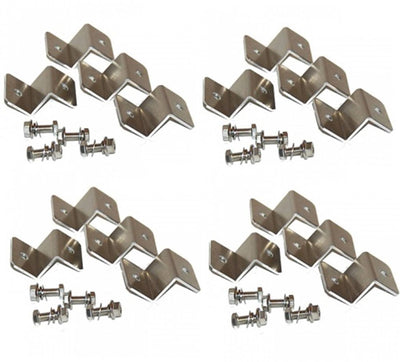

- Solar Panel Mounting Bracket and Fastener Set
- Includes eight anodized aluminum Z-brackets and four sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)
- Solar Branch Connectors
- One Pair of Solar Branch Connectors
- The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
- 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
- Two panel is perfect for 12 or 24 Volt battery bank charging
- Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions

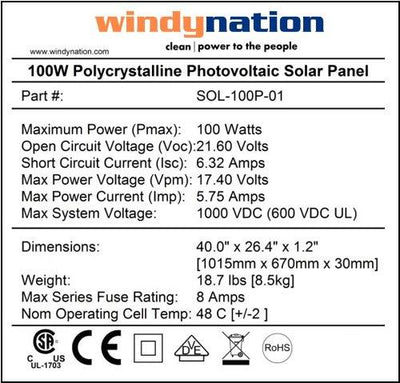

- See image in the photo gallery above for the technical specifications of the solar panel.
- Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

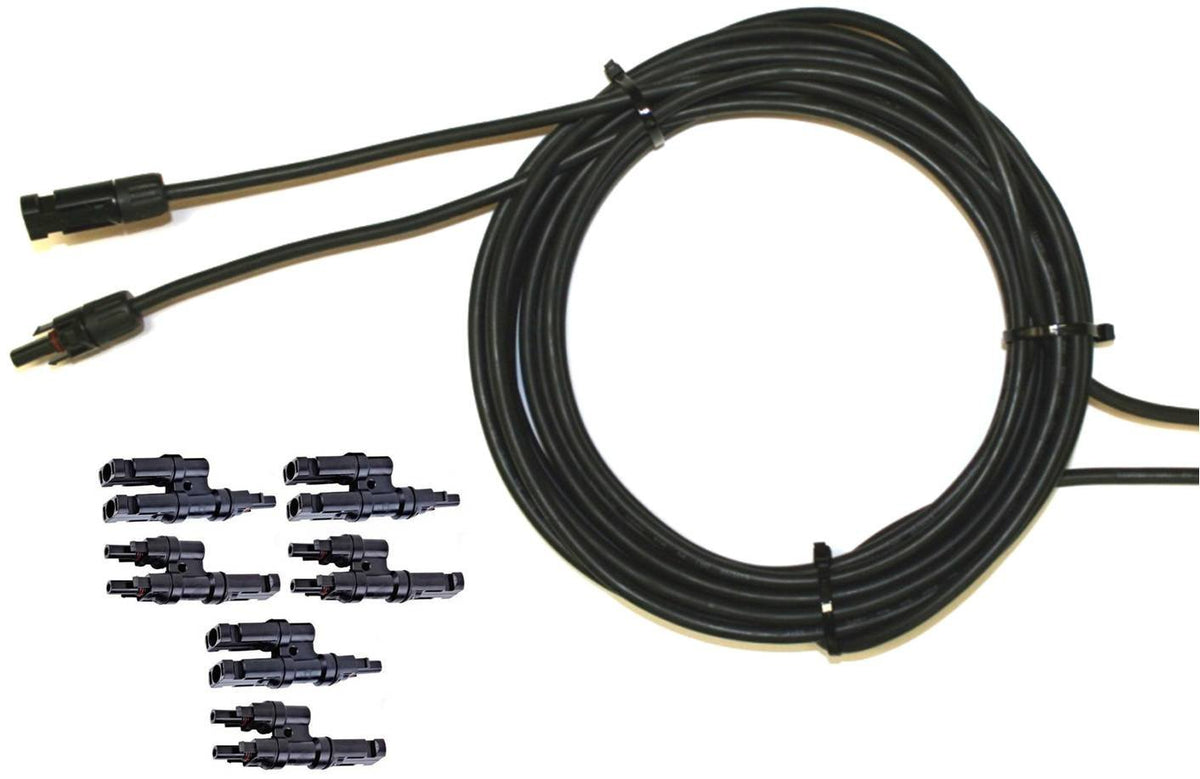

- Solar Panel Cable and Solar Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of Solar Connectors
- The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
(Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)
Specifications
| DIMENSIONS | 40" x 26.4" x 1.2" |
| WEIGHT | 18.7 LBS |
| PART # | SOL-100P-01 |
| MAX POWER | 100 WATTS |
| OPEN CIRCUIT VOLTAGE | 21.60 VOLTS |
| SHORT CIRCUIT CURRENT | 6.32 AMPS |
| MAX POWER VOLTAGE | 17.40 VOLTS |
| MAX POWER CURRENT | 5.75 AMPS |
| MAX SYSTEM VOLTAGE | 1000 VDC (600 VDC UL) |
| MAX SERIES FUSE RATING | 8 AMPS |
| NOM OPERATING CELL TEMP | 48 C [+/-2] |

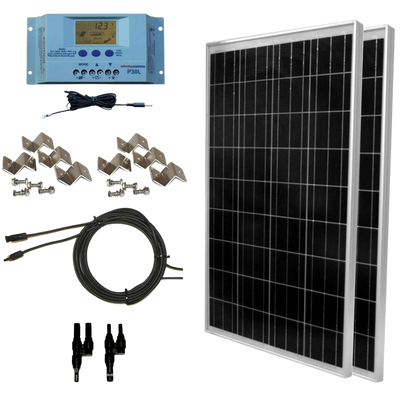

Package Contents
(2 pc) 100 Watt 12 volt Polycrystalline WindyNation Solar Panel
(1 pc) 30 Amp Solar Charge Controller with LCD Display
(2 Set) Solar Panel Mounting Bracket and Fastener Set
Solar Panel Cable and Solar Connectors
Solar Branch Connectors
Warranty
This product comes with a 1 year factory warranty.
