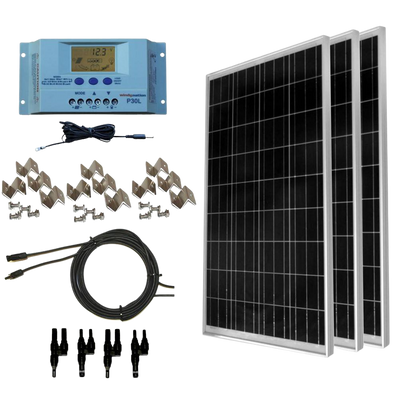

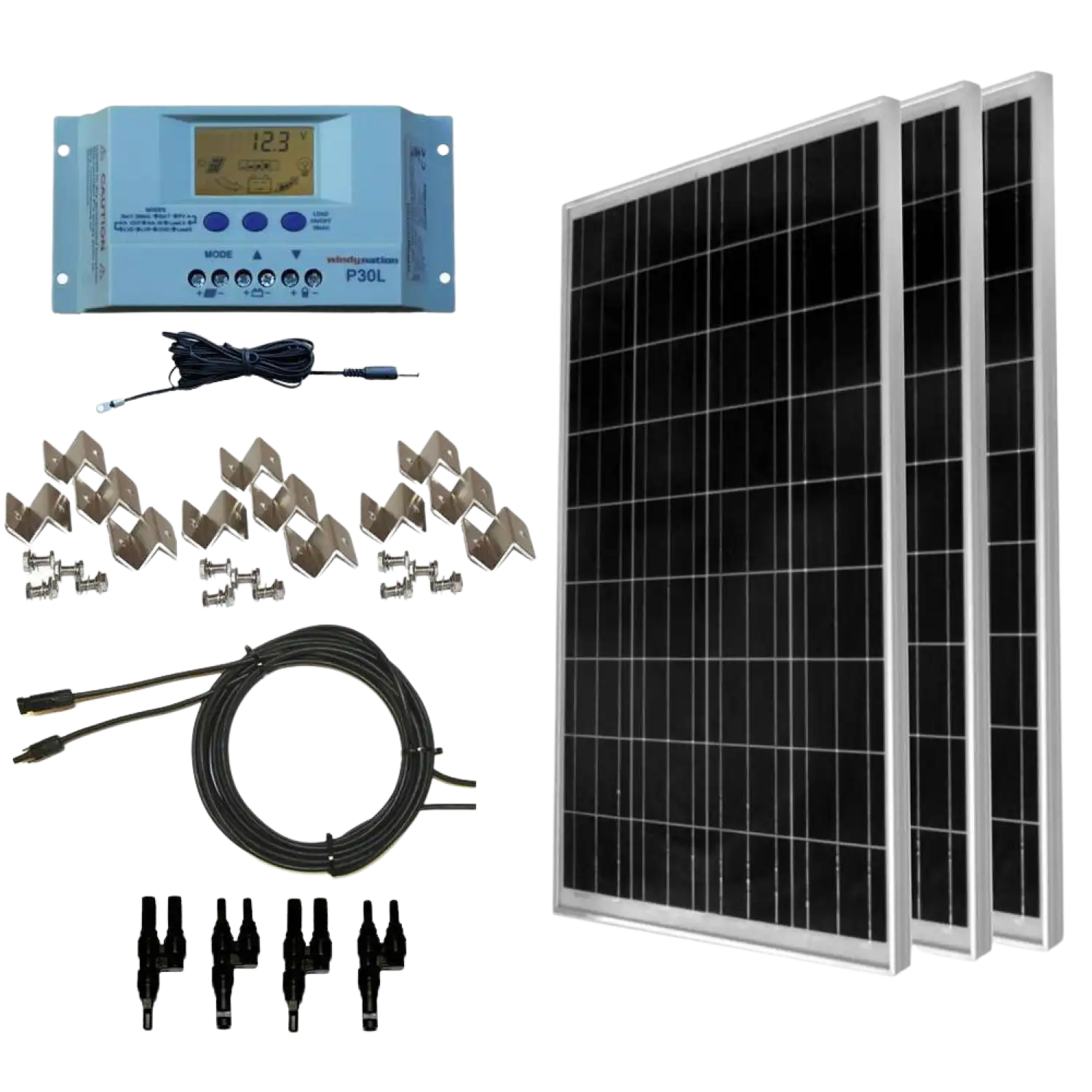

WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New

Manufacturer: WindyNation

SKU: SOK-300WP-P30L

  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New
  • WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New

QTY

$ 409.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships In 1-2 Business Days

Manufacturer Direct

Extended Warranty

×

Factory Warranty

  • This product comes with a 1 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

$0

(Included)

  • This product comes with a 1 year factory warranty.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$59.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$89.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New

WindyNation SOK-300WP-P30L 300 Watt Solar Panel Kit With LCD Charge Controller New

Product Overview

WindyNation takes the trouble and confusion out of adding a solar panel system to a battery bank with our 100% Complete Off-Grid Solar Kits! Great auxiliary power for RV’s and boats. Popular with commercial RV and marine retrofitters.  Power devices in remote back country locations, excellent for use when camping or for remote cabins. An easy way to provide power for sheds, light poles and gates without the need for trenching and laying cables. Two or more panels can provide back-up power for critical appliances like a refrigerator during a power outage. This kit will produce an average of 1200 Watt Hours (Wh) or 101 Amp Hours (Ah) of charge per day (depends on sunlight availability).

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Fast shipping from CA

checkmark

Authorized WindyNation dealer

Features

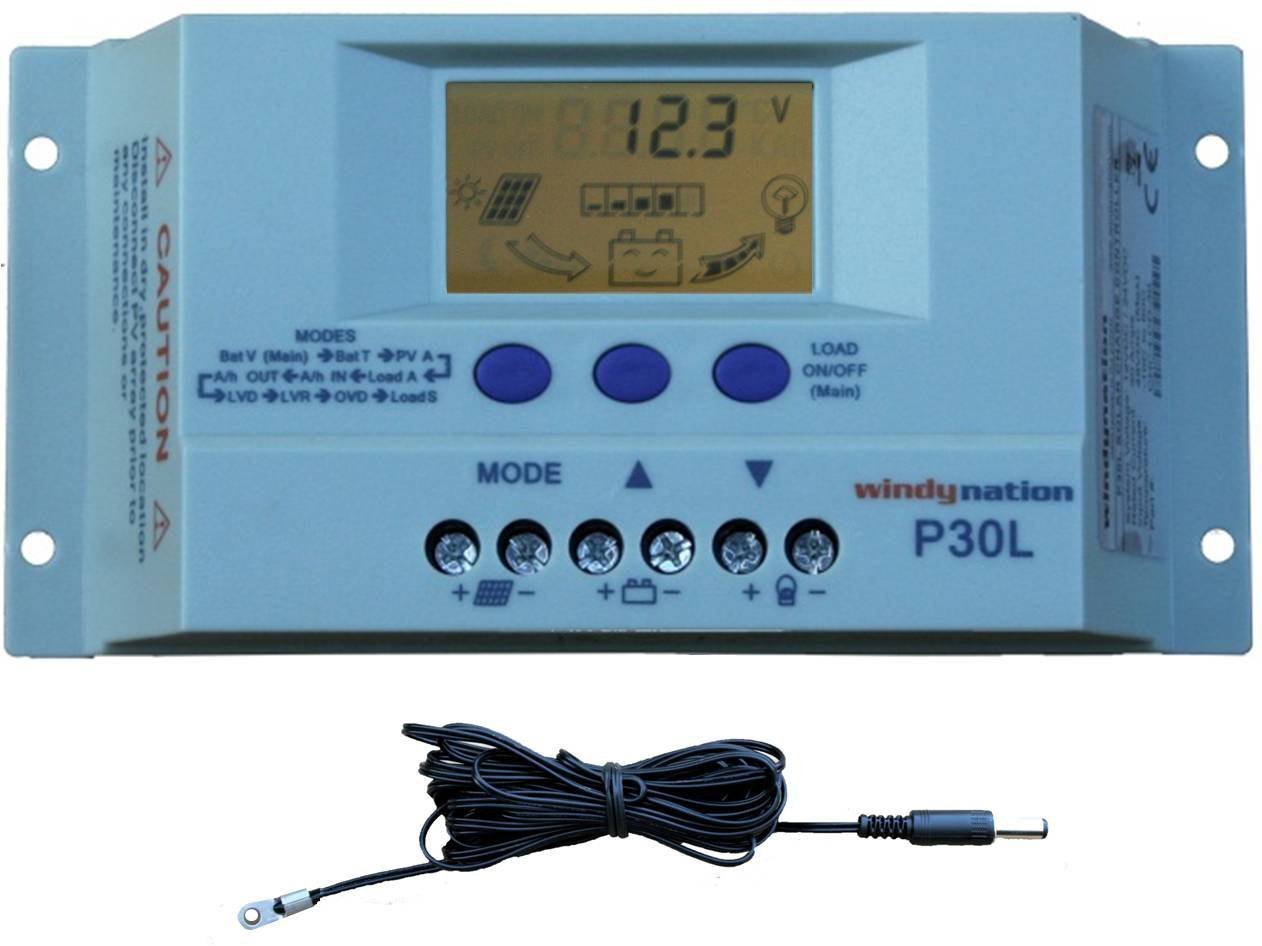

  • Premium WindyNation P30L 30 Amp Solar Charge Controller with LCD Display
  • WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel
  • LCD digital display provides system information (amperage, voltage, temperature, etc).
  • System settings are user adjustable by using the MODE and UP and DOWN buttons
  • Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included
  • Solar Panel Mounting Bracket and Fastener Set
  • Includes twelve anodized aluminum Z-brackets and twelve stainless steel fasteners
  • Quickly and easily mount the solar panel to a RV, boat or roof
  • Corrosion resistant materials (anodized aluminum and stainless steel)
  • Solar Branch Connectors
  • Two Pairs of Solar Branch Connectors
  • The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
  • 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
  • Three panels are perfect for 12 Volt battery bank charging
  • Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
  • Outstanding electrical performance under high temperature and low irradiance conditions
  • See image in the photo gallery above for the technical specifications of the solar panel.
  • Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

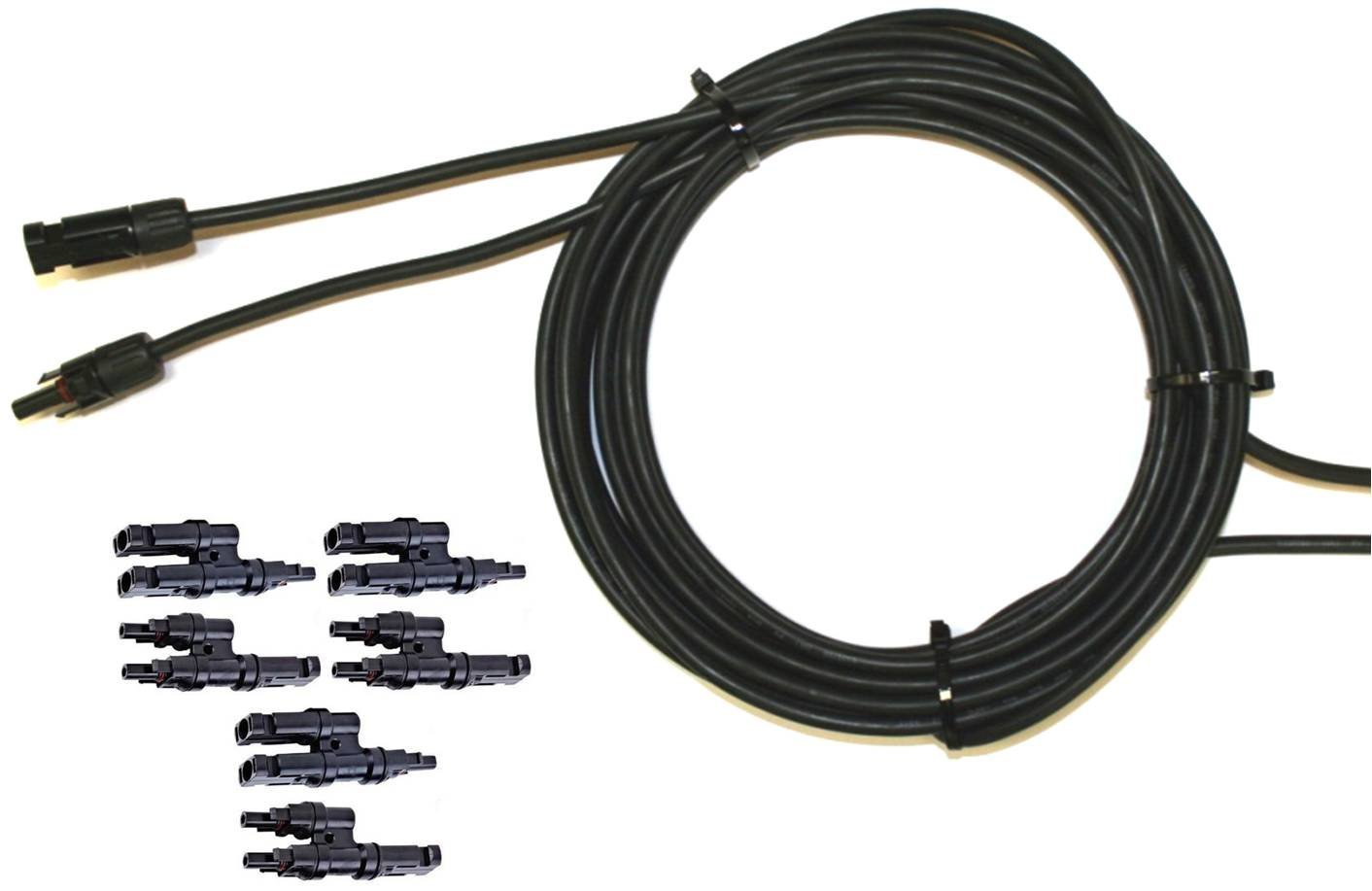

  • Solar Panel Cable and Solar Connectors
  • 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
  • One Pair of Solar Connectors
  • The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
  • (Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

Specifications

PART # SOL-100P-01
MAX POWER 100 WATTS
OPEN CIRCUIT VOLTAGE 21.60 VOLTS
SHORT CIRCUIT CURRENT 6.32 AMPS
MAX POWER VOLTAGE 17.40 VOLTS
MAX POWER CURRENT 5.75 AMPS
MAX SYSTEM VOLTAGE 1000 VDC (600 VDC UL)
MAX SERIES FUSE RATING 8 AMPS
NOM OPERATING CELL TEMP 45 C [+/-2]
DIMENSIONS 40" x 26.4" x 1.2"
WEIGHT 17.6 LBS

Package Contents

(3 pcs) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panels

(1 pc) Premium WindyNation P30L 30 Amp Solar Charge Controller with LCD Display

(3 Set) Solar Panel Mounting Bracket and Fastener Set

Solar Panel Cable and Solar Connectors

Solar Branch Connectors
