WindyNation SOK-300WPI-15 Complete 300 Watt Solar Panel Kit with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
- Manufacturer: WindyNation
- SKU: SOK-300WPI-15
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
 |
Manufacturer Direct from CA |
|
Authorized WindyNation Dealer |
|
1 Year Manufacturer Warranty |
|
Free Shipping |
What's Included:

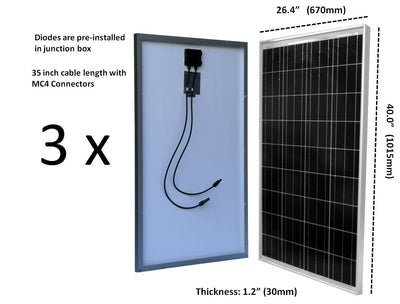

(3 pc) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
- Four panels are perfect for 12 or 24 Volt battery bank charging
- Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions

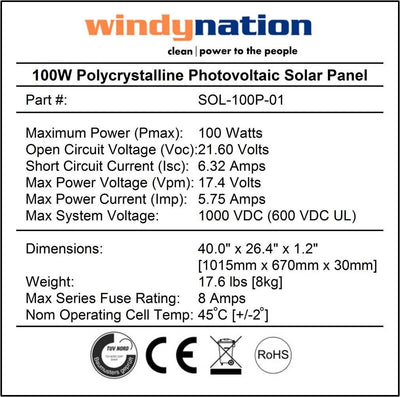

- See image in the photo gallery above for the technical specifications of the solar panel.
- Note:Wiring diagrams for wiring the four solar panels in parallel (12V) are shown in the owners manual

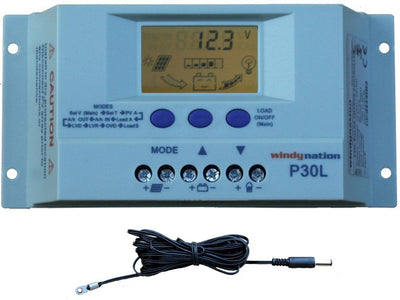

(1 pc) 30 Amp P30L Solar Charge Controller
- Prevents battery from being overcharged and damaged by the solar panel
- User adjustable settings with LCD Display
- Battery Temperature Sensor included
- Overload, short circuit, and reverse polarity protected

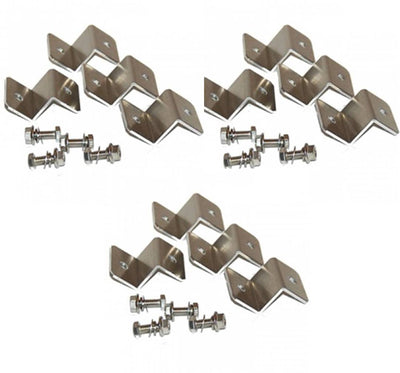

(3 Sets) Solar Panel Mounting Bracket and Fastener Set
- Includes 16 anodized aluminum Z-brackets and four sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)
Solar Panel Cable and MC4 Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of MC4 Connectors
- The MC4 connectors allow for a quick and waterproof connection of the solar extension cable to the MC4 connectors attached to the back of the solar panel.
(Note: MC4 Connectors do not come pre-attached to cable. Cut cable to length and attach MC4 Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

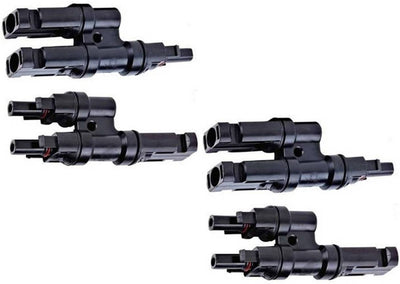

MC4 Branch Connectors
- Three Pairs of MC4 Branch Connectors
- The MC4 branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
- Wiring diagram for both 12V and 24V are shown in the Owners manual
1500 Watt (3000 Watt Surge) VertaMax Power Inverter
Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
Features:
- Auxiliary power for RV’s and boats. Popular with commercial RV and marine retrofitters
- Great for camping or remote cabins. Power devices in remote back country locations
- Easy way to provide power for sheds, light poles and gates without the need for trenching and laying cables
- Two or more panels can provide back-up power for critical appliances like a refrigerator during a power outage
- Kit will produce an average of 1200 Watt Hours (Wh) or 101 Amp Hours (Ah) of charge per day (depends on sunlight availability)
Specifications:
Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
|
Parameter |
PIN-1500-12M |
|
|
Continuous Rated Power |
1500 Watts |
|
|
Peak Surge Power |
3000 Watts |
|
|
Input Voltage (Nominal) |
12 – 13 VDC |
|
|
Input Voltage (Min – Max) |
11 – 15VDC |
|
|
Output Voltage (Nominal) |
115VAC |
|
|
Output Frequency (Nominal) |
60 Hz |
|
|
Output Waveform |
Modified Sine Wave |
|
|
Standby Current |
<0.80A |
|
|
Low Battery Voltage Alarm |
10.5 VDC (+/-0.3VDC) |
|
|
Low Battery Voltage Shutdown |
10.0 VDC (+/-0.3VDC) |
|
|
High Battery Voltage Shutdown |
16 VDC (+/-0.5VDC) |
|
|
Efficiency |
85-90% |
|
Physical Specifications
|
Parameter |
PIN-1500-12M |
|
|
Dimension (L x W x H) |
13.0” x 8.7” x 3.0” (330mm x 221mm x 76mm) |
|
|
Unit Weight |
8.2 lb. (3.7kg) |
|
|
Cooling |
Auto Powered Fan |
|
|
Operating Temperature |
0oC to 60oC |
|
|
Storage Temperature |
-25oC to 70oC |
|
|
Operating Humidity |
20 to 80% relative humidity (noncondensing) |
|
|
Thermal Protection |
>65oC |
|
Inverter Safety Features
|
Low Voltage Shutdown Battery Protection |
|
Automatic Overload Protection |
|
Short Circuit Protection |
|
High Temperature Protection |
|
Load and Thermally Activated Cooling Fans |
|
Fault Indication and Internally Fused |
Inverter Remote On/Off Switch (optional add-on item that can be added using the drop-down tab above)
- Allows user to remotely turn the inverter off and on (convenient if the inverter is located in a difficult to access location)
- Remote Swtich extension cord is 16.5 feet in length

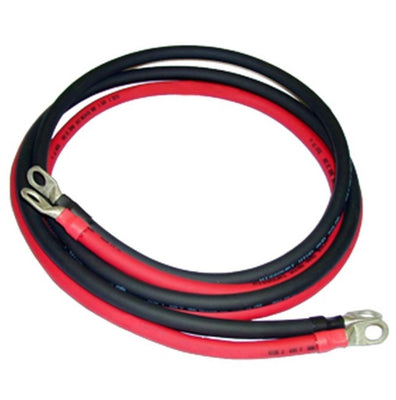

Inverter Battery Cables
- Used to connect the inverter to the 12 volt battery. Capable of carrying high current.
- One red 2 gauge cable 3 feet in length + one black 2 gauge cable 3 feet in length with pre-attached cable lugs (If you upgrade to the 3000W VertaMax Inverter you will receive thicker, 1/0 cable to handle the higher current)
Additional Information
Power Consumption of Common AC Appliances
| Appliance | Watts |
|---|---|
| Stereo | 200 |
| Fan | 200 |
| Small Refrigerator | 350 |
| Light Bulb 100W | 100 |
| Microwave 1000W | 1000 |
| AC (5,000 BTU) | 700 |
| Computer | 300 |
| Hair Dryer | 1000 |
| Coffee Maker | 1200 |
| Blender | 400 |
1 Year Comprehensive Warranty
WARRANTIES – ALL PRODUCTS
As an WindyNation authorized dealer, we offer this item with a 1 Year Warranty.
- In the event there is a technical problem that occurs with your product upon receipt or installation of your product, please contact us and attempt to diagnose the problem. If a faulty item is detected and the unit is within the warranty period, an RMA number will be provided along with return instructions. Windy Nation will repair or replace the item at their discretion, within 14 days of receipt of return.
- Windy Nation warrants that the Power Inverter (the “Product”), will be free from manufacturing defects in materials and workmanship under normal authorized use consistent with product instructions for a period of one (1) year from the date the original purchaser (“Customer”) receives the Product (the “Warranty Period”). This warranty extends only to the original purchaser. The Customer’s sole and exclusive remedy and the entire liability of Windy Nation, its suppliers and affiliates for breach of the warranty is, at Windy Nation’s option, either (i) to replace the Product (or defective component part(s)) with a new or reconditioned Product (or component part(s)); (ii) to repair the reported problem; or (iii) to refund the purchase price of the Product. Repaired or replaced products are warranted for the remainder of the original warranty period only. No employee, agent, dealer or other person is authorized to give any warranties on behalf of Windy Nation not expressly set forth in this limited warranty.
