WindyNation SOK-400WP-P30L-400B 400 Watt Solar Panel Kit with 400ah AGM Battery New
Manufacturer: WindyNation
SKU: SOK-400WP-P30L-400B
QTY
(888) 999-1522
$ 1,914.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Pay over time with Affirm
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Extended Warranty
Factory Warranty
- This product comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
WindyNation SOK-400WP-P30L-400B 400 Watt Solar Panel Kit with 400ah AGM Battery New
Product Overview

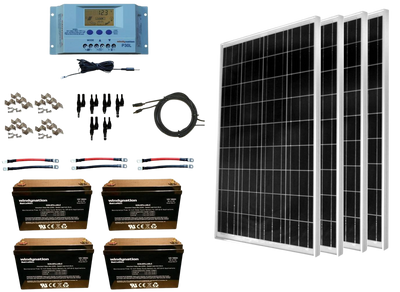

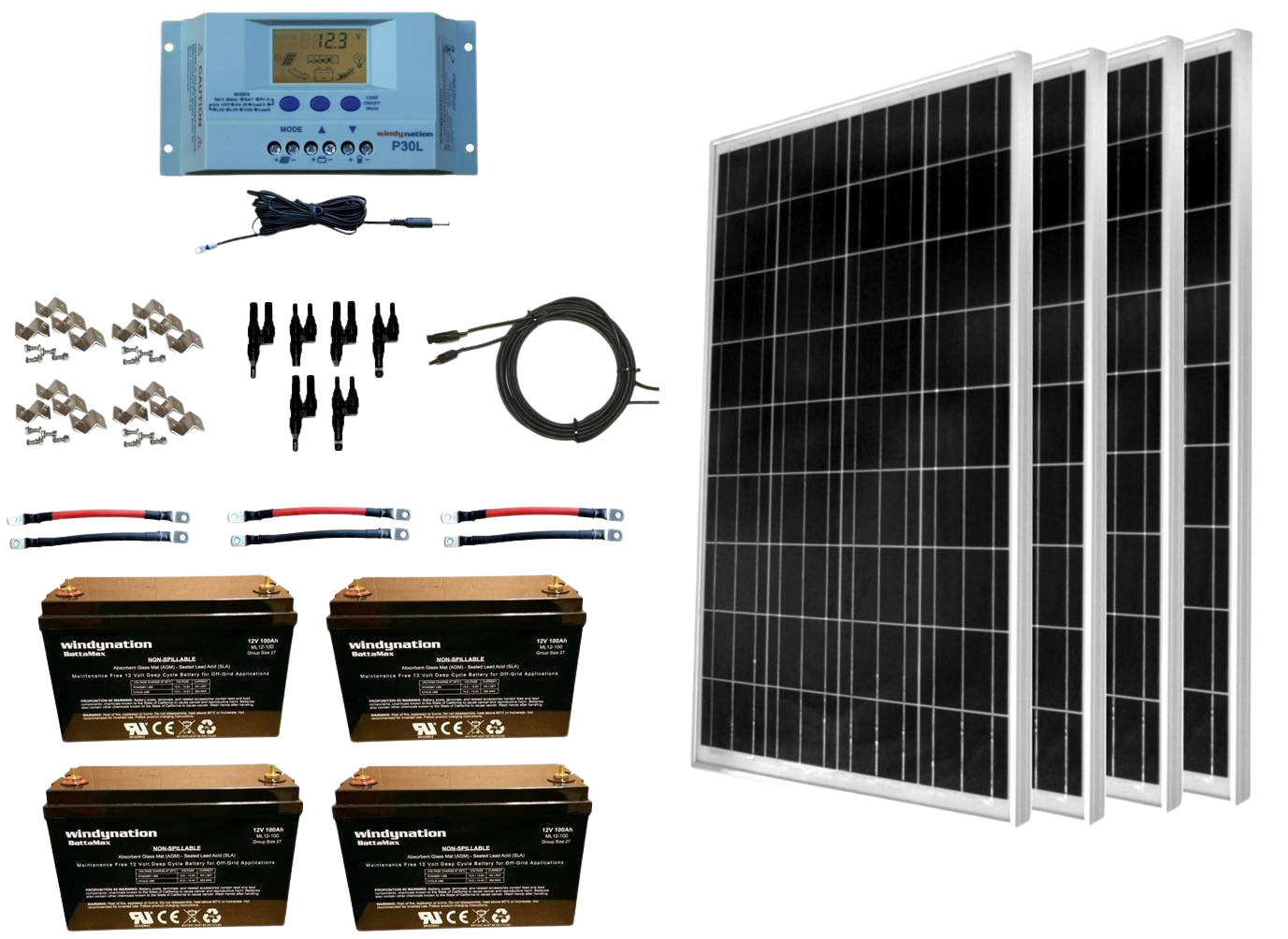

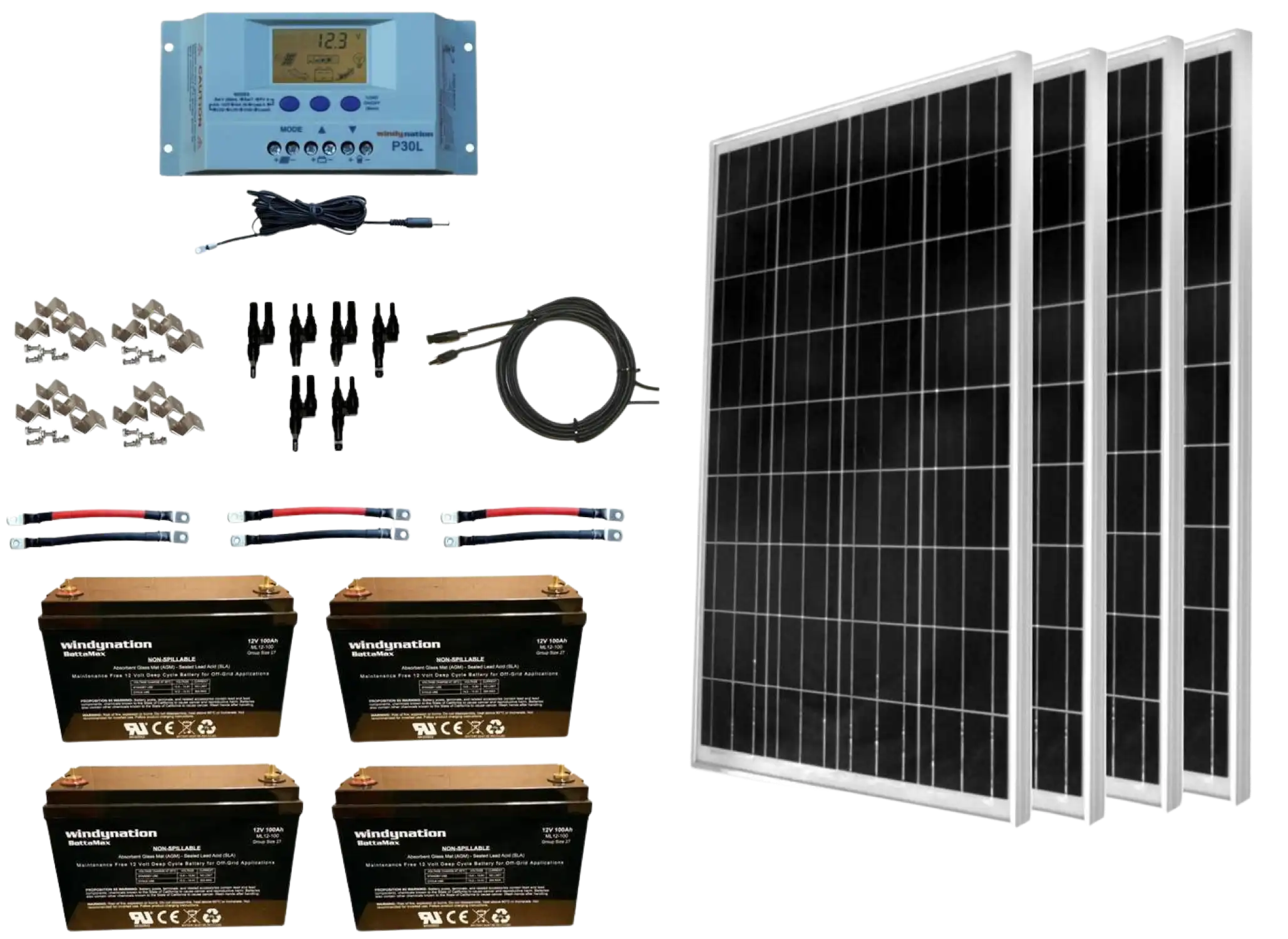

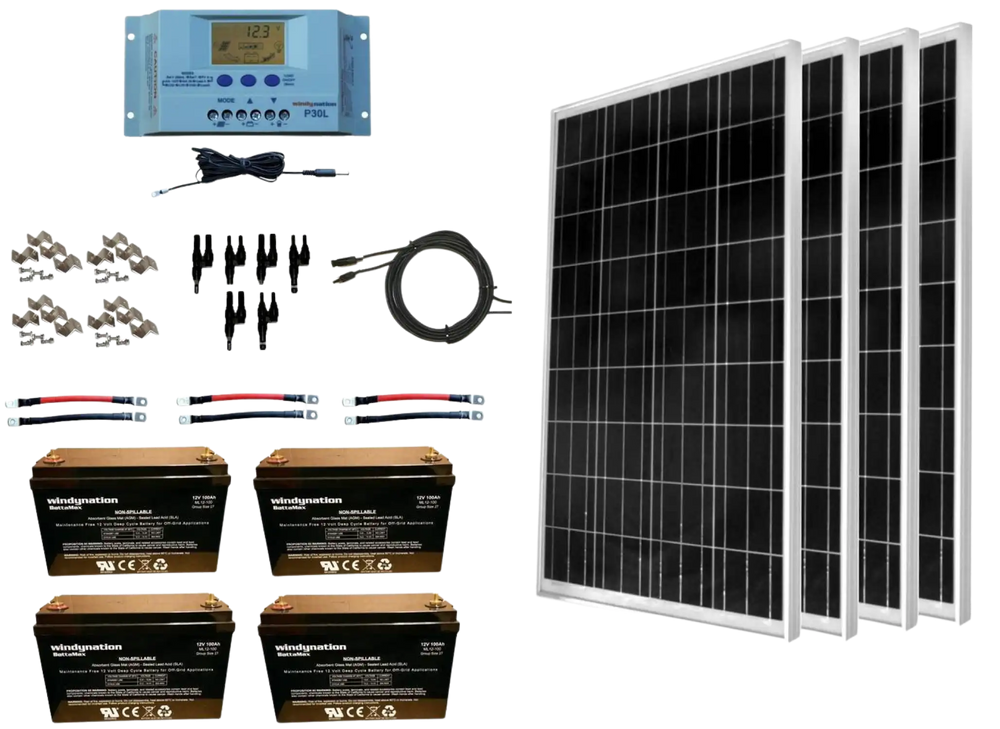

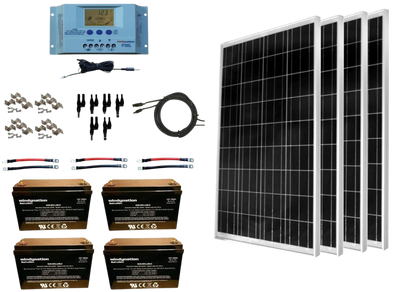

The Windy Nation 400-Watt Complete Solar Charging Kit and 400Ah Battery Bank comes with everything you need to start producing free, clean power from the sun. Perfect for RV's, boats, cabins and back-up power. WindyNation's 400-Watt Solar Kit with batteries includes everything you need to get started: four 100-Watt Polycrystalline Solar Panels, four 100Ah AGM Deep Cycle Batteries with 2/0 AWG Interconnect Cables, 30 Amp P30L Solar Charge Controller, 40 ft. of UL Listed 12 AWG Solar Cable, all necessary MC4 Connectors for wiring and all the necessary mounting hardware. Product photos above show pictures of all the included items and additional technical information. The WindyNation 400-Watt Solar Charging Kit is the ideal solution for providing back-up power or off-grid power when you need it. Solar panels will provide on average 1700 Watt Hours (Wh) or 150 Amp hours of charge per day (depends on sunlight availability)
Brand new in box
1 year factory warranty
Fast shipping from CA
Authorized WindyNation dealer
Features

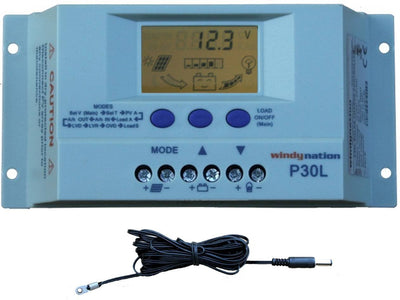

- 30 Amp P30L Solar Charge Controller with LCD Display
- WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel

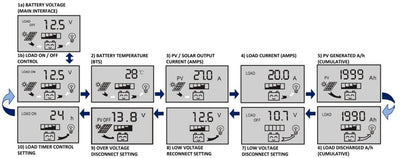

- LCD digital display provides system information (amperage, voltage, temperature, etc).
- System settings are user adjustable by using the MODE and UP and DOWN buttons
- Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included

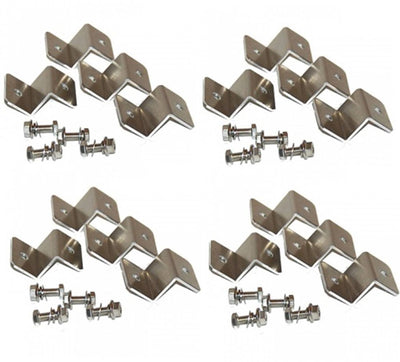

- Solar Panel Mounting Bracket and Fastener Set
- Includes sixteen anodized aluminum Z-brackets and sixteen sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)
- Solar Branch Connectors
- Three Pairs of Solar Branch Connectors
- The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
- BattaMax 100Ah (400ah total) Batteries
- AGM, Maintenance Free, Deep Cycle 12V Batteries with 2/0 AWG Interconnect Battery Cables

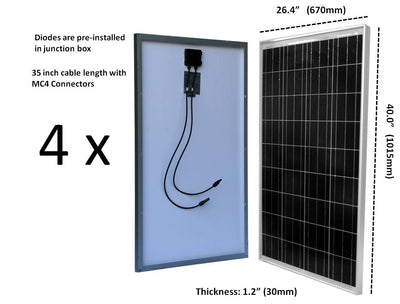

- 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
- Four panels are perfect for 12 or 24 Volt battery bank charging
- Windynation's UL 1703 Certified 100 Watt Solar Panels combine high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions
- See image in the photo gallery above for the technical specifications of the solar panel.
- Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

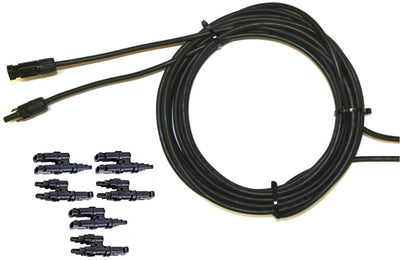

- Solar Panel Cable and Solar Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of Solar Connectors
- The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
(Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)
Specifications

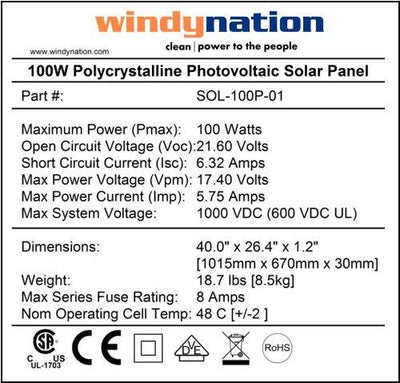

| 100W POLYCRYSTALLINE PHOTOVOLTAIC SOLAR PANEL | |
| PART # | SOL-100P-01 |
| MAX POWER | 100 WATTS |
| OPEN CIRCUIT VOLTAGE | 21.60 VOLTS |
| SHORT CIRCUIT CURRENT | 6.32 AMPS |
| MAX POWER VOLTAGE | 17.40 VOLTS |
| MAX POWER CURRENT | 5.75 AMPS |
| MAX SYSTEM VOLTAGE | 1000 VDC (600 VDC UL) |
| MAX SERIES FUSE RATING | 8 AMPS |
| NOM OPERATING CELL TEMP | 45 C [+/- 2] |
| DIMENSIONS | 40" x 26.4" x 1.2" |
| WEIGHT | 17.6 LBS |

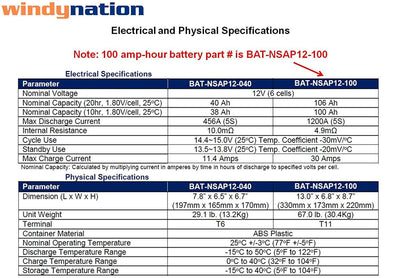

| 100AH BATTAAX AGM BATTERY | |
| DIMENSION (L x W x H) | 62.8 LB |
| TERMINAL | 5/16" THREAD OR SAE AUTOMOTIVE POST |
| CONTAINER MATERIAL | ABS PLASTIC |
| NOMINAL OPERATING TEMPERATURE | 77°F +/-5°F |
| DISCHARGE TEMPERATURE RANGE | 5°F +/-122°F |
| CHARGE TEMPERATURE RANGE | 32°F +/-104°F |
| STORAGE TEMPERATURE RANGE | 5°F +/-104°F |
| NOMINAL VOLTAGE | 12V (6 CELLS) |
| NOMINAL CAPACITY (20HR, 1.80V/CELL, 77°F) | 106AH |
| NOMINAL CAPACITY (10HR, 1.80V/CELL, 77°F) | 100AH |
| NOMINAL CAPACITY (1HR, 1.60V/CELL, 77°F) | 60AH |
| MAX DISCHARGE CURRENT | 1000A (5S) |
| INTERNAL RESISTANCE | 6.0MΩ |
| CYCLE USE | 14.2~14.4V (25°C) TEMP. COEFFICIENT - 30mV/°C |
| STANDBY USE | 13.5~13.8V (25°C) TEMP. COEFFICIENT - 20mV/°C |
| CAPACITY @ 104°F | 103% |
| CAPACITY @ 77°F | 100% |
| CAPACITY @ 32°F | 86% |
Package Contents
(4 pcs) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
(1 pc) 30 Amp P30L Solar Charge Controller with LCD Display
(4 Set) Solar Panel Mounting Bracket and Fastener Set
(4 pc) Batteries Totaling 400ah AMG
Solar Panel Cable and Solar Connectors
Solar Branch Connectors
Warranty
This product comes with a 1 year factory warranty.
