WindyNation SOK-400WPI-30 Complete 400 Watt Solar Panel Kit with 3000W VertaMax Power Inverter for 12 Volt Battery Systems New
- Manufacturer: WindyNation
- SKU: SOK-400WPI-30
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
 |
Manufacturer Direct from CA |
|
Authorized WindyNation Dealer |
|
1 Year Manufacturer Warranty |
|
Free Shipping |
What's Included:

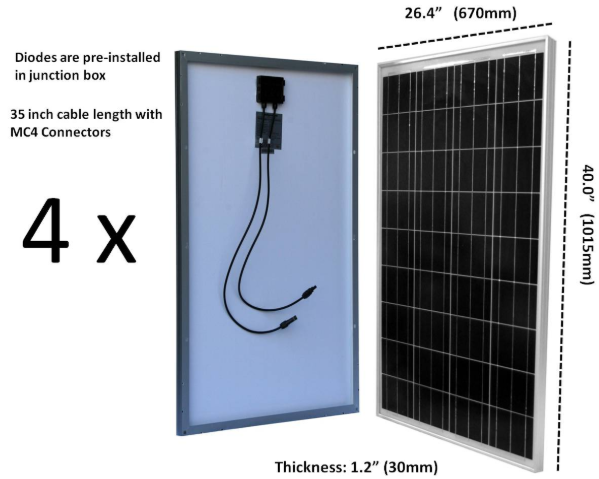

(4 pc) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
- Four panels are perfect for 12 or 24 Volt battery bank charging
- Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions
- See image in the photo gallery above for the technical specifications of the solar panel.
- Note:Wiring diagrams for wiring the four solar panels in parallel (12V) are shown in the owners manual

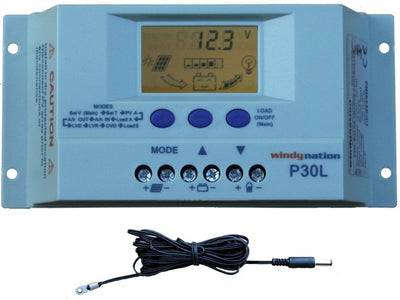

(1 pc) 30 Amp P30L Solar Charge Controller
- Prevents battery from being overcharged and damaged by the solar panel
- User adjustable settings with LCD Display
- Battery Temperature Sensor included
- Overload, short circuit, and reverse polarity protected

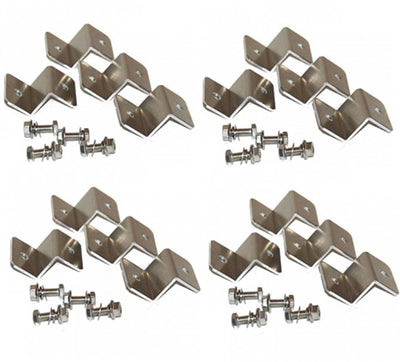

(4 Sets) Solar Panel Mounting Bracket and Fastener Set
- Includes 16 anodized aluminum Z-brackets and four sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)

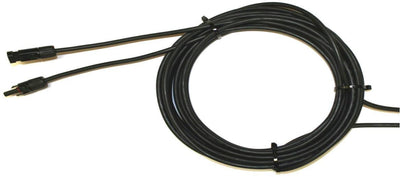

Solar Panel Cable and MC4 Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of MC4 Connectors
- The MC4 connectors allow for a quick and waterproof connection of the solar extension cable to the MC4 connectors attached to the back of the solar panel.
(Note: MC4 Connectors do not come pre-attached to cable. Cut cable to length and attach MC4 Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

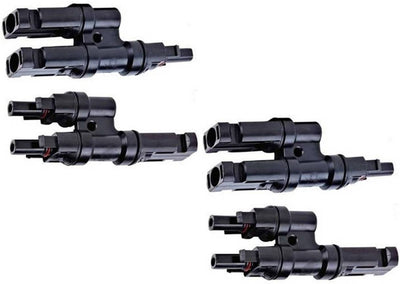

MC4 Branch Connectors
- Three Pairs of MC4 Branch Connectors
- The MC4 branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
- Wiring diagram for both 12V and 24V are shown in the Owners manual

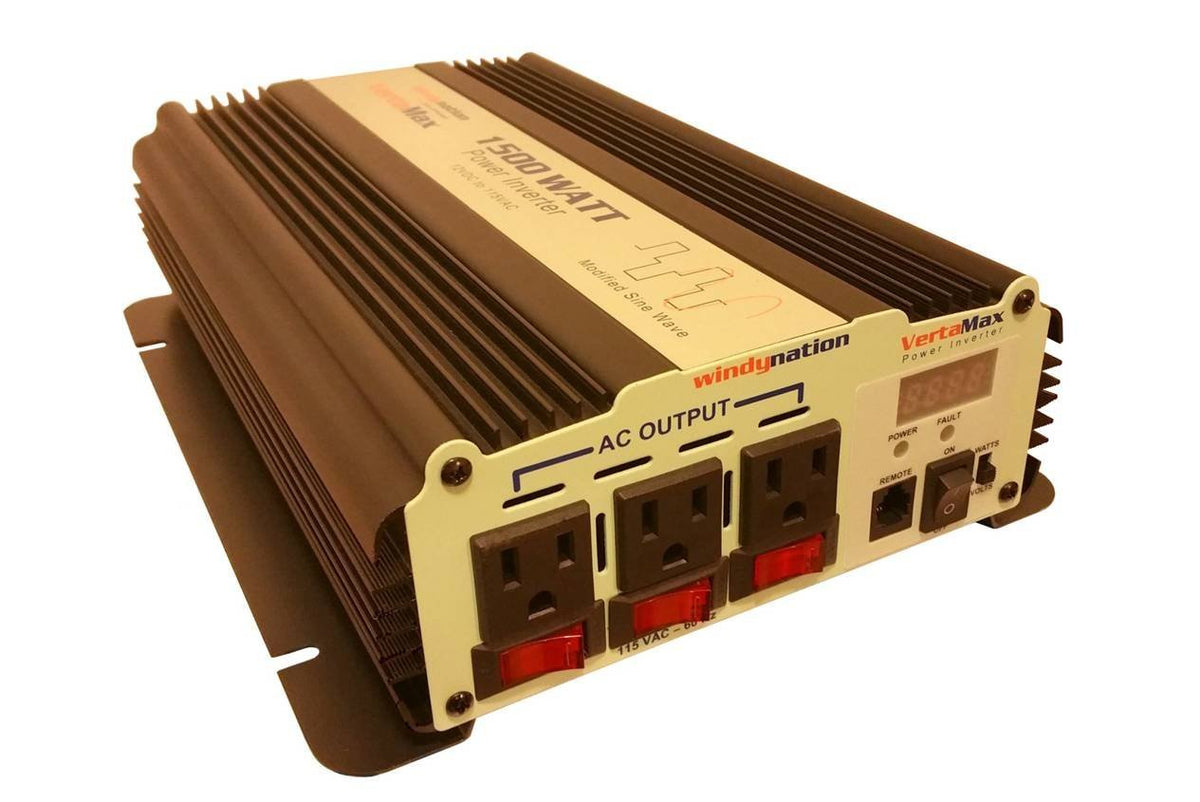

1500 Watt (3000 Watt Surge) VertaMax Power Inverter
Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
Features:

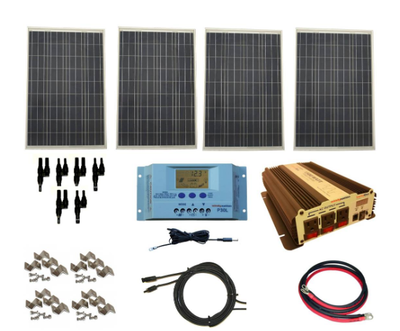

- Complete kit includes: four 100-Watt polycrystalline solar panel, 30 Amp P30L solar charge controller (with LCD display and user adjustable settings), 40 ft. of UL Listed 12 AWG solar cable, all necessary MC4 connectors, all necessary solar mounting hardware + 1500-Watt (3000-Watt surge) VertaMax DC to AC power inverter, 2 pieces of 2 AWG battery cables for connecting the inverter to a 12-Volt battery
- Solar charging will provide on average 1600-Watt hours (Wh) or 135 Amp hours of charge per day (depends on sunlight availability)
- Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save, purchase all the components together and save time and money
- Perfect kit for a off-grid 12 -OLT battery system. 1500-Watt VertaMax inverter provides plenty of AC power to run your household appliances
Specifications:
Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
|
Parameter |
PIN-1500-12M |
|
|
Continuous Rated Power |
1500 Watts |
|
|
Peak Surge Power |
3000 Watts |
|
|
Input Voltage (Nominal) |
12 – 13 VDC |
|
|
Input Voltage (Min – Max) |
11 – 15VDC |
|
|
Output Voltage (Nominal) |
115VAC |
|
|
Output Frequency (Nominal) |
60 Hz |
|
|
Output Waveform |
Modified Sine Wave |
|
|
Standby Current |
<0.80A |
|
|
Low Battery Voltage Alarm |
10.5 VDC (+/-0.3VDC) |
|
|
Low Battery Voltage Shutdown |
10.0 VDC (+/-0.3VDC) |
|
|
High Battery Voltage Shutdown |
16 VDC (+/-0.5VDC) |
|
|
Efficiency |
85-90% |
|
Physical Specifications
|
Parameter |
PIN-1500-12M |
|
|
Dimension (L x W x H) |
13.0” x 8.7” x 3.0” (330mm x 221mm x 76mm) |
|
|
Unit Weight |
8.2 lb. (3.7kg) |
|
|
Cooling |
Auto Powered Fan |
|
|
Operating Temperature |
0oC to 60oC |
|
|
Storage Temperature |
-25oC to 70oC |
|
|
Operating Humidity |
20 to 80% relative humidity (noncondensing) |
|
|
Thermal Protection |
>65oC |
|
Inverter Safety Features
|
Low Voltage Shutdown Battery Protection |
|
Automatic Overload Protection |
|
Short Circuit Protection |
|
High Temperature Protection |
|
Load and Thermally Activated Cooling Fans |
|
Fault Indication and Internally Fused |

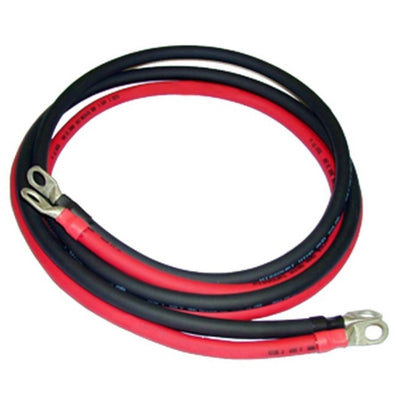

Inverter Battery Cables
- Used to connect the inverter to the 12 volt battery. Capable of carrying high current.
- One red 2 gauge cable 3 feet in length + one black 2 gauge cable 3 feet in length with pre-attached cable lugs (If you upgrade to the 3000W VertaMax Inverter you will receive thicker, 1/0 cable to handle the higher current)
Additional Information
Power Consumption of Common AC Appliances
| Appliance | Watts |
|---|---|
| Stereo | 200 |
| Fan | 200 |
| Small Refrigerator | 350 |
| Light Bulb 100W | 100 |
| Microwave 1000W | 1000 |
| AC (5,000 BTU) | 700 |
| Computer | 300 |
| Hair Dryer | 1000 |
| Coffee Maker | 1200 |
| Blender | 400 |
