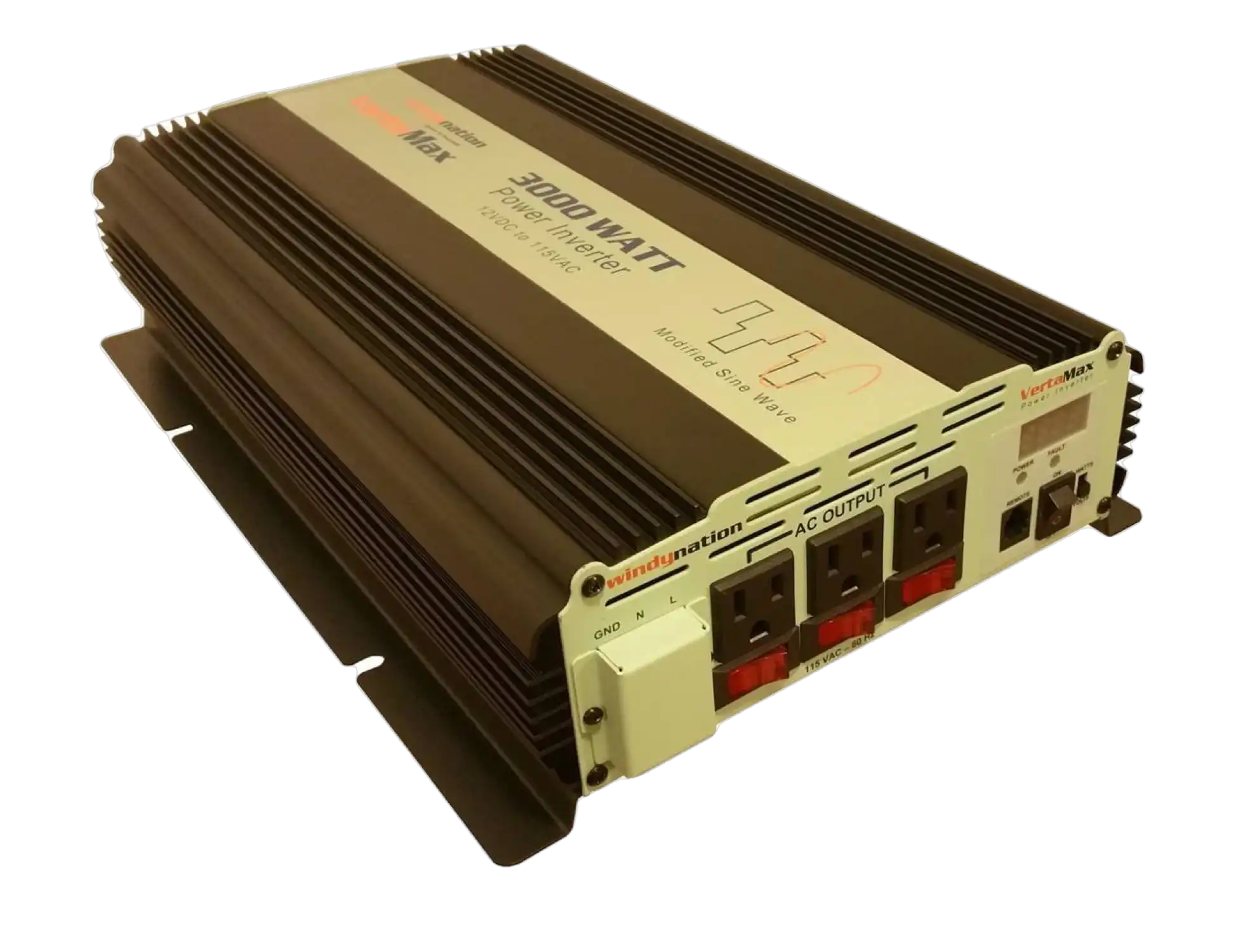

WindyNation Vertamax PIN-3000-12M 3000 Watt 12V Battery Power Inverter DC to AC Car, RV, Solar, RV New
- Manufacturer: WindyNation
- SKU: PIN-3000-12M

Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping

![]() |
Manufacturer Direct from CA |
![]() |
Authorized WindyNation Dealer |
![]() |
1 Year Manufacturer Warranty |
![]() |
Free Shipping |
What's Included:
(1 pc) 3000W Vertamax Inverter
Features:
- Includes LCD Digitial Display which shows DC Volts (battery voltage) and Watts (AC power consumption)
- Includes AC hardwire option. Convenient for wiring permanent installation like an off-grid cabin.
- Fully protected against low voltage, high voltage, overloading, short circuit, excessive temperature
- Remote ON/OFF Switch capable
- One year warranty
Specifications:
Electrical Specifications and Physical Specifications
Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
Parameter |
|
PIN-3000-12M |
Continuous Rated Power |
|
3000 Watts |
Peak Surge Power |
|
6000 Watts |
Input Voltage (Nominal) |
12 – 13 VDC |
|
Input Voltage (Min – Max) |
11 – 15VDC |
|
Output Voltage (Nominal) |
115VAC |
|
Output Frequency (Nominal) |
60 Hz |
|
Output Waveform |
Modified Sine Wave |
|
Standby Current |
|
<1.0A |
Low Battery Voltage Alarm |
10.5 VDC (+/-0.3VDC) |
|
Low Battery Voltage Shutdown |
10.0 VDC (+/-0.3VDC) |
|
High Battery Voltage Shutdown |
16 VDC (+/-0.5VDC) |
|
Efficiency |
85-90% |
Parameter |
|
PIN-3000-12M |
Dimension (L x W x H) |
|
16.7” x 10.3” x 3.7” (425mm x 262mm x 94mm) |
Unit Weight |
|
15.4 lb. (7.0kg) |
Cooling |
Auto Powered Fan |
|
Operating Temperature |
0oC to 60oC |
|
Storage Temperature |
-25oC to 70oC |
|
Operating Humidity |
20 to 80% relative humidity (noncondensing) |
|
Thermal Protection |
>65oC |
Safety Features
Low Voltage Shutdown Battery Protection |
Automatic Overload Protection |
Short Circuit Protection |
High Temperature Protection |
Load and Thermally Activated Cooling Fans |
Fault Indication and Internally Fused |
Remote On/Off Switch (optional)
- Allows user to remotely turn the inverter off and on (convenient if the inverter is located in a difficult to access location)
- Remote Swtich extension cord is 16.5 feet in length
Battery Cables (Optional)
- High current cables are used to connect the inverter to the 12 volt battery
- One red 1/0 gauge cable 3 feet in length + one black 1/0 gauge cable 3 feet in length with pre-attached cable lugs
An additional $20.00 for Adding 1/0 AWG Cables.
Additional Information
Power Consumption of Common AC Appliances
Appliance | Watts |
---|---|
Stereo | 200 |
Fan | 200 |
Small Refrigerator | 350 |
Light Bulb 100W | 100 |
Microwave 1000W | 1000 |
AC (5,000 BTU) | 700 |
Computer | 300 |
Hair Dryer | 1000 |
Coffee Maker | 1200 |
Blender | 400 |
