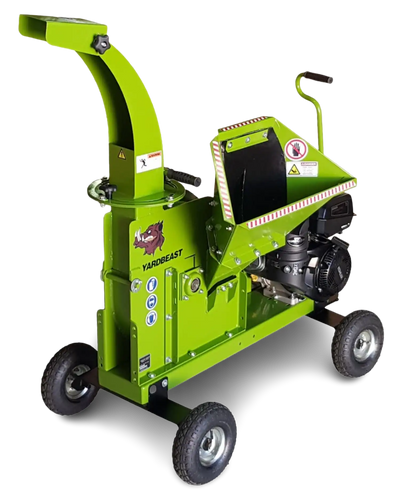

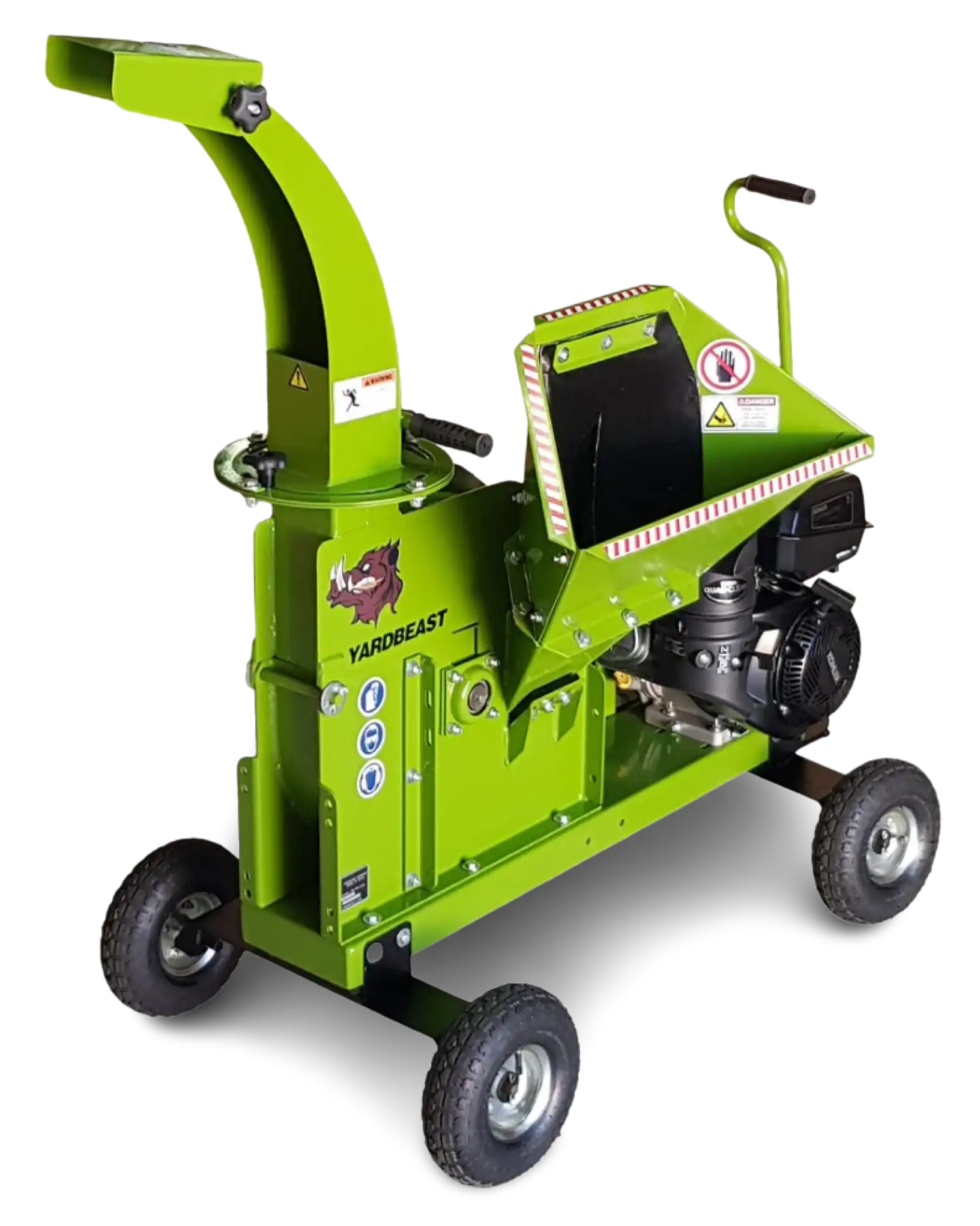

YARDBEAST 3514 429cc 14HP Kohler CH440 Engine 3.5" Wood Chipper Shredder New
Manufacturer: YARDBEAST
SKU: 3514
Share
Email
QTY
$ 3,159.99
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview

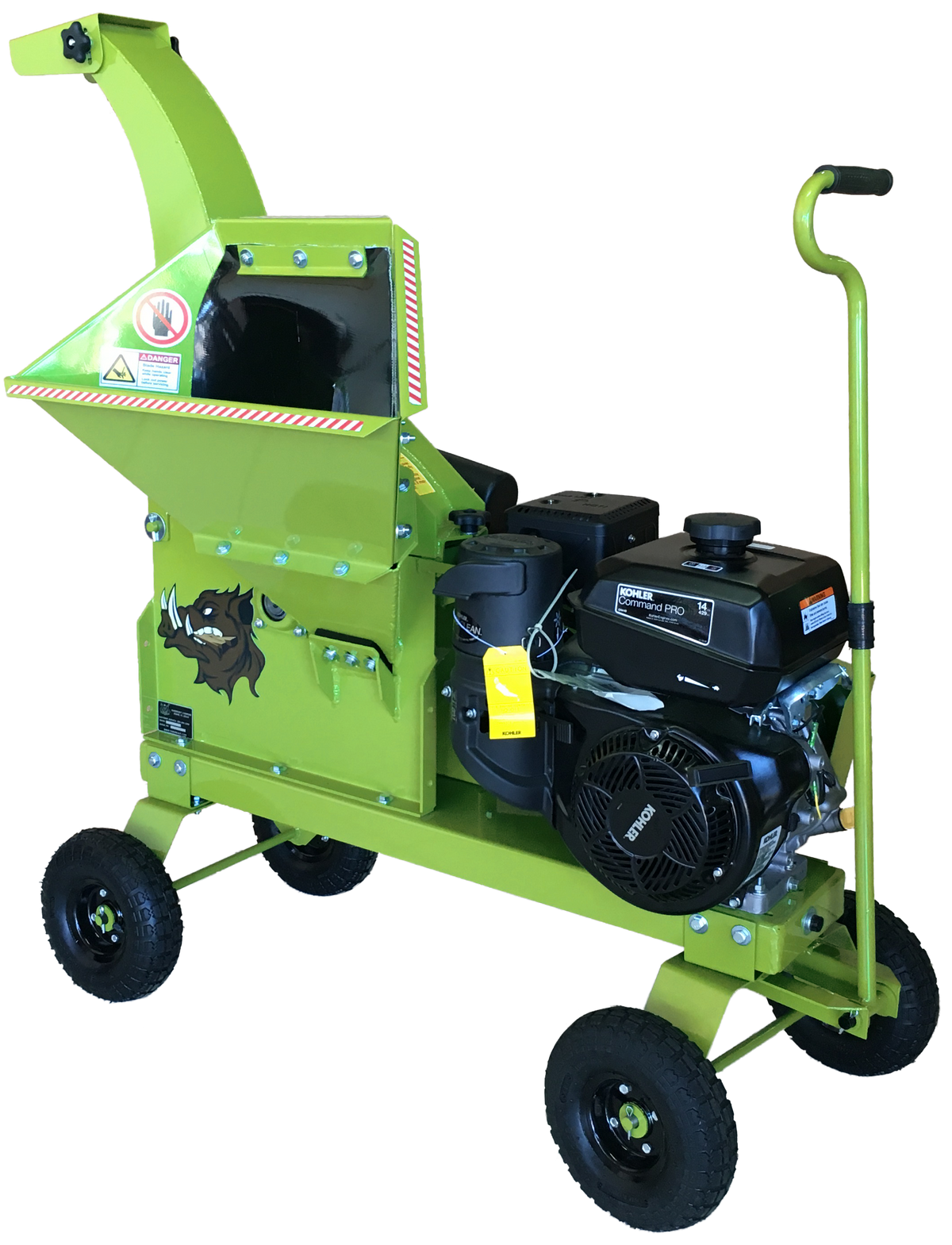

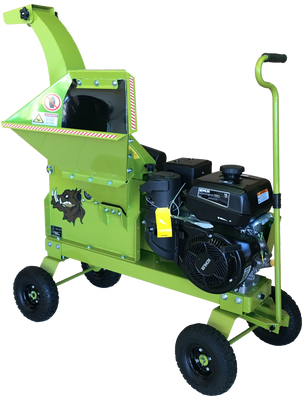

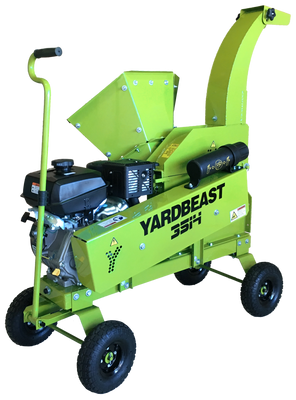

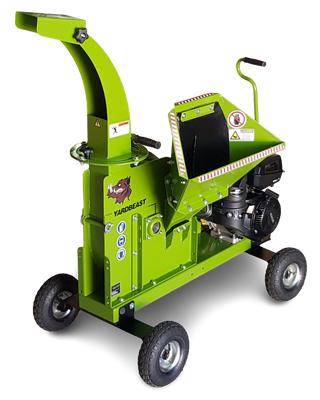

The Yardbeast 3.5” is a heavy-duty chipper, designed for customers with big properties and more demanding applications. Is powered by 429CC Kohler CH440 Engine, capable of delivering the torque needed.
It counts with a centrifugal clutch that provides protection to the engine. It’s offered in two versions: ATV towable or Hand Towable. The gooseneck discharger gives you the convenience that you need.
2 year factory warranty
Ships directly from YARDBEAST out of FL
Authorized YARDBEAST dealer
Features
- All steel thick chopping frame and carriage: Thanks to its carefully angled anvil and blade cutting angles that when combined, create an phenomenal self-feeding action that will have you running for more branches to chip.
- Pivotal frame opens up for easy and quick access to cutting blade and rotor: Open up the frame, and you have instant access to the cutting blade and rotor. From there you can appreciate the rotors heavy build, one blade setup and the enormous flywheel.
- This pivotal frame design is only found in commercial grade chippers.
- Transmission clutch for easy starts and better engine shock load protection.

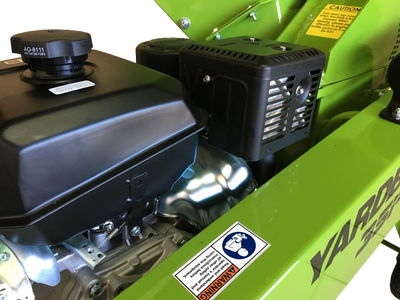

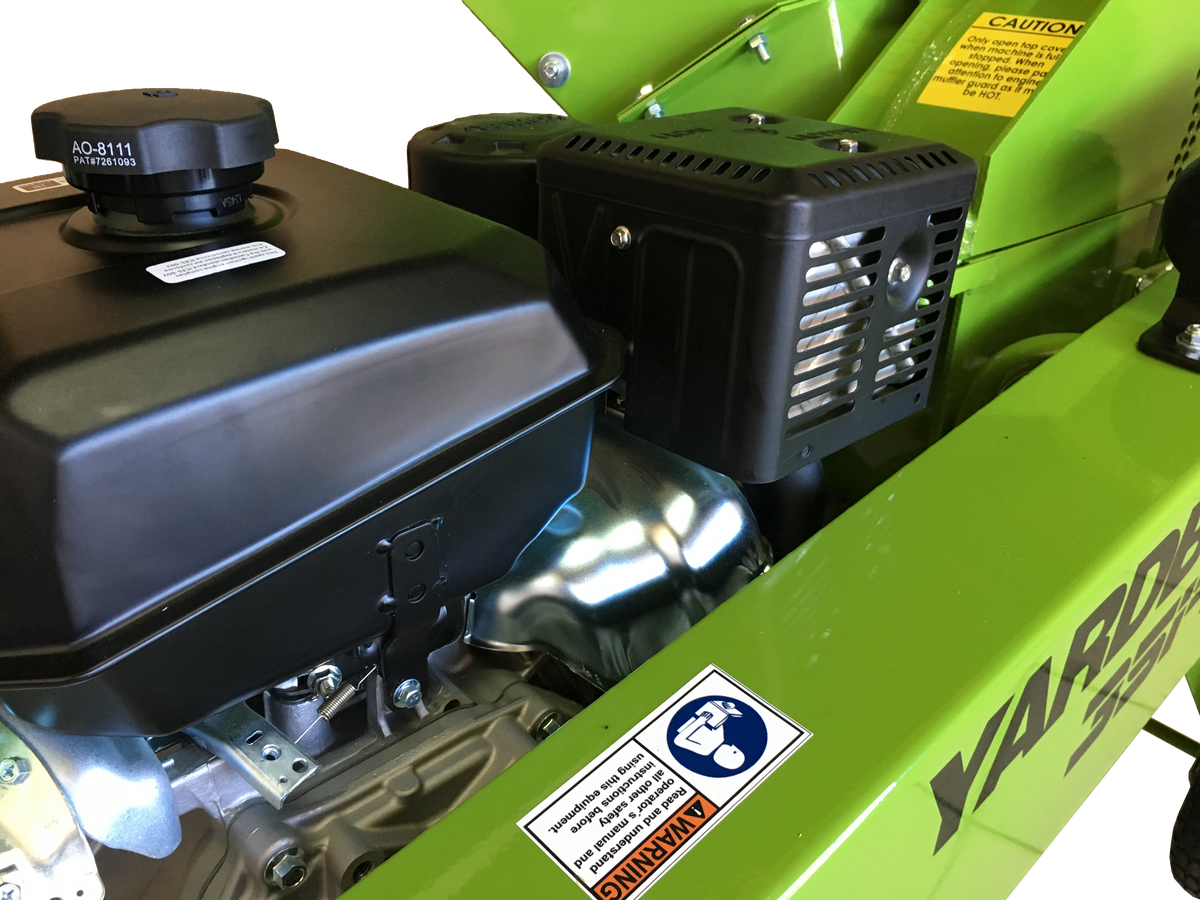

- Featuring a powerful, professional-grade 429cc 14HP Kohler CH440 engine: In one word, a workhorse. This engine is capable of delivering the torque needed on the most demanding applications and conditions.
- Equipped with Quad-clean cyclonic air cleaner; and Forged-steel crankshafts and tough Stellite®-faced exhaust valves with Tufftride-coated stems and cast-iron cylinder bores. Torque output rated at 22.7ft-lbs.
- Chips up to 3.5″ true feed capacity: Our design team paid great attention to the fact that branches are not straight.

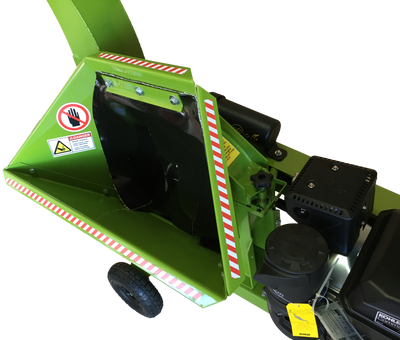

- Our feed chute is wide enough to accommodate riddled branches with twigs and leaves.
Specifications
| Chipping capacity | 3.5" |
| Rotor RPM | 3,000 |
| Rotor Weight | 56 lbs. |
| Blade | D2 Tool Steel Blade |
| Blade dimensions | 5.82" x 2.33" |
| Rotor Construction | 7/16" wafer front disc with 1/4" rotor vanes |
| Flywheel | 17.32" |
| Feed Hopper | 24" x 11" |
| Frame construction | 7-ga steel. Weld seams all around |
| Bearing units | SKF® roller sealed bearings /custom steel housing |
| Discharge height | 54.7" |
| Control | Discharge deflector |
| Chipper Weight (w/engine) | 320 lbs |
| Make | Kohler CH440 Command Pro® 14HP engine |
| RPM | 3,600 |
| Torque | 19.8ft-lb @ 2,400RPM |
| Dry Weight | 72.8 Lbs |
| Displacement | 429 cc |
| Oil Capacity | 1.4 quarts (1.3 Lts) |
| Fuel Capacity | 7.0 Lts |
| Emissions | CARB Tier III certified |
| Drive | NORAM® Heavy Duty centrifugal clutch |
| Belts | 2- Gates® Hi-Power II B64 Belts |
| Rotor Pulley | Cast Iron 2-groove pulley with 1-3/8" taper hub |
| Wheels | 4 - 10" Dia. Pneumatic Wheels |
| Frame construction | 1/8" thick steel with engine base tension plate |

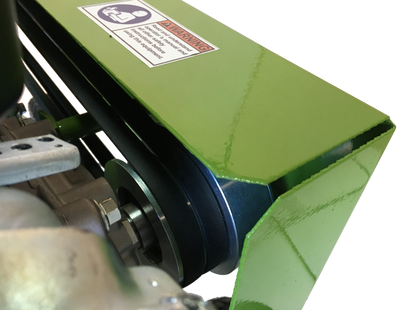

| Guards | Belt Guard with 3-point support |
| Rear Axle | Fixed, 1/8" Steel thick 21-1/4" wide |
| Front Axle | Pivoting. 1/8" Steel thick, 21-1/4" wide |
| Hand tow bar length | 37.5" |
Package Contents
1 Wood Chipper
1 Discharge neck
1 Feed hopper
1Bag of nuts and bolts that includes bolts, washers, nuts, cotter pins, link pins, etc.
2 Axles (Rotating, Fixed)
4 Wheels
1 Pull Bar
Manuals and Operator safety accessories
