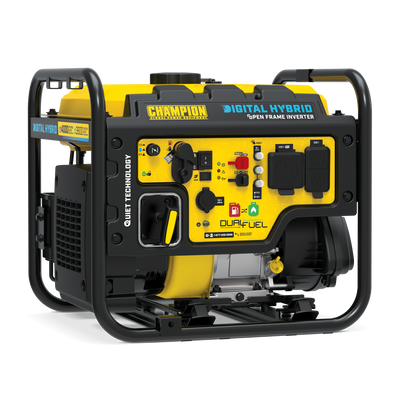

Champion 100574 3500W/4000W Open Frame Dual Fuel Inverter Generator New
Product Overview
The Champion Power Equipment 4000-Watt Digital Hybrid Inverter Generator is one of the most innovative products on the market.
Operate your Dual-Fuel generator on gasoline or propane, and easily switch fuels with a quick turn of the fuel selector dial. Using gasoline, the 224cc Champion engine produces 4000 starting watts and 3500 running watts, and will run for 14.5 hours at 25% load when the 2.9-gallon fuel tank is full. It produces 3600 starting watts and 3150 running watts, and will run for 18 hours at 25% load when using a 20-pound propane tank.
This inverter has a 0.6-quart oil capacity and a low oil shut-off sensor, and operates at 64 dBA from 23 feet, which is a bit louder than normal speech.
Confidently connect your sensitive electronics since our hybrid produces only Clean Power (less than 3% THD).

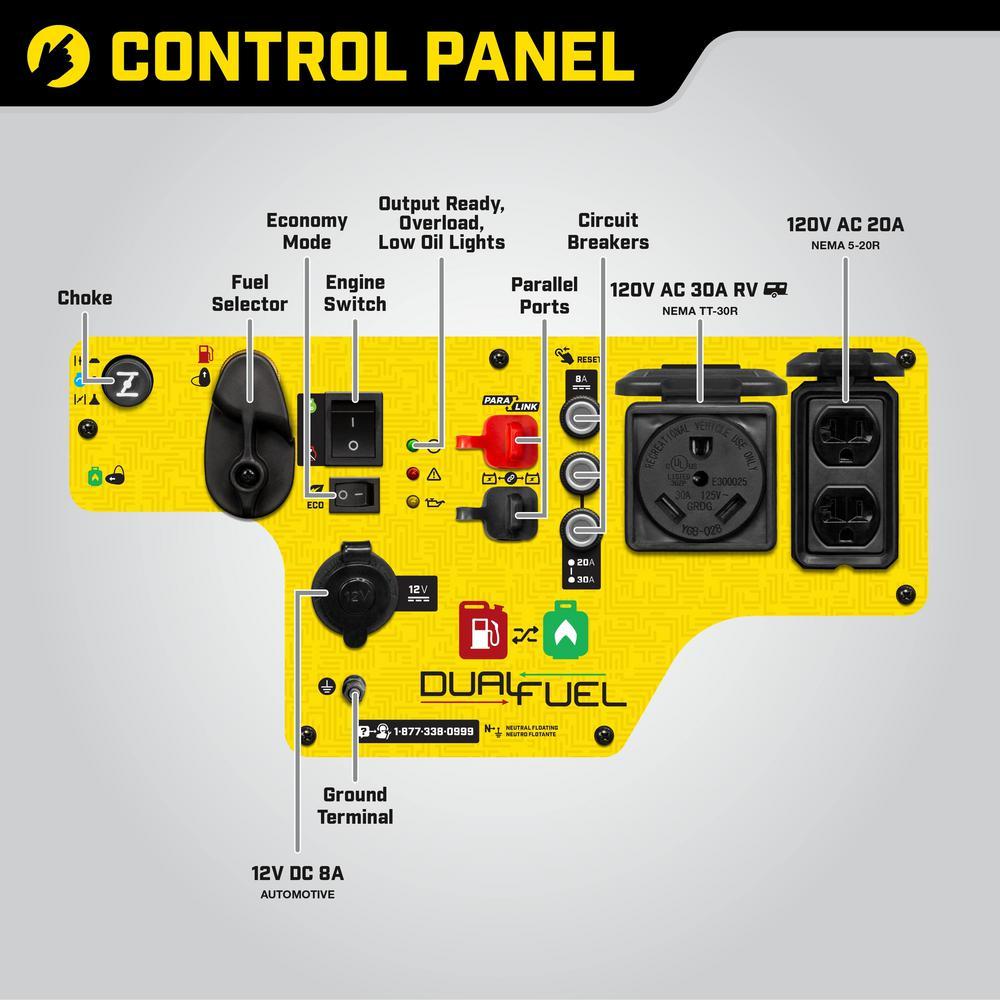

Our Quick Touch Panel offers fast access to controls, while Economy Mode monitors power consumption, and Cold Start Technology ensures a quick start in cold weather.
*Not for sale in California*
Brand new in box
3 year factory warranty
Fast shipping from NY or CA
Manufacturer direct
Authorized Champion dealer
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp RV Ready
(TT-30R)
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp RV Ready
(TT-30R)

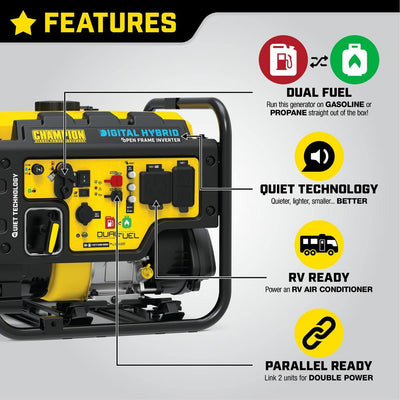

Features
- Dual Fuel – This RV Ready inverter operates on gasoline or propane and has a 120V 30A RV, plus two 120V 20A household outlets and 12V DC outlet with dual USB adapter.
- Advanced Digital Hybrid Design – 50% quieter and 20% lighter than a traditional Champion 3500-watt generator, plus our Economy Mode feature saves fuel and extends engine life.
- Quiet Technology and Extended Run Time – 64 dBA is great for RVs, tailgating, your next project or home backup, with 4000 starting watts and 3500 running watts for up to 18 hours run time on propane.
- Parallel Ready – If you purchase the optional ParaLINK Parallel Kit, you can increase your power output by connecting up to two 2800-watt or higher inverters or digital hybrids.
Specifications
| ENGINE SIZE | 224cc |
| ENGINE TYPE | 4-STROKE |
| ENGINE SPEED | 3600 |
| FUEL TYPE | GASOLINE, PROPANE (LPG) |
| FUEL GUAGE | NO |
| GASOLINE CAPACITY | 2.9 GAL. |
| GASOLINE TANK MATERIAL | STEEL |
| ENGINE OIL TYPE | 10W-30 |
| ENGINE OIL CAPACITY | 0.6 QT. |
| ENGINE OIL INCLUDED | NO |
| LOW OIL SHUT-OFF | YES |
| WHEELS | NO |
| PGMA G300-2018 COMPLIANT | NO |
| EPA CERTIFIED | YES |
| CARB COMPLIANT | NO |
| DIMENSIONS | 20.5"L x 18.3"W x 18.9"H |
| WEIGHT | 82.2 POUNDS |
| STARTING WATTS (GASOLINE) | 4000 |
| RUNNING WATTS (GASOLINE) | 3500 |
| STARTING WATTS (PROPANE) | 3600 |
| RUNNING WATTS (PROPANE) | 3150 |
| STARTING AMPS @ 120V (GASOLINE) | 33.3 |
| RUNNING AMPS @ 120V (GASOLINE) | 29.2 |
| STARTING AMPS AT 120V (PROPANE) | 30 |
| RUNNING AMPS AT 120V (PROPANE) | 26.3 |
| VOLTAGE | 120 |
| FREQUENCY | 60Hz |
| OUTLETS | 120V 30A (TT-30R), 12V DC AUTOMOTIVE, 120V 20A DUPLEX (5-20R) |
| GFCI OUTLETS | NO |
| COVERED OUTLETS | YES |
| COVERED CIRCUIT BREAKERS | YES |
| GASOLINE RUN TIME AT 1/4 LOAD | 17 HOURS |
| NOISE LEVEL | 64 dBA |
| PARALLEL CAPABILITY | YES |
| DC OPERATION | YES |
| VOLTMETER | NO |
| AUTOMATIC VOLTAGE REGULATION | NO |
| BATTERY | NO |
| START TYPE | RECOIL |
| ENGINE BRAND | CHAMPION |

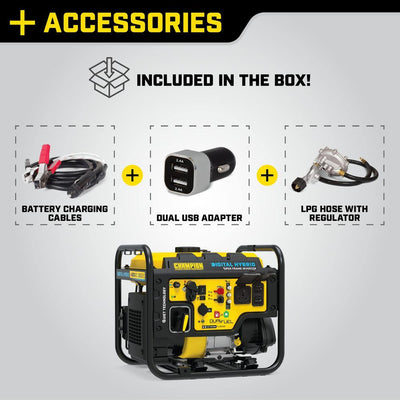

Package Contents
OIL FUNNEL
USB ADAPTER
PROPANE (LPG) HOSE
BATTERY CHARGING CABLES
Warranty
This product comes with a 3 year limited factory warranty.
