Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New

Manufacturer: Cummins

SKU: A061C602

  • Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
  • Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
  • Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
  • Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
  • Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New

QTY

$ 5,897.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: 50off COPY

Ships same day If ordered by 2PM EST

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New

Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New

Product Overview

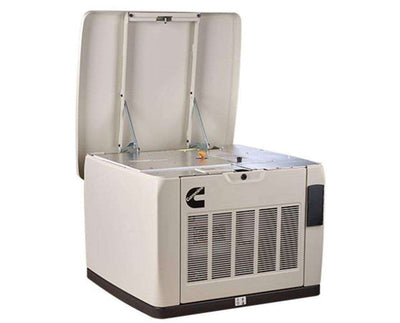

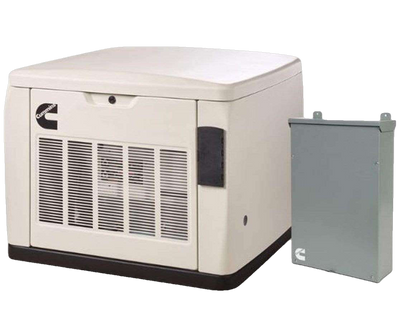

The RS20AC is a home standby generator permanently connected to your house by an automatic transfer switch. The generator operates on your home's existing natural gas (18kW) or LP Gas (20kW) supply. Access the generator controller on any smartphone, laptop, tablet, or desktop computer. Operate the generator manually, program the exercise cycle, view status and reports, or schedule maintenance.



The A045P697 Automatic Transfer Switch (ATS) has a NEMA 3R rating for indoor and outdoor use that installs between the utility meter and a typical 200-amp main service panel. The generator controller monitors the utility supply 24 / 7 and automatically starts the generator the moment an outage is detected.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

5 year factory warranty

checkmark

Works with liquid propane and natural gas

checkmark

Free shipping

checkmark

Authorized Cummins dealer

Features

  • Cummins 20 kilowatt Quiet Connect Series Home Standby Generator.
  • Automatic Transfer Switch for 24 / 7 independent operation.
  • Remote Internet Access to the Quiet Connect Controller and Generator.
  • User-Programmable Exercise including “Crank-Only” Mode.
  • Powered by Cummins QSJ999G engine.
  • A patented “Crank-Only” mode reduces wear and tear during the exercise cycle.
  • Remote Monitoring included - Check generator status, program exercise periods, even manually start and stop the generator using the Cloud Connect Smartphone App on phones, tablets, or computers.
  • Starts and runs a 5-ton A/C while accepting a full household load.
  • Field Selectable for Natural Gas or Propane Fuel.
  • Rated for installation as close as 18-inches to the home.
  • Extremely Quiet Operation – 65 dB or less.
  • Operates at 0 degrees out of the box. Cold weather kits add reliable operation for extreme climates.
  • Intelligent Load Management for up to four loads such as Air Conditioners.

Specifications

VOLTAGE 120/240 SINGLE PHASE
FREQUENCEY 60 HERTZ
ALTERNATOR BRUSH
AUTO VOLTAGE REGULATION YES
RATED WATTS 20000 WATTS
FUEL TYPE LP/NATURAL GAS
NATURAL GAS POWER CAPACITY 18000 WATTS
PROPANE POWER CAPACITY 20000 WATTS
NG FUEL CONSUMPTION @ 50% 205FT³/HR
NG FUEL CONSUMPTION @ 100% 300FT³/HR
LP FUEL CONSUMPTION @ 50% 1.9 GALLONS/HR
LP FUEL CONSUMPTION @ 100% 3.2 GALLONS/HR
RATED AMPS 75 (NG) & 83.3 (LPV) AMPS
DECIBEL RATING @ 7M 65dB
HOUR METER YES
VOLTAGE METER YES
TRANSFER SWITCH AUTOMATIC
ENCLOSURE ALUMINUM
CIRCUIT BREAKER SIZE 100 AMPS
COOLING SYSTEM AIR COOLED
UL LISTED YES
GRADE TYPE EMERGENCY
ENGINE BRAND CUMMINS ONAN
STARTING SYSTEM 12V AUTO START
ENGINE SIZE 999 CC
ENGINE RPM 3600 RPM
LOW OIL ALERT/SHUTDOWN YES
WEIGHT 540 LBS
MADE IN USA YES
PRODUCT LENGTH 34.1"
PRODUCT WIDTH 36"
PRODUCT HEIGHT 27.3"

Package Contents

20kW GENERATOR

200A SE-RATED ATS RS20AC (AUTOMATIC TRANSFER SWITCH)

ALUMINUM ENCLOSURE

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 limited year factory warranty.
