Product Overview

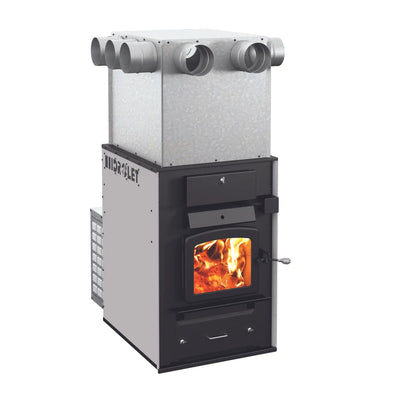

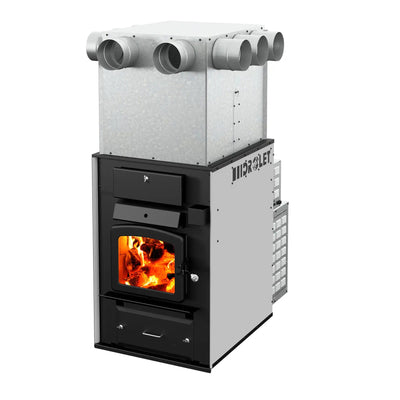

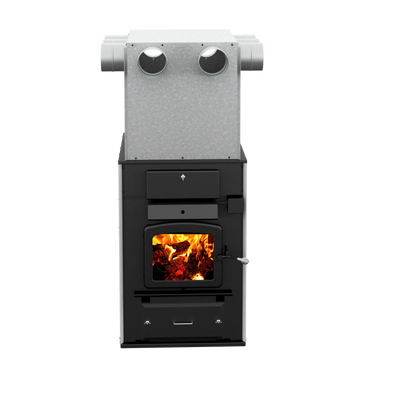

Ideal for heating spaces up to 2,500 ft², the Tundra II wood-burning furnace delivers up to 310,000 BTU of power. Manufactured to high quality standards, this central heating appliance is specifically designed to be east to install.

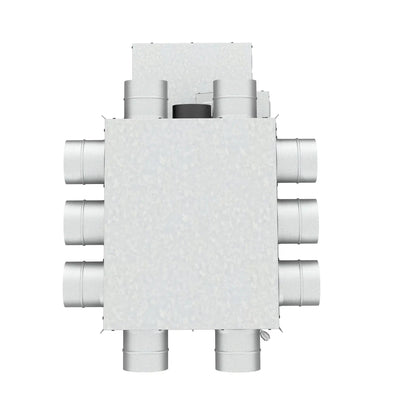

Equipped with an adjustable hot air plenum that can accommodate six to ten round Ø6" ducts, this furnace also includes an RTD thermal probe that automatically adjusts the blower speed according to the temperature of the plenum.



*This stove is sold in Canada Only*

vendor logo
divider
authorized dealer
checkmark

Perfect for areas up to 2,500 sq. ft.

checkmark

Limited lifetime warranty on parts

checkmark

Brand new in box

checkmark

Ships directly from the manufacturer in Quebec

Drolet DF02001 Tundra II CSA Certified 2,500 Sq. Ft. Wood Furnace New Canada Only

Drolet DF02001 Tundra II CSA Certified 2,500 Sq. Ft. Wood Furnace New Canada Only

Features

  • Up to 10 hours burn time
  • 21" logs (loading over depth)
  • Limited lifetime warranty
  • For maximum comfort, it is possible to connect the furnace to a wall thermostat to allow you to maintain a more constant temperature throughout your house.
  • Air filters help filter dirt before distributing hot air in your installation in addition to protecting the blower. The use of filters is strongly recommended.
  • Proudly made in Canada
  • 3.6 ft³ firebox
  • CSA B415.1-10 certified (Canada only)
  • The fresh air return adapter can be added to the blower box to increase the efficiency of your system. This option allows you to take fresh air from the rooms and bring it to the furnace to be heated and redistributed in these same rooms. It allows more even air circulation to increase comfort.
  • Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

Maximum log length 21"
Canadian Standard (emissions) CSA B415.1-10
Canadian Standard (safety) CAN/CSA B366.1
USA Standard (safety) UL 391

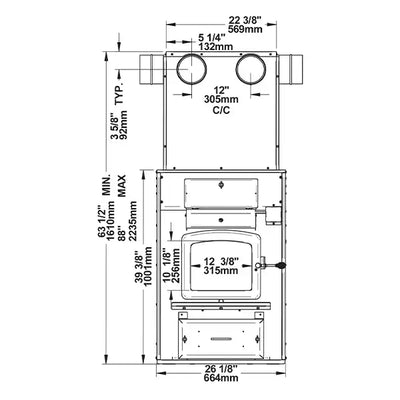

Hot air plenum - Height (minimum - maximum) 22 3/8" x 26 7/8"
Hot air plenum - Minimum height of the furnace with plenum 63 1/2" min. for 72" ceiling | 73" min. for a ceiling higher than 84"
Shipping weight 650 lb (295 kg)
Log positioning Loading over depth
Evacuation direction Horizontal
Glass surface - W x H 12 3/8" x 10 1/8"
Stainless-steel secondary-air system Yes
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Door type Single, glass with cast iron frame
Premium quality blower included (CFM) Included
Glass type Ceramic glass
Blower (hp | speed | CFM) 1/4 | 4 | 1,800
Clearance - Side wall 11"
Clearance - Base of the unit to ceiling 69" min.
Clearance - Floor protection in front of the unit (from door opening) 18"
Clearance - Plenum | Ducts to the ceiling 5" from the plenum | 1" from ducts
Clearance - Back wall of the blower box 16"
Clearance - Opposite side wall 24"
Clearance - Recommended distance for maintenance on option side 30"
Maximum input capacity (dry cordwood) 310,000 BTU
Average electrical power consumption 250 W
Optimum efficiency 84.9 %
Average particulate emission rate 0.654 lb/mmBTU (0.282 g/MJ)
Nominal heat output at 15lb/ft³ fuel loading density 75,000 BTU
Maximum delivered heat output rate 44,857 BTU/h (13.1 kW)
Minimum delivered heat output rate 12,635 BTU/h (3.7 kW)
Maximum overall heat output rate 49,638 BTU/h (14.5 kW)
Minimum overall heat output rate 15,436 BTU/h (4.5 kW)
Maximum average delivered efficiency (LHV) 68.3 %
Minimum average delivered efficiency (HHV) 62.7 %
Maximum average overall efficiency (LHV) 82.9 %
Minimum average overall efficiency (HHV) 76.7 %
Recommended heating area 1,000 - 2,500 ft²
Average CO 11.22 lb/mmBTU (4.81 g/MJ)
Maximum burn time 10 h
Fuel type Dry cordwood (16" recommended)
Overall firebox volume 3.6 ft³
Size Medium
Firebox lined with refractory bricks Yes
Baffle type C-Cast or equivalent
Recommended chimney diameter 6"
Flue outlet diameter 6"
Firebox size (Height) 16 1/8"
Firebox size (Width) 17"
Firebox size (Depth) 22 5/8"

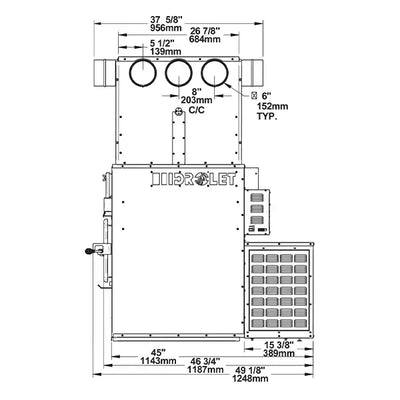

Overall dimension (Height) 63 1/2" min.
Overall dimension (Width) 33 1/4"
Overall dimension (Depth) 49 1/8"
Filter - Dimensions (Width x Height x Depth) 15" x 20" x 1" (option)
Door opening size (Height) 10"
Door opening size (Width) 13 3/4"

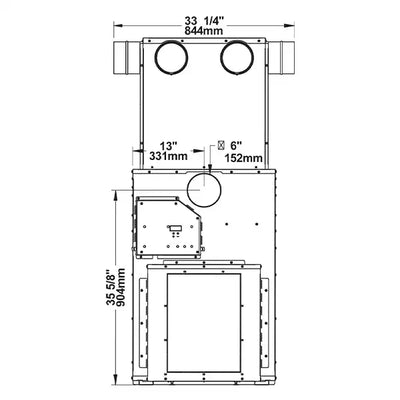

Distance-center of the flue outlet to floor 35 5/8"
Distance-center of the flue outlet to side unit 13"
High-efficiency certified appliance CSA B415.1-10 approved for Canada
Steel thickness-body 3/16"
Steel thickness-top 1/4"
Warranty Limited lifetime

Package Contents

Wood Furnace

4-speed blower

Plenum

Combustion control

Ash lip

Ash drawer

Poker and scraper

Warranty
