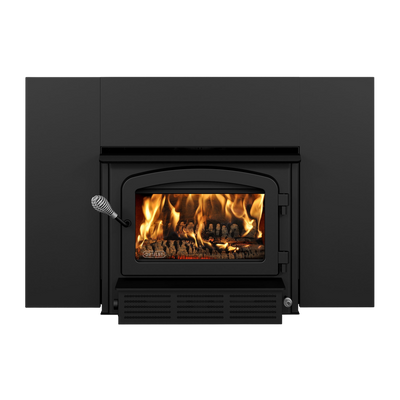

Drolet Escape 1500-I High Efficiency Wood Insert With Faceplate And Blower New
Manufacturer: Drolet
SKU: DB03137
Share
QTY
(888) 999-1522
$ 1,699.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
ADD TO CART FOR NEW CUSTOMER DISCOUNT
Ships in (est) 1-3 business days
Extended Warranty
Factory Warranty
- This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Similar Products
Drolet Escape 1500-I High Efficiency Wood Insert With Faceplate And Blower New
Share
Product Overview
Combining performance and respect for the environment, the Escape 1500 is the perfect choice for heating homes up to 1,800 ft². With only 1.26 g/h of particulate emissions, this non-catalytic wood insert gives off up to 65,000 BTU/h while largely meeting EPA standards. The Escape 1500 is the perfect way to update your masonry fireplace, and make it efficient!
Perfect for areas up to 1,800 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Burn time up to 6 hours
- Up to 18'' logs
- 1.9 ft³ firebox
- Robust 5/16'' steel
- EPA certified
- Limited lifetime warranty
Specifications
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 21 1/2" |
| Fireplace opening – minimum (Width) | 27 1/2" |
| Fireplace opening – minimum (Depth) | 12 3/4" |
| USA standard (emissions) | EPA |
| USA standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
| Clearance – top (measured from the platform on which the appliance is installed) | 84" |
| Clearance – combustible side mantle to unit | 9" |
| Clearance – combustible top mantle to unit | 27" |
| Clearance – combustible side wall to unit | 16" |
| Clearance – minimum floor protection in front of the appliance | 16" |
| Clearance – from the top of the insert to the shelf | 27" |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 500 - 1,800 |
| Overall firebox volume-ft³ | 1.9 |
| EPA loading volume-ft³ | 1.44 |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19 kW) |
| Overall heat output rate | 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) |
| Average overall efficiency (EPA cribs/Douglas fir) | N.A. (HHV) N.A. (LHV) |
| Average overall efficiency (dry cordwood) | 70 % (HHV) 75 % (LHV) |
| Optimum overall efficiency | 78 % |
| Optimum heat transfer efficiency | 74 % |
| Average particulate emissions rate | 1.26 g/h |
| Average CO | 58 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for a mobile home installation | No |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4" x 9 3/4" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Shipping Weight | 360 lbs |
| Overall dimension (Height) | 21 1/4" |
| Overall dimension (Width) | 27 1/4" |
| Overall dimension (Depth) | 22 3/8" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/4" |
Package Contents
Wood Insert
29'' x 44'' faceplate
Blower
Ceramic Glass
Ash Lip
Air Damper
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details.
