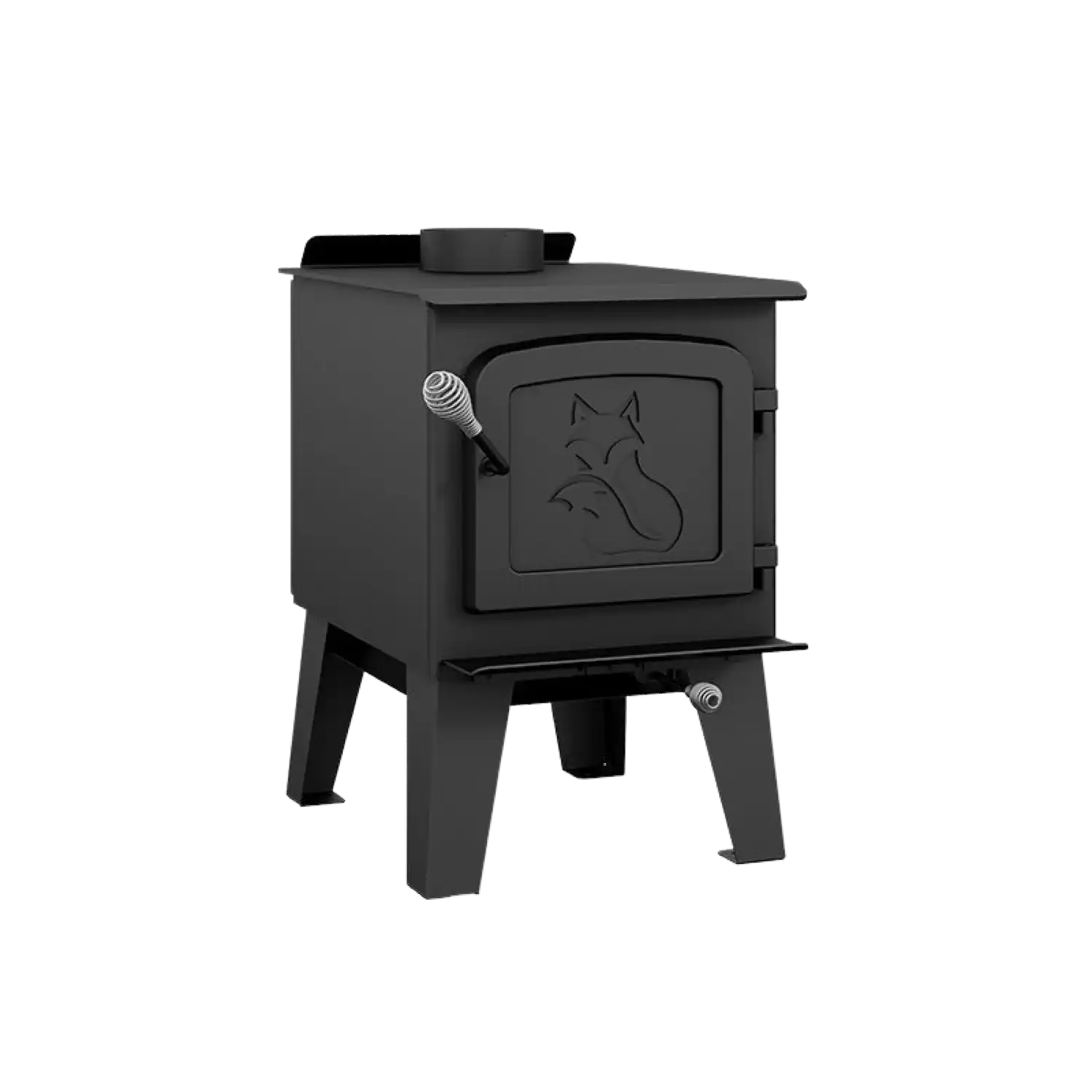

Drolet Fox EPA Certified 1,200 Sq. Ft. Free Standing Wood Stove New
Default Title
QTY
or
(888) 999-1522
$ 999.00
$ 999.00
0
This item ships for free. Freight shipments include liftgate at no additional charge.
Similar Products
Customers Also Purchased
-
Drolet AC02055 Quick Connect Thermodisc New
$ 95.00
-

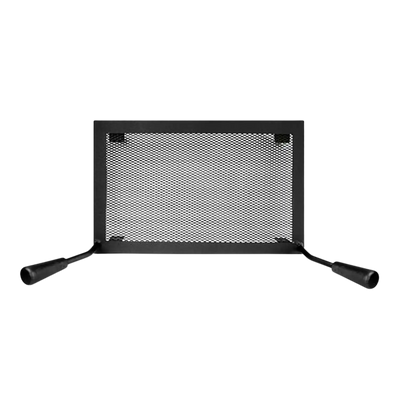

Drolet AC01397 Rigid Firescreen New
$ 159.00
-
Drolet VOLKA-635 6" X 35' Vortex Stainless Flex Liner Kit for Wood Stove
$ 579.00
-
Drolet VOLKA-625 6" X 25' Vortex Stainless Flex Liner Kit for Wood Stove
$ 499.00
-
Duravent SD9088 6 In. Triple-Wall Steel Through the Wall Venting Kit New
$ 544.99
-
Duravent SD9085 6 In. Triple-Wall Stainless Steel Through the Ceiling Venting Kit New
$ 479.00
-
Duravent SD9017SS 6 In. x 36 in. Triple-Wall Stainless Steel Chimney Pipe New
$ 229.00
-

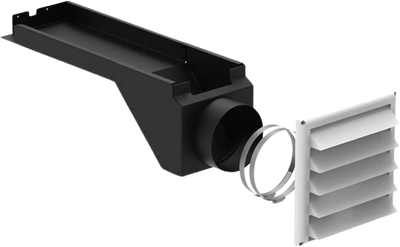

Drolet AC01421 Fresh Air 5" Intake Kit For Wood Stove New
$ 140.00
-
SBI Modular Floor Protection 54" x 46 3/4" Hearth Pad AC02711 New
$ 439.00
-
SBI Corner 60" Hearth Pad AC02790 New
$ 499.00
Product Overview

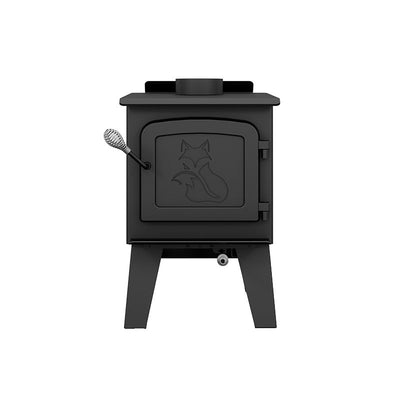

Among the most compact on the market, the Fox wood stove can heat up to 1,200 ft². With a maximum heat output of 45,000 BTU/h. Non-catalytic and EPA certified at an emission rate of 1.8 g/h, this model can efficiently heat small spaces. Its cast iron door, superimposed with steel sheets, is decorated with a fox. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. Packaged in a rigid cardboard box for ease of transport, this appliance requires simple assembly.
Perfect for areas up to 1,200 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Weight : 230 lbs
Specifications
| Door opening size (Width) | 12" |
| Door opening size (Height) | 7 5/8" |
| Firebox size (Width) | 14 1/4" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 19 1/8" |
| Maximum log length | 17" |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Warranty | Limited lifetime |
| Shipping weight | 235 lb (107 kg) |
| Clearance - Back wall | Single wall pipe 12" Double wall pipe 6" |
| Clearance - Side wall | Single wall pipe 18" Double wall pipe 18" |
| Clearance - Corner | Single wall pipe 11" Double wall pipe 7" |
| Clearance - Base of the unit to ceiling | Single wall pipe 84" Double wall pipe 84" |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1,200 ft² |
| Overall firebox volume | 1.7 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74 % |
| Average overall efficiency-dry cordwood (LHV) | 79 % |
| Optimum efficiency | 80 % |
| Optimum heat transfer efficiency | 79 % |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 5/8" |
| Distance-center of the flue outlet to side unit | 9 1/4" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Depth) | 28 7/8" |
| Overall dimension (Height) | 28 3/4" |
| Door type | Cast iron frame with steel inside |
Package Contents
Wood Stove
Steel legs
Air deflector
Ceramic glass
Cast iron door with adjustable hinges
Ash lip
Air damper
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
Manuals & Documentation
Customer Reviews

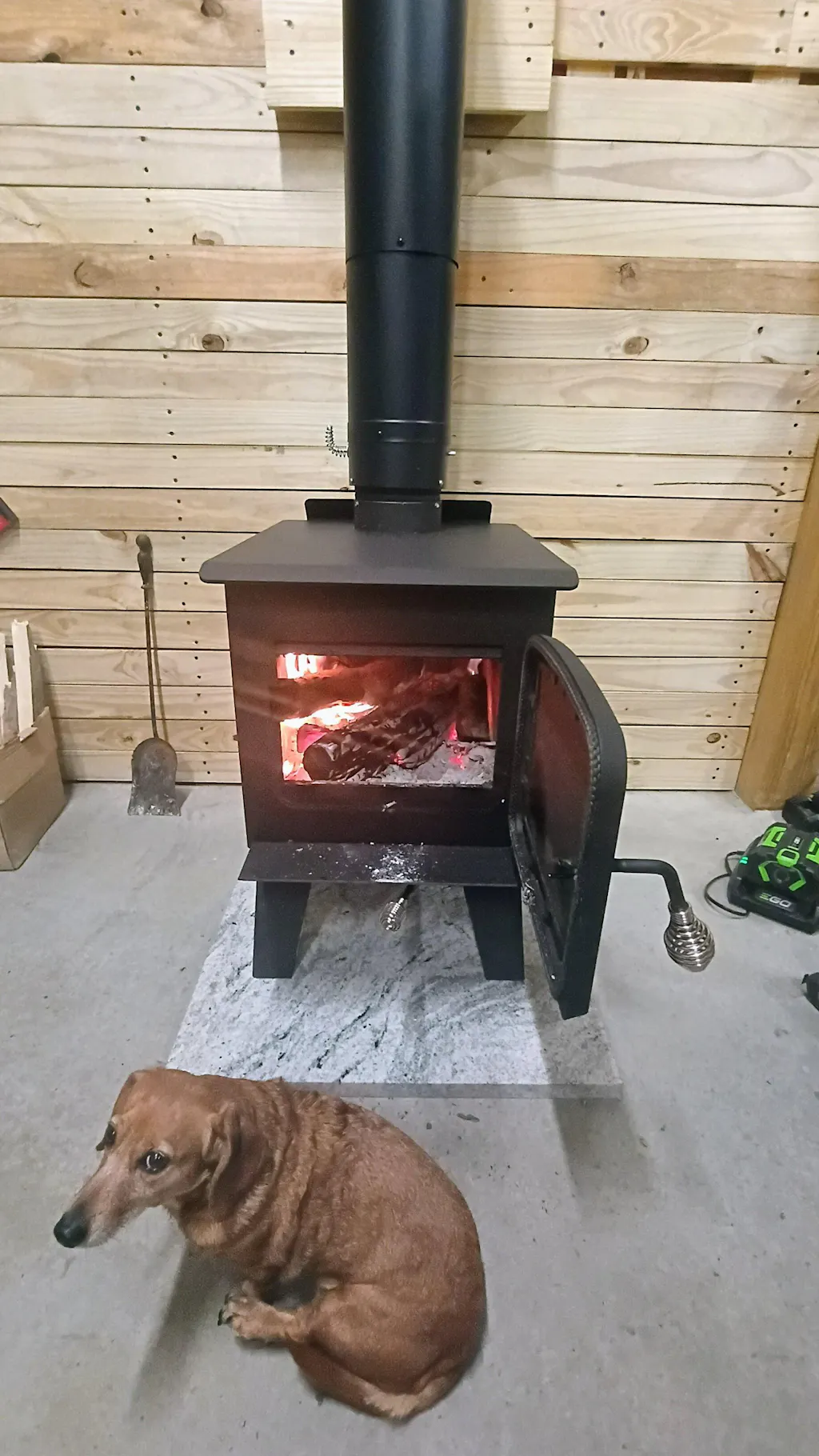

I have used the stove several nights since getting and in stalling it. It replaced a very old iron stove that had finally used up its useful life. The old stove would almost heat you out of my 950 sq. ft garage. The Drolet doesn't seem to produce as much heat, probably because of the fire bricks. I didn't realize the interior was as small as it is and had to cut about 4inches off my existing wood. The stove is safe and sturdy. I certainly am happy to have it in my garage.
Baffle was damaged in shipping but part was sent in a couple of days. Great customer service!
The only issue so far is the fire seems to burn too slow (and does not generate enough heat) even with the air inlet fully open.
Great stove. I will buy another one if I move to a new house. It’s the perfect size for a smaller home or a smaller part of the house. Showed up with a couple broken fire bricks but they replaced them promptly. Everything about the whole process was simple and streamlined.
Stove looks great and was easily to put together. Instructions are straight forward but have plenty of info. I recommend taking a picture of where heat bricks are before removing as instructed as part of installing legs. There is a pattern bricks must follow and time consuming if you don't know exact pattern. My only complaint is with shipping, I was not notified stove was being held near me. Two weeks after due date I had to track down stove. It was sitting at a warehouse waiting for shipper of final leg to accept. Shipper refused to deliverlto my house -( 60 miles from warehouse and less than 5 Minutes off of I-80 plenty of room for ). I even offered to pay additional fee.Shipper came within 10 miles of my house and I was forced to meet them to accept load.. Driver was very nice but it was a hassle and difficult all in all. One of the main reasons I purchased stove from FactoryPure was due to the shipping and delivery to my home so it was disappointing tht I had to arrange meeting truck and picking up. However, my overall experience with FactoryPure was excellent and the stove looks great... I'm confident it will keep us warm this winter and I understand the difficulty of controling 3rd party shippers but it would be benefical to have help with tracking and addressing problems with shipping.
