Product Overview

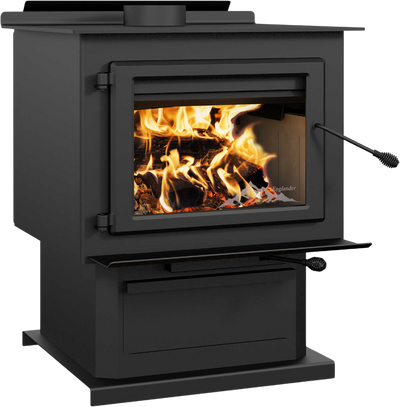

The Englander Blue Ridge 500 Wood Stove ESW0012 features a high-efficiency 3.5 ft³ firebox, ensuring long-lasting comfort, capable of up to 10 hours of burn time. Crafted for durability, it boasts a 5/16" steel top reinforced with a heat shield, a cast iron door, and ceramic glass, combining both strength and elegance. With EPA certification and a non-catalytic combustion system, it burns cleaner and more efficiently. Proudly made in the USA, this stove is not only environmentally responsible but also perfect for mobile home and alcove installations.

vendor logo
divider
authorized dealer
checkmark

Perfect for areas up to 2,700 sq. ft.

checkmark

Limited 5 year warranty on parts

checkmark

Brand new in box

checkmark

Ships directly from IN

Features

  • Heats up to 2,700 ft²
  • High efficiency 3.5 ft³ firebox
  • Up to 10 hours burn time
  • 5/16" steel top reinforced with a heat shield
  • Cast iron door and ceramic glass
  • EPA certified
  • Proudly made in USA
  • Non-catalytic combustion system
  • Certified for mobile home and alcove installation
  • Qualifies for the 30% US tax credit

Specifications

Door type Single, glass with cast iron frame
Door opening size (Width) 19"
Door opening size (Height) 9 7/8"
Glass type Ceramic glass
Glass surface - W x H 16 5/8" x 11 3/4"
Steel thickness-body 3/16"
Steel thickness-top 5/16"
Firebox size (Width) 22 7/8"
Firebox size (Height) 13"
Firebox size (Depth) 20 1/8"
Log positioning Loading over width and over depth
Maximum log length 22" oriented East-West
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737
Warranty Limited 5 years
Clearance - Back wall Single wall pipe- 13 3/4" Double wall pipe- 8"
Clearance - Side wall Single wall pipe- 22" Double wall pipe- 19"
Clearance - Corner Single wall pipe- 12" Double wall pipe- 12"
Clearance - Base of the unit to ceiling Single wall pipe- 84" Double wall pipe- 84"
Fuel type Dry cordwood (16" recommended)
Recommended heating area 1,000 - 2,700 ft²
Overall firebox volume 3.5 ft³
EPA loading volume 2.88 ft³
Maximum burn time 10 h
Maximum heat output-dry cordwood 110,000 BTU/h
Minimum overall heat output rate 17,200 BTU/h (5.0 kW)
Maximum overall heat output rate 57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV) 71 %
Average overall efficiency-dry cordwood (LHV) 76 %
Optimum efficiency 77 %
Optimum heat transfer efficiency 75 %
Average particulate emission rate 1.6 g/h
Average CO 73 g/h
From serial # 100
Certifications EPA-2020
Short description High efficiency 3.5 ft³ firebox
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards CAN/USA accredited laboratory
Overall dimension (Width) 28 1/8"
Overall dimension (Height) 35 1/8"
Overall dimension (Depth) 31 1/4"
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 8"
Distance-center of the flue outlet to side unit 14 1/8"
Recommended chimney diameter 6"
Type of chimney ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height 12'

Package Contents

Wood Stove

Pedestal

Ash drawer & lip

Air intake damper

Rear air deflector

Manual

Warranty
