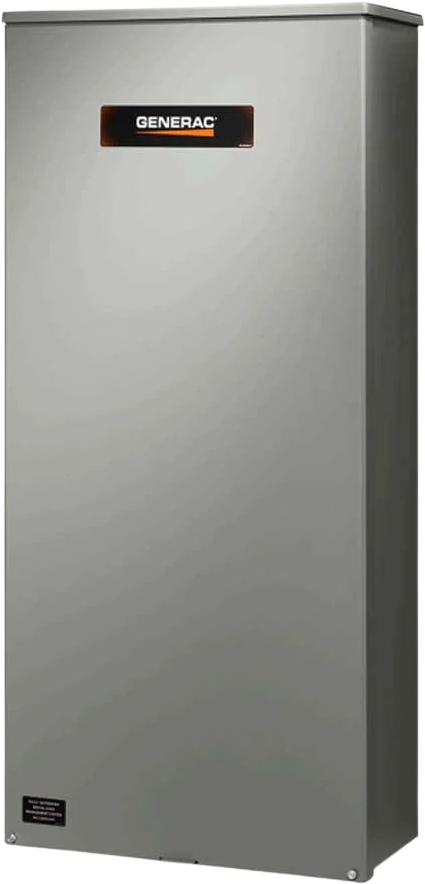

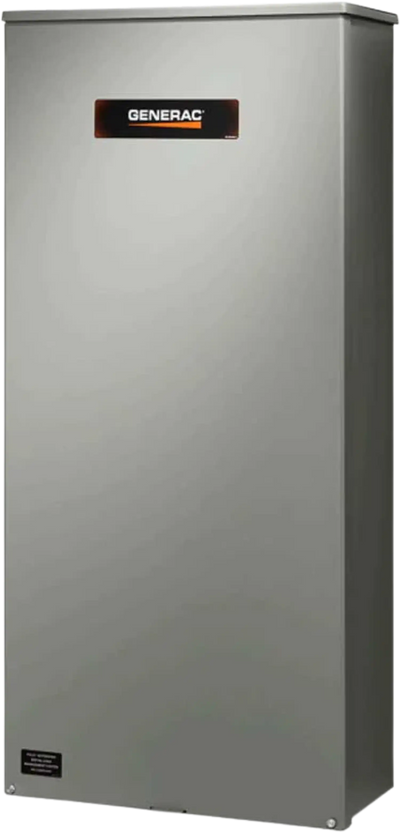

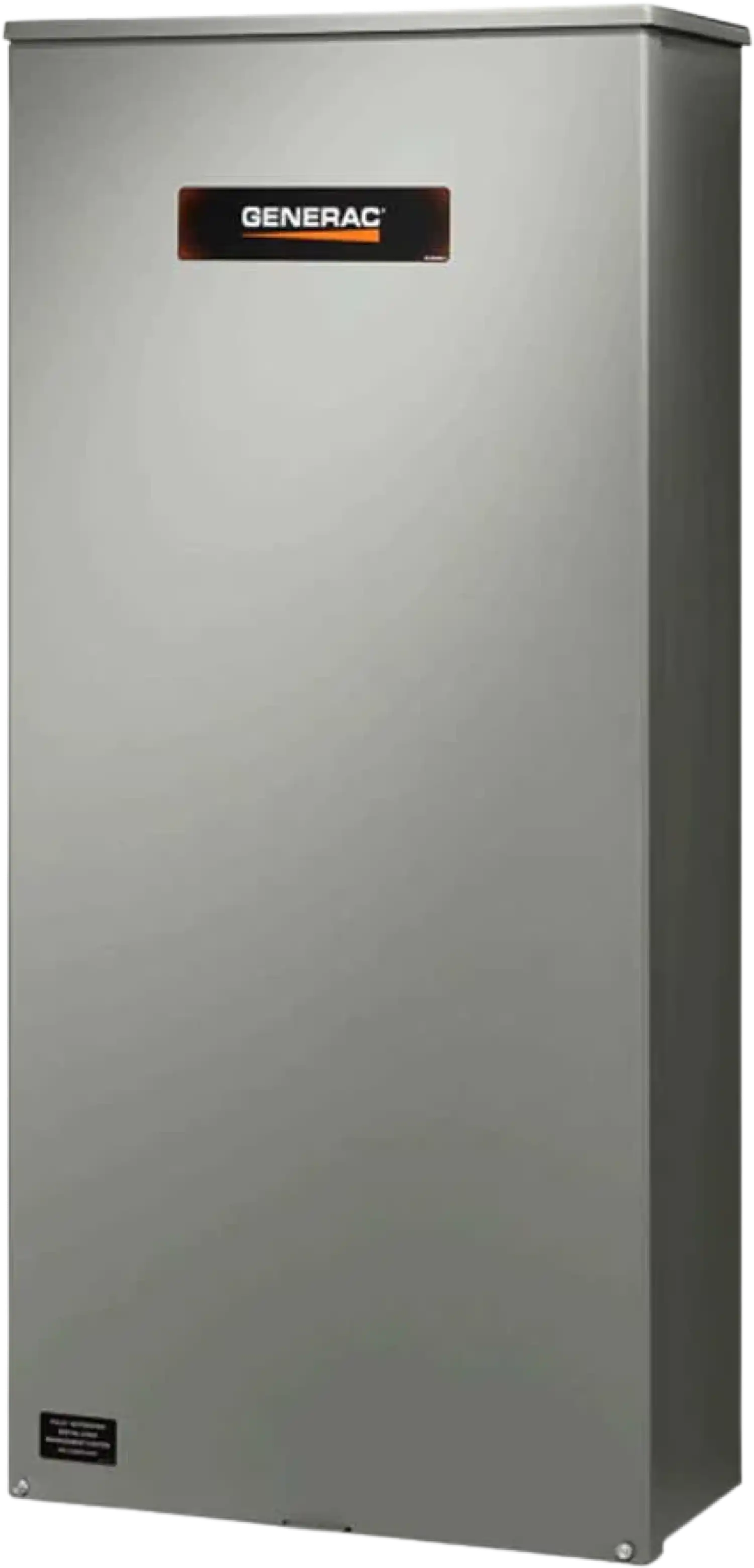

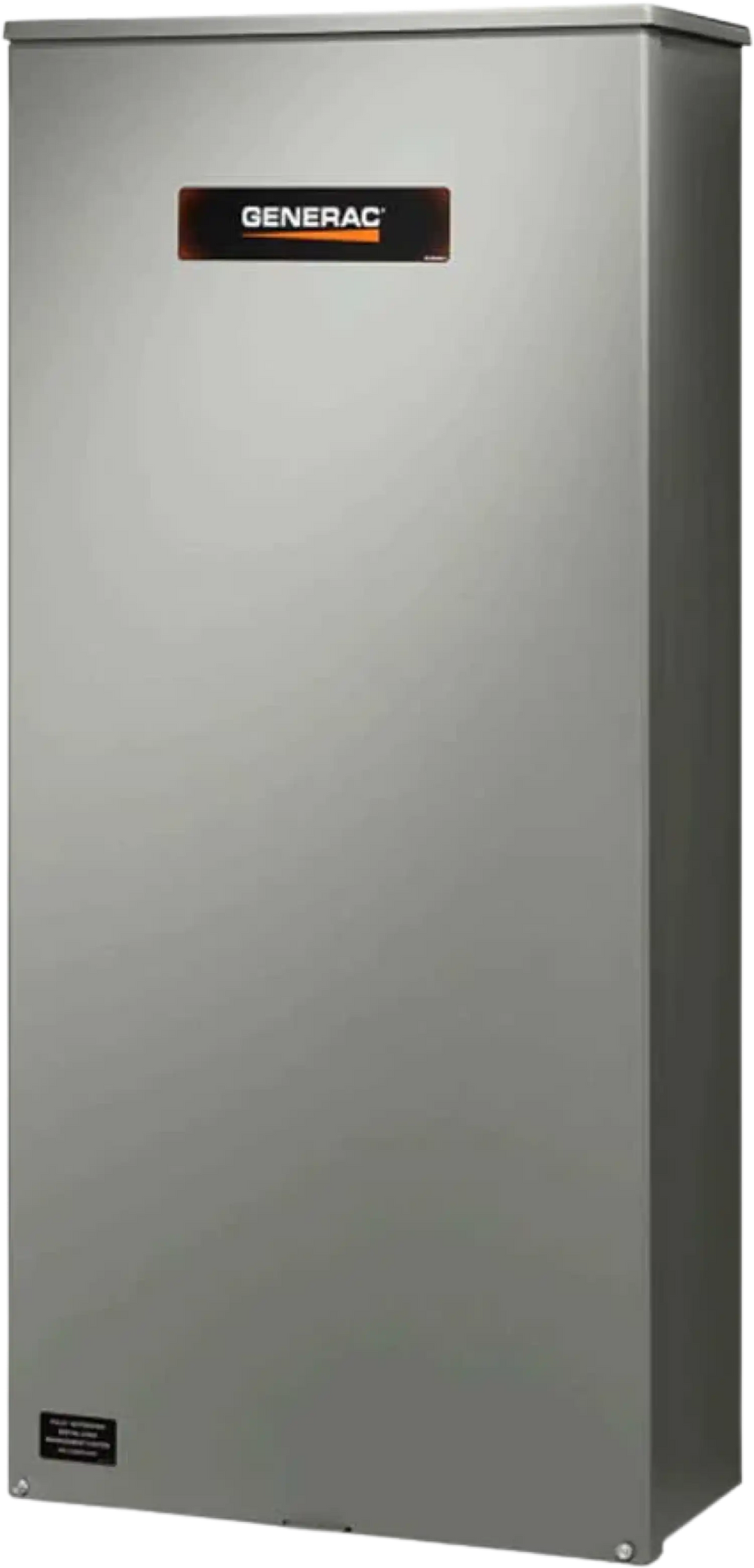

Generac RXGW20SHA3 200 Amp Service Entrance Rated Automatic Transfer Switch with Load Center New
Manufacturer: Generac
SKU: RXGW20SHA3
QTY
or
(888) 999-1522
$ 1,379.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Generac Smart Management Module SMM 7000
-
Generac Cold Weather Battery Heater Pad For Standby Models (9kw-26kw Air Cooled Generators)
-
Generac Cold Weather Oil Heater Kit For Standby Models (9kw-26kw Air Cooled Generators)
-
Generac 70422 Guardian 22kW/19.5kW WiFi Standby Generator New
-
Generac 7209 Guardian LP/NG 24kW Standby WiFi Generator New
Generac RXGW20SHA3 200 Amp Service Entrance Rated Automatic Transfer Switch with Load Center New
Product Overview
This Service Entrance rated transfer switch features a 20 space load center, a NEMA 3R enclosure, and is designed to create a flexible, cost effective install. Utilizing tandem breakers can increase the load center capacity to 40 circuits. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.
Brand new in box
NEMA 200A Transfer Switch Controller
5 year factory warranty
Ships directly from Generac
Authorized Generac dealer
Features
- Designed for use with Generac 120/240 Single-Phase generators that utilize an Evolution or Nexus Controller.
- Use in tandem up to 8 Smart Management Modules, providing the most installation efficient power management options available.
- SERVICE ENTRANCE RATED: This switch can act as your utility service entrance disconnect for installation in the United States, as the switch has a built in service disconnect breaker.
- INTELLIGENT LOAD MANAGEMENT: Manage up to four HVAC loads with no additional hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
- NEMA 3R OUTDOOR RATED ENCLOSURE: Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
Specifications
| Max Utility Input | 200 Amps |
| Max Generator Input | 200 Amps |
| Maximum Wattage | 48000 Watts |
| UL Listed | Yes |
| Dimensions | 38.5" x 17" x 8" |
| Weight | 45 lbs |
| Load Transition Type | Automatic |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 48000 Watts |
| Rated Amps | 200 Amps |
| Transfer Switch Amperage | 200 Amps |
| Max Circuits | 20 |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
| ATS Load Prioritizing | Built-In |
| ATS Load Shedding | Built-In |
| ATS Poles | 2 Poles |
| ATS Service Disconnect | Yes |
Package Contents
Generac RXGW20SHA3
User's Manual
Warranty
This item comes with a 5 year factory warranty.
