Grizzly H7527 Rotary Table 6" w/ Div. Plates New
Product Overview

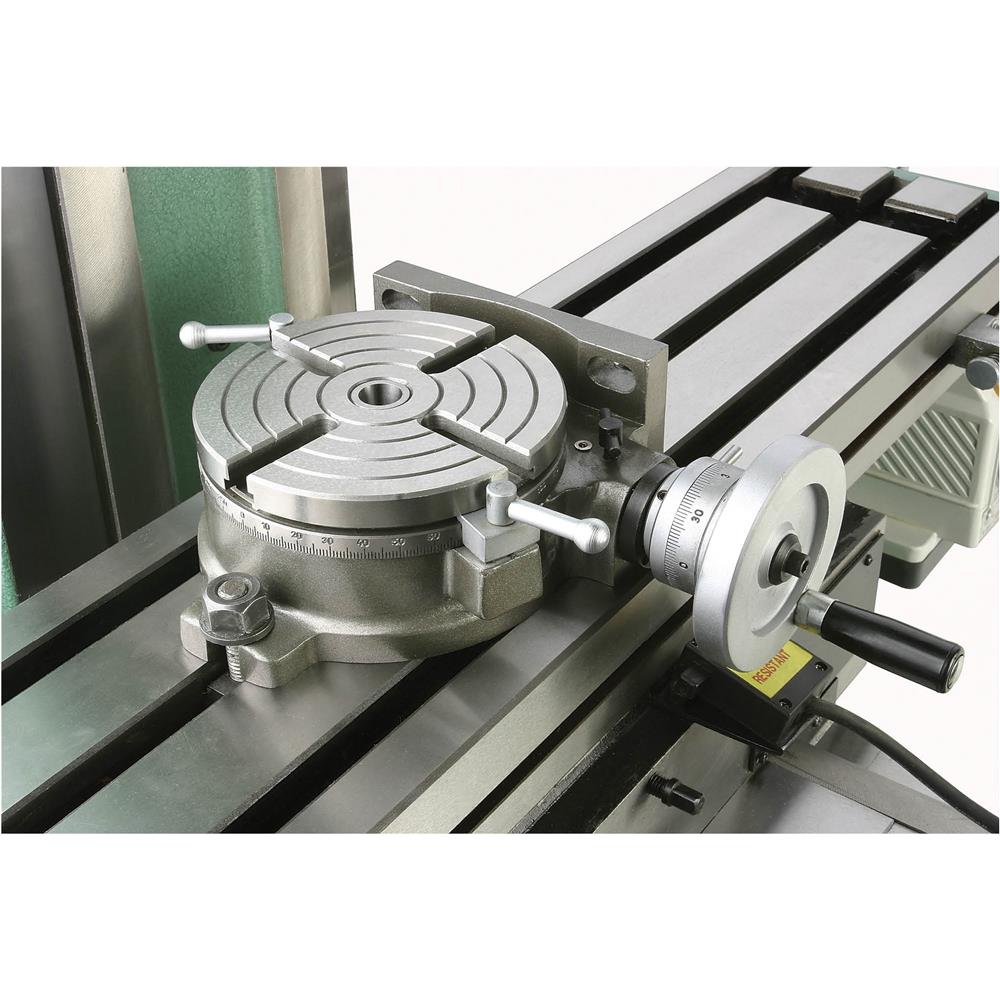

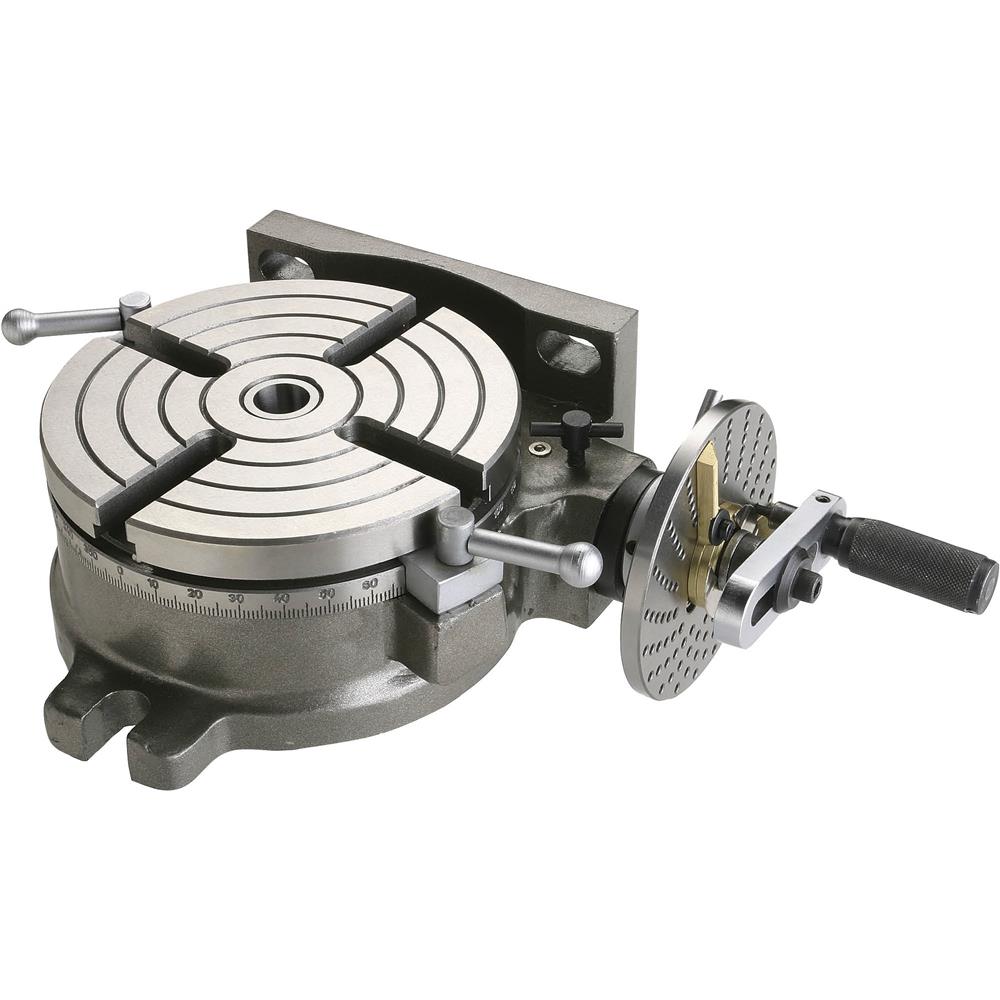

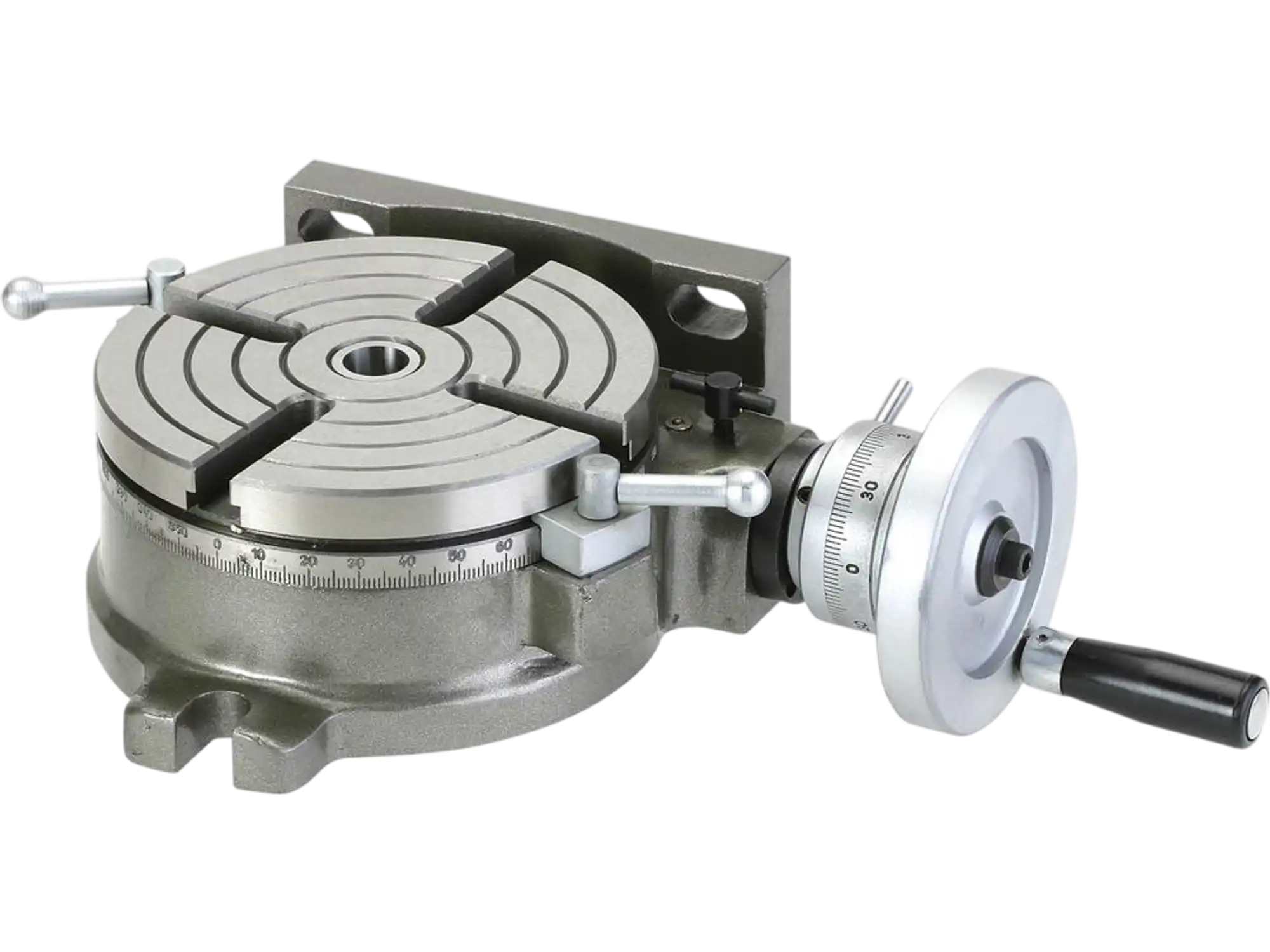

The Grizzly H7527 is a 6-inch rotary table designed to position work accurately for milling, drilling, and cutting operations at exact intervals. It can be used horizontally or vertically, making it a flexible tool for shops that need precise circular and indexed movement.
This setup is well suited for creating arcs, circular profiles, large-diameter holes, and eccentric features. A 90:1 worm gear ratio, 4° table movement per handle rotation, and a 20-second vernier scale help provide the fine control needed for detailed machining work.

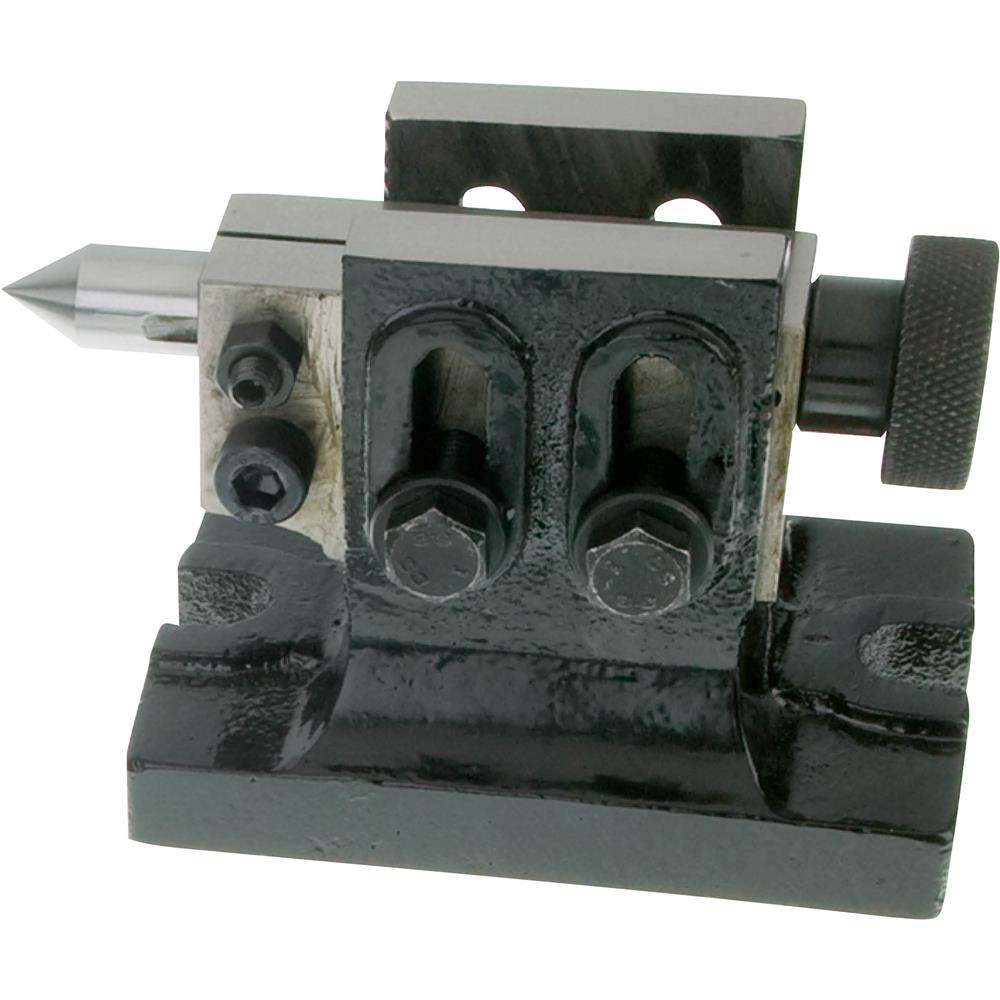

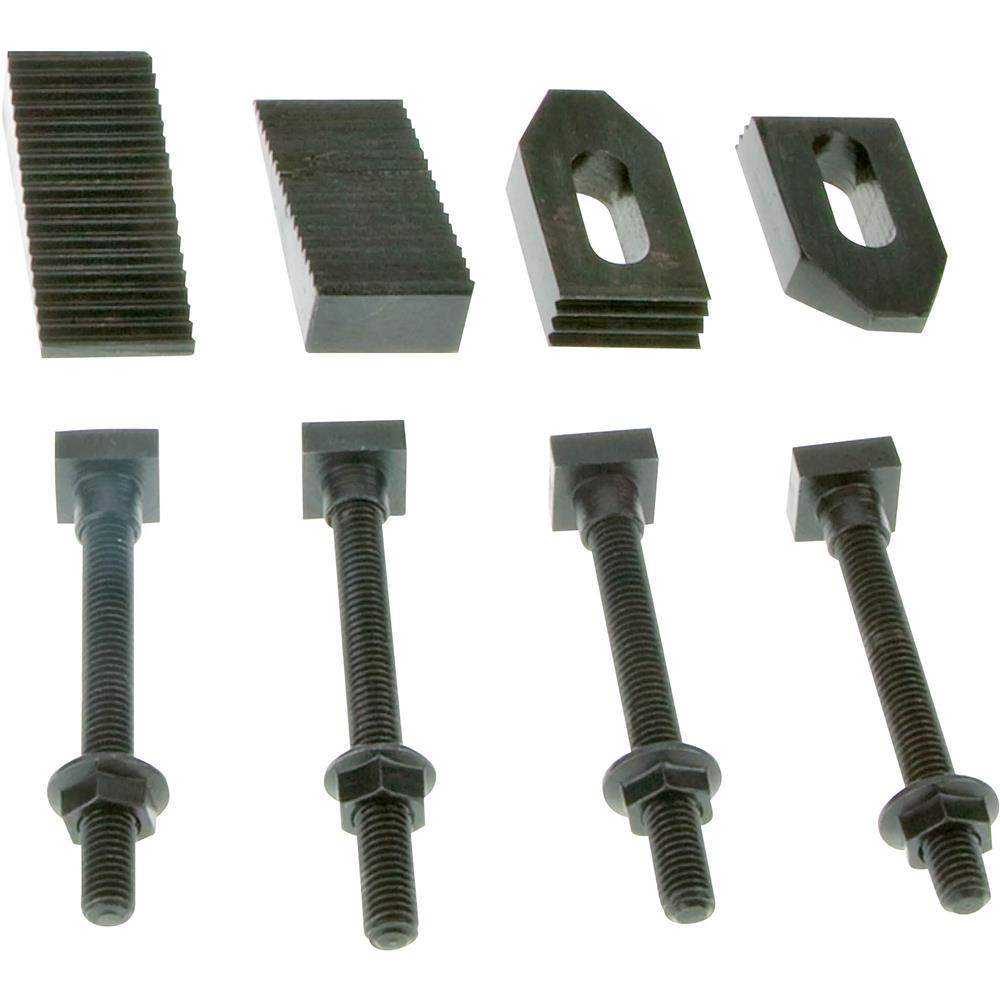

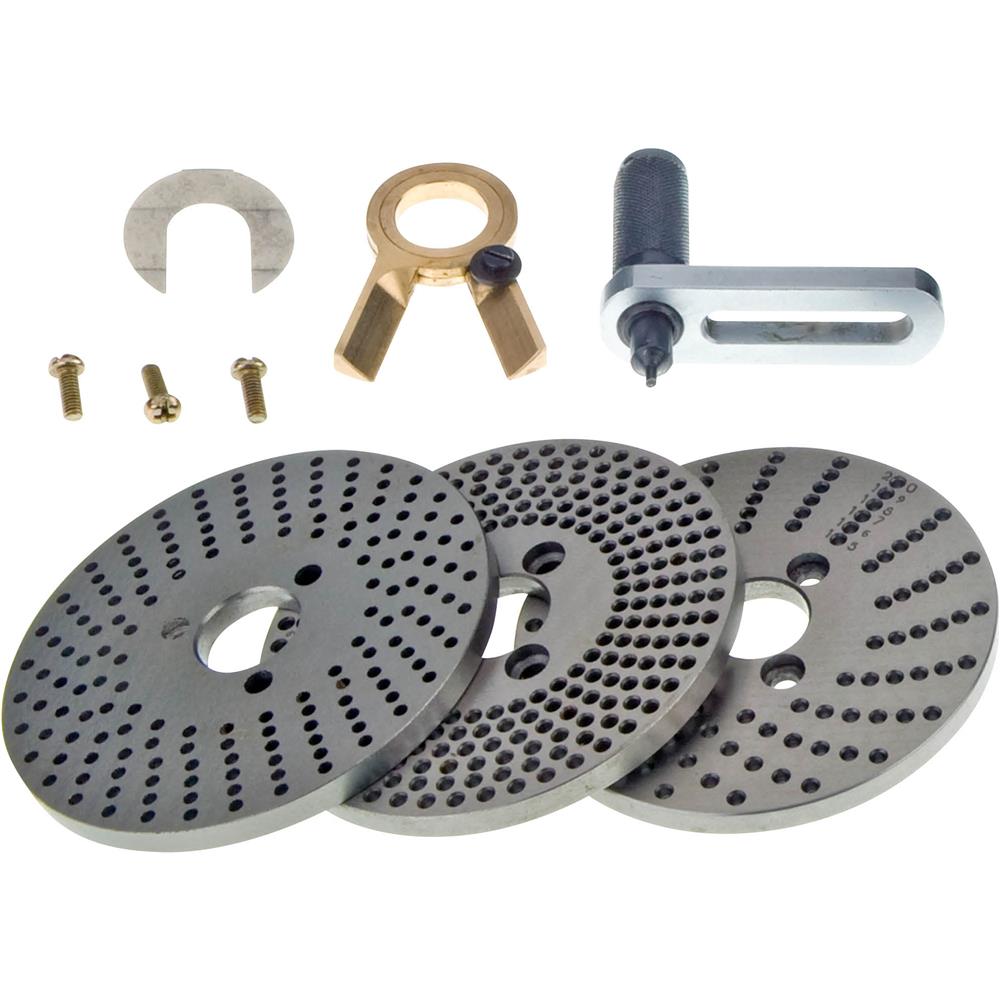

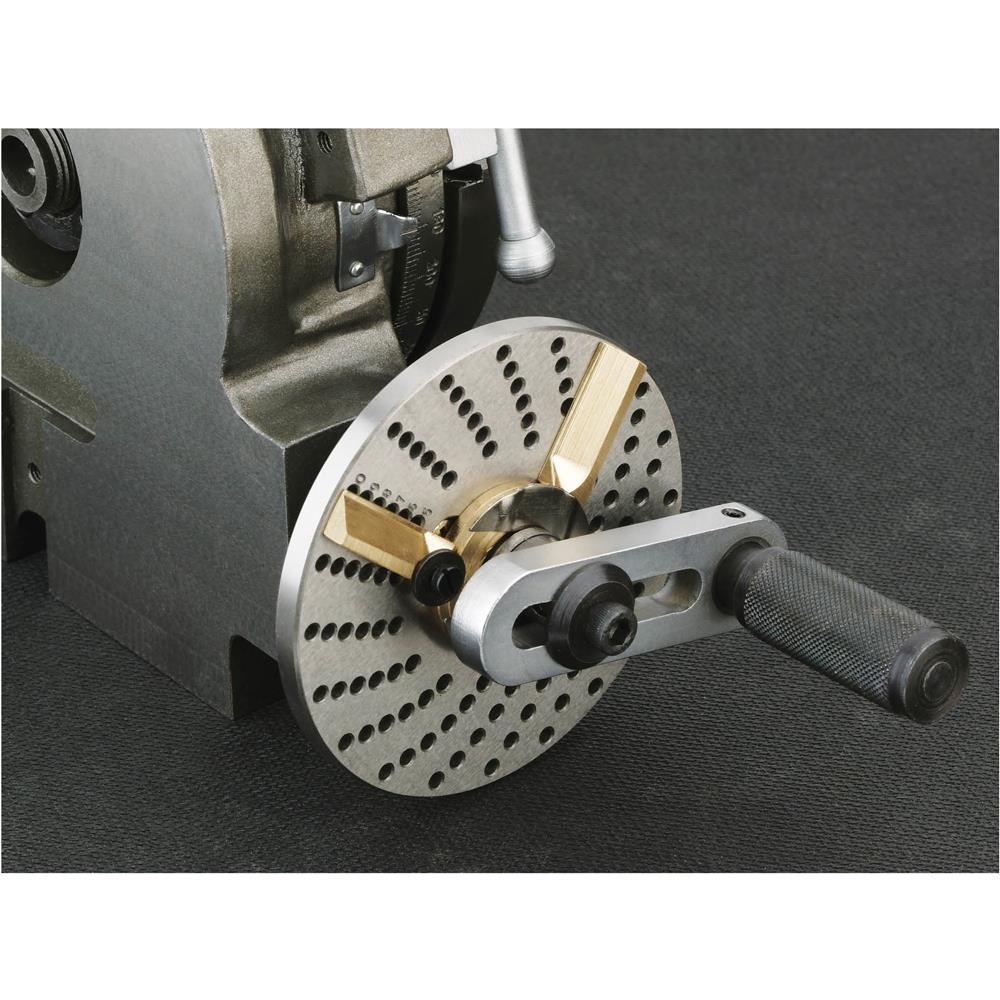

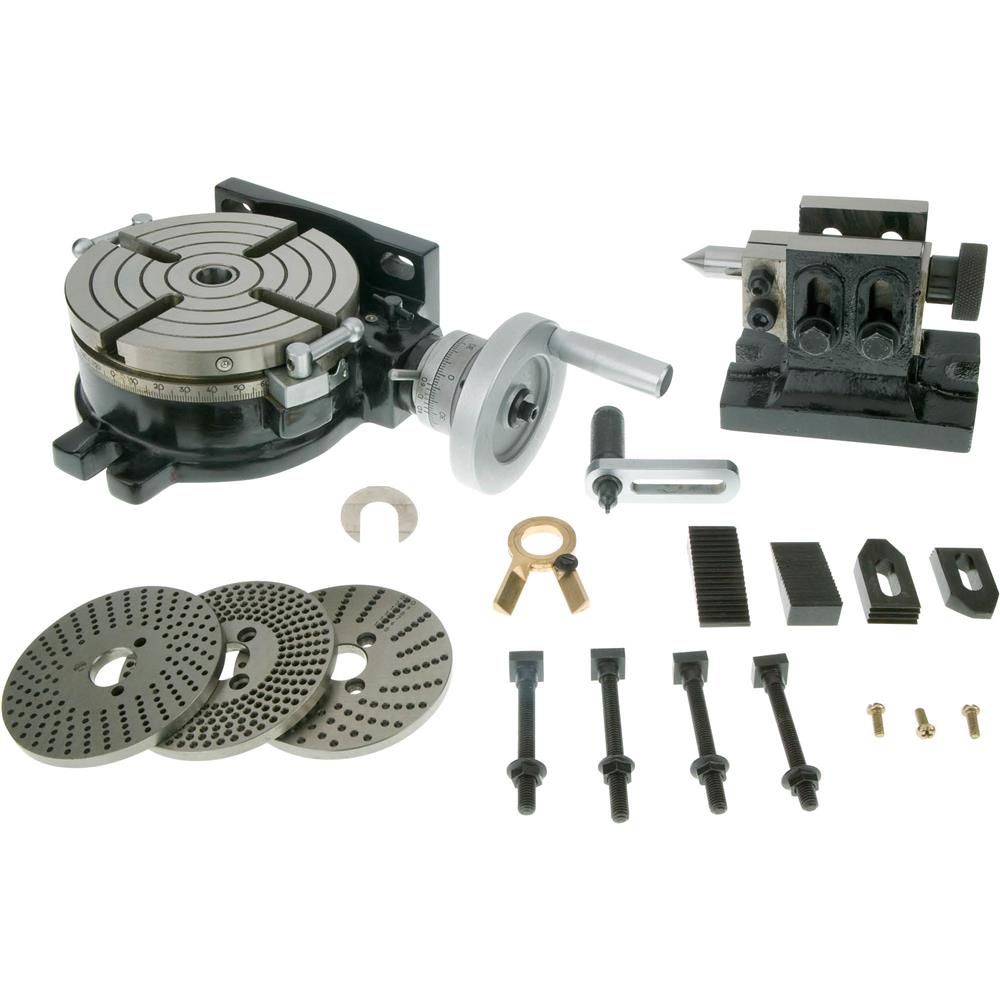

Included dividing plates, an adjustable tailstock, and a 3/8-inch clamping set expand its range for more advanced indexing and fixture setups. It is a strong choice for machinists, fabricators, and serious hobbyists looking for a compact rotary table for a wide variety of milling applications.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Can be used in horizontal or vertical position
- 4° movement per handle rotation
- 20 second vernier scale
Specifications
| Worm gear ratio | 90 |
| Table diameter | 5.91" |
| Table height | 3.11" |
| Base dimensions | W 8" x D 5.85" |
| Vertical base holes | 1/2" @ 4-1/2" on centers |
| Center sleeve | MT#2 |
| Weight | 26 lbs. |
Warranty
This item comes with a 1 year factory warranty.
