Grizzly H8371 Power Feed AL510SX X-Axis New
Product Overview
The Grizzly H8371 Power Feed AL510SX is an X-axis power feed designed for milling machines, especially those with larger tables that benefit from added torque and smoother table movement. It automates feed motion to reduce the effort of manual cranking and helps improve consistency during milling operations.
With variable speed control from 0 to 180 RPM and rapid traverse up to 200 RPM, this unit allows more precise feed adjustment for cleaner finishes and more controlled cuts. Its 100W, 110V motor delivers up to 650 in./lbs. of torque, making it well suited for demanding shop use.

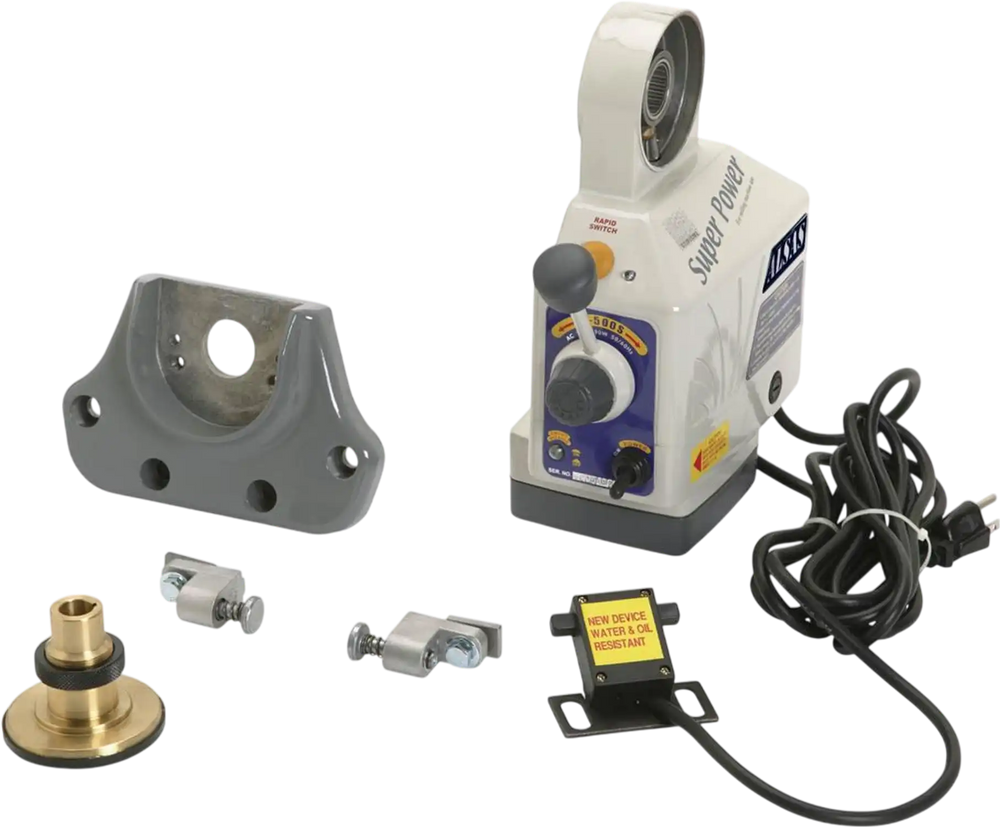

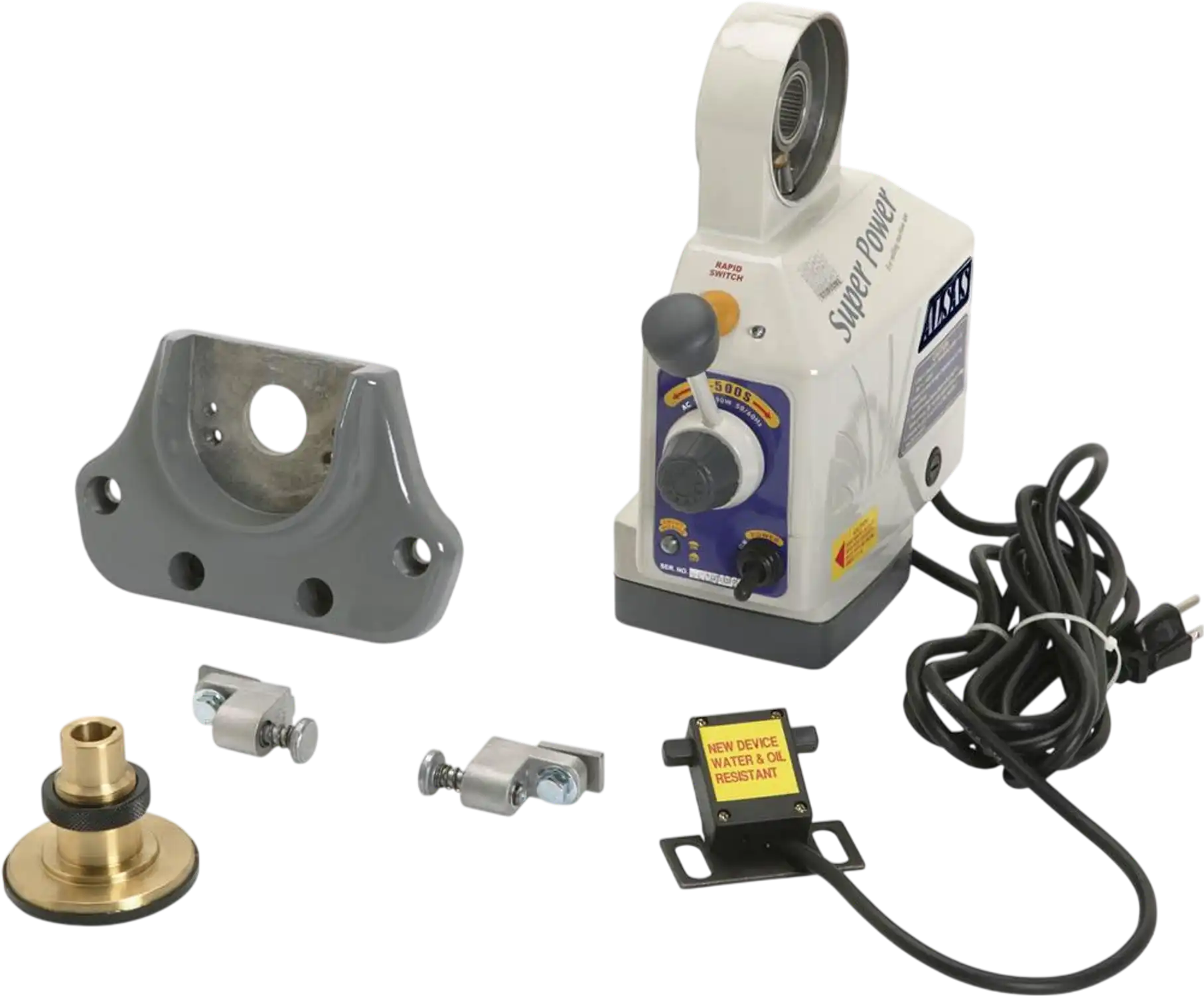

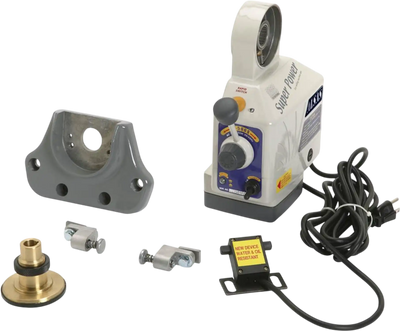

This power feed is a practical upgrade for machinists, fabricators, and machine shop users who want better surface finish, easier operation, and more efficient milling on compatible X-axis setups. It also includes a bi-directional limit switch with stops, along with the mounting bracket, bevel gear, and motor needed for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Specifications
| Motor | 110V, 50/60 Hz |
| Power | 100W |
| Speed | Variable, 0–180 RPM |
| Max RPM | 200 (Rapid traverse) |
| Maximum torque | 650 in/lbs. |
| Bevel drive gear | 4.8 |
| ALSGS | Model year prior to 2024 |
| ALSAS | Model year 2024 or newer |
| Overall dimensions | 11-3/4" x 8-5/8" x 13-3/4" |
| Approximate shipping weight | 16 lbs. |
Warranty
This item comes with a 1 year factory warranty.
