Grizzly T33010 Digital Read-Out 9-7/8" x 23-5/8" 2-Axis Mill DRO New
Product Overview

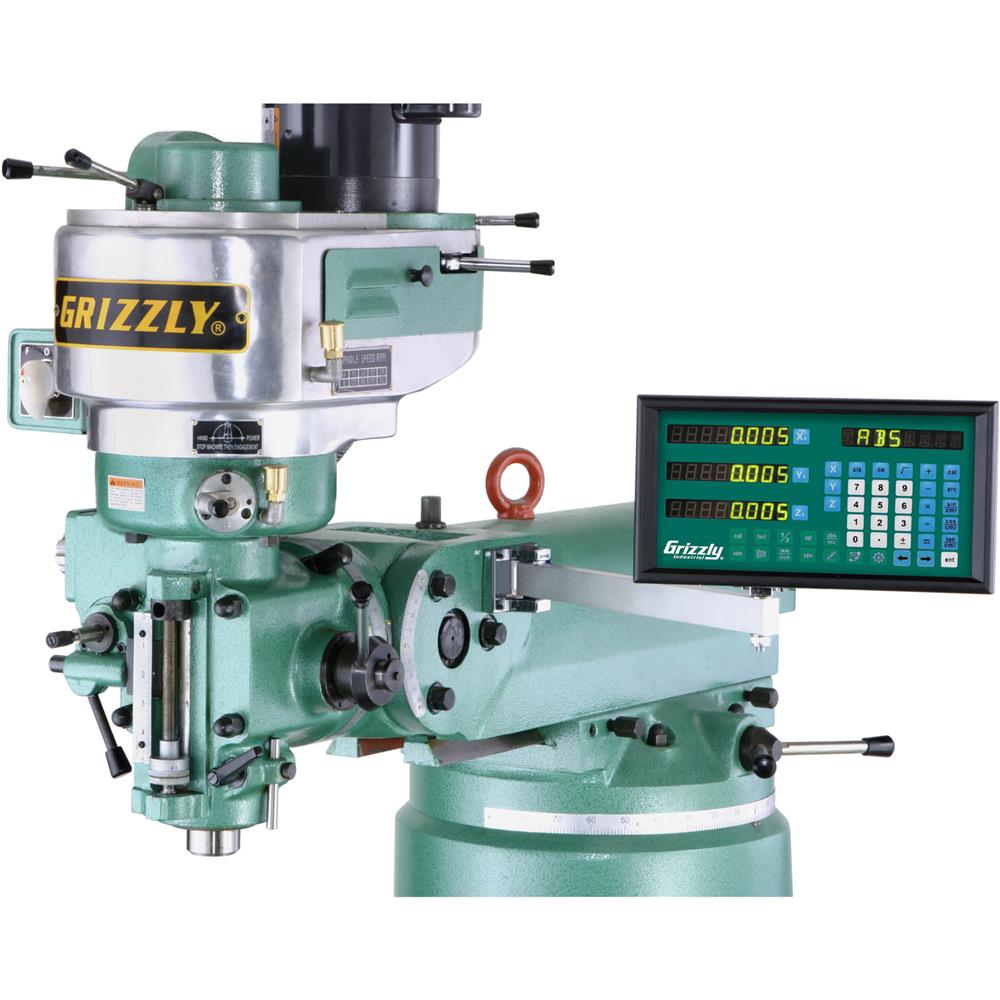

The Grizzly T33010 is a 2-axis digital readout kit for milling machines, designed to add precise position measurement to custom mill setups. It includes the readout unit, mounting arm and bracket, plus 9-7/8" and 23-5/8" linear optical scales for X- and Y-axis applications.

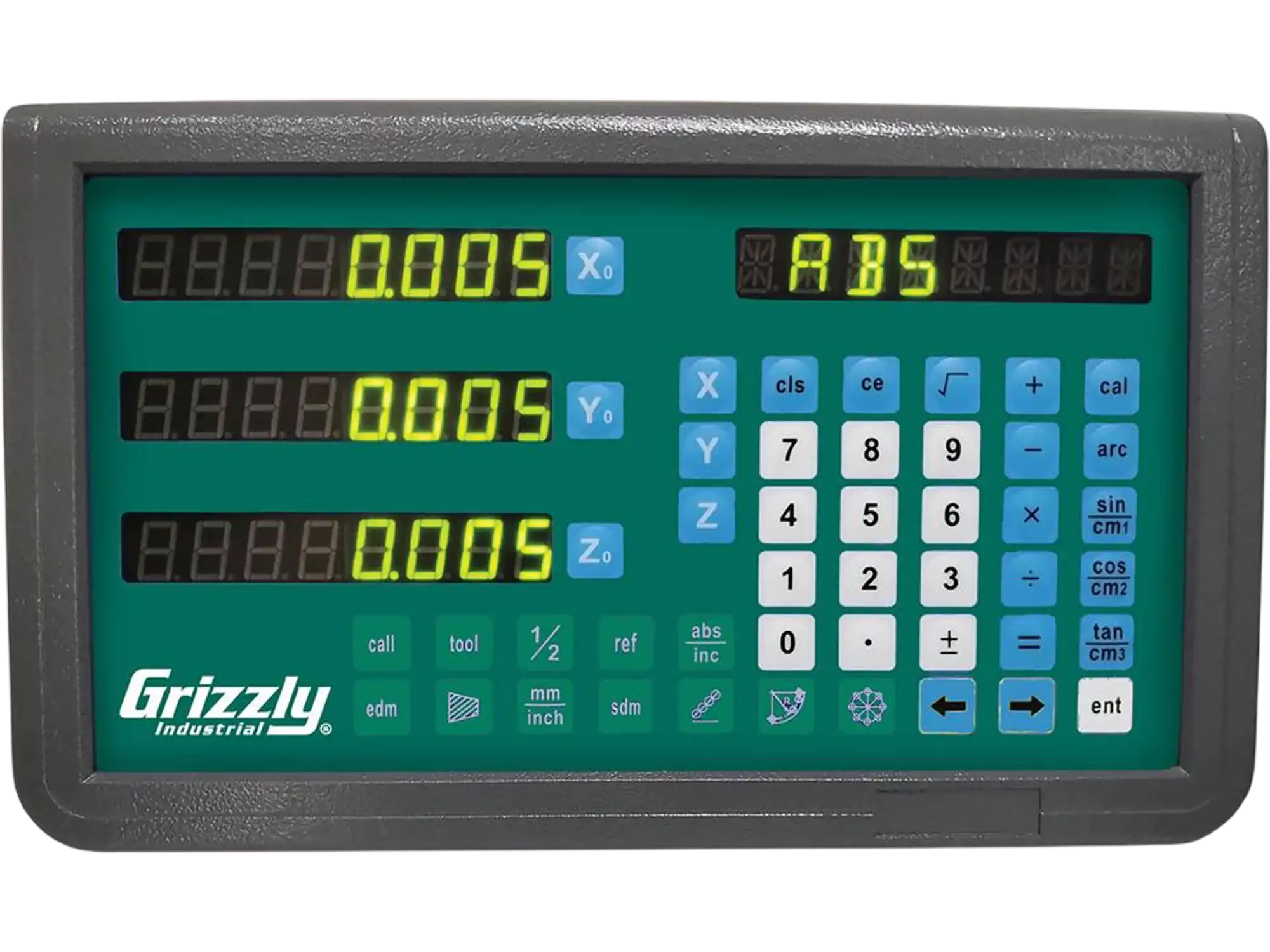

This DRO helps improve machining accuracy and workflow with a clear mm/inch display, 5μm resolution, and repeatability down to 2μm. Built-in functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, shrinkage calculation, and error compensation make it useful for a wide range of layout and cutting tasks.
The sealed aluminum readout housing helps protect internal electronics from dust, fumes, and coolant exposure, while the optical scales are designed for smooth movement and good oil resistance. This kit is a practical choice for machinists, fabrication shops, and serious hobby users who want a reliable 2-axis DRO upgrade for a mill.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 9-7/8", 23-5/8" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
