Grizzly T33014 Digital Read-Out 11-13/16" x 29-9/16" 2-Axis Mill DRO New
Product Overview

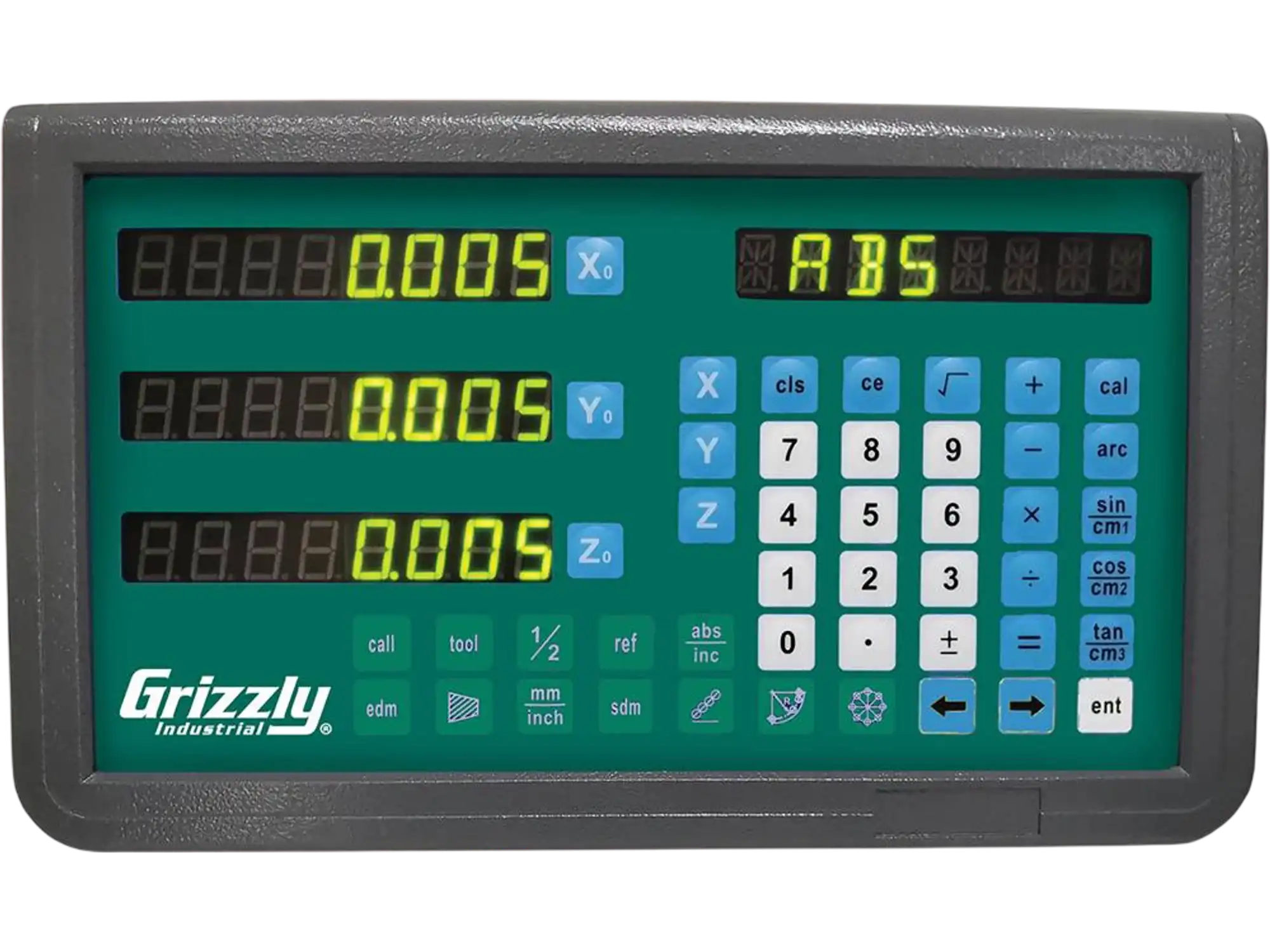

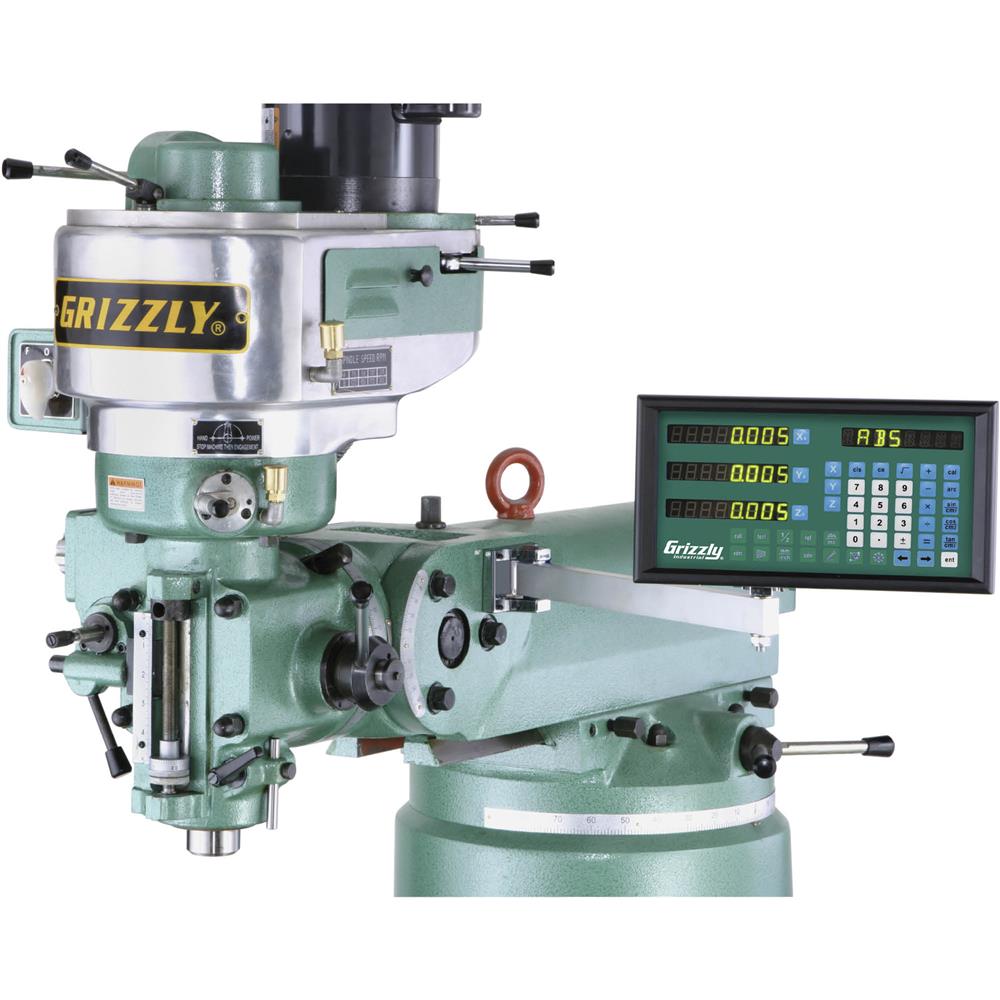

The Grizzly T33014 is a 2-axis digital readout kit designed to add precise position measurement to a milling machine. It includes the readout unit, 11-13/16" and 29-9/16" linear optical scales, a DRO arm, and a 2-axis mill bracket for a custom mill installation.
Built for accurate machining, this system features 5μm resolution, strong repeatability, and functions that support common shop tasks such as pitch circle diameter, line hole positioning, inclined machining, radius work, and shrinkage calculation. It also offers mm/inch display, vibration filtering, and linear and non-linear error compensation to help improve workflow and consistency.
The sealed aluminum readout housing helps protect internal electronics from dust, fumes, and coolant vapor, while the optical scales are designed for durability and oil resistance. This DRO kit is a practical choice for machinists, fabrication shops, and serious mill users who want clearer position tracking and more efficient manual milling operations.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 11-13/16", 29-9/16" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
