Grizzly T33017 Digital Read-Out 13-13/16" x 51-3/16" 2-Axis Lathe DRO New
Product Overview

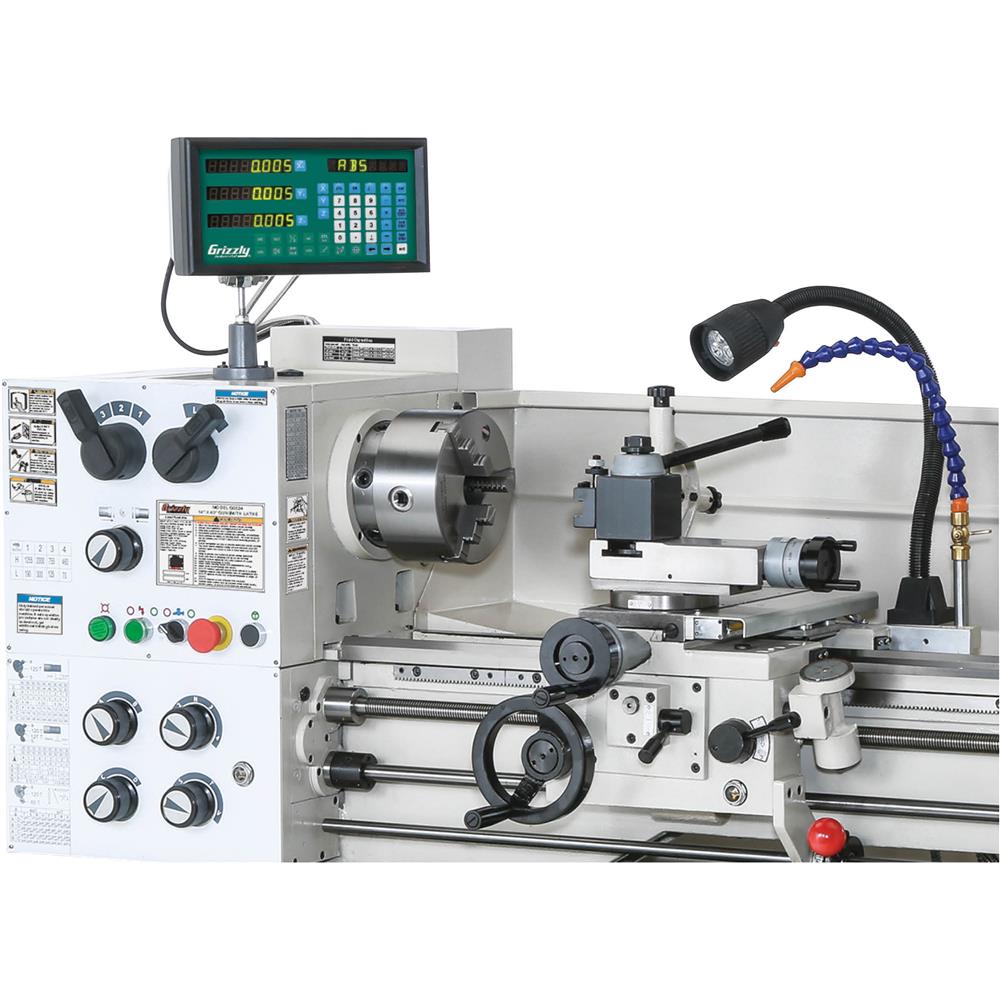

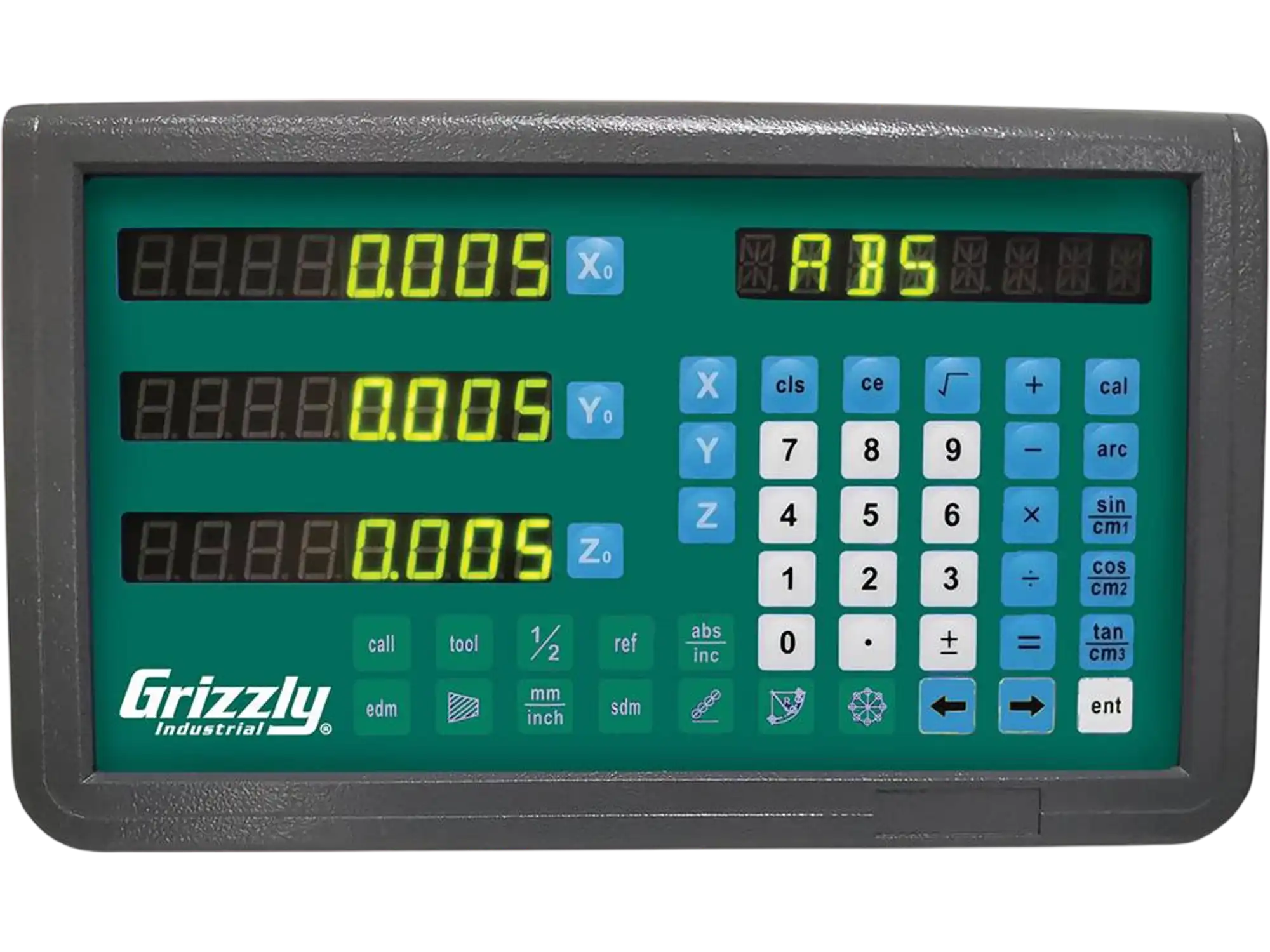

The Grizzly T33017 is a 2-axis digital readout kit designed to add precise position tracking to a lathe. It includes the readout unit, mounting hardware, and two linear optical scales with 13-13/16" and 51-3/16" travel lengths for custom installation.
Built for accurate machining, this system offers 5μm resolution, 2μm repeatability, and a clear mm/inch display. Useful functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, shrinkage calculation, and error compensation help streamline setup and improve consistency during turning operations.
The sealed aluminum readout case helps protect internal electronics from dust, fumes, and coolant vapors, while the optical scales are designed for smooth movement and strong oil resistance. This DRO kit is well suited for machinists, fabrication shops, and serious hobby users looking to upgrade a lathe with reliable 2-axis digital measurement.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 13-13/16", 51-3/16" |
| Scale accuracy | ±6μm, ±25μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
