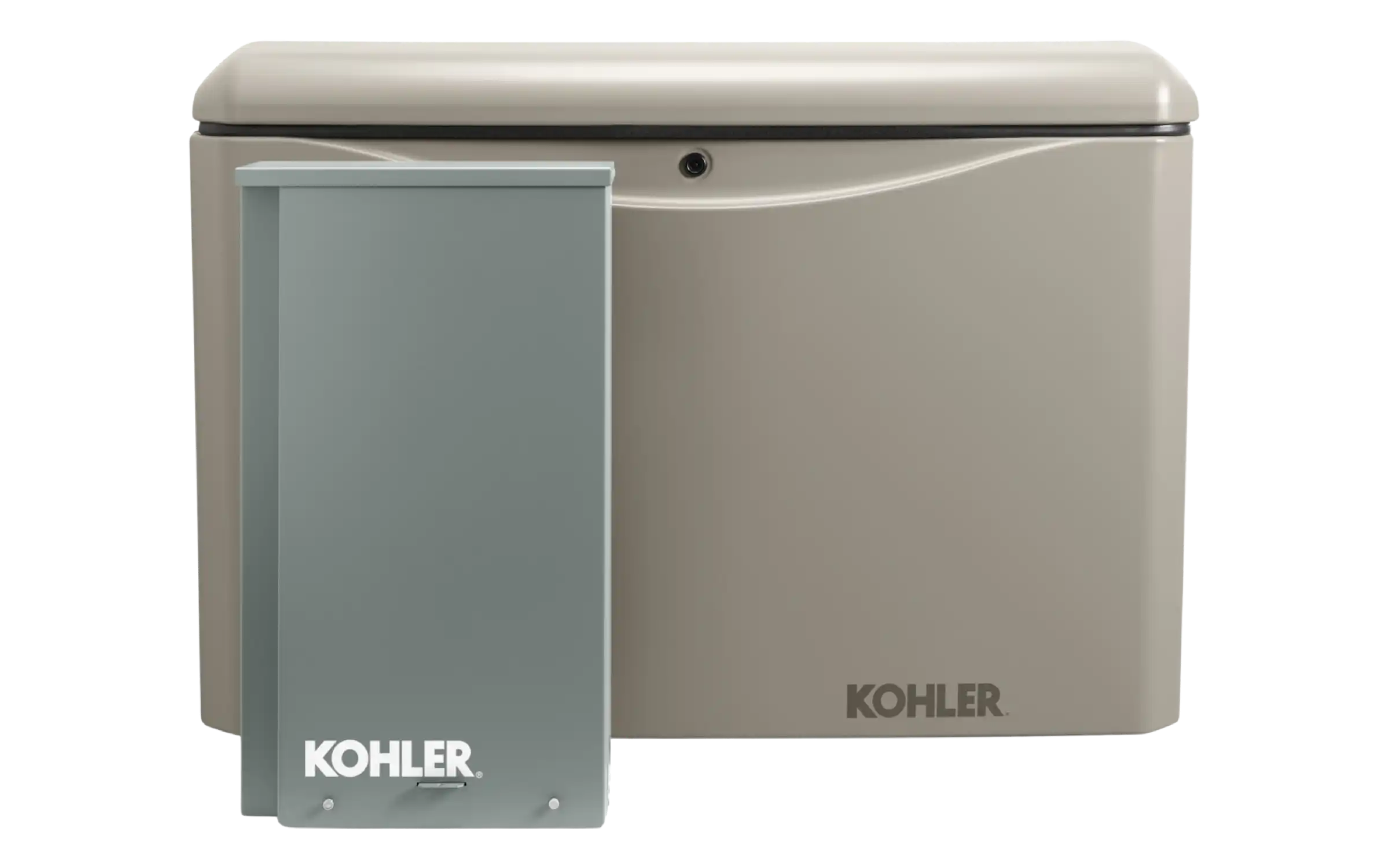

Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New

Manufacturer: Kohler

SKU: 20RCAL-200SELS

Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New

QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

$ 6,000.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

delivery truck icon

Current special - Add to cart to see lower price

Ships same or next day

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

    Customers Also Purchased

    Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New

    Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New

    Add To Compare
    Add To Wishlist
    Remove From Wishlist

    Product Overview

    Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

    vendor logo
    divider
    authorized dealer
    checkmark

    5 year comprehensive warranty.

    checkmark

    Includes NEMA 200 Amp Transfer Switch

    checkmark

    Brand new in box

    checkmark

    Free shipping

    checkmark

    Works with liquid propane or natural gas

    checkmark

    Authorized Kohler dealer

    Features

    • Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
    • In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.
    • We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
    • KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.
    • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances.
    • Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V and 20RCAL at 41kVA at 240V.
    • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics.
    • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators).
    • Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
    • Management Systems, and Programmable Interface Module (PIM).
    • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only.
    • Comes with an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit.
    • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions.
    • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner.
    • Stylish corrosion-proof enclosure impact tested to -30°F.
    • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field.
    • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.

    Specifications

    Fuel Consumption on NG at 50% load 161 cfh
    Fuel Consumption on LP at 50% load 82 cfh
    Controller RDC2 Controller
    Remote Monitoring Available KOHLER® Energy Management App
    Cylinder Arrangement V-2
    Dimensions 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)
    Engine Manufacturer/Description KOHLER
    Engine Model CH1000
    Engine/Alternator RPM 3600
    Fuel Type Natural Gas, LPG
    Frequency 60 Hz
    Phase Single Phase
    Voltage @ 60 Hz 120/240|277/480
    Digital Voltage Regulation ±1.0%
    Built-in Mounting Pad Yes
    Model 20RCAL
    Rated kW LP 20 kW
    Rated kW NG 18 kW
    Amps LP 83 amps
    Amps NG 75 amps
    Peak Motor Starting kVA @240 V 41 kVa
    Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
    Displacement 999 cm³ (61 cu. in.)
    Horsepower NG 27.1 HP, LP 30.9 HP
    Enclosure Material Aluminum
    Sound Output During Weekly Exercise 64 dB(A)
    Sound Output During Full-speed Operation 69 dB(A)
    Response Time 10 seconds
    Warranty Premium five-year limited warranty
    Country of Origin US
    Certifications/Listings cUL, EPA, UL 2200,CSA
    Automatic Transfer Switch Included Included
    Remote Monitoring Available Included
    Off Grid / Utility Backup Utility Backup
    Weight 600/611 lbs. (272/277 kg)
    Alternator Type 2-Pole, Rotating Field
