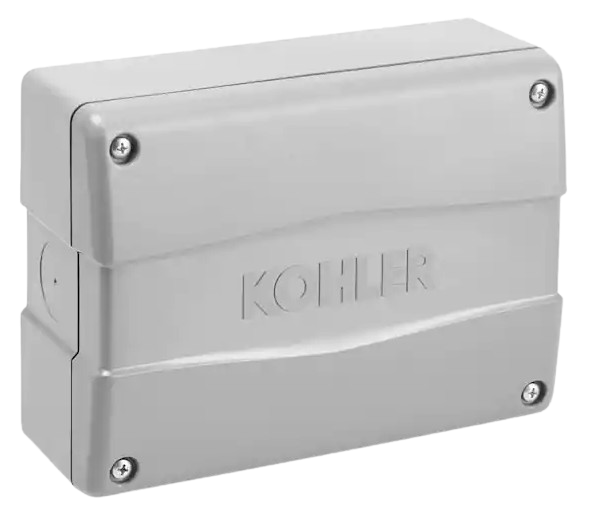

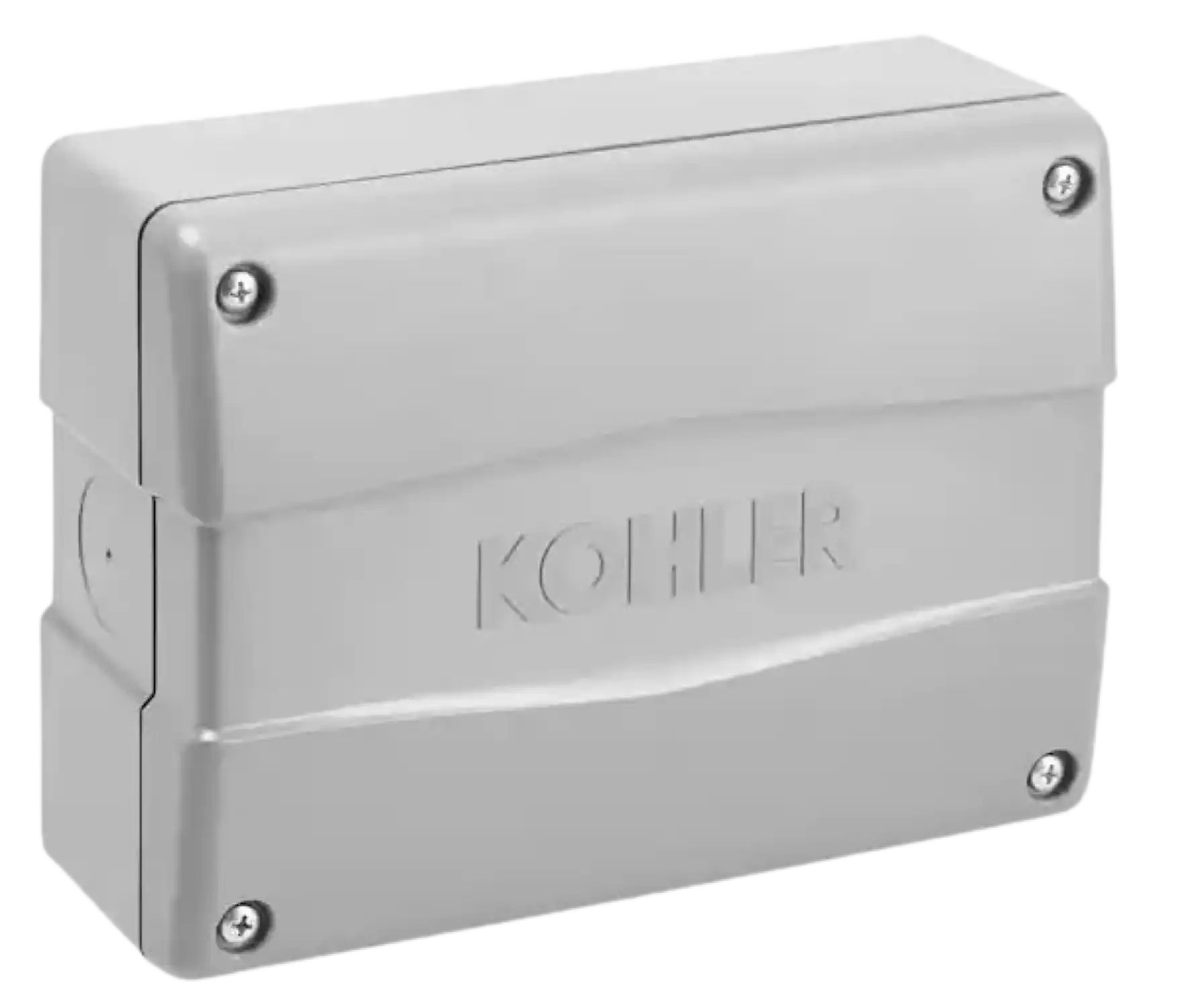

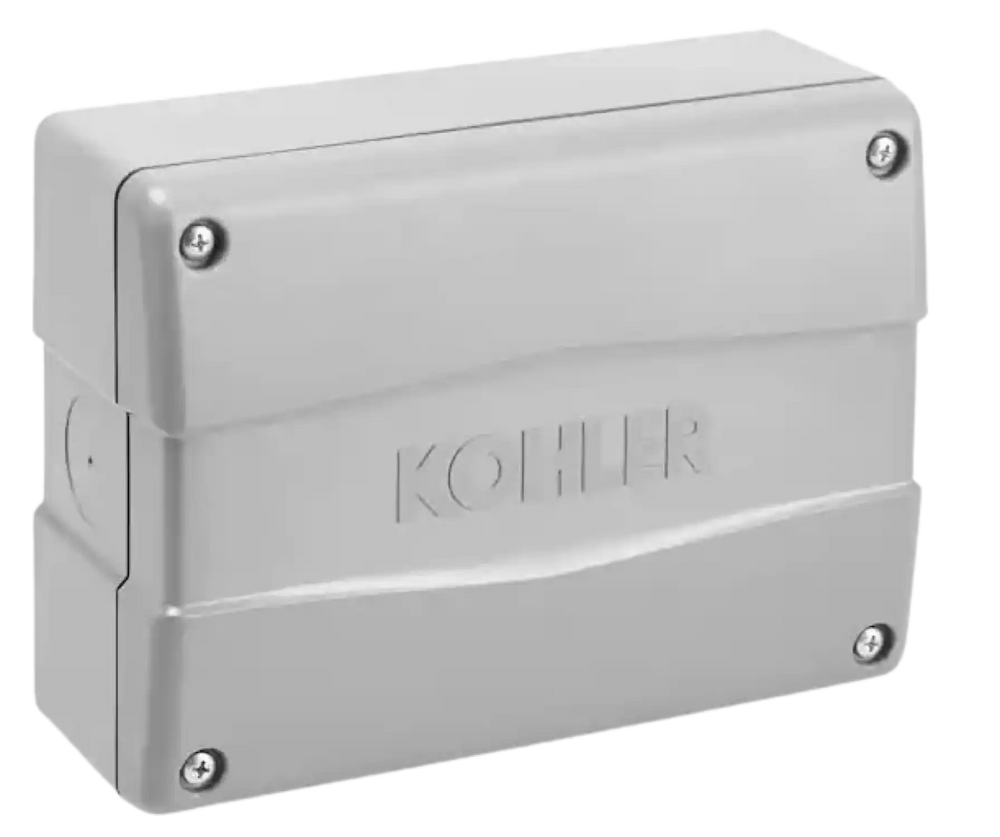

Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New

Manufacturer: Kohler

SKU: GM92001-KP1-QS

Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New


Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New

QTY

(888) 999-1522

$ 155.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships in (est) 1-2 weeks

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
trustedsite secure badge

Product Overview

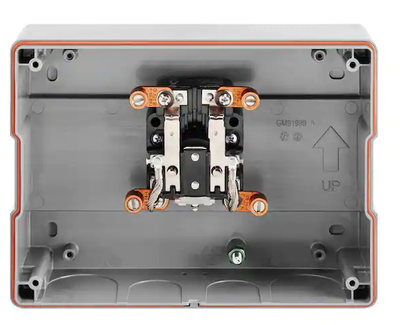

The Power Relay Module contains one 50 Amp power relay mounted in a NEMA 3R housing. Use up to four power relay modules with the load shed kit or the Model RXT automatic transfer switch. With combined interface/load management board.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

Free shipping

checkmark

Authorized Kohler dealer

Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New

Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New

Features

  • Compatible with 14RESAL, 20RESAL, 24RCL, 38RCL, 48RCL and 60RCL generator models
  • Module enclosure is rated NEMA 3R for installation indoors or outdoors
  • Module enclosure includes mounting holes for installation and recommended locations for conduit connections
  • Modules mount on a wall or other sturdy vertical surface
  • Normally closed relays are energized only when the load is shed, minimizing wear on the relays and ensuring that all loads are connected when primary power is available
  • Relays include factory-installed connecting lugs
  • UL/cUL listed

Specifications

Product CategoryGenerator Accessories
Weight3 Pounds
Product Length9.2 Inches
Product Width6.8 Inches
Product Height3.6 Inches

Package Contents

Power Relay Module (PRM)

User's manual
