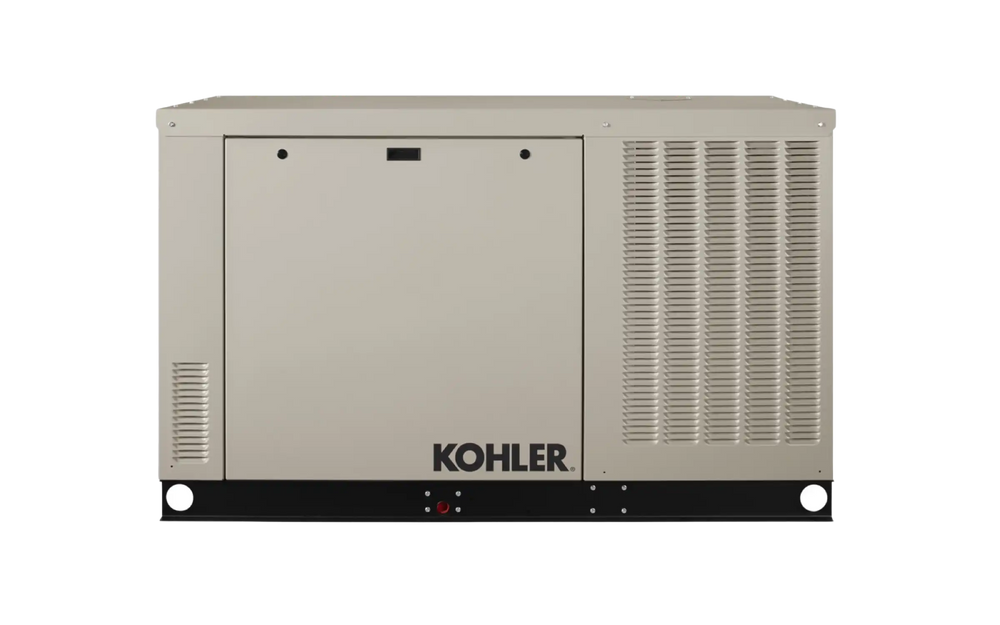

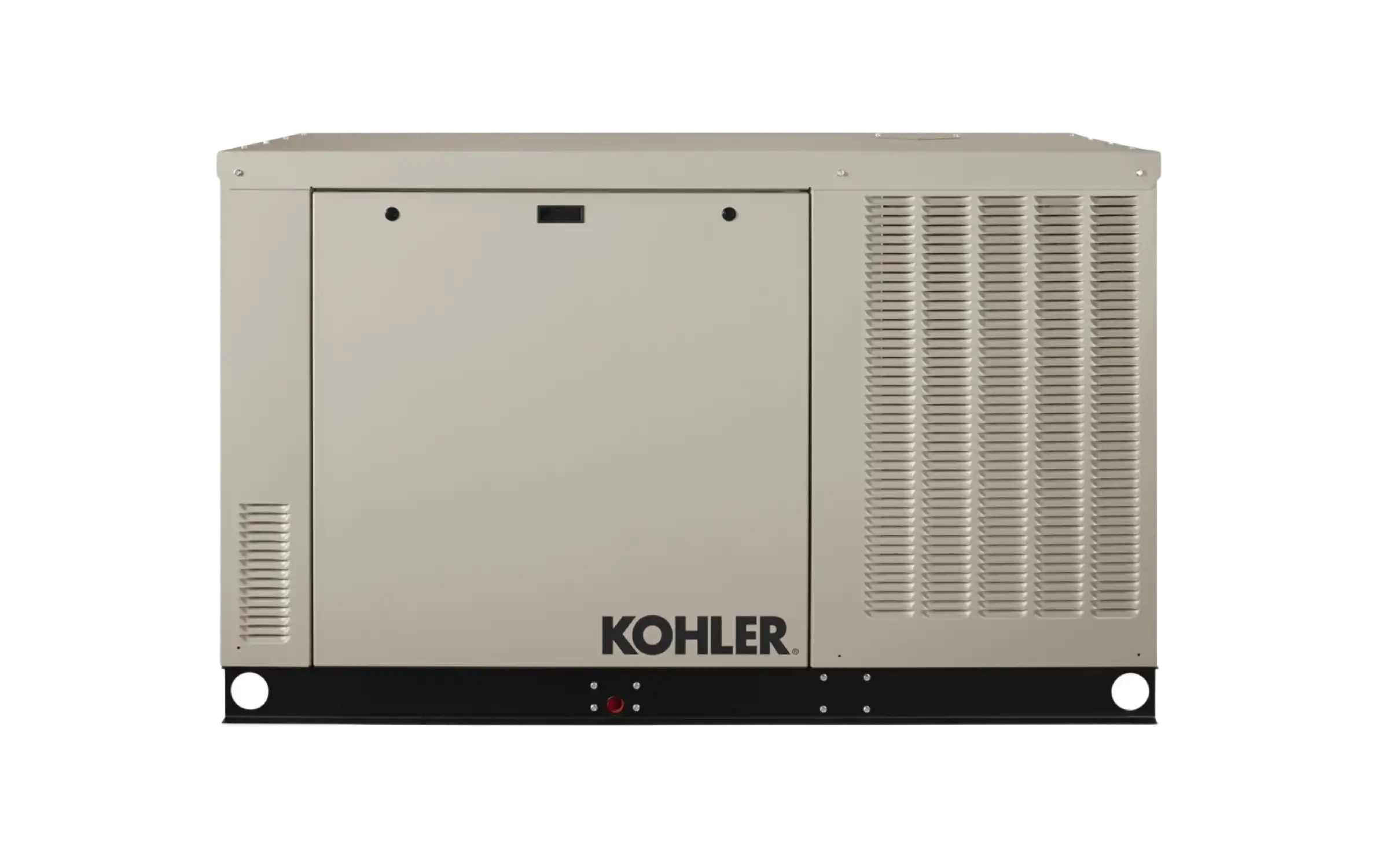

Kohler 24RCLA-QS2 23KW 120/208V 3-Phase Standby Generator with App Connect New
Manufacturer: Kohler
SKU: 24RCLA-QS2
Voltage, Phase
QTY
$ 17,899.00
or
(888) 999-1522
Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.
In Stock
ON SALE!
Current special - Add to cart to see lower price
Ships in (est) 3-8 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
-
Kohler Battery Heater Kit 110-120V 65W for 24/30RCL, 38/48RCLB, 60RCLA, KG80R/100R/125R/150R New
-
Kohler Maintenance Kit 2.2L for 24/30RCL and 38RCLB Generators New
-
Kohler Block Heater Kit 500W 120V for 24/30/38RCL Generators New
Kohler 24RCLA-QS2 23KW 120/208V 3-Phase Standby Generator with App Connect New
Product Overview
The Kohler 23kW Generator provides high quality 3-phase power with advanced voltage and frequency regulation and low harmonic distortion. Neighborhood friendly operation at 60 dBA and 52 dBA during exercise. The Liquid Cooled Kohler 2.2 Liter Inline 4 cylinder engine provides plenty of power at 1800 RPM. The electronic governor maintains frequency within 1%. From No Load to a Full Load Condition, Total Harmonic Distortion (THC) is less than 5%.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- Aluminum Sound Enclosure + Silencer
- UL-2200 Listed
- GFCI Service Outlet 120/208 Volt
- Integral Vibration Isolation
- Oil Drain Extension
- NEC Prime Mover Shutdown Switch
- Remote Monitoring & Control of Generator & ATS System
- RDC2 Controller + Built-In Battery Charger
Specifications
| Fuel Type | Natural Gas (NG) or Propane (LPG) |
| Fuel Gauge | No |
| NG Power Capacity | 21kW |
| LP Power Capacity | 23kW |
| NG Consumption @ Full Load | 301 Cubic Feet per Hour |
| NG Consumption @ Half Load | 199 Cubic Feet per Hour |
| LP Consumption @ Full Load | 3.1 Gallons per Hour |
| LP Consumption @ Half Load | 2.3 Gallons per Hour |
| Model Number | 24RCLA |
| Manufacturer | Kohler |
| Made In USA | Yes |
| Rated Watts | 24kW |
| Rated Amps | 208V NG - 73Amps, LP - 81 Amps| 240V NG - 63, LP - 70| NG - 32, LP - 35 |
| Voltage | 3-Phase |
| A/C Ton Rating | 5-Ton |
| Enclosure | Aluminum |
| UL Listed | EL-2200 |
| Decibel Rating | 60 dBA Normal Operation | 52 dBA Exercise |
| Type | Standby Generator |
| Rated Watts Filter | 20 to 29 kW |
| Voltage | 120/208V, 3 Phase |
| Starting System | Automatic |
| Low Oil Alert | Low Oil Shutdown |
| Mainline Breaker | 100 Amps |
| Battery Requirement | 12-Volt Group 24 630 CCA |
| Weight | 1260 Pounds |
| Dimensions | 74L x 32.9W x 46.0H inches |
| Engine Brand | Koher KG2204 |
| Engine Size | 2.2 Liter Inline 4-Cylinder |
| Engine RPM | 1800 RPM |
| Cooling System | Liquid Cooled |
Package Contents
Kohler 24RCLA-QS2 23KW Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
