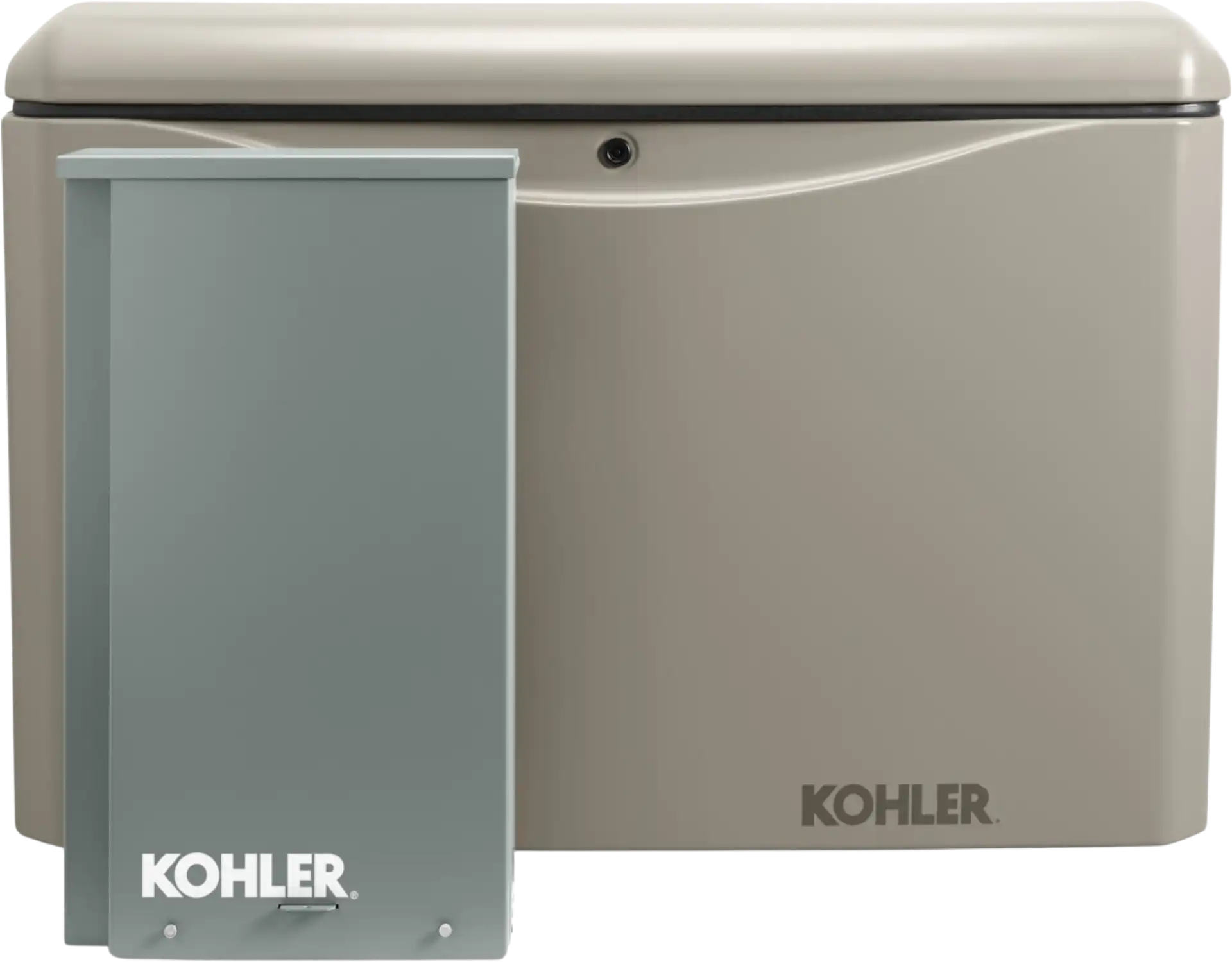

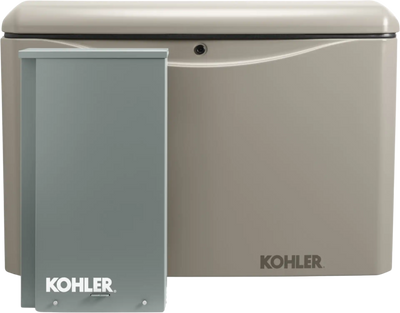

Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and App Connect Open Box
Product Overview
Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 26 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.
KOHLER® generators are designed to provide reliable power and are equipped with a heavy-duty, commercial-grade engine that stands up to harsh weather conditions. With the ability to power a 5-ton (60,000 BTU) air conditioner, major appliances, and electronics in just 10 seconds, these premium generators are backed by a 5-year, 2,000-hour warranty and have won awards, including the MVP Award 2010 by Building Products magazine.
Open box units may have damaged boxes. They are brand new will a full warranty.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
- Extraordinary peak motor-starting capacity: 14RCA at 33kVA at 240V, 20RCA at 41kVA at 240V, and 26RCA at 39kVA at 240V
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
- Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
- Comes with either an RXT 100-amp indoor-rated automatic transfer switch with 16-circuit load center or an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit
- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
- Attractive powder-coated aluminum enclosure designed to handle the elements including hurricane force winds up to 181 mph.
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
Specifications
| Alternator Type | 2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? | 180 cfh |
| Fuel Consumption on LP at 50% load? | 85 cfh |
| Controller | RDC2 Controller |
| Cylinder Arrangement | V-2 |
| Dimensions | 1193 mm x 660 mm x 820 mm (47 in. x 26.0 in. x 32.3 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | CH1006 |
| Engine/Alternator RPM | 3600 |
| Fuel Type | Natural Gas,LPG |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Voltage @ 60 Hz | 120/240 |
| Digital Voltage Regulation | ±1.0% |
| Built in Mounting Pad | Yes |
| Rated kW LP | 26 kW |
| Rated kW NG | 24 kW |
| Amps LP | 109 amps |
| Amps NG | 100 amps |
| Peak Motor Starting kVA @240 V | 39 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 999 cm³ (61 cu. in.) |
| Horsepower | NG 33.0 HP, LP 36.4 HP |
| Enclosure Material | Aluminum |
| Sound Output During Weekly Exercise | 56 dB(A) |
| Sound Output During Full-speed Operation | 67 dB(A) |
| Response Time | 10 seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | EPA,UL 2200,cUL |
| Automatic Transfer Switch Included | Yes |
| Automatic Transfer Switch Amp | 200A |
| Remote Monitoring Available | KOHLER® Energy Management App |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 670 lbs. (304 kg) |
Package Contents
Kohler Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
