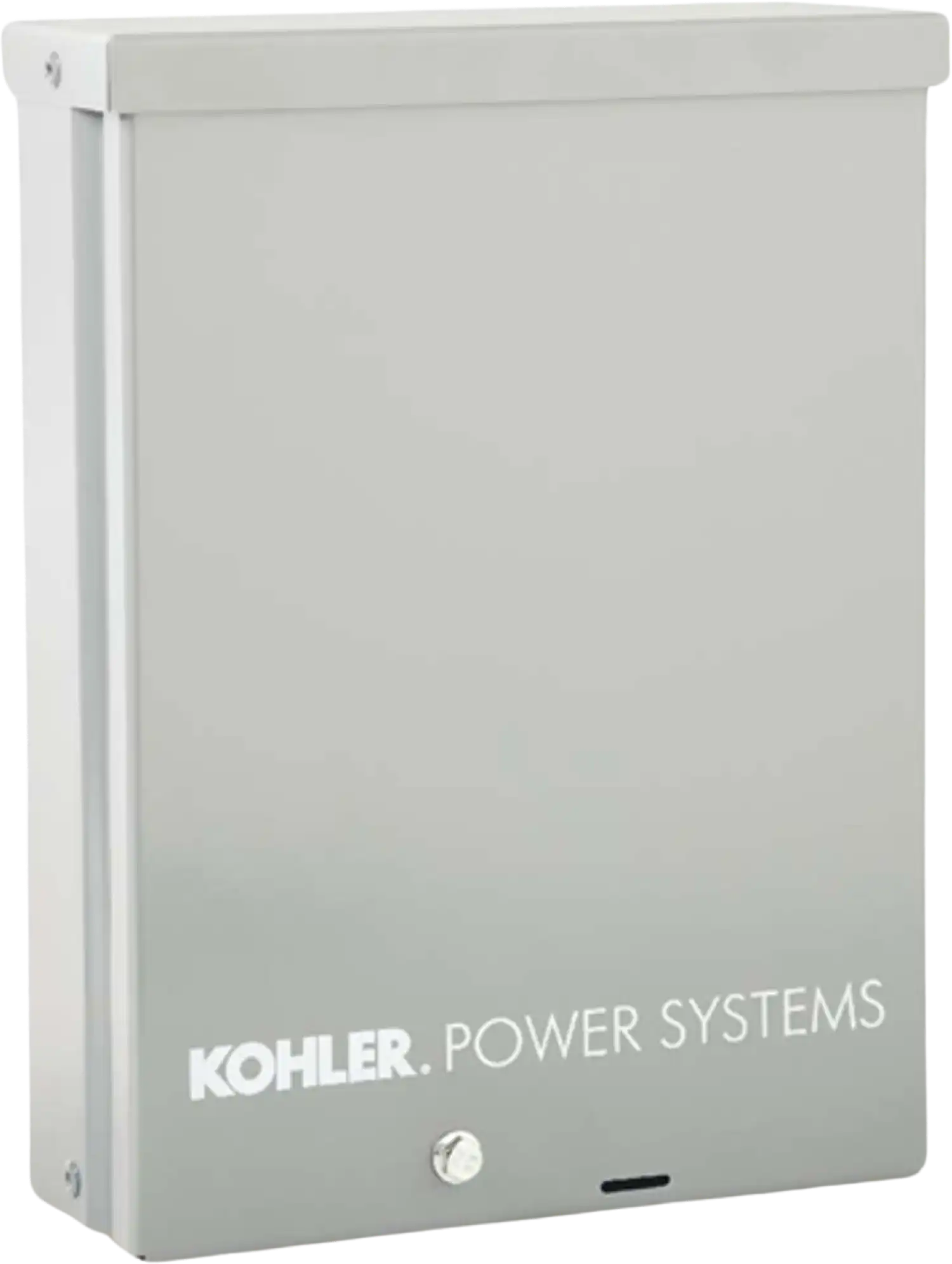

Kohler Programmable Interface Module (PIM) UL Listed New
Manufacturer: Kohler
SKU: GM81529-KP1-QS
QTY
(888) 999-1522
$ 413.25
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 2-4 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
Kohler Programmable Interface Module (PIM) UL Listed New
Product Overview
Allows Kohler generators to provide "smart home" capabilities with OnCue System (sold separately). With the OnCue System, you can remotely control important home items. Perfect for those who travel frequently or own a vacation home. The Programmable Interface Module (PIM) lets you activate critical items like storm shutters or a security system when you're away.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Remotely turn power outputs such as heating and cooling system or security lights on or off.
- Remotely monitor or receive email alerts for changes to inputs such as motion sensors or water-level alarms (requires OnCue Generator Management System).
- Two inputs, six outputs.
- Allows indoor or outdoor installation
- Compatible with 6VSG, 14RESA, 14RESAL, 20RESA, 20RESAL, 38RCL and 48RCL generator models.
Specifications
| Compatible | 6VSG, 14RESA, 14RESAL, 20RESA, 20RESAL, 38RCL and 48RCL generator models |
| Inputs | (2) 10 mA @ 12VDC dry contact 12--24 AWG |
| Outputs | (6) 10 A @ 120 VAC 12--24 AWG |
| Module Communication and Power Connections to the RDC2/DC2 controller | 0.5 A @ 12 VDC Belden #9402 shielded, twisted-pair equivalent cable 12--20 AWG |
| UL listed | Yes |
| Dimensions | 12.1" H x 9.1" W x 3.3" D |
| Shipping Weight | 6 lbs |
Package Contents
Kohler GM81529-KP1-QS
User's Manual
