Product Overview
The Vevor hydraulic steering kit is designed for single-station, single-engine outboard boats up to 90 HP. It features a durable helm pump rated for 6.9 MPa/1,000 psi, a compact two-way lock cylinder, and two 24' high-strength hoses for reliable hydraulic performance. Its aluminum alloy and 304 stainless steel construction helps support long-term use in marine environments. The kit is suited for cruisers, center consoles, speedboats, and offshore fishing boats. It also includes installation accessories and a user manual for setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Handle Up to 90 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 90 HP, providing a 5 turns lock-to-lock for precise and responsive handling on every trip

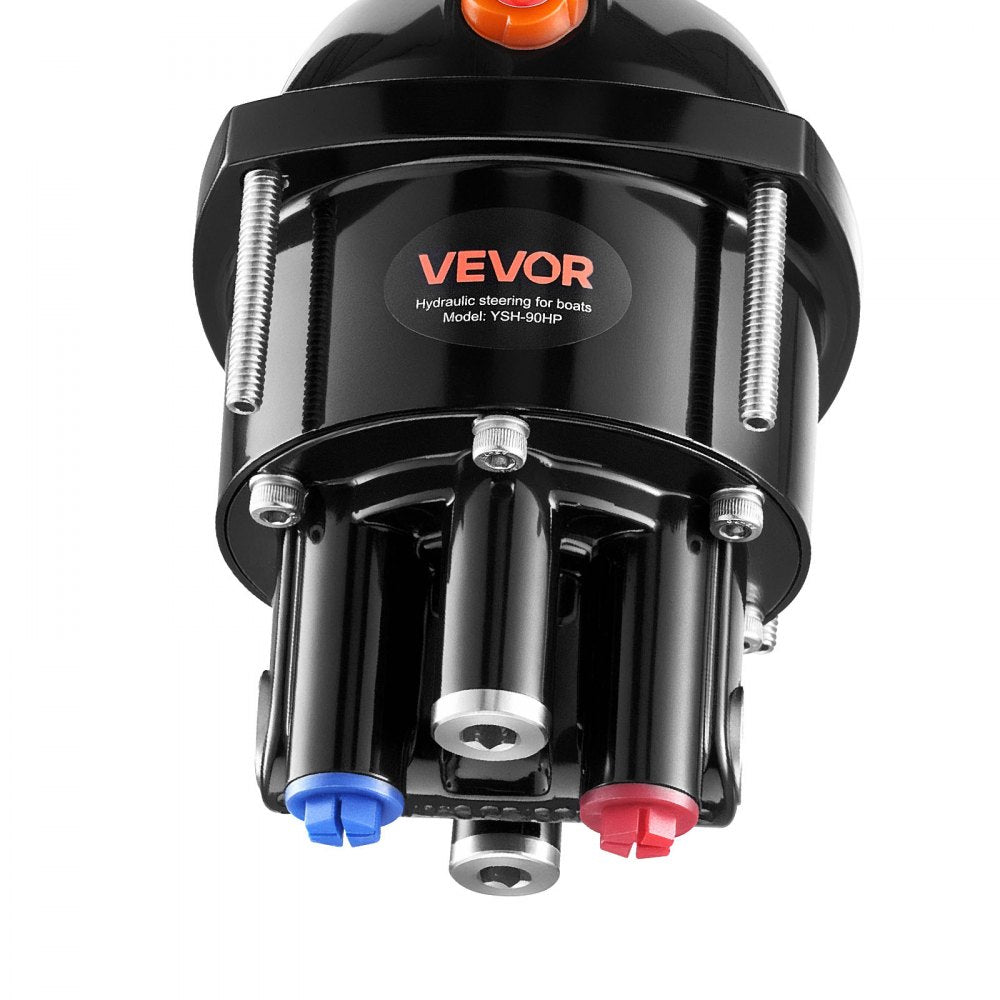

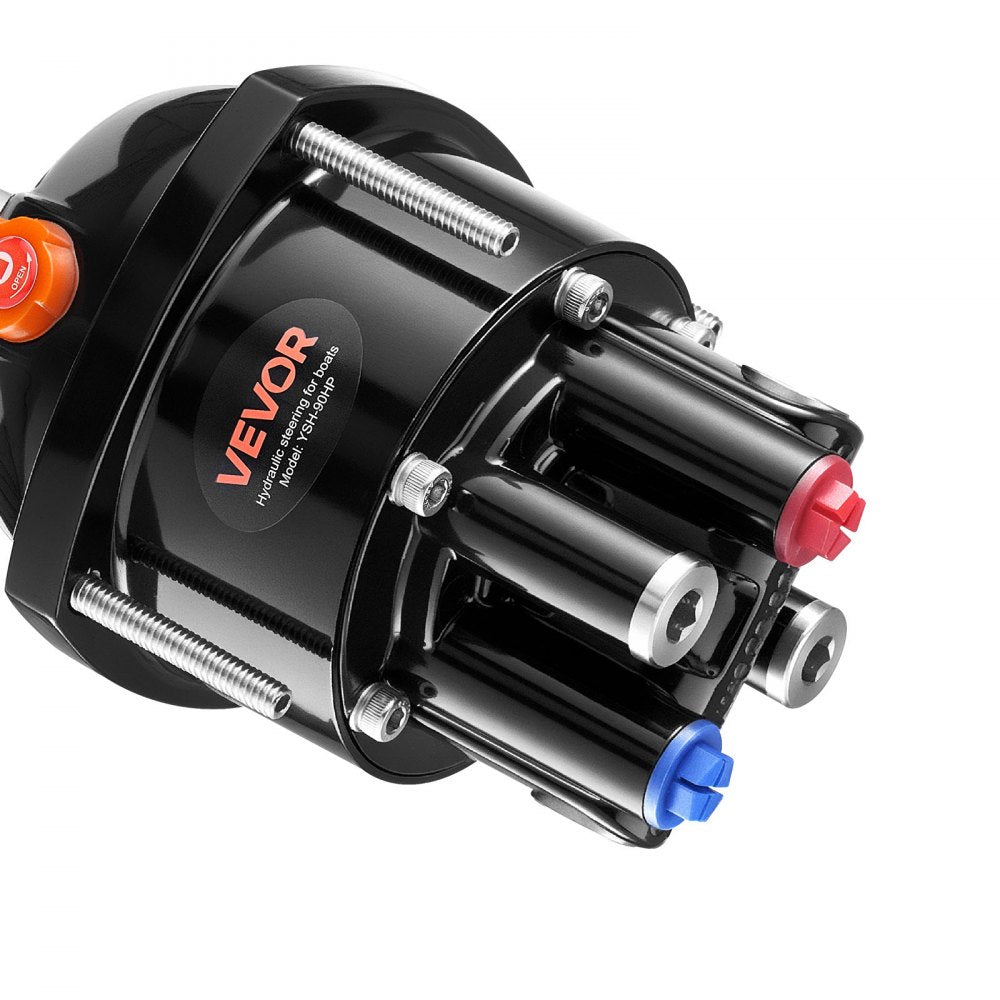

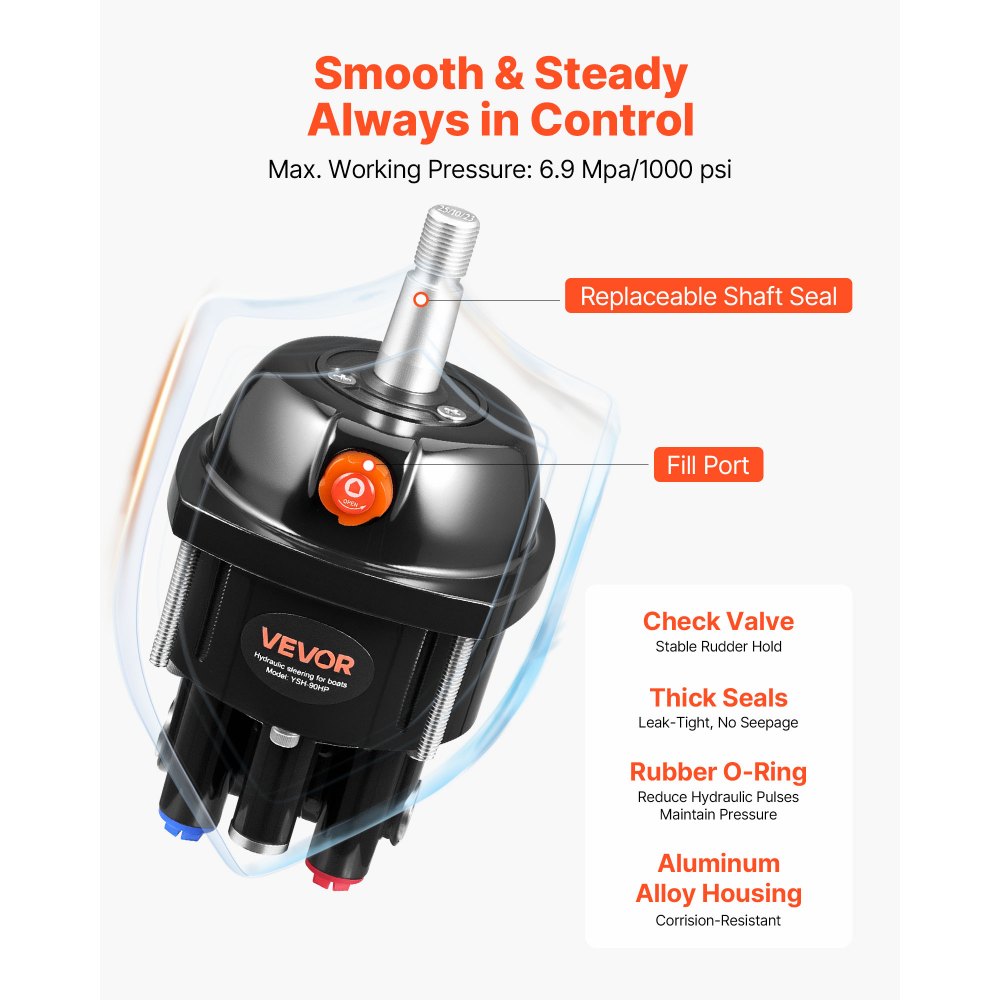

- Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use

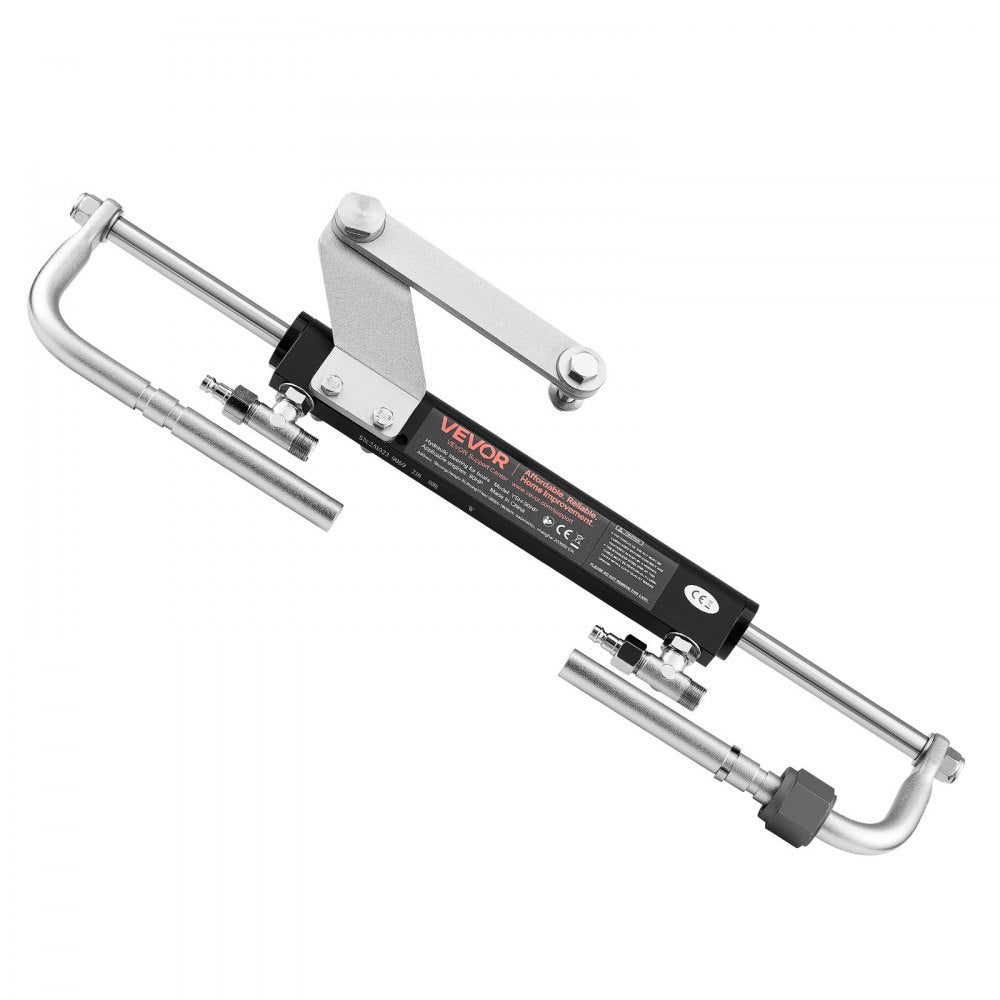

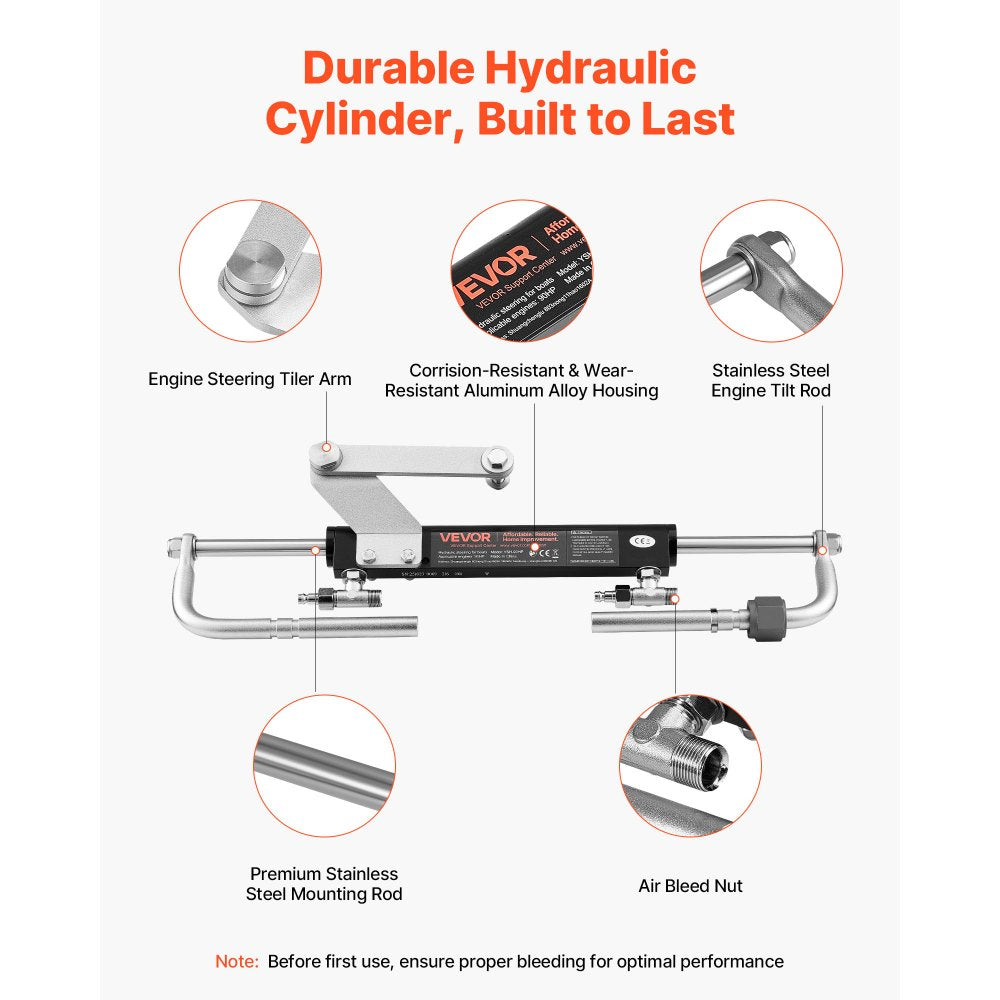

- Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions

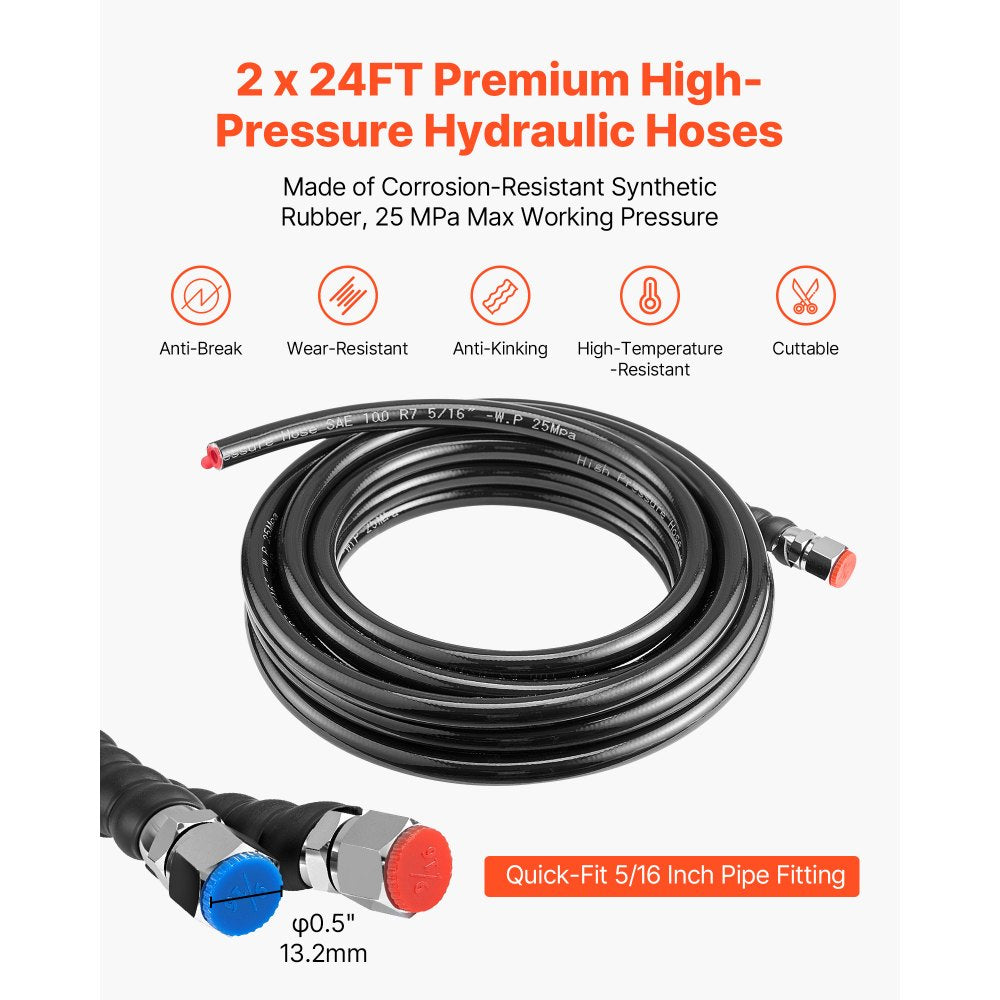

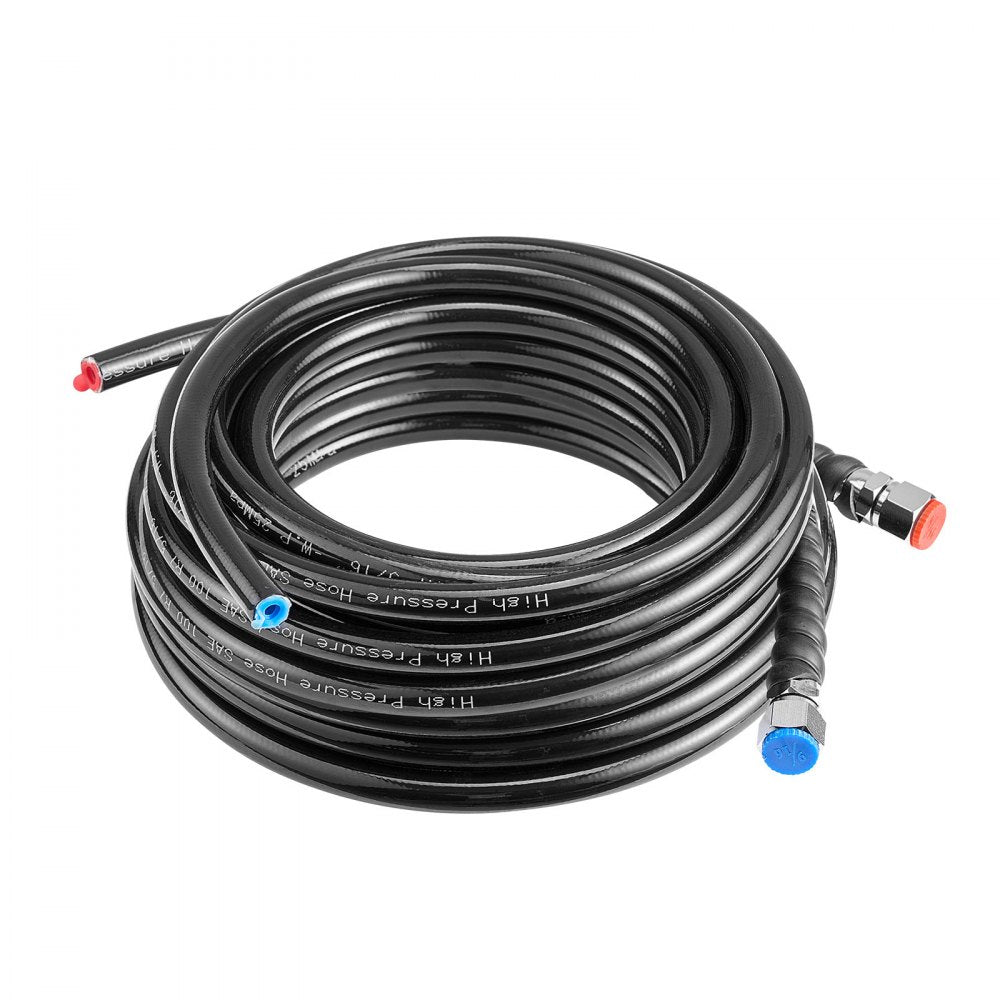

- 2 x 24FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
- Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

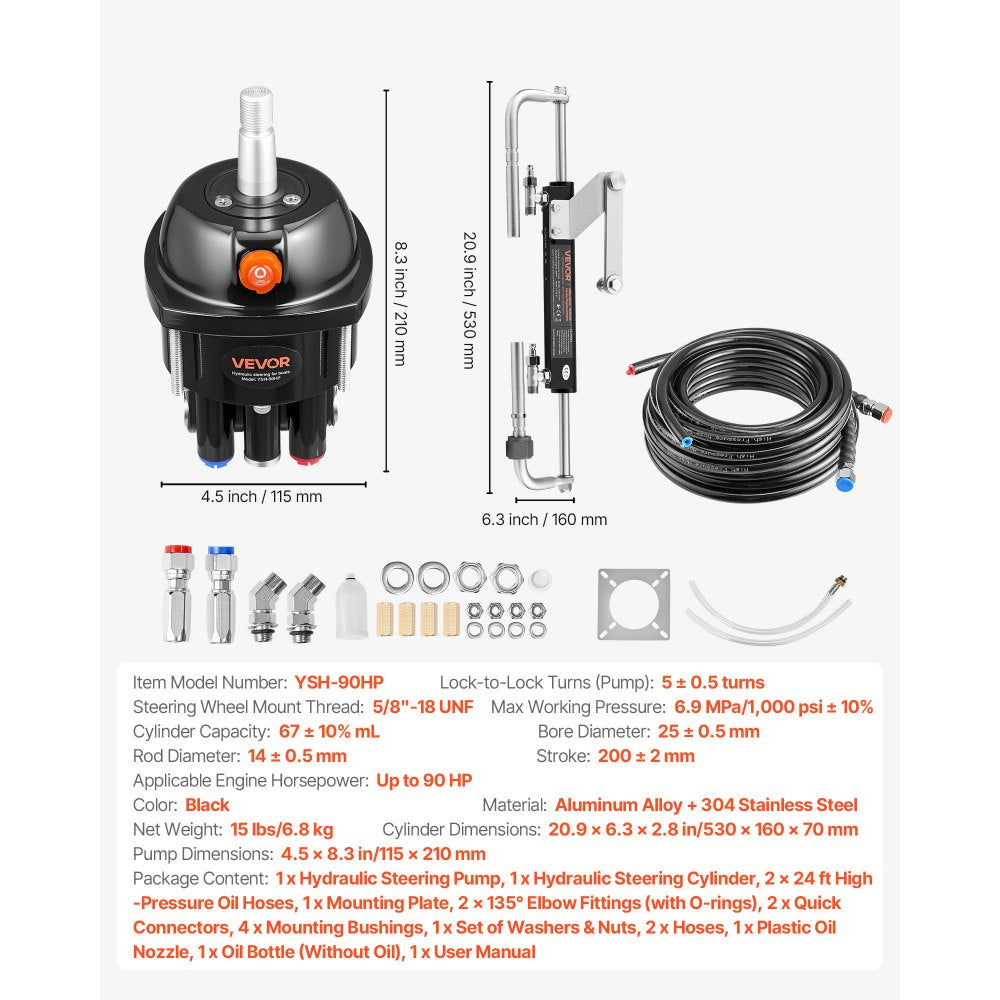

Specifications
| Item Model Number | YSH-90HP |
| Product Type | Hydraulic Steering Kit |
| Lock-to-Lock Turns Pump | 5 ± 0.5 turns |
| Steering Wheel Mount Thread | 5/8"-18 UNF |
| Max Working Pressure | 6.9 MPa/1,000 psi ± 10% |
| Cylinder Capacity | 67 ± 10% mL |
| Bore Diameter | 25 ± 0.5 mm |
| Rod Diameter | 14 ± 0.5 mm |
| Stroke | 200 ± 2 mm |
| Applicable Engine Horsepower | Up to 90 HP |
| Color | Black |
| Material | Aluminum Alloy + 304 Stainless Steel |
| Net Weight | 15 lbs |
| Cylinder Dimensions | 20.9 x 6.3 x 2.8 in |
| Pump Dimensions | 4.5 x 8.3 in |
| Hose Length | 24' |
| Fitting Size | 5/16 in |
| Max Hose Working Pressure | 25 MPa |

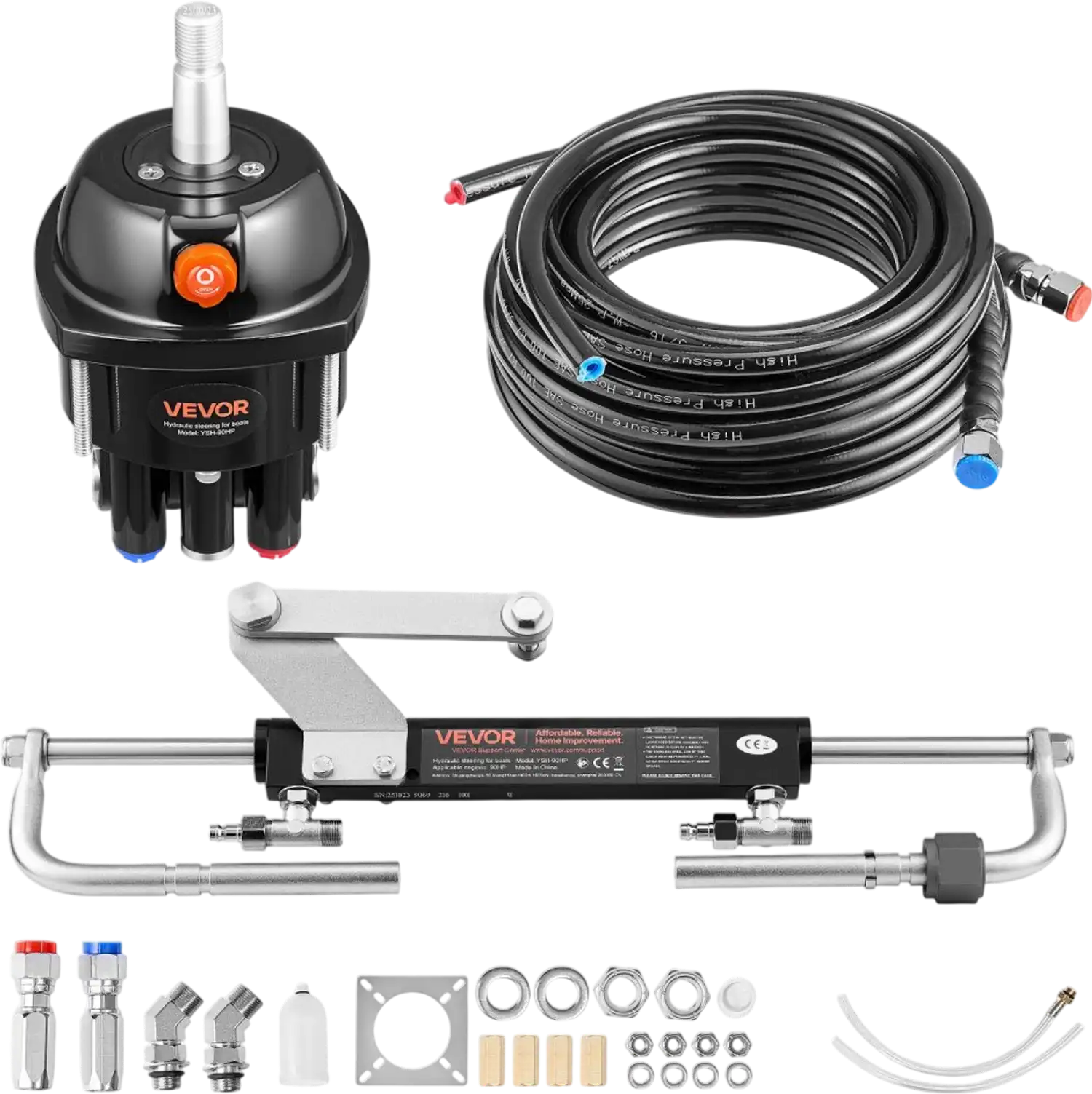

Package Contents
1 x Hydraulic Steering Pump
1 x Hydraulic Steering Cylinder
2 x 24' High-Pressure Oil Hoses
1 x Mounting Plate
2 x 135° Elbow Fittings with O-rings
2 x Quick Connectors
4 x Mounting Bushings
1 x Set of Washers and Nuts
2 x Hoses
1 x Plastic Oil Nozzle
1 x Oil Bottle without Oil
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
