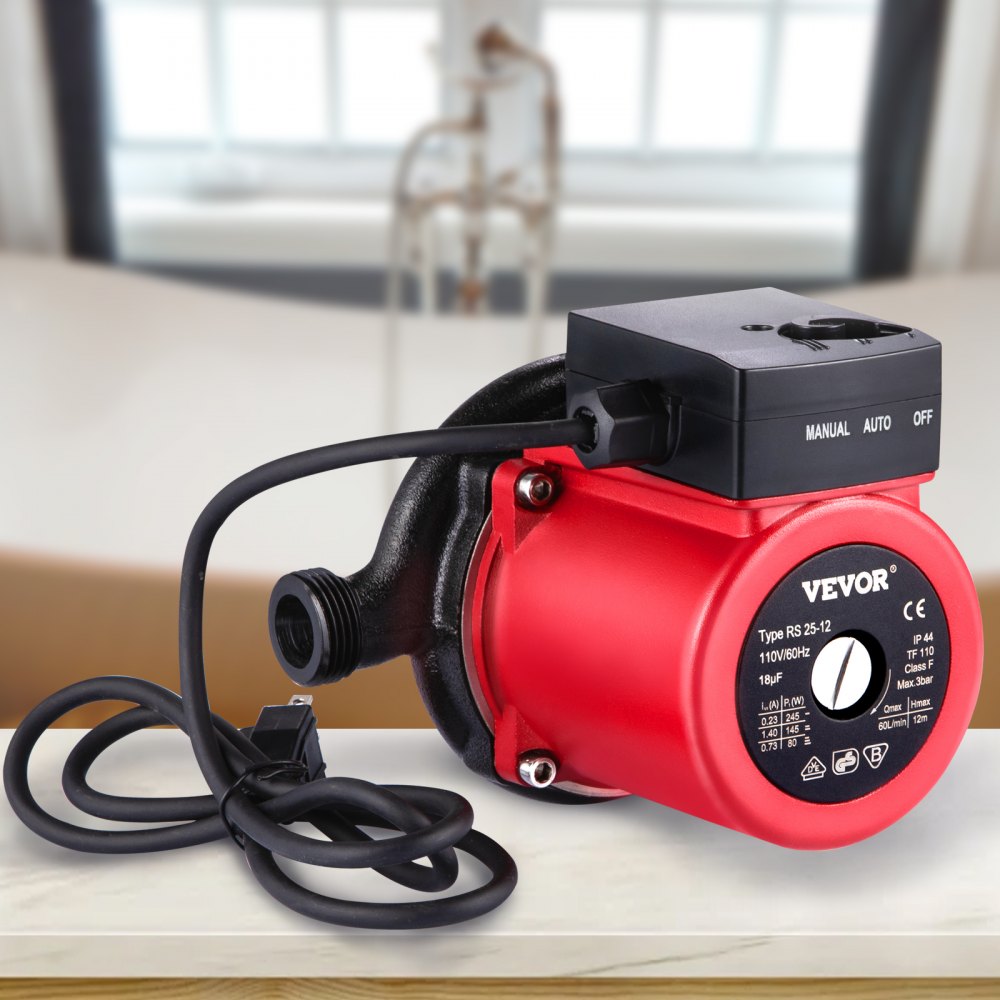

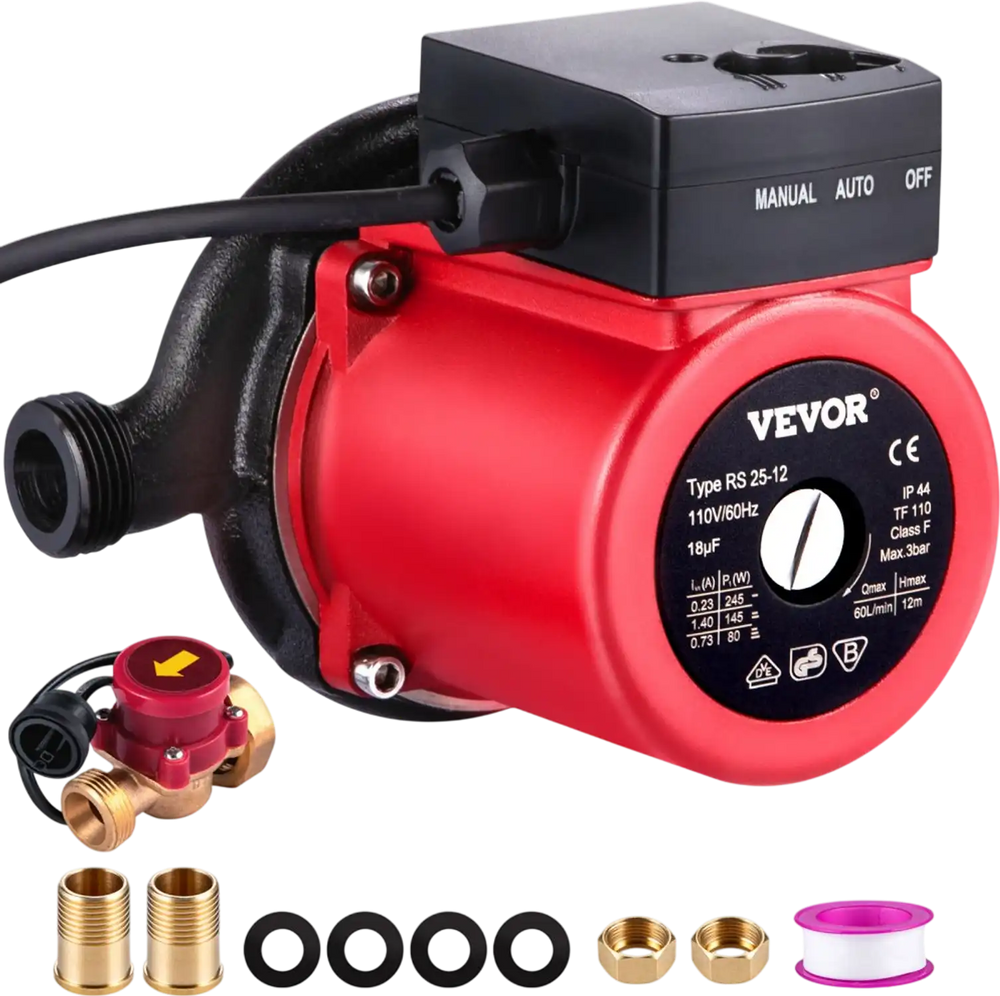

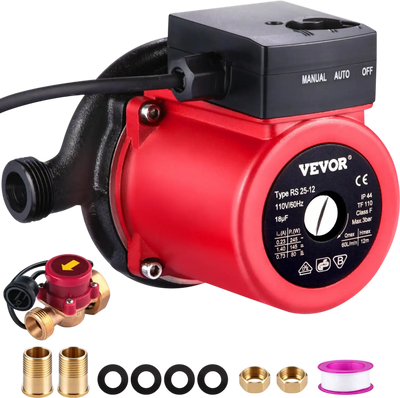

Vevor Recirculating Pump Hot Water 245W 110V Automatic Start NPT 1" New
Manufacturer: Vevor
SKU: ZYXHBZTMCUPA-UQ0HV1
Power Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 64.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-

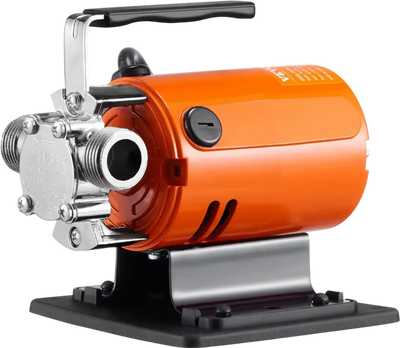

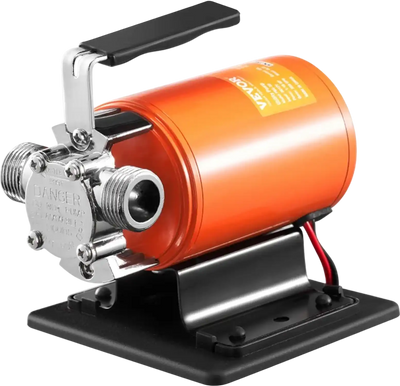

Vevor Water Transfer Pump Portable Electric Utility Pump 12V DC 360 GPH New
-

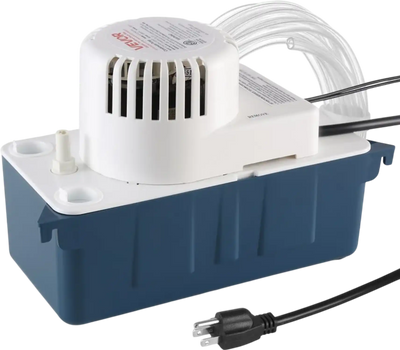

Vevor Condensate Pump 115V Automatic Condensation Removal 1/33 HP 100 GPH 22' Lift New
-
Vevor Diaphragm Water Pump 12V 5 GPM 70 PSI New
-

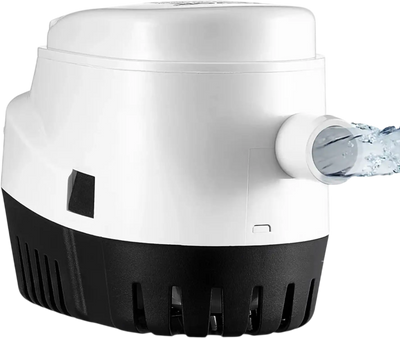

Vevor Bilge Pump Automatic 750 GPH 12V Submersible Boat Water Pump with Float Switch New
-

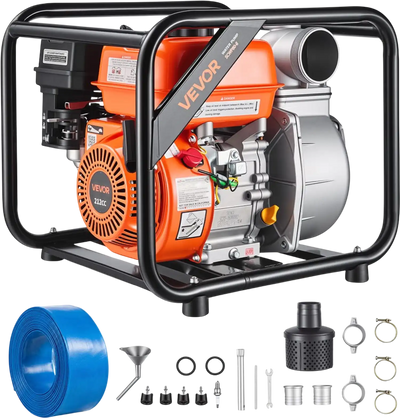

Vevor Semi Trash Water Pump 3" 264 GPM 7 HP Gas Powered New
-

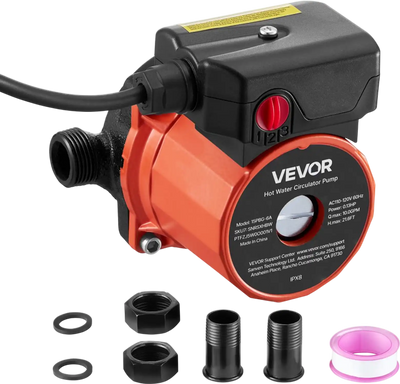

Vevor Hot Water Recirculating Pump 10 GPM 3-Speed 0.13 HP New
-

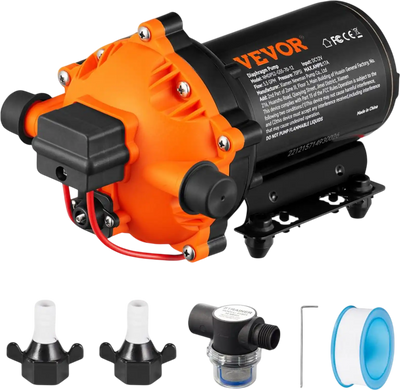

Vevor Diaphragm Pump 12V DC 5.5 GPM 70 PSI Self-Priming Water Pressure Pump New
-

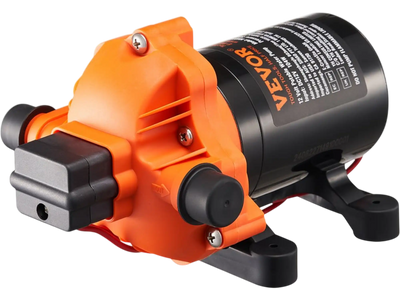

Vevor Diaphragm Pump 12V 3.5 GPM 3-Chamber Water Pump New
-

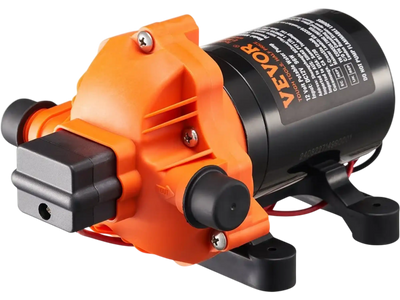

Vevor Diaphragm Water Pump 12V DC 6 GPM Self-Priming 70 PSI New
-

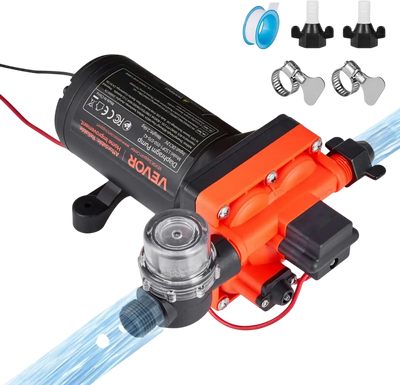

Vevor Water Pump 12V Diaphragm 5 GPM 5-Chamber with Pressure Switch New
-

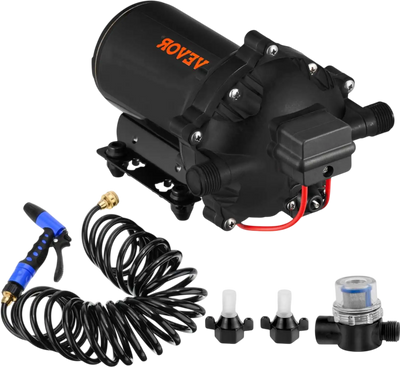

Vevor Washdown Pump Kit 12V 5.3 GPM 70 PSI Deck Wash New
-

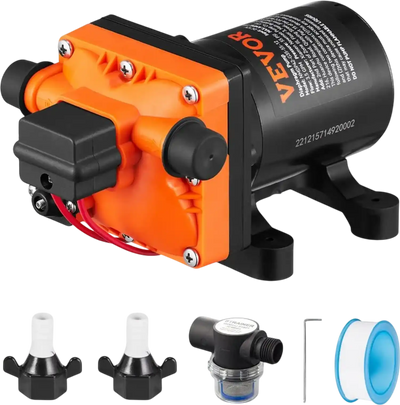

Vevor Diaphragm Pump 12V DC 3.5 GPM 55 PSI Self-Priming Water Pump New
-

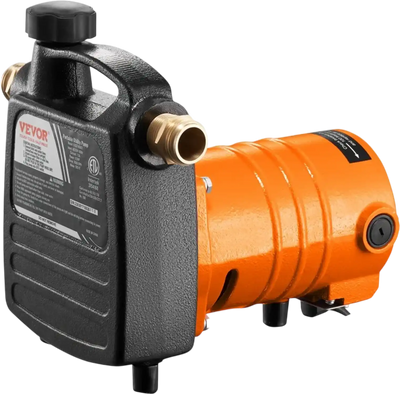

Vevor Transfer Pump Cast Iron Water Transfer 1600 GPH 1/2 HP Portable Electric Utility Pump New
-

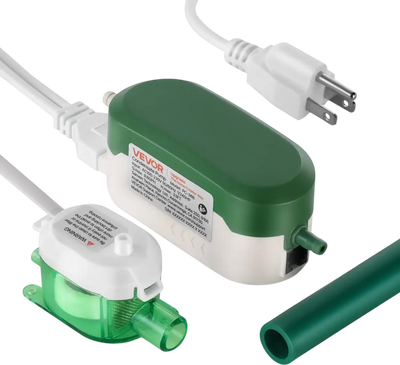

Vevor Condensate Pump 9.6 GPH 33' Lift Automatic AC Condensation Removal Pump New
-

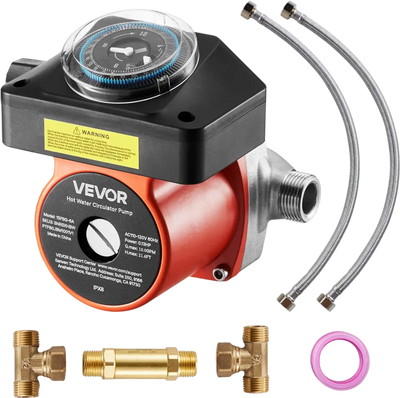

Vevor Recirculating Pump Hot Water Recirculation Kit with Mechanical Timer Bypass Valve Stainless...
-
Vevor Recirculating Pump Digital Smart Instant Hot Water Pump Kit New
-

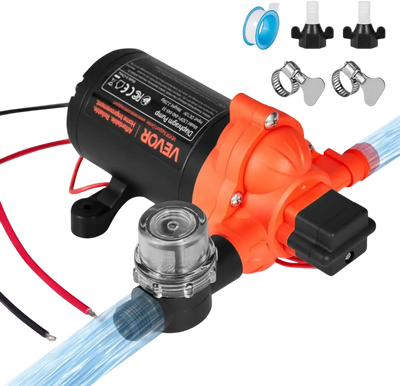

Vevor Water Pump 12V 4 GPM Self-Priming Diaphragm RV Pump New
-
Vevor Water Pump 12V Diaphragm 1.8 GPM 3-Chamber Pressure Switch New
-
Vevor Diaphragm Pump 12V 3.0 GPM Water Pump New
-
Vevor Water Pump 12V 3.0 GPM 3-Chamber Diaphragm Pressure Switch New
-

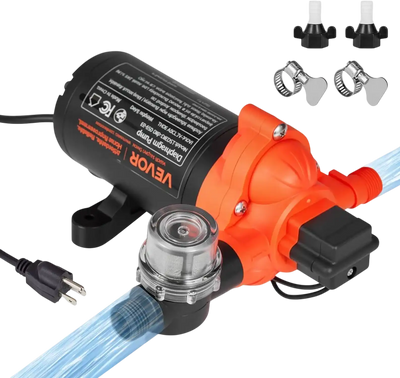

Vevor Diaphragm Water Pump 110V 4 GPM 45 PSI New
-

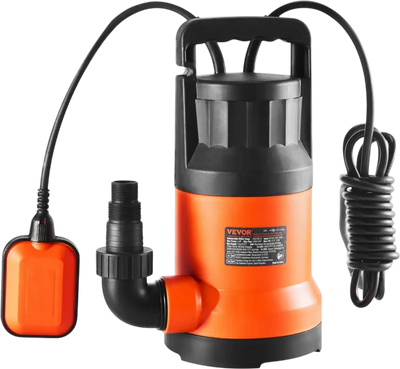

Vevor Utility Pump 1 HP 4000 GPH Submersible Water Pump New
-
Vevor Water Transfer Pump Portable Electric Utility Pump New
-

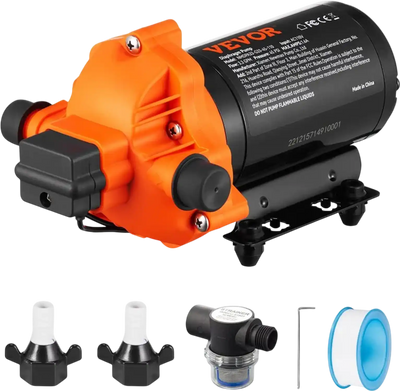

Vevor Diaphragm Pump 110V 3.3 GPM 45 PSI Self-Priming Water Pressure Pump New
Vevor Recirculating Pump Hot Water 245W 110V Automatic Start NPT 1" New

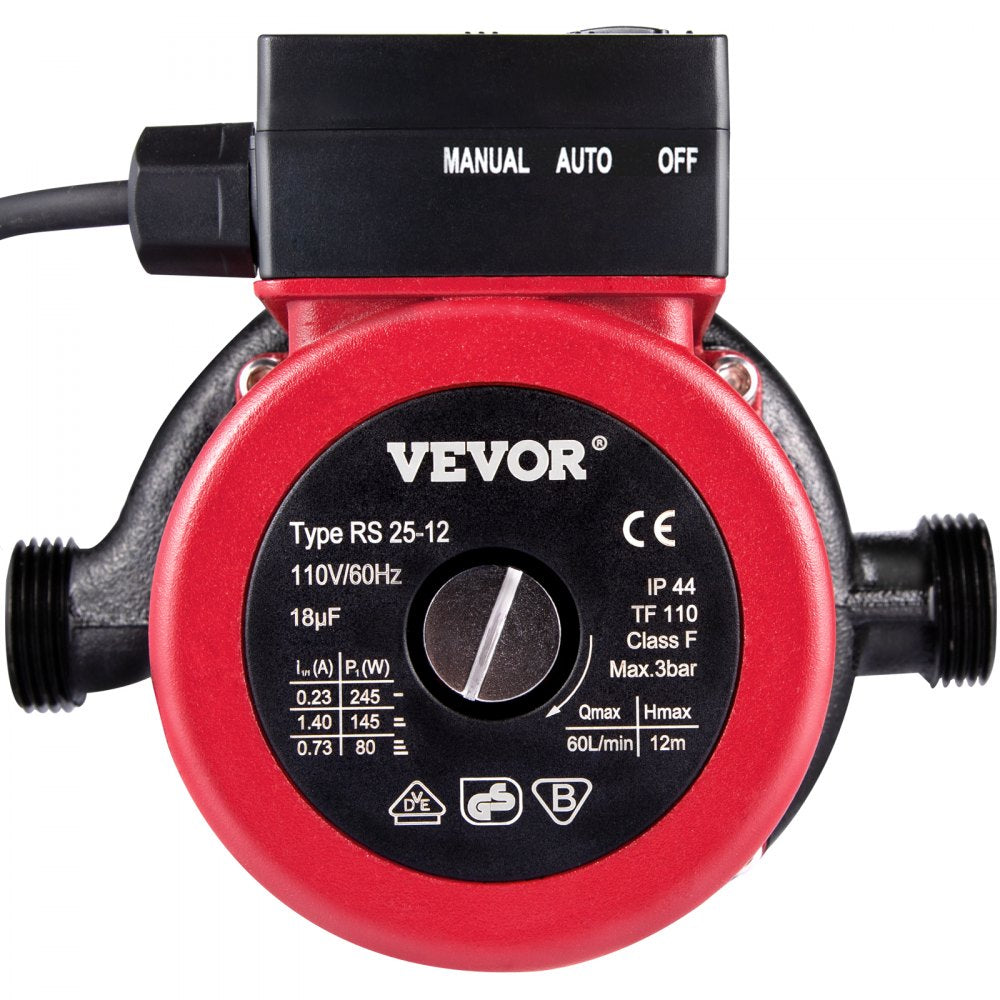

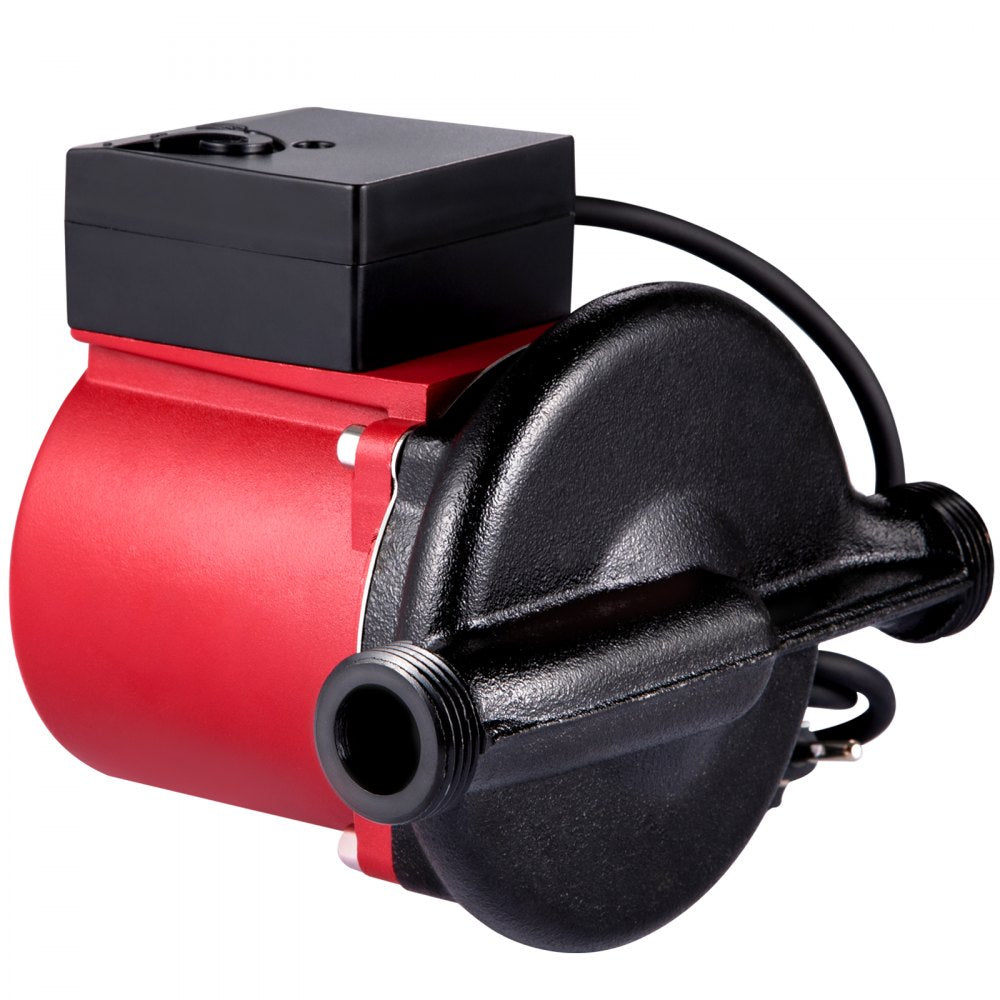

Product Overview

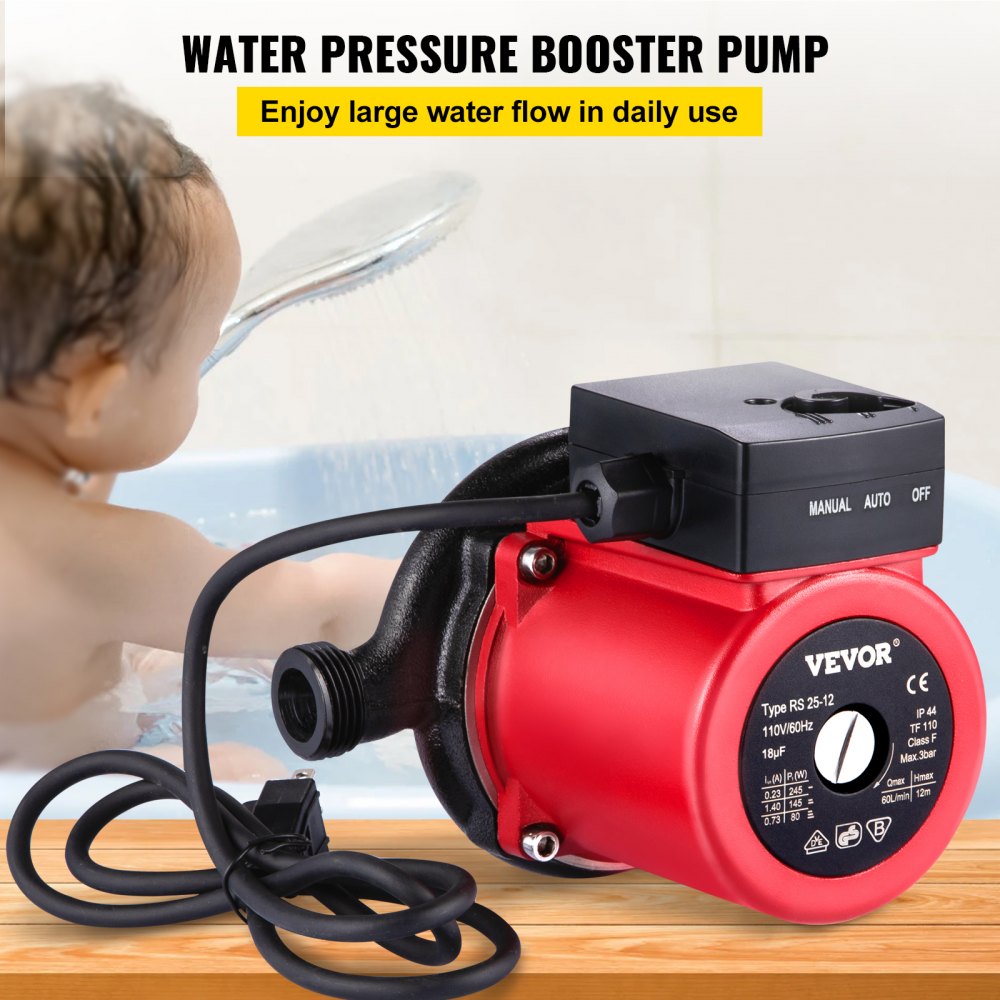

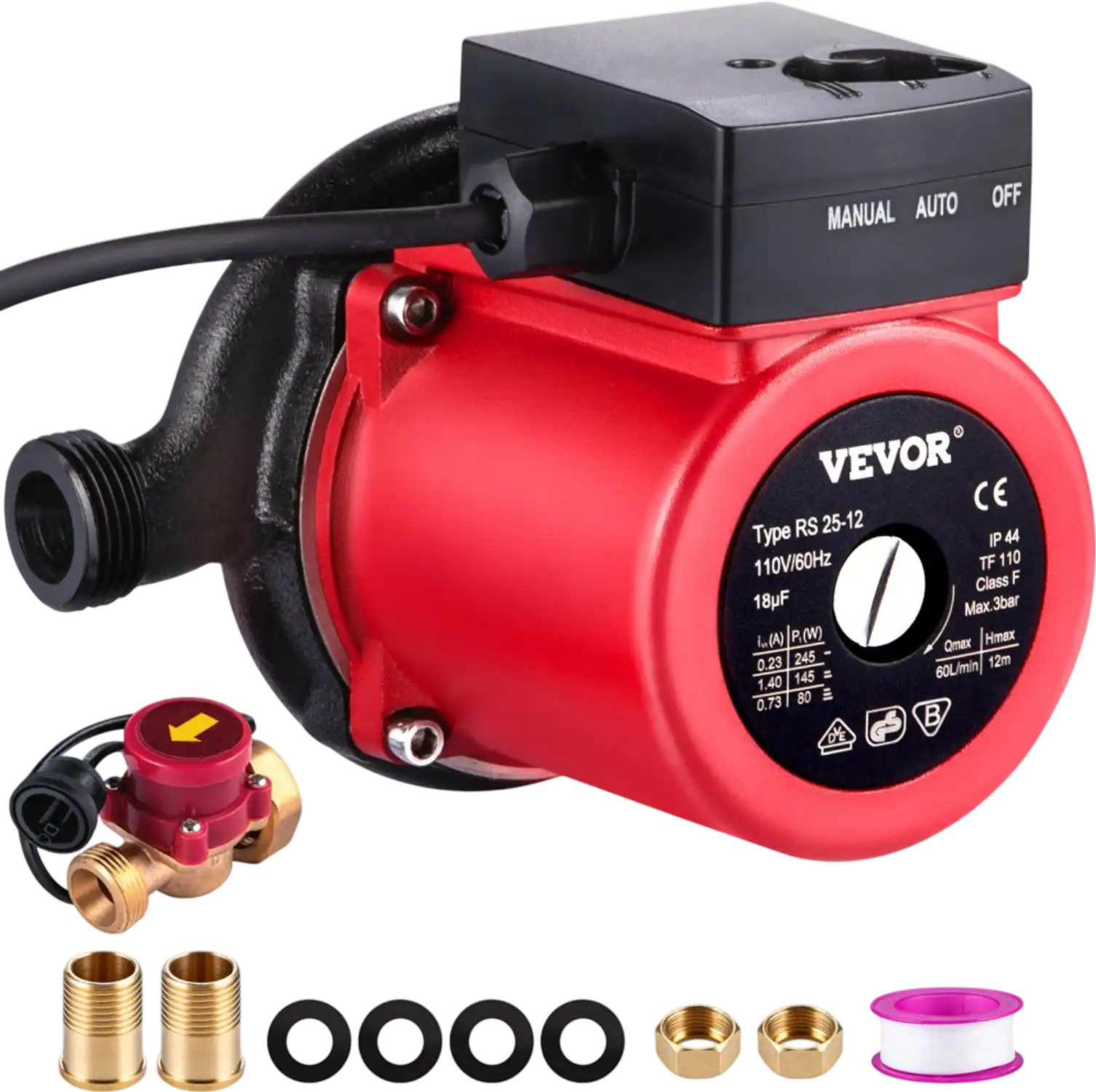

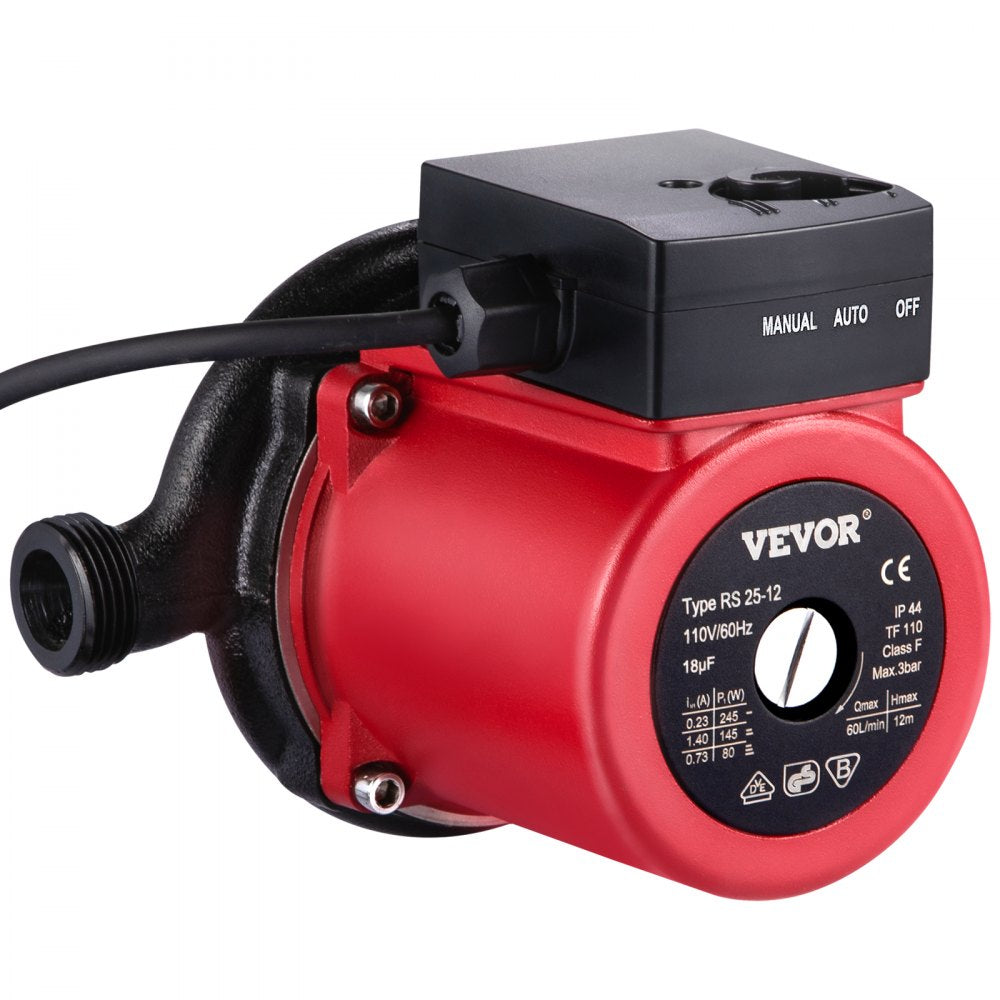

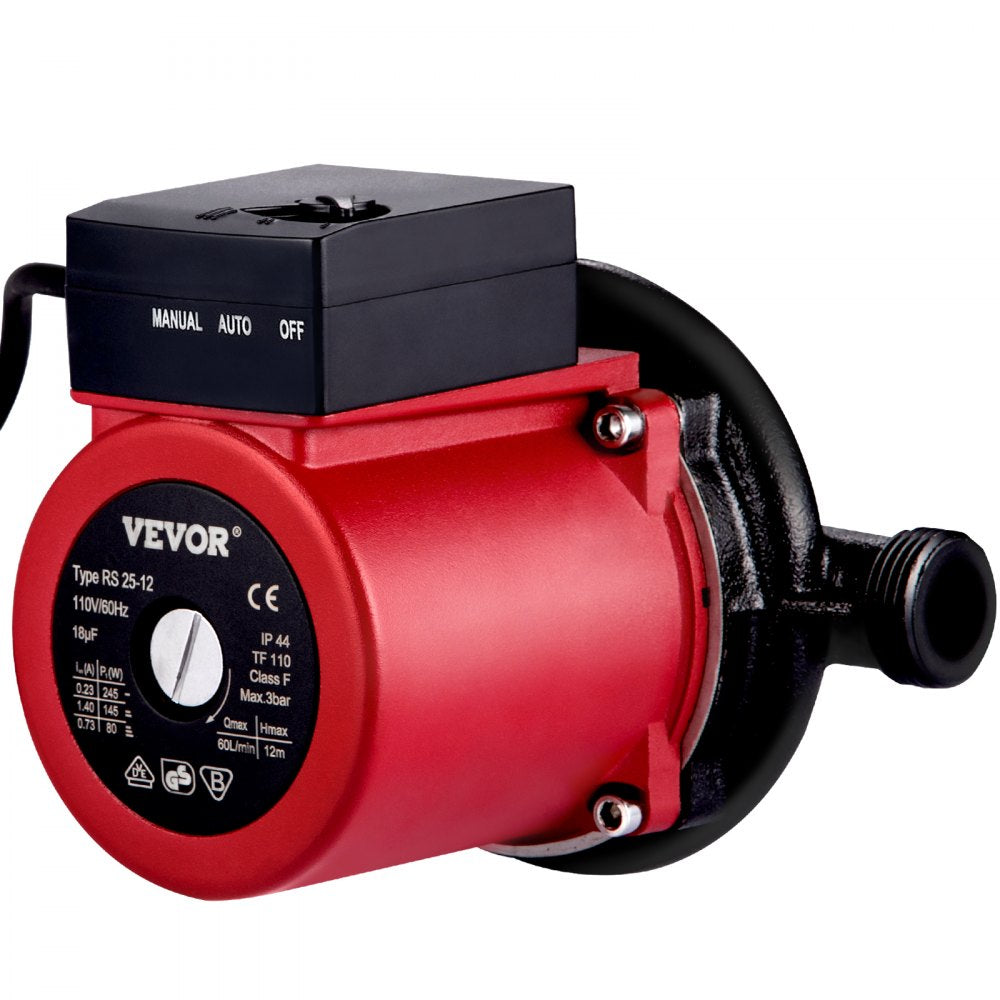

This hot water recirculating pump is designed to improve water circulation in residential and light industrial water heating systems. It features a 245W motor, automatic or manual operating modes, and a maximum flow rate of 16 GPM for efficient performance. The durable construction includes a cast iron pump head, aluminum housing, PP impeller, and ceramic shaft for long-term use. With quiet 25 dB operation and easy installation, it is well suited for water heaters, boilers, solar systems, and domestic water pipelines.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

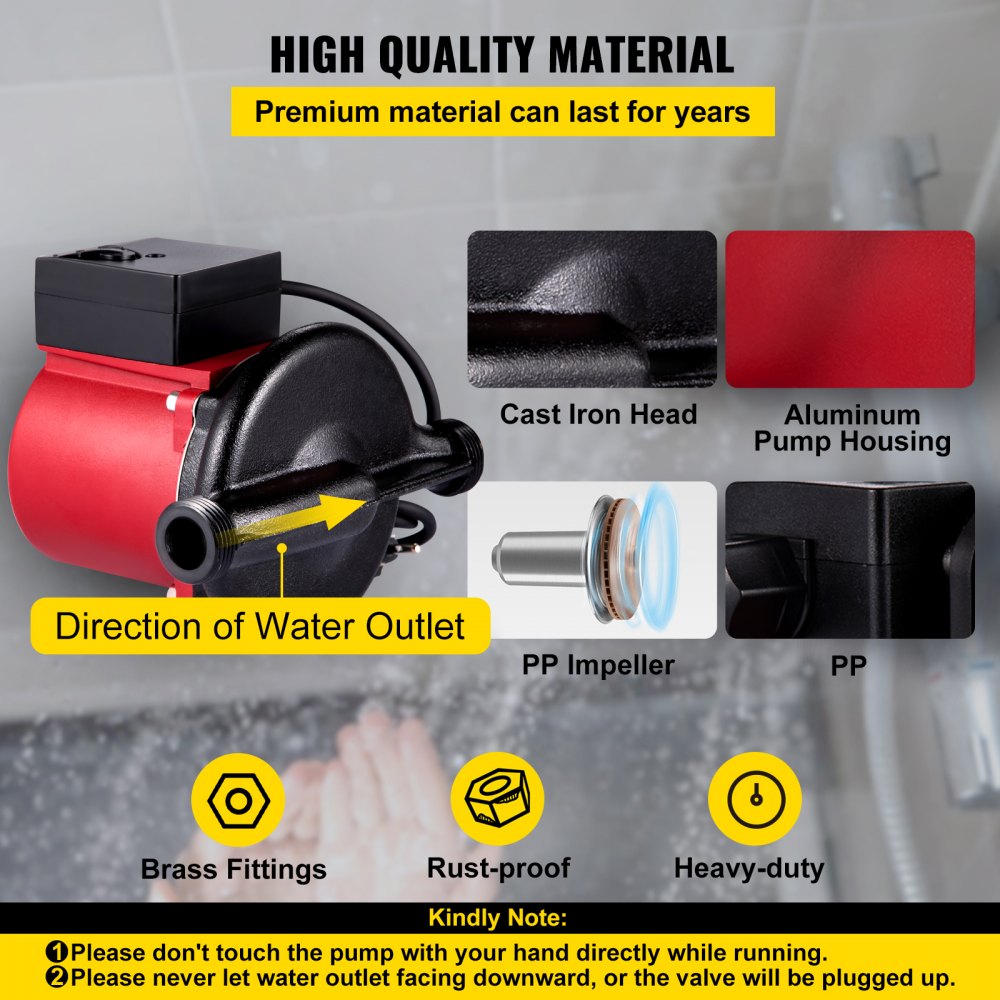

- Cast Iron Material: Our recirculating pump is constructed with a durable iron pump head, aluminum pump housing, and PP impeller, rust-proof, waterproof. Brass fittings, flow gauge, and water-stop will come with the pump for corrosion-proof and leakage-proof.

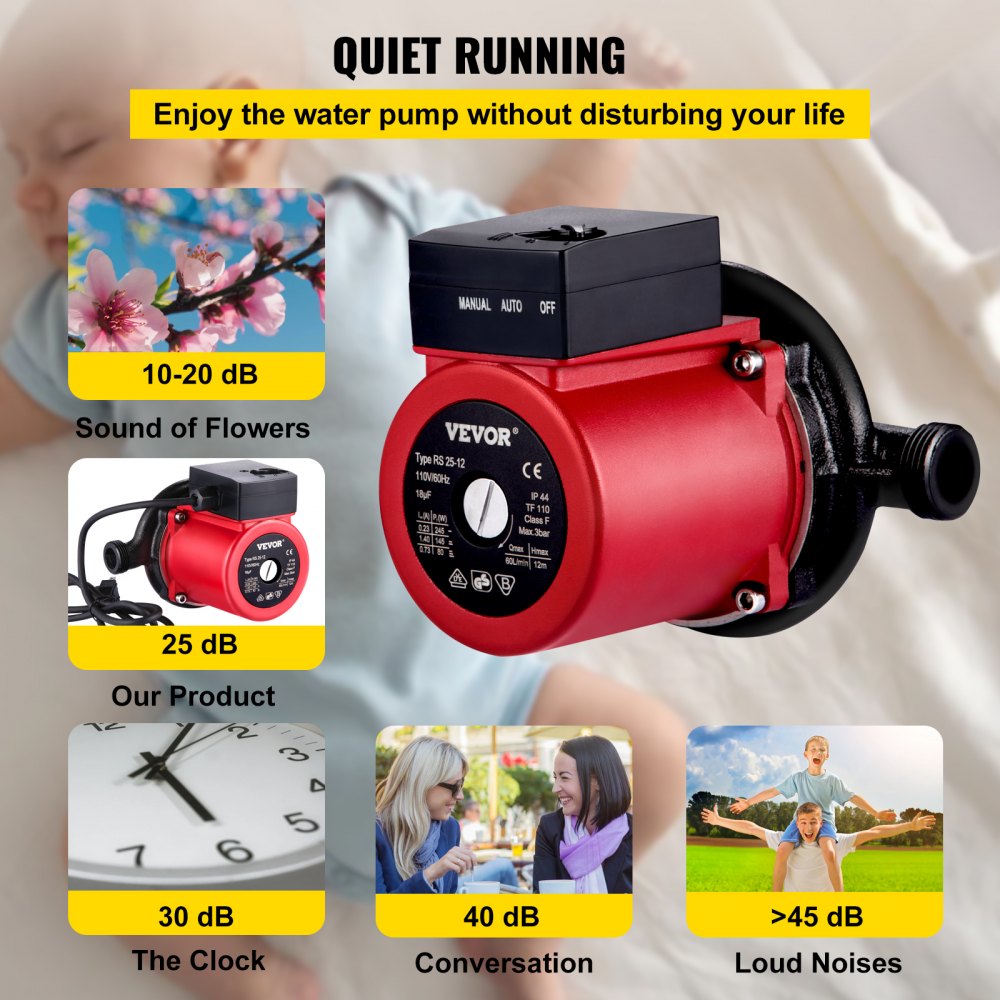

- Large Flow & Quiet Running: Powerful circulator pump has max. 60 L/min water flow, max. 10 bar pressure and max. 49.2 ft head lift. In addition, super silent running property(about 25dB) can provide you with a quiet pump: high performance but low noise.

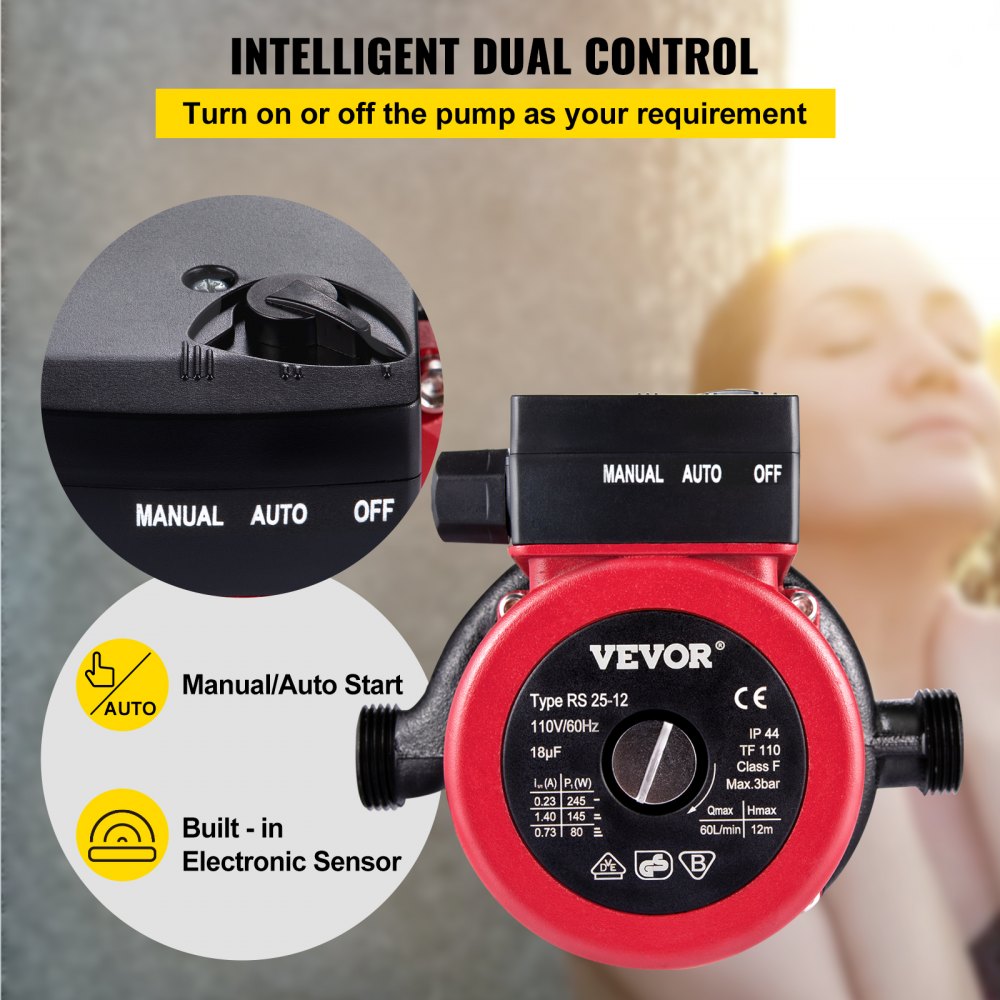

- Manual/Auto Switch: This water circulator pump features a manual/auto mode power rated at 245W. It is convenient for you to turn on/off the pump. Auto mode can automatically enable the pump start-up/shutoff, while manual mode can let the pump work continuously. Also, you can turn off the pump for energy saving when you do not need to use it.
- Easy Installation: Our circulating pump for hot water can be used directly to drinking water pipelines with a wrench, fitting with an NPT 1" inlet/outlet hose. The water taste of lubricating oil will disappear after 3 to 5 times of use. The shaft of the pump should be kept horizontal after installation.
- Wide Application: The recirculating hot water pump is suitable for many applications, such as city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating system, water heater system and so on.
Specifications
| Model | VV-ZT-ZYB UPA120 |
| Power | 245W |
| Voltage | 110V/60HZ |
| Body Color | Red/Black |
| Pump Head | Cast Iron |
| Pump Housing | Aluminum |
| Impeller Material | PP |
| Shaft Material | Ceramic |
| Bearing Material | Carbon |
| Noise Level | 25 dB |
| Inlet/Outlet Diameter | NPT 1" |
| Max. Flow Rate | 16 GPM / 60 L/min |
| Max. Head Lift | 49.2' / 15 m |
| Rated Pressure | 1.28 Bar / 18.5 PSI |
| Max. Pressure | 10 Bar / 145 PSI |
| Cable Length | 4' / 1.25 m |
| Liquid Temperature | 32 to 212°F / 0 to 100°C |
| Ambient Temperature | 32 to 104°F / 0 to 40°C |
| Mounting Position | Shaft Horizontal |
| Protection Level | IP44 |
| Insulation Class | F |

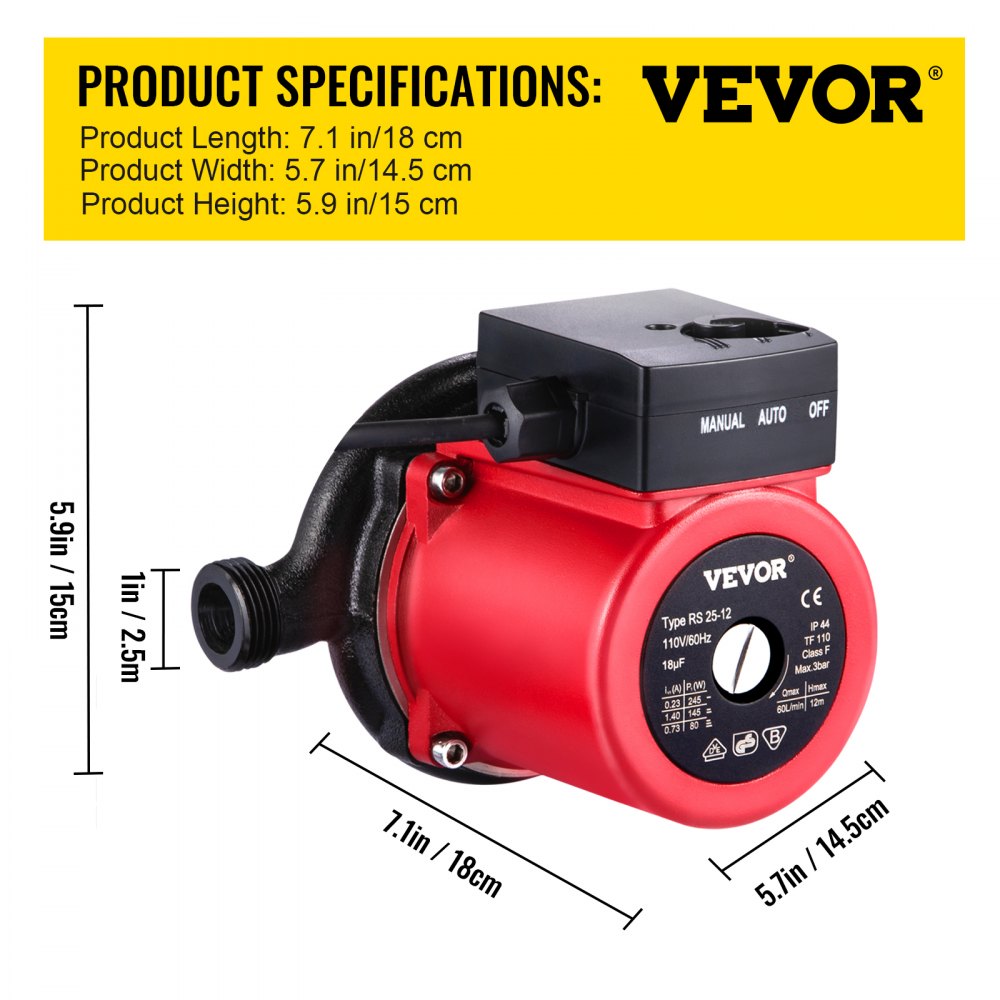

| Dimensions | 7.1 x 5.7 x 5.9" / 18 x 14.5 x 15 cm |
Package Contents
1 x Recirculating Pump
1 x Flow Gauge
2 x Brass Fittings
2 x Rubber Gaskets
1 x Water-stop 3.28'
1 x Instruction Manual
Warranty
This item comes with a 1 year factory warranty.
