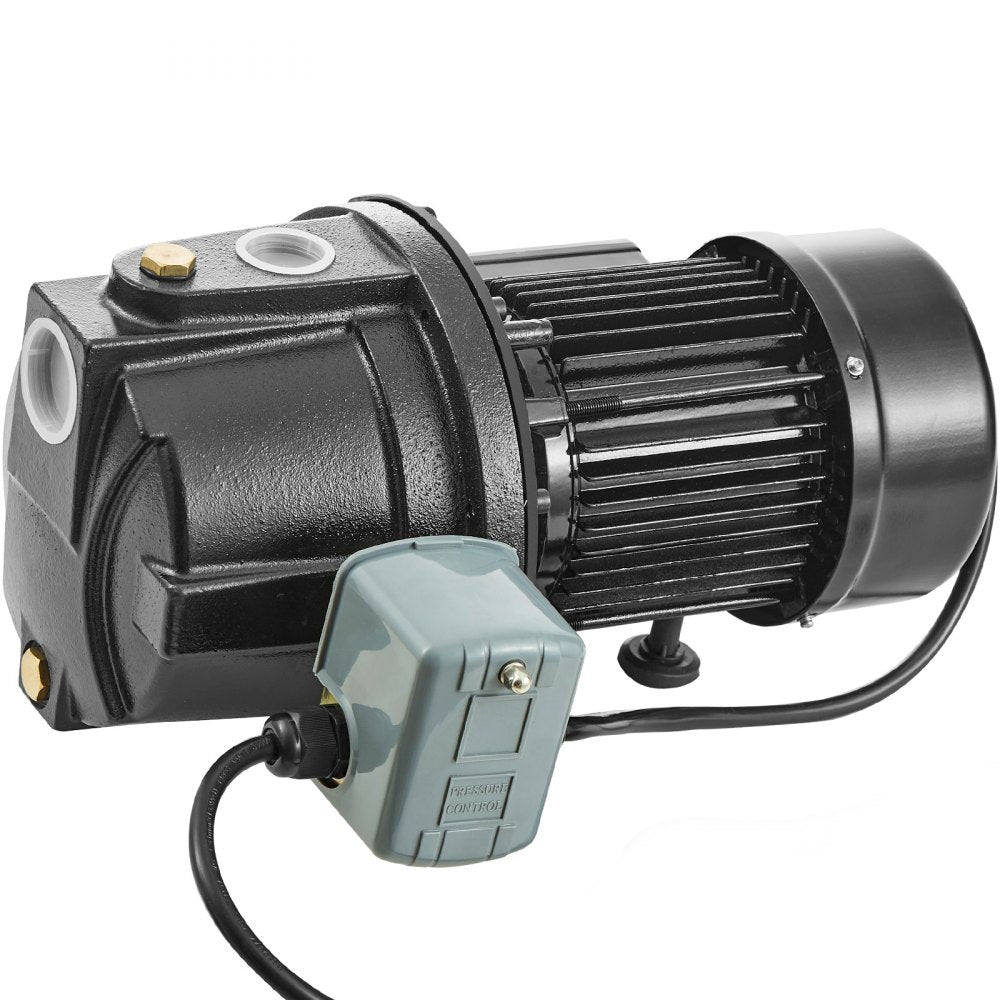

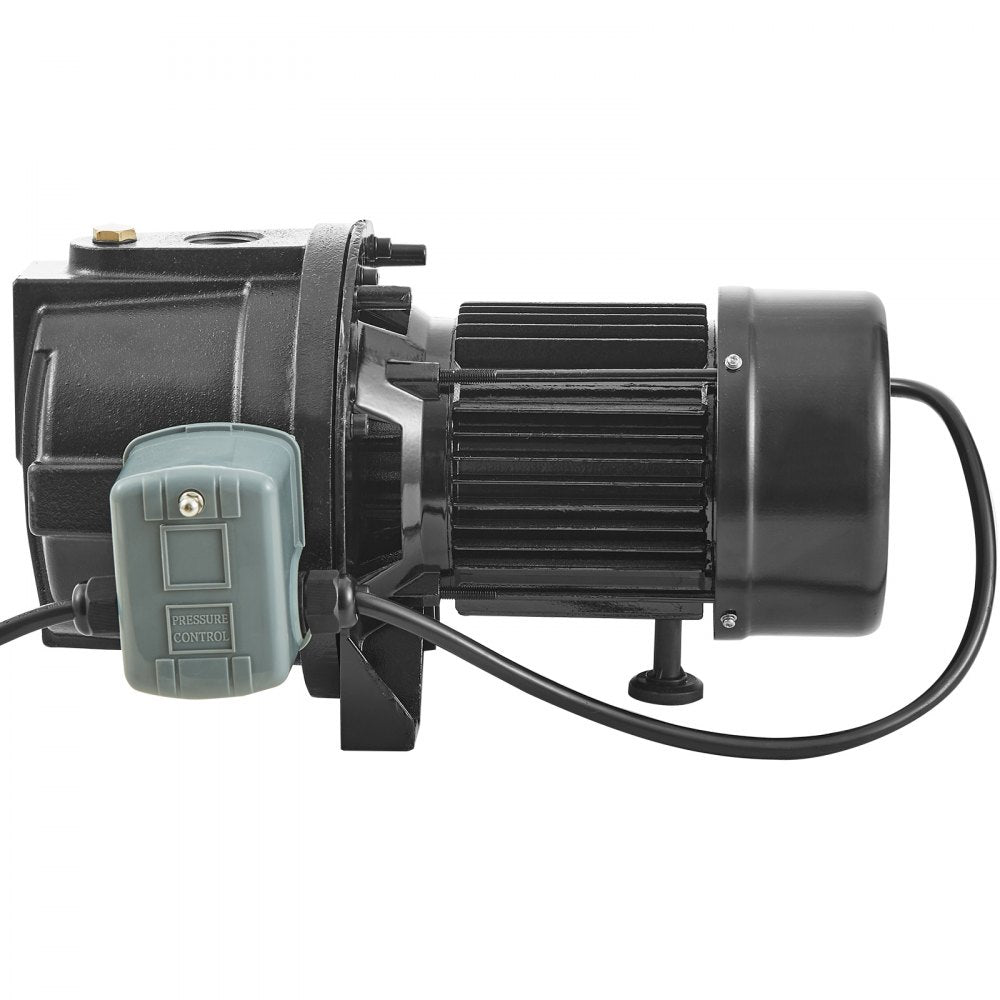

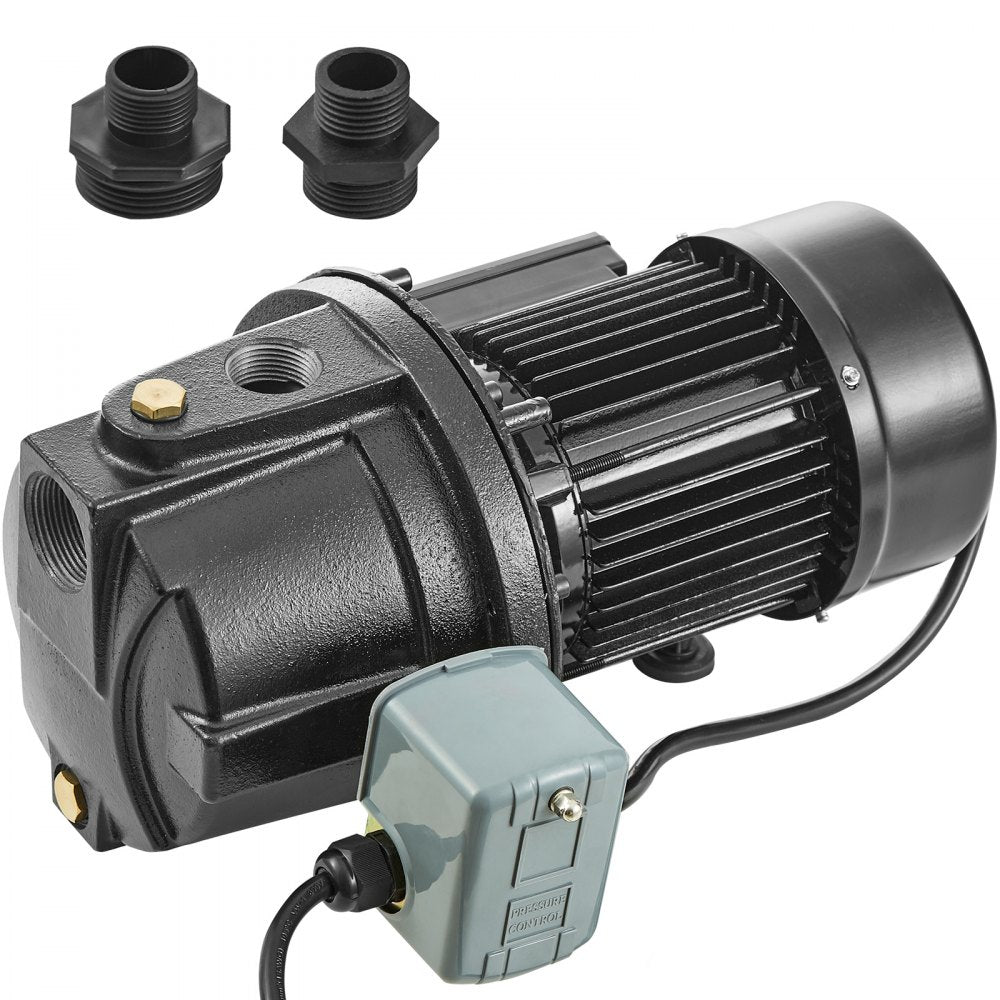

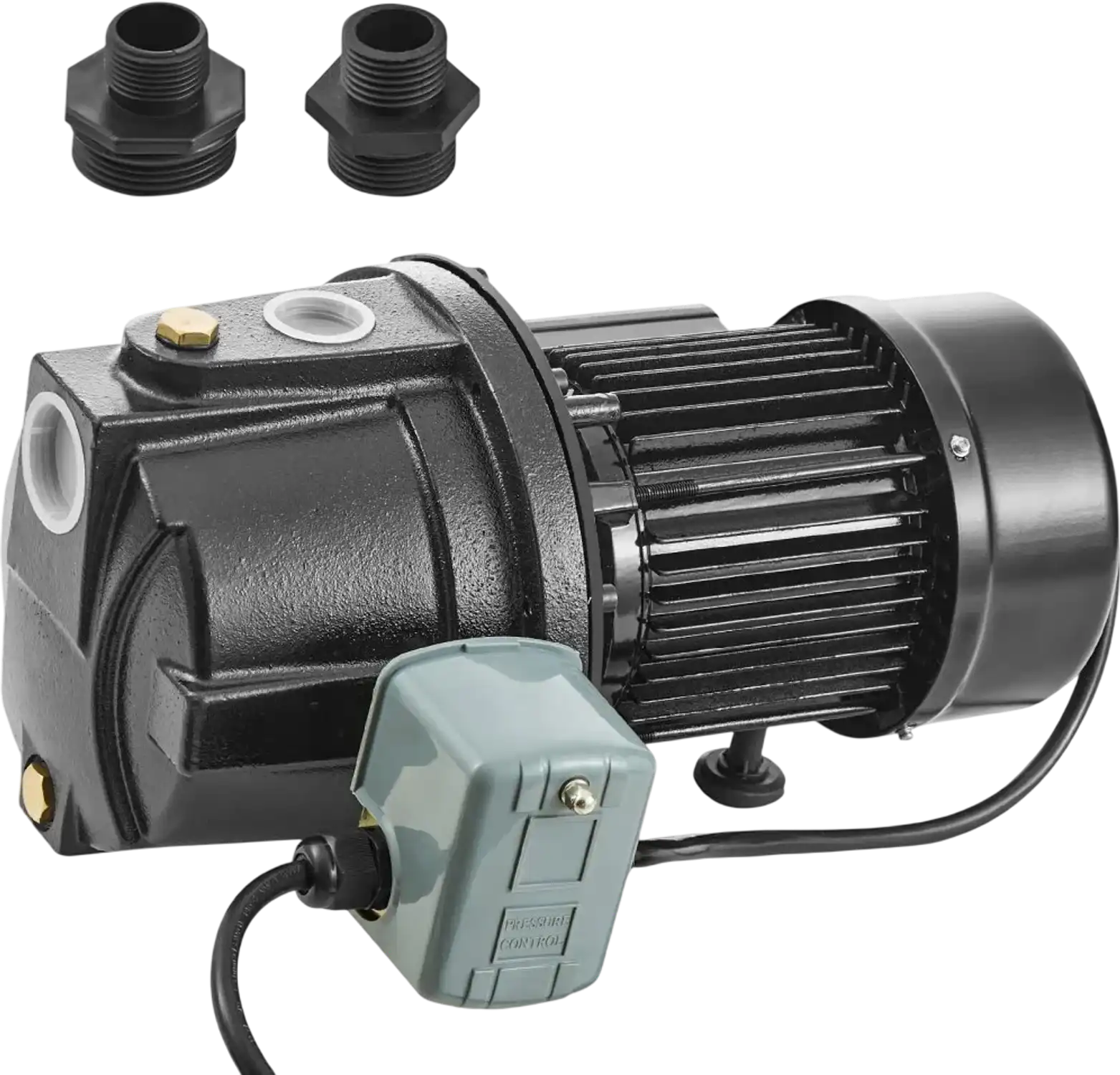

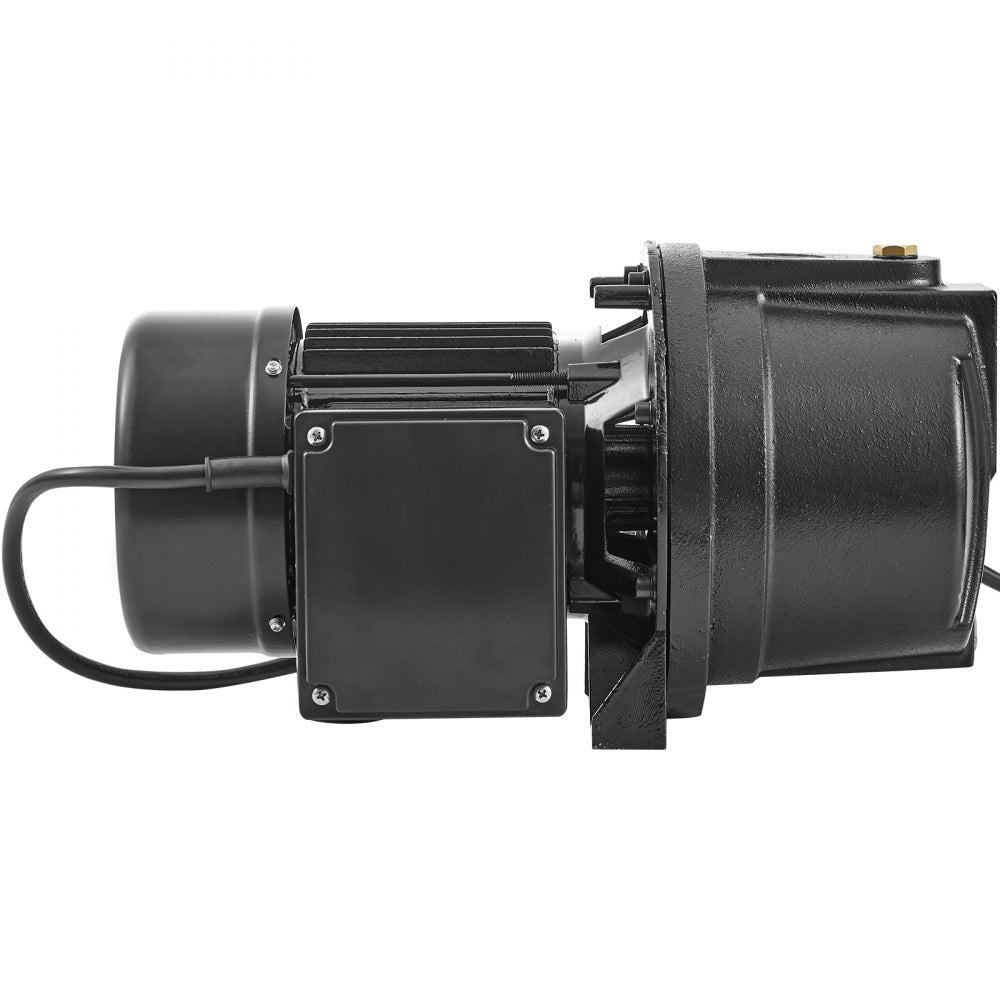

Vevor Shallow Well Jet Water Pump 1 HP Cast Iron 115V 17.6 GPM 164' Head New
Product Overview
The Vevor shallow well jet water pump is built for dependable freshwater transfer in residential, farm, cottage, and garden irrigation applications. Its 1 HP motor delivers a rated flow rate of 17.6 GPM and a maximum head of 164' to help maintain strong water pressure. The cast iron construction is designed for durability and outdoor use, while the automatic pressure switch starts and stops the pump with faucet operation. A built-in thermal overload protector and rear heat dissipation design support reliable long-term performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

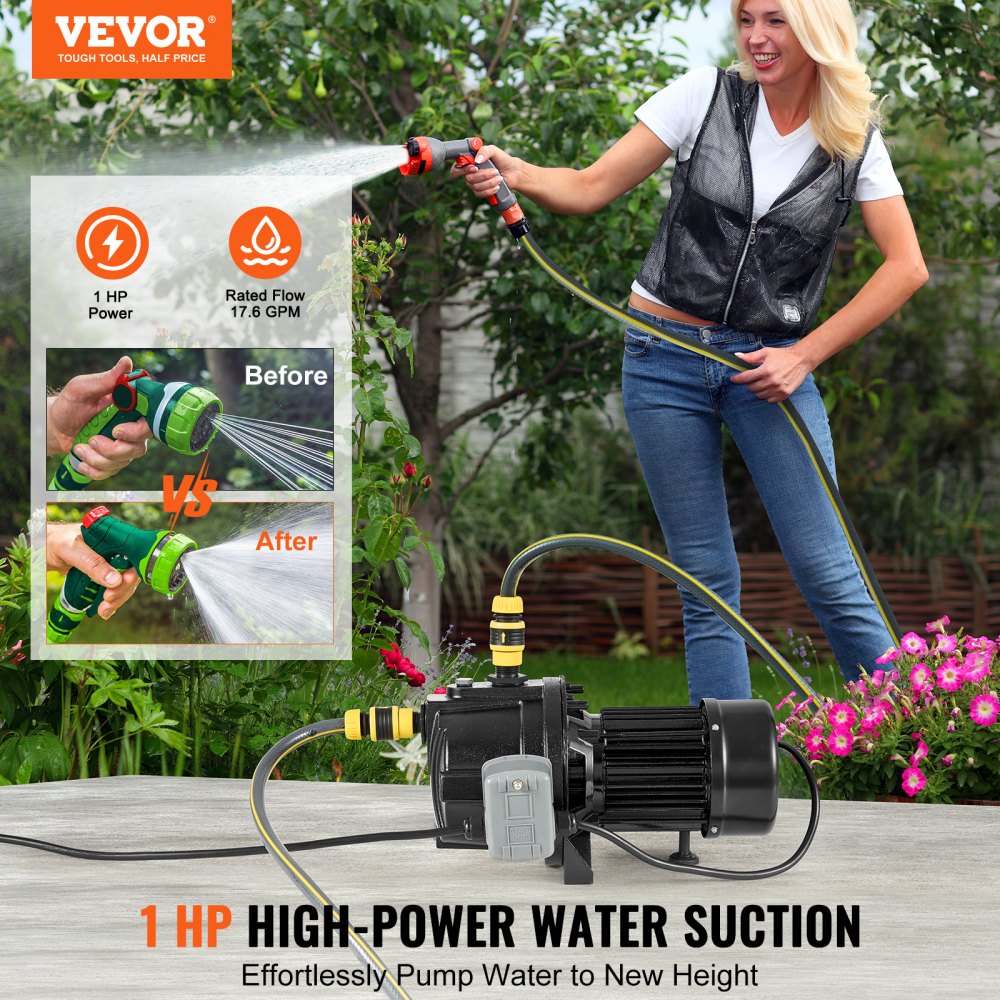

- High-Power, 164ft Head: Introducing our shallow well jet pump with a mighty 1 HP / 745.7W motor, engineered to boost water flow effortlessly. With a remarkable rated flow rate of 17.6 GPM, it reaches heights up to 164 FT / 50 m, exceeding expectations for household water needs. Say hello to superior performance and bid farewell to water worries!

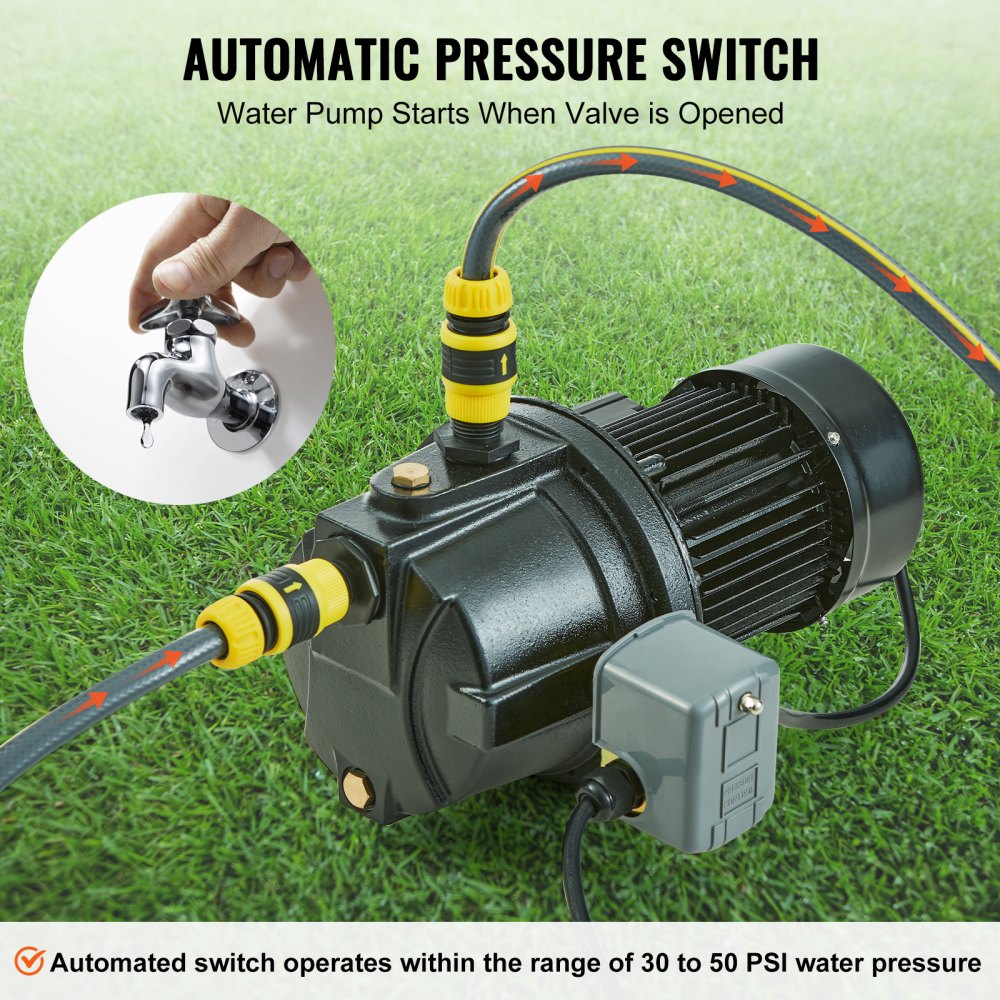

- Automatic Pressure Switch: Our shallow well jet pump starts and stops automatically when you turn on and off the faucet, saving you valuable time. Operating within the range of 30 - 50 PSI, it activates or deactivates in sync with your water valve, avoiding damage from clogged pipes or insufficient pressure. For precise monitoring of water pressure, consider purchasing a pressure gauge separately.

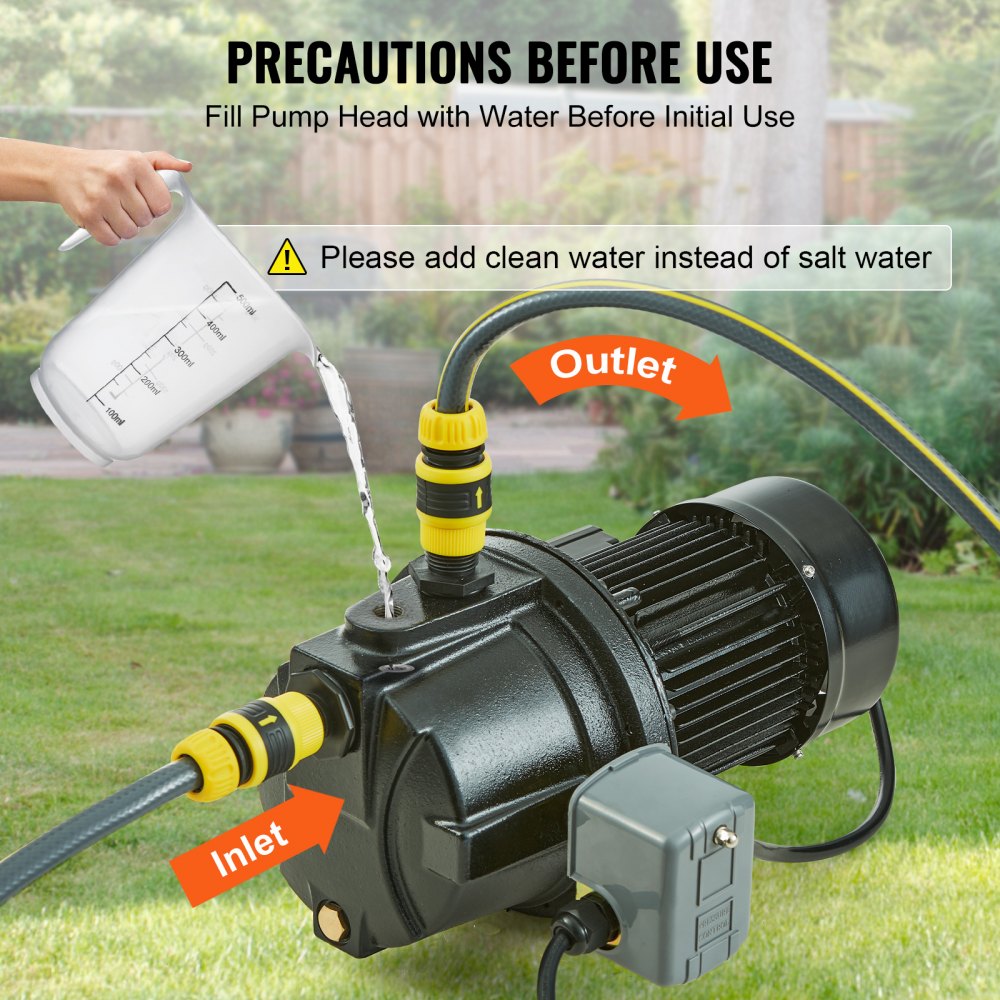

- Easy Setup, Simple Use: Simply match the voltage, plug in the power, and install water pipes into the designated inlet and outlet ports. However, before use, fill the water filling nozzle with water until it flows out from the drain opening, then install the air vent plug. If infrequently used, remember to drain the water. Attention: For proper installation, a foot valve must be added to the other end of the intake pipe to ensure the automatic start function operates correctly.

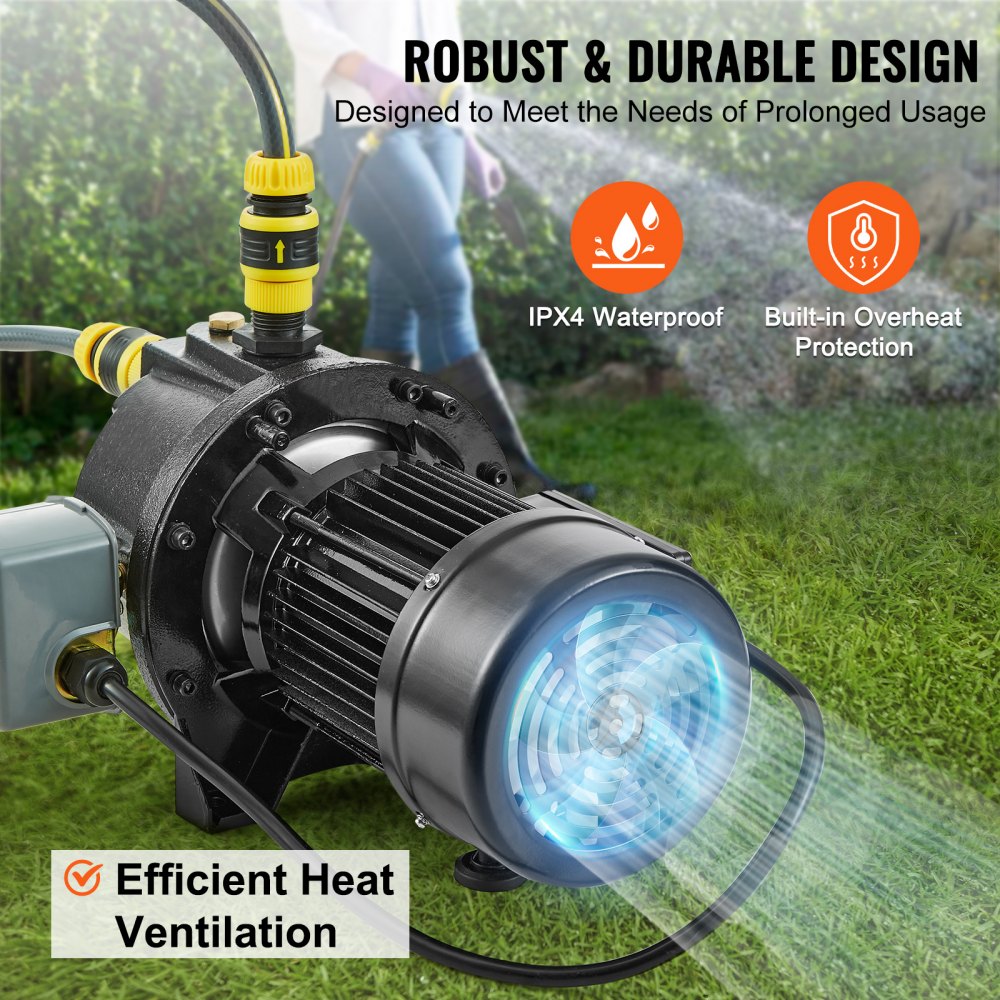

- Built to Last: Crafted from cast iron, our shallow well jet water pump is wear-resistant and corrosion-resistant, making it ideal for outdoor use in courtyards and farms. With a rear heat dissipation port, it facilitates immediate cooling, while the built-in automatic thermal overload protector ensures uninterrupted operation for years to come.

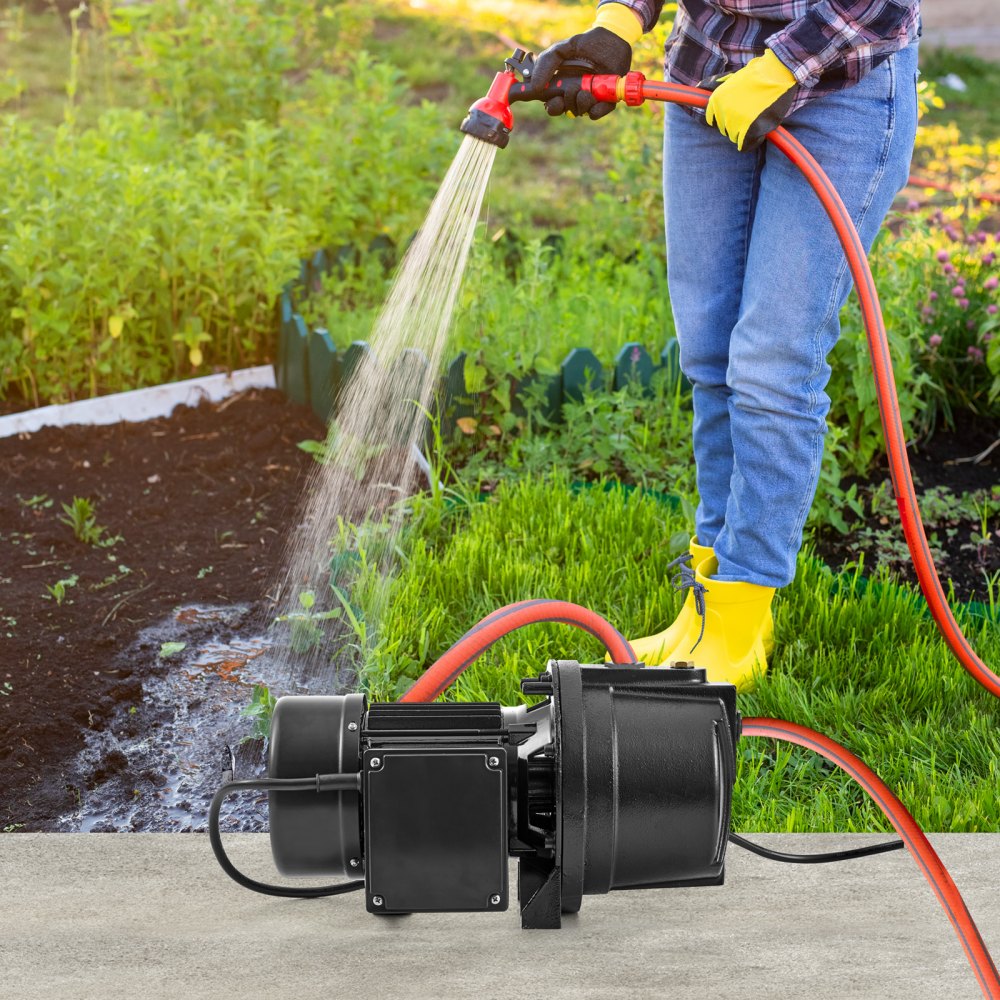

- Commercial & Household Use: This shallow well jet pump is incredibly versatile, perfect for supplying fresh water to large residences, farms, and cottages, while also providing solutions for garden irrigation, boosting water pressure for faucets, supplying water for car washing, and even facilitating high-rise water supply needs.

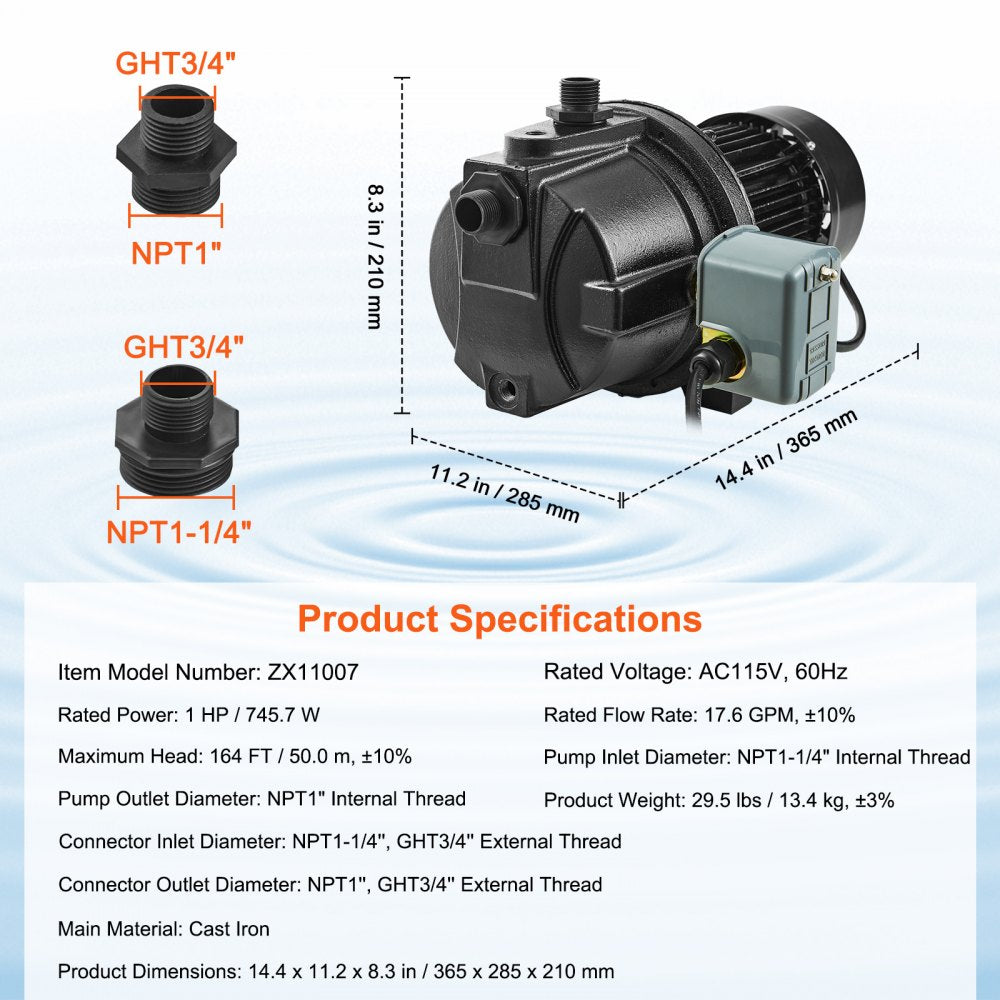

Specifications
| Model | ZX11007 |
| Conveyance Medium | Freshwater |
| Rated Voltage | AC115V, 60Hz |
| Rated Power | 1 HP / 745.7 W |
| Rated Flow Rate | 17.6 GPM ±10% |
| Maximum Head | 164' / 50 m ±10% |
| Pump Inlet Diameter | NPT 1-1/4" Internal Thread |
| Connector Inlet Diameter | NPT 1-1/4" and GHT 3/4" External Thread |
| Pump Outlet Diameter | NPT 1" Internal Thread |
| Connector Outlet Diameter | NPT 1" and GHT 3/4" External Thread |
| Main Material | Cast Iron |
| Product Weight | 29.5 lbs / 13.4 kg ±3% |
| Dimensions | 14.4 x 11.2 x 8.3" |
Warranty
This item comes with a 1 year factory warranty.
