Cummins A061C596 RS17A 17kw Quiet Connect™ Series Home Standby Generator LP/NG New
Overview
Features
Specifications
Warranty
Manuals
Reviews



Brand new & manufacturer direct
5 year manufacturer's warranty
Works with Liquid Propane and Natural Gas
Authorized Cummins dealer
Free shipping


OVERVIEW

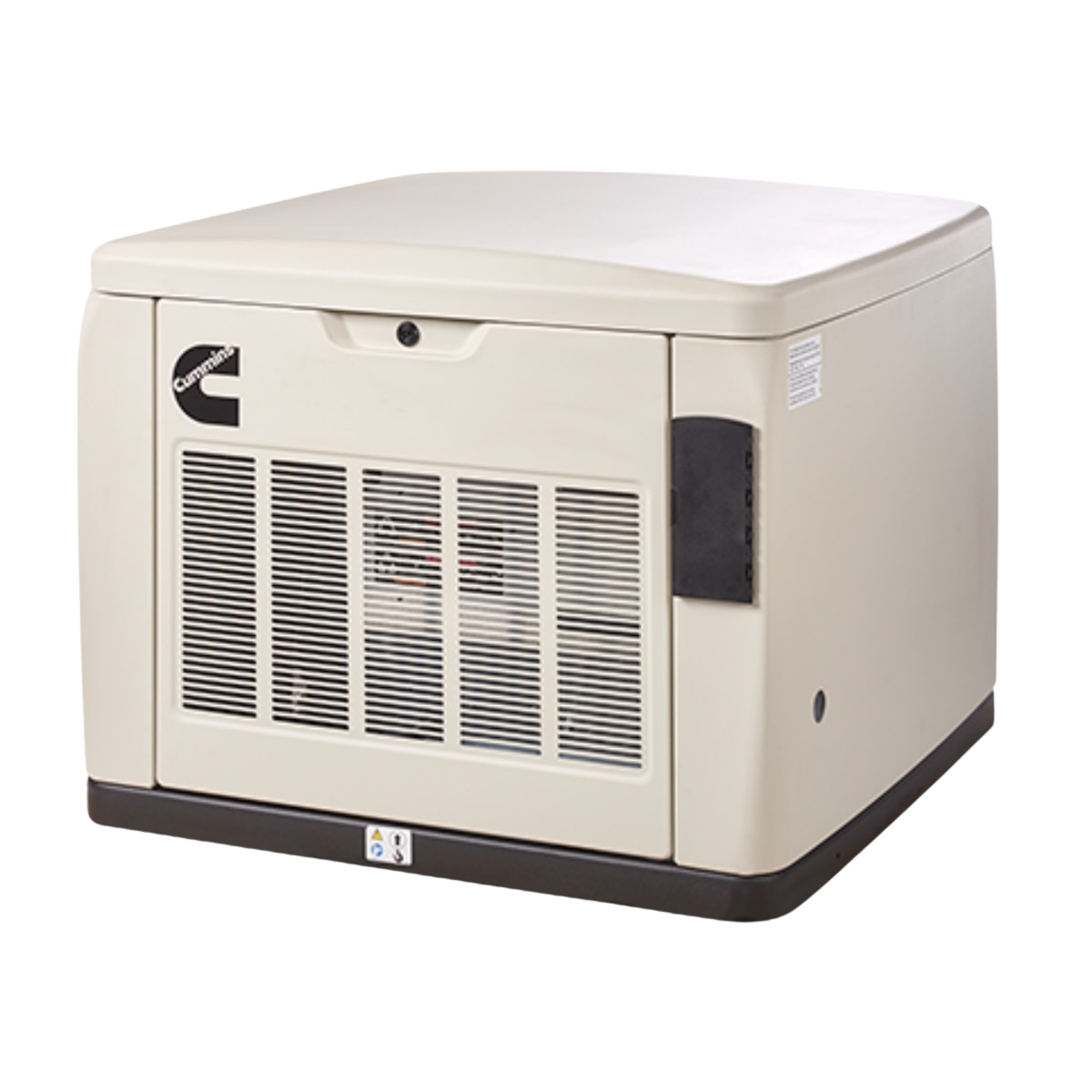

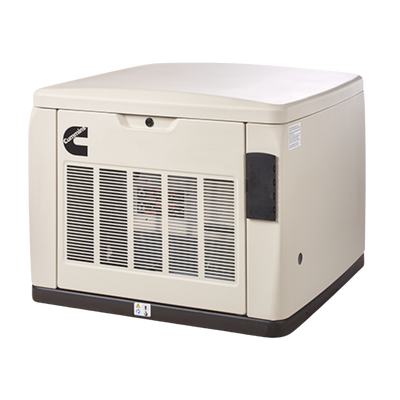

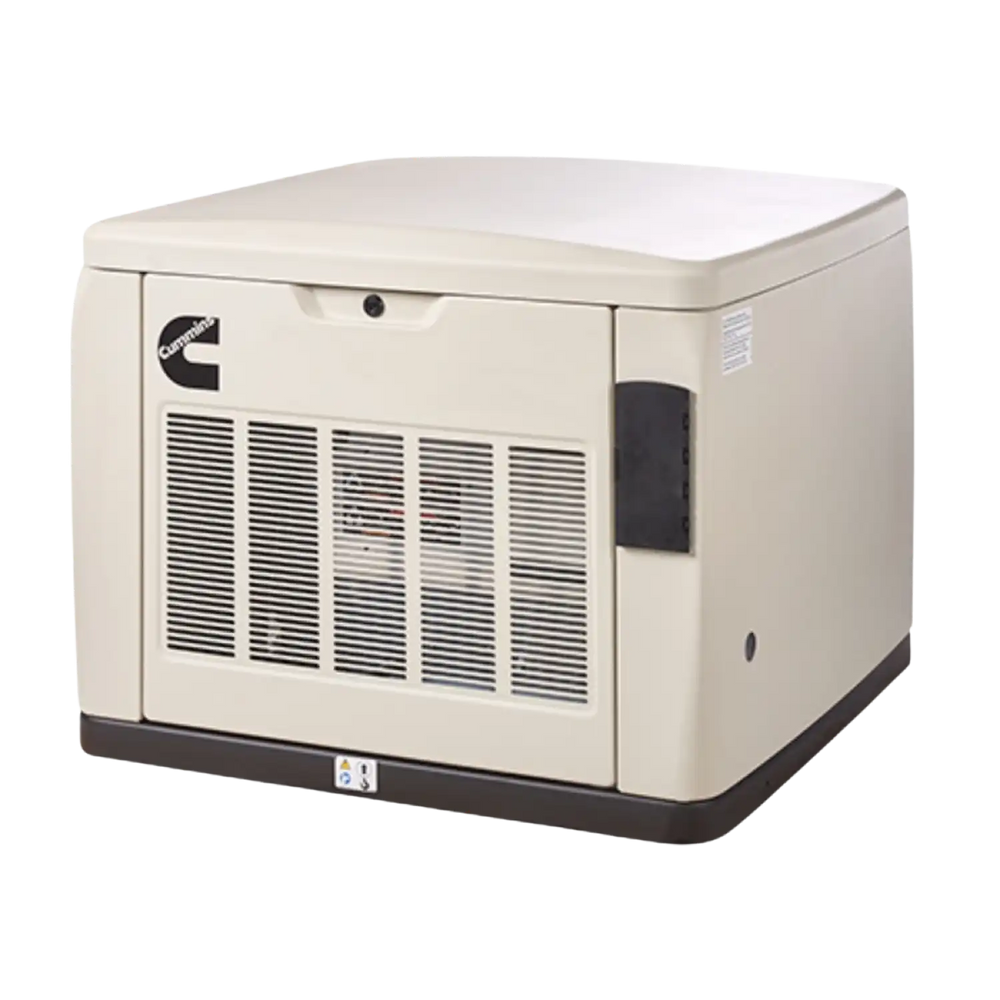

Cummins 17 kilowatt Quiet Connect Standby Generator supplies your entire home during an outage. Requires a Cummins Onan Automatic Transfer Switch (sold separately.)

The RS17A is a home standby generator permanently connected to your house by an automatic transfer switch. The generator operates on your homes existing Natural Gas or LP Gas supply. It monitors the power company distribution lines 24/7, then automatically starts and runs when it detects an outage and continues to run until the utility restores power.

Remote internet access is fully functional and integrated into the generator controller. Access the generator controller on any smartphone, laptop, tablet, or desktop computer. Operate the generator manually, program the exercise cycle, view status and reports, or schedule maintenance. Most home standby generator manufacturers only offer internet access as an add-on feature, but it’s included in every Quiet Connect Generator shipped.

The homeowner can choose the exercise cycle that fits their schedule and lifestyle. A Patented “Crank-Only” mode reduces wear and tear while saving fuel and reducing noise. The engine cranks without starting while the controller performs diagnostics. The generator gets the exercise it needs while the controller ensures that it operates correctly.

Control up to four central air conditioners. The generator controller can remember the load requirements of four different air conditioners and allow them to turn on and off when power is available. This prevents overloading and allows a smaller, more fuel-efficient generator to do the work of a larger unit.

The Cummins RA Series Automatic Transfer Switches (sold separately) have a NEMA 3R rating for indoor and outdoor use. They install between the utility meter and a typical 100-amp or 200-amp main service panel. Both Service Rated and Non-Service Rated switches are available. The generator controller monitors the utility supply 24 / 7 and automatically starts the generator the moment an outage is detected. After the generator starts, it signals the transfer switch to supply the home with power from the generator.

The RS17A produces clean power to operate sensitive electronics or run heavy duty motors and everything in between. From a no load condition to accepting a normal household load, the voltage varies by no more than 1.25 percent. Under steady-state conditions, voltage is still maintained within 1.25 percent and frequency will not vary more than 1.25 percent. Clean, worry free power you can count on.

Quiet Connect RS17A home standby generators are powered by a Cummins QSJ999G Engine, designed and built by Cummins, the world-class leader in diesel and natural gas engines. It runs on LP Gas or Natural Gas—field selectable during installation.

A compact, efficient design packs the Quiet Connect home standby generator into a 34 x 36 x 27 inch aesthetically appealing enclosure with a corrosion resistant aluminum exterior and galvanized steel interior that reduces noise and vibration.

Cummins Power Generation supports the Quiet Connect line with the world’s largest and best trained worldwide network of certified distributors and dealers. This network can answer questions about maintenance and operation and offers a complete selection of maintenance parts, accessories, and products along with manuals and specification sheets.

Quiet Connect Air-Cooled Generators include a five-year / 2000-hour limited warranty that covers travel and labor for two years and parts for a full five years.

Optional Load-Add / Load-Shed Devices can each control two high voltage loads. Suitable for electric hot water heaters, electric dryers, well pumps, and similar loads.

Make installation easier with a Generator Pad. They keep the generator from sinking into the dirt and are required by some local building codes. Using a premade generator pad eliminates the need for a poured concrete base or a pea gravel bed.

Battery requirement is a Group 51R. 450 CCA which can be purchased locally.

INCLUDES:

  • 17kw generator
  • Aluminum enclosure

FEATURES:

  • Cummins 17 kilowatt Quiet Connect Series Home Standby Generator.
  • Remote Internet Access to the Quiet Connect Controller and Generator.
  • User-Programmable Exercise including “Crank-Only” Mode.
  • Intelligent Load Management for up to four loads such as Air Conditioners.
  • Starts and runs a 5-ton A/C while accepting a full household load.
  • Field Selectable for Natural Gas or Propane Fuel.
  • Rated for installation as close as 18-inches to the home.
  • Extremely Quiet Operation – 65 dB or less.
  • Operates at 0 degrees out of the box. Cold weather kits add reliable operation for more extreme climates.

Configuration Options

The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is available in 4 models with different running power and optional Automatic Transfer Switch. Please select your preference from the drop-down menu above.

  • A054E399: 13 kW NG / LP
  • A054E397: 17 kW NG / LP
  • A054E395: 18 kW NG / 20 kW LP
  • A045X497: 18 kW NG / 20 kW LP with 200 Amp Automatic Transfer Switch

The Automatic Transfer Switch switch monitors utility power 24/7 independently without any action required by the homeowner. During a power interruption, the switch automatically transfers the load to the generator and when it resumes, the generator sends back the load to the utility.

Please Note: This Cummins standby generator is only compatible with the Cummins RSS Series Single-Phase Automatic Transfer Switch.


Item Number


A054E399


A054E397


A054E395


A045X497


Running Power (Natural Gas)


13 kW


17 kW


18 kW


18 kW


Running Power
(Liquid Propane)


13 kW


17 kW


20 kW


20 kW


Rated Amperage (Natural Gas)


54.2 Amp


70.8 Amp


75 Amp


75 Amp


Rated Amperage (Liquid Propane)


54.2 Amp


70.8 Amp


83.3 Amp


83.3 Amp


Weight


479 lbs


540 lbs


540 lbs


540 lbs


Certification


UL, EPA, CSA, NFPA


UL, EPA, CSA, NFPA


UL, EPA, CSA, NFPA


UL, EPA, CSA, NFPA & Nema 3R


Transfer Switch


Not Included


Not Included


Not Included


Included

SPECS:

Model
Model Number RS17A - A054E397 - C17N6H
Manufacturer Cummins Power Generation
Made In USA Yes
Rated Watts 17kW NG/17kW LP
Rated Amps 70.8
Voltage 120/240V Single Phase
AC Ton Rating 5 Ton
Enclosure Aluminum
UL Listed Yes
Decibel Rating 7m 65 dbA @ 23 ft
Features
Starting System Automatic Start
Low Oil Alert Yes
Hour Meter Yes
Battery Requirements Group 51R, 12V, 450 CCA Min
Mounting Pad Requires Prepared Site
Weight 540 lbs
Dimensions 34.1L x 36W x 27.3H
Engine
Engine Brand Cummins QSJ999G
Engine Size 999 cc
Engine RPM 3600
Cooling System Air Cooled
Alternator
Frequency 60 Hz
Auto Voltage Regulation Yes
Fuel
Type Natural Gas (NG) / Propane (LP)
NG Power Capacity 17kW`
LP Power Capacity 17kW
NG Consumption Full Load 289 cu.ft/hr
NG Consumption Half Load 213 cu.ft/hr
LP Consumption Full Load 2.8 gal/hr
LP Consumption Half Load 1.8 gal/hr
Transfer Switch
Model Sold Separately
Warranty Information
Consumer Warranty 5 Year Limited Warranty
Model
Type Standby Generator
Shipping Information
Shipping Dimensions 27.3H X 36W X 34D
Shipping Weight 540 lbs
    As a Cummins authorized dealer, we offer a 5 year factory warranty on this item.
