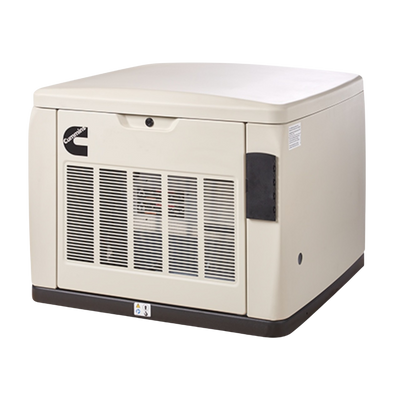

Cummins RS20A A061C601 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG New
Product Overview
The RS20A is a home standby generator permanently connected to your house by an automatic transfer switch (not included). The generator operates on your homes existing natural gas (18kW) or LP Gas (20kW) supply.
It monitors the power company distribution lines 24/7, then automatically starts and runs when it detects an outage and continues to run until the utility restores power. Remote internet access is fully functional and integrated into the generator controller.
Battery requirement is a Group 51R. 450 CCA which can be purchased locally.
Brand new and manufacturer direct
5 year factory warranty
Works with liquid propane and natural gas
Free shipping
Authorized Cummins dealer
Features
- Cummins 20 kilowatt Quiet Connect Series Home Standby Generator.
- Remote Internet Access to the Quiet Connect Controller and Generator.
- User-Programmable Exercise including “Crank-Only” Mode.
- Powered by Cummins QSJ999G engine.
- A patented “Crank-Only” mode reduces wear and tear during the exercise cycle.
- Remote Monitoring included - Check generator status, program exercise periods, even manually start and stop the generator using the Cloud Connect Smartphone App on phones, tablets, or computers.
- Starts and runs a 5-ton A/C while accepting a full household load.
- Field Selectable for Natural Gas or Propane Fuel.
- Rated for installation as close as 18-inches to the home.
- Extremely Quiet Operation – 65 dB or less.
- Operates at 0 degrees out of the box. Cold weather kits add reliable operation for extreme climates.
- Intelligent Load Management for up to four loads such as Air Conditioners.
Specifications
| COOLING SYSTEM | AIR COOLED |
| UL LISTED | YES |
| GRADE TYPE | EMERGENCY |
| ENGINE BRAND | CUMMINS ONAN |
| STARTING SYSTEM | 12V AUTO START |
| ENGINE SIZE | 999 CC |
| ENGINE RPM | 3600 RPM |
| LOW OIL ALERT/SHUTDOWN | YES |
| WEIGHT | 540 LBS |
| MADE IN USA | YES |
| PRODUCT LENGTH | 34.1" |
| PRODUCT WIDTH | 36" |
| PRODUCT HEIGHT | 27.3" |
| VOLTAGE | 120/240 SINGLE PHASE |
| FREQUENCEY | 60 HERTZ |
| ALTERNATOR | BRUSH |
| AUTO VOLTAGE REGULATION | YES |
| RATED WATTS | 20000 WATTS |
| FUEL TYPE | LP/NATURAL GAS |
| NATURAL GAS POWER CAPACITY | 18000 WATTS |
| PROPANE POWER CAPACITY | 20000 WATTS |
| NG FUEL CONSUMPTION @ 50% | 205FT³/HR |
| NG FUEL CONSUMPTION @ 100% | 300FT³/HR |
| LP FUEL CONSUMPTION @ 50% | 1.9 GALLONS/HR |
| LP FUEL CONSUMPTION @ 100% | 3.2 GALLONS/HR |
| RATED AMPS | 75 (NG) & 83.3 (LPV) AMPS |
| DECIBEL RATING @ 7M | 65dB |
| HOUR METER | YES |
| VOLTAGE METER | YES |
| TRANSFER SWITCH | NOT INCLUDED |
| ENCLOSURE | ALUMINUM |
| CIRCUIT BREAKER SIZE | 100 AMPS |
Package Contents
20kW GENERATOR
ALUMINUM ENCLOSURE
Warranty
This item comes with a 5 limited year factory warranty.
