Generac 7224 14kW WiFi Guardian LP/NG Standby Generator w/ 100 Amp 16 Circuit Smart Transfer Switch New
Share
Product Overview

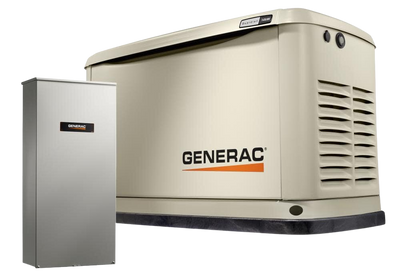

- Generac 14kW Automatic Home Generator 7224 with 100-Amp 16-Circuit ATS
- TruePower™ Technology for best-in-class power quality
- Generac 816cc Purpose Built G-Force Engine
- Quiet-Test™ self-test mode runs at lower RPM for less noise and better fuel efficiency.
- Smart, User Friendly Evolution Controller with multi-lingual display.
- Mobile-Link™ Remote Wireless Monitoring on Smartphones, Tablets, or PC included.
- RhinoCoat™ powder coat finish over corrosion-resistant aluminum cabinet
- USA Engineered and Built-24/7 USA Customer Support-5-Year Warranty
*Fascia kit not included, however, it can be purchased as an accessory with the unit*
5 year factory warranty
Brand new Generator
Ships directly from Generac out of WI
Works with liquid propane or natural gas
Authorized Generac dealer
Features
- 14k Guardian® Air-Cooled Standby Generator System
- Protects your home and family during a power outage
- Includes Mobile Link™ Wi-Fi Remote Monitoring
- Monitor generator status on a smart phone, tablet or PC
- Requires internet connection and wireless router
- 5-Year Limited Warranty
- Have your questions answered when it's convenient for you
- 100-Amp Automatic Transfer Switch w/ Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service & only partial generator backup
- Allows you to backup 120V & 240V circuits
- Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
- NEW Generac G-Force 800 Series Engine
- Hydraulic lifters for improved performance & less maintenance
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER™ Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST™ Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA
- Built in the USA using domestic & foreign parts
- Also Includes
- Smart battery charger & 14" Flexible fuel line connector
- Please Note - Battery Not Included (Sold Separately)
Specifications
| Circuit Breaker Size | 60 Amps |
| A/C Ton Rating | 3-Tons |
| Mounting Pad | Composite (Included) |
| Transfer Switch Style | Standard Installation |
| ATS Load Prioritizing | Not Compatible |
| ATS Load Shedding | Not Compatible |
| ATS Poles | 2 Poles |
| ATS Service Disconnect | No |
| Cooling System | Air Cooled |
| UL Listed | Yes |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| Engine Brand | Generac OHVI |
| Starting System | 12v Auto Start |
| CC | 816 CC |
| Consumer Engine Warranty | 5 Years |
| Commercial Engine Warranty | 5 Years |
| Engine RPM | 3600 RPM |
| Low Oil Alert/Shutdown | Yes |
| Product Category | Generator - Standby |
| Weight | 385 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
| Product Style | Standby Generator |
| Product Length | 48 Inches |
| Product Width | 25.1 Inches |
| Product Height | 29 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 14000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 14000 Watts |
| LP Power Capacity | 14000 Watts |
| NG Fuel Consumption @ 50% Load | 195 ft³/hr |
| NG Fuel Consumption @ 100% Load | 256 ft³/hr |
| LP Fuel Consumption @ 50% Load | 1.81 gallons/hr |
| LP Fuel Consumption @ 100% Load | 3.07 gallons/hr |
| Rated Amps | 58.3 Amps |
| Decibel Rating @ 7m | 55-65 |
| Transfer Switch | Automatic (Included) |
| Transfer Switch Amperage | 100-Amps |
| Max Circuits | 16 |
| Battery | Not Included |
| Enclosure | Aluminum |
Package Contents
Generac 14kw WiFi Standby Generator w/ 100 Amp 16 Circuit Smart Transfer Switch
Aluminum Enclosure
Pre-installed Composite Base
User's Manual
Warranty
This item comes with a 5 year factory warranty.
