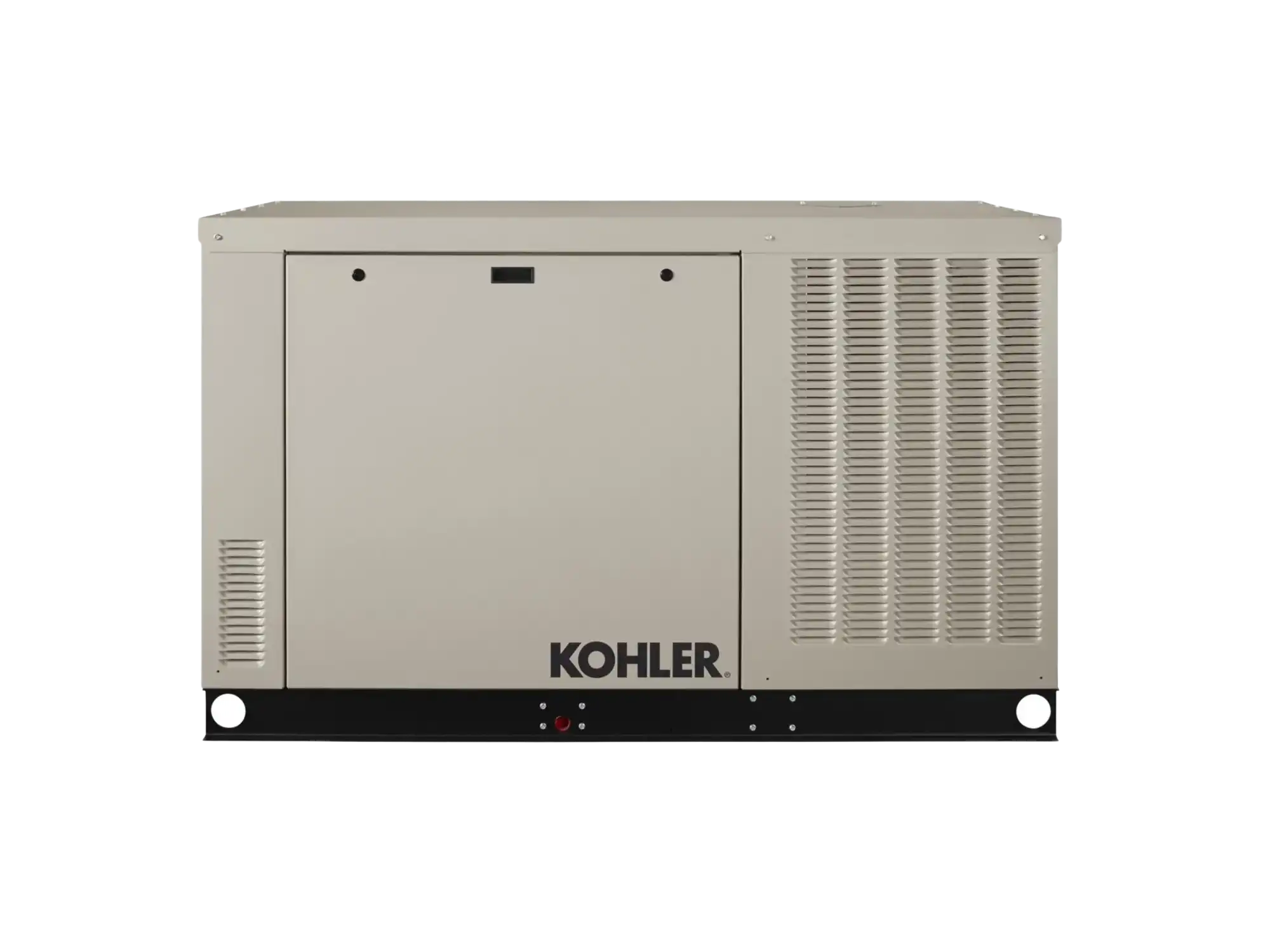

Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with App Connect New
Product Overview
The Kohler 23kW Generator provides high quality 3-phase power with advanced voltage and frequency regulation and low harmonic distortion. Neighborhood friendly operation at 60 dBA and 52 dBA during exercise. The Liquid Cooled Kohler 2.2 Liter Inline 4 cylinder engine provides plenty of power at 1800 RPM. The electronic governor maintains frequency within 1%. From No Load to a Full Load Condition, Total Harmonic Distortion (THC) is less than 5%.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- Aluminum Sound Enclosure + Silencer
- UL-2200 Listed
- GFCI Service Outlet 277/480 Volt
- Integral Vibration Isolation
- Oil Drain Extension
- NEC Prime Mover Shutdown Switch
- Remote Monitoring & Control of Generator & ATS System
- RDC2 Controller + Built-In Battery Charger
Specifications
| Fuel Type | Natural Gas (NG) or Propane (LPG) |
| Fuel Gauge | No |
| NG Power Capacity | 21kW |
| LP Power Capacity | 23kW |
| NG Consumption @ Full Load | 301 Cubic Feet per Hour |
| NG Consumption @ Half Load | 199 Cubic Feet per Hour |
| LP Consumption @ Full Load | 3.1 Gallons per Hour |
| LP Consumption @ Half Load | 2.3 Gallons per Hour |
| Model Number | 24RCLA |
| Manufacturer | Kohler |
| Made In USA | Yes |
| Rated Watts | 24kW |
| Rated Amps | NG - 32, LP - 35 |
| Voltage | 3-Phase |
| A/C Ton Rating | 5-Ton |
| Enclosure | Aluminum |
| UL Listed | EL-2200 |
| Decibel Rating | 60 dBA Normal Operation | 52 dBA Exercise |
| Type | Standby Generator |
| Rated Watts Filter | 20 to 29 kW |
| Voltage | 277/460V, 3 Phase |
| Starting System | Automatic |
| Low Oil Alert | Low Oil Shutdown |
| Mainline Breaker | 100 Amps |
| Battery Requirement | 12-Volt Group 24 630 CCA |
| Weight | 1260 Pounds |
| Dimensions | 74L x 32.9W x 46.0H inches |
| Engine Brand | Koher KG2204 |
| Engine Size | 2.2 Liter Inline 4-Cylinder |
| Engine RPM | 1800 RPM |
| Cooling System | Liquid Cooled |
Package Contents
Kohler 24RCLA-QS3 23KW Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
