South Bend SB1120 Spindle Shaper Variable-Speed 5 HP 3-Phase New
Product Overview

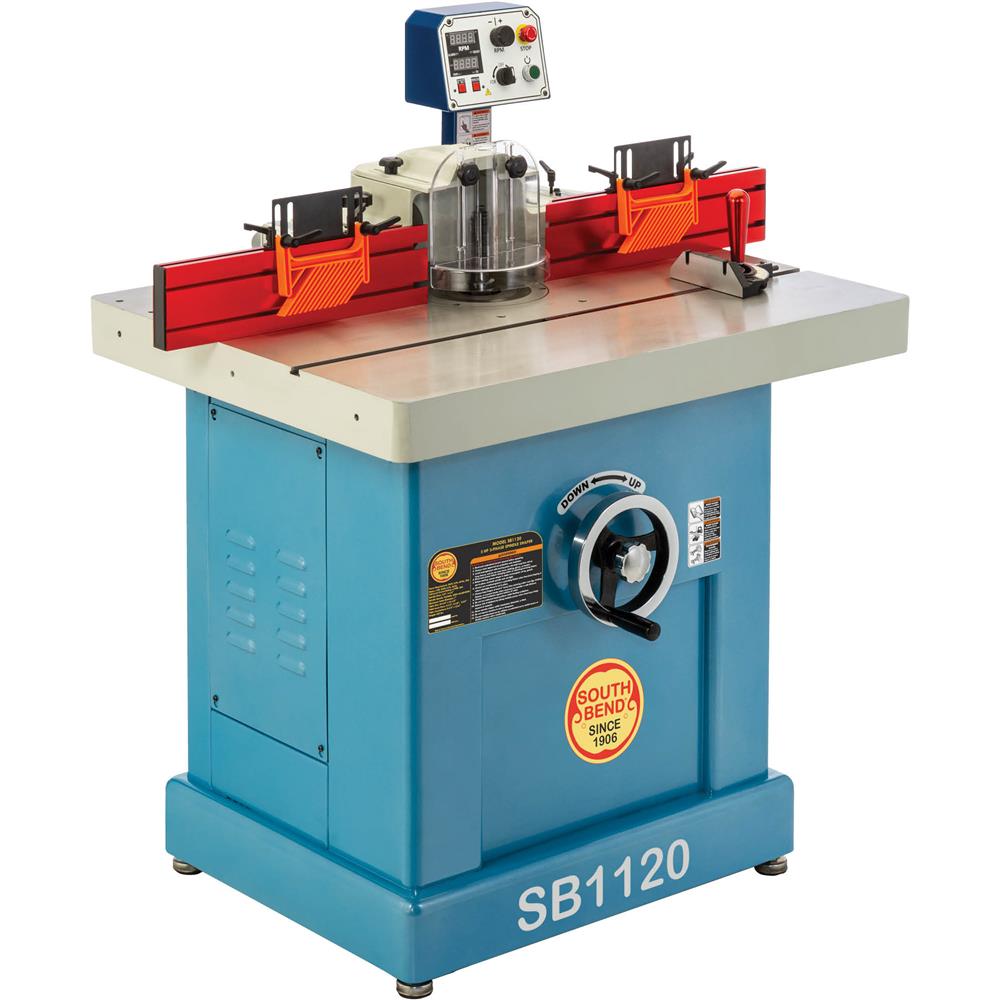

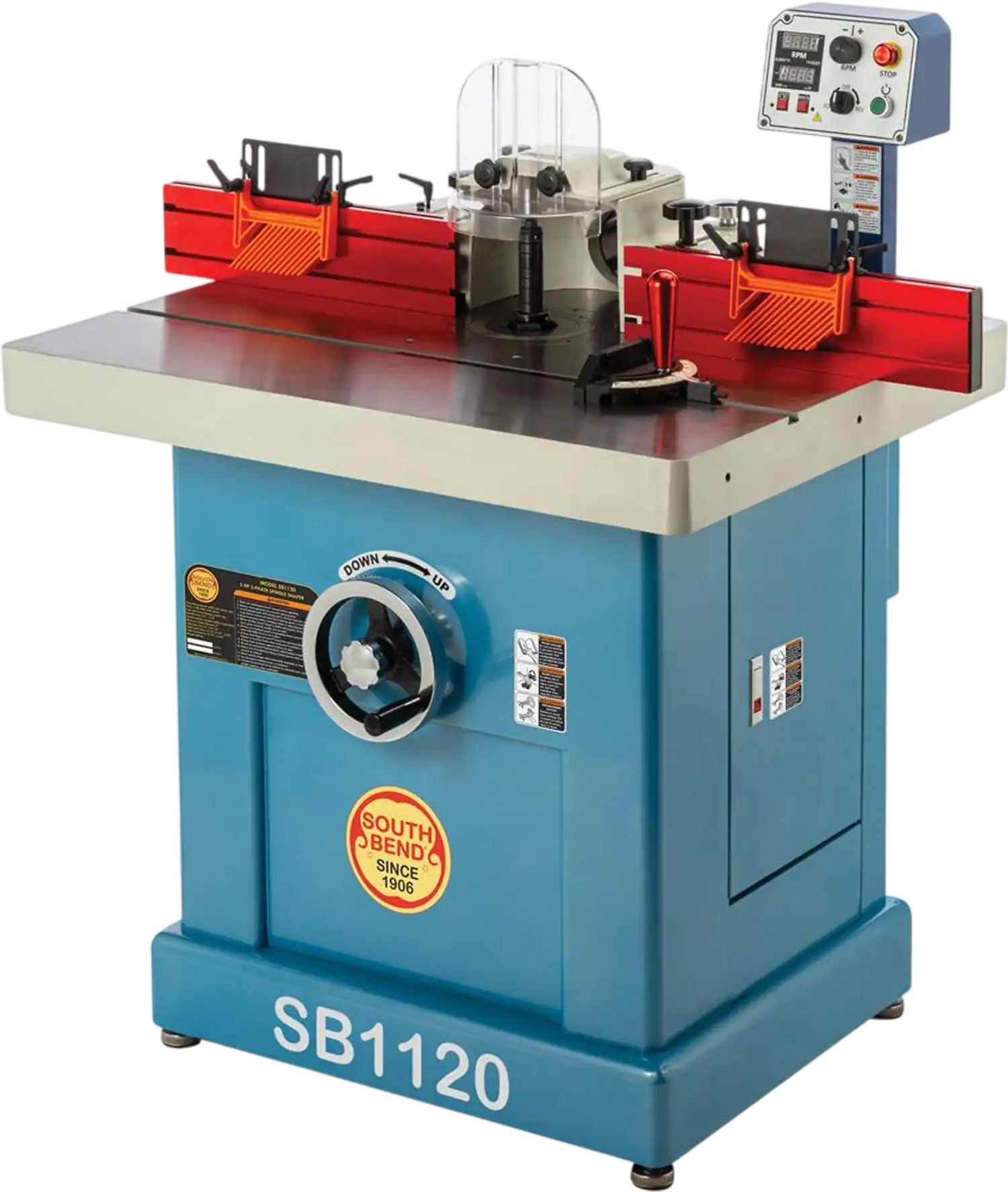

The South Bend SB1120 is a heavy-duty variable-speed spindle shaper built for professional woodworking shops that need industrial capacity, accuracy, and consistent output. Powered by a 5 HP 3-phase motor, it handles demanding shaping tasks with spindle speeds from 5,000 to 10,000 RPM for flexibility across a wide range of cutter setups.
A large precision-ground cast-iron table provides solid support for bigger workpieces, while the machine accepts cutters up to 7 inches in diameter for versatile shaping operations. The digital readout helps with precise spindle speed and height positioning, and the micro-adjustable fence with featherboard attachments allows fine control for smooth, repeatable results.

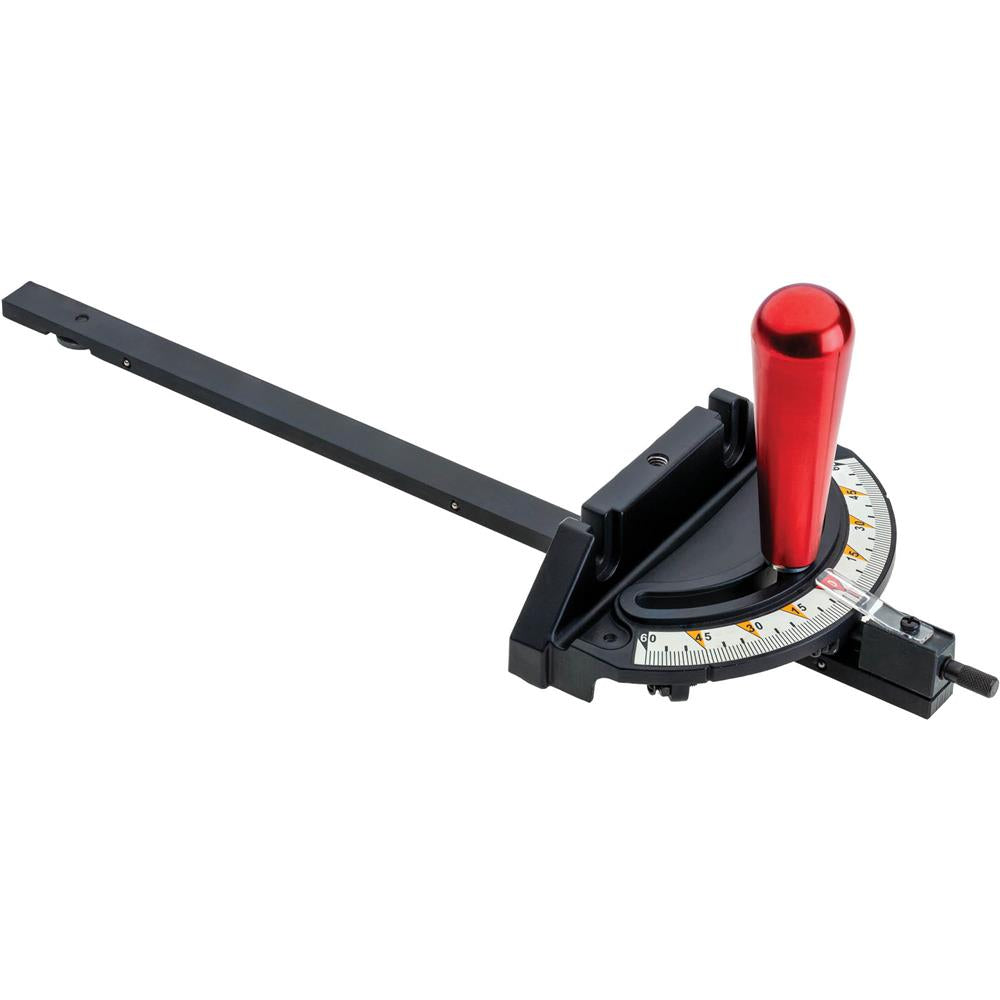

Designed for cabinet shops, millwork operations, and serious production environments, this shaper also includes a fully adjustable clear guard, dual 4-inch dust ports, and a miter gauge for efficient day-to-day use. It is a strong choice for woodworkers who want precision, capacity, and dependable performance in one machine.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

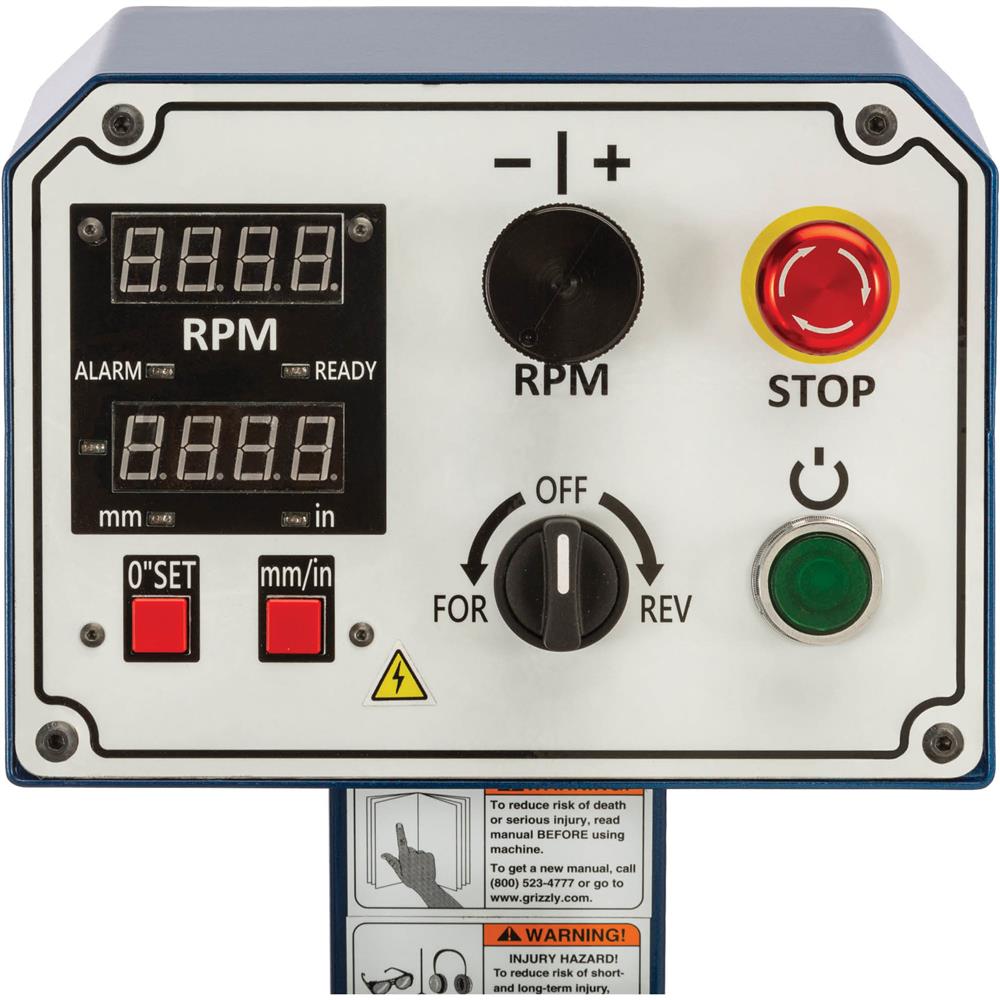

- DRO for spindle RPM and height positioning

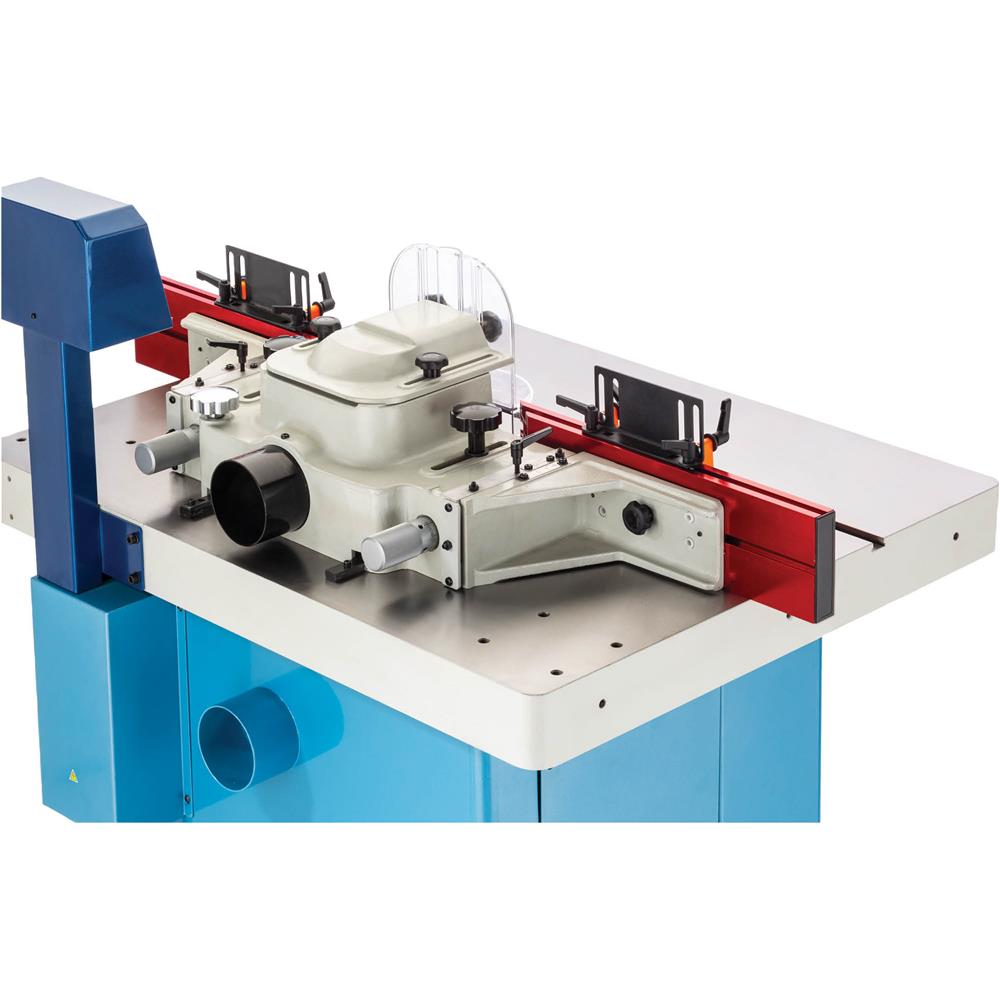

- 4-3/4" tall anodized aluminum fence with featherboard attachments
- Rack-and-pinion fence adjustment with 4" of travel
- Micro-adjustment knobs for fence alignment
- Power feeder attachment locations (power feeder not included)
- Variable speed, from 5000–10,000 RPM
- Fully adjustable clear guard

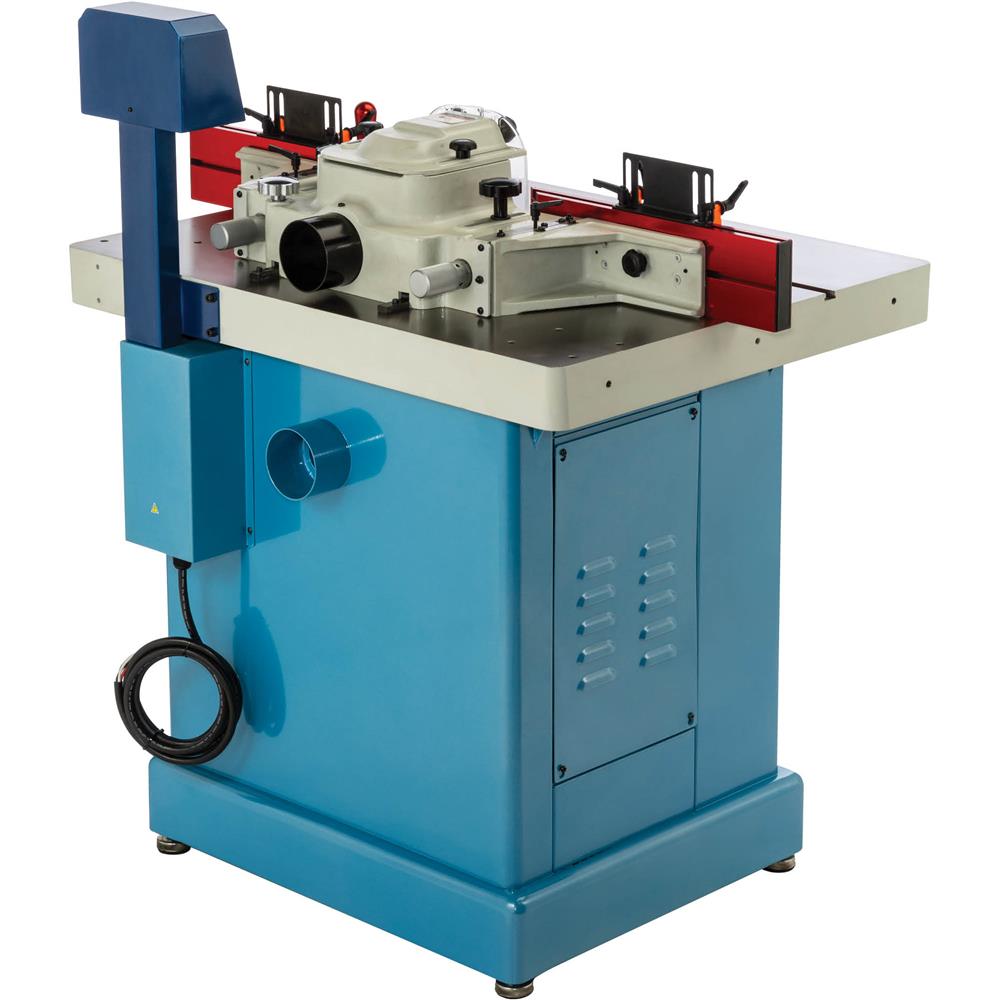

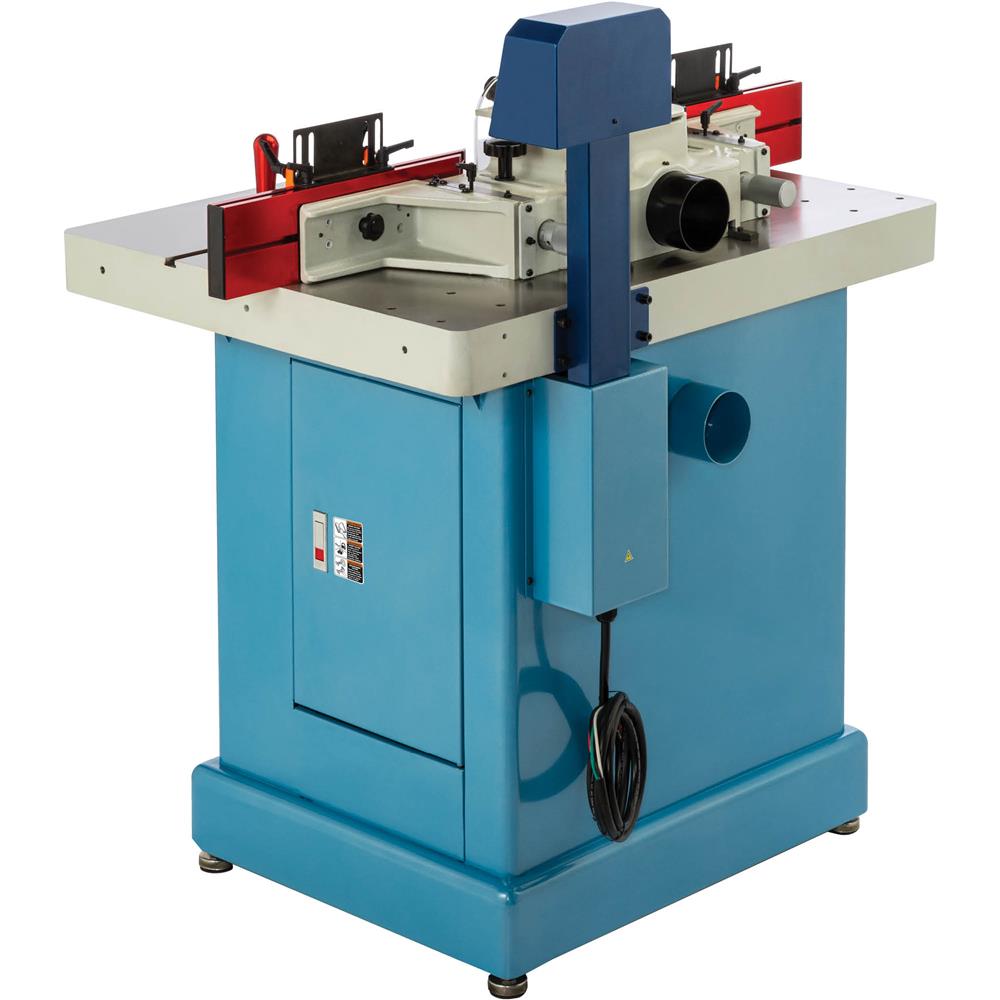

- Dual 4" dust ports
- Quick-release belt tensioner
- US-based customer service and technical support
Specifications
| Required power source | 230V, 3-phase, minimum 20A circuit |

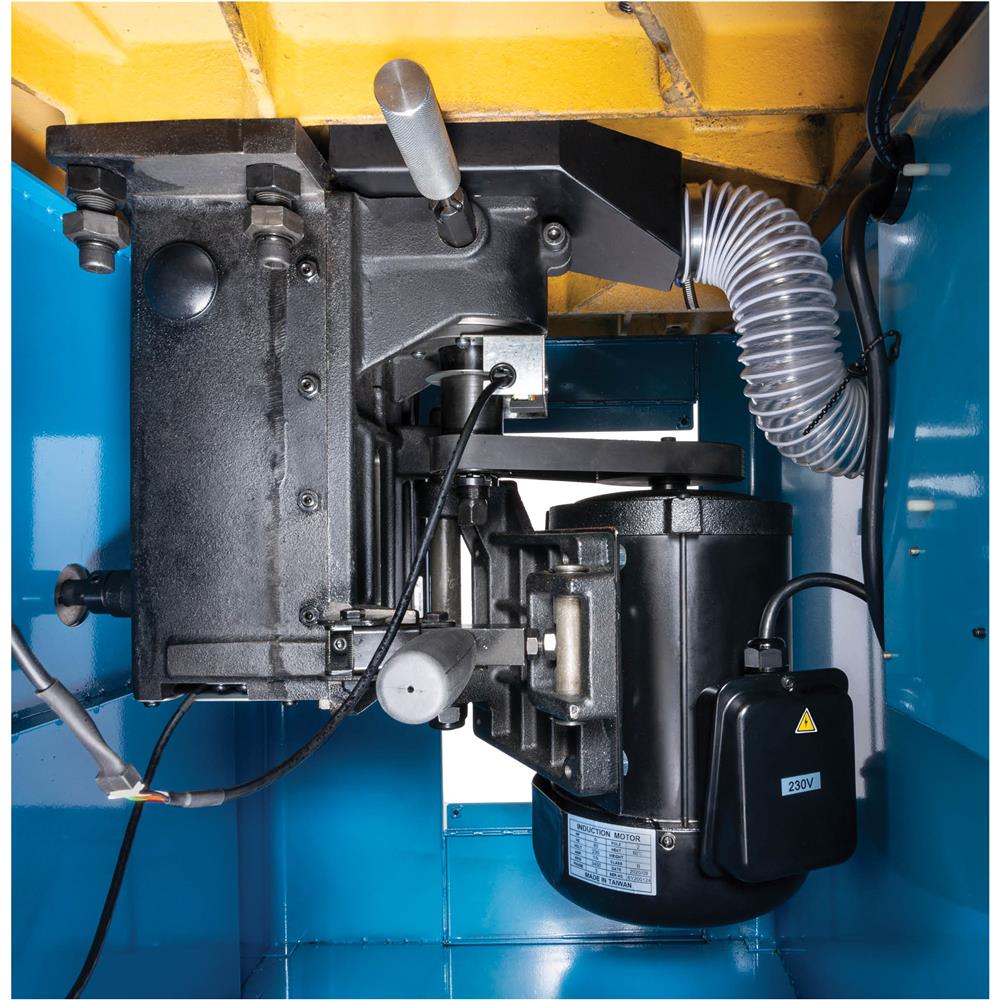

| Motor | 5 HP, 230V |
| Maximum cutter height | 5" |
| Maximum cutter diameter | 7" |

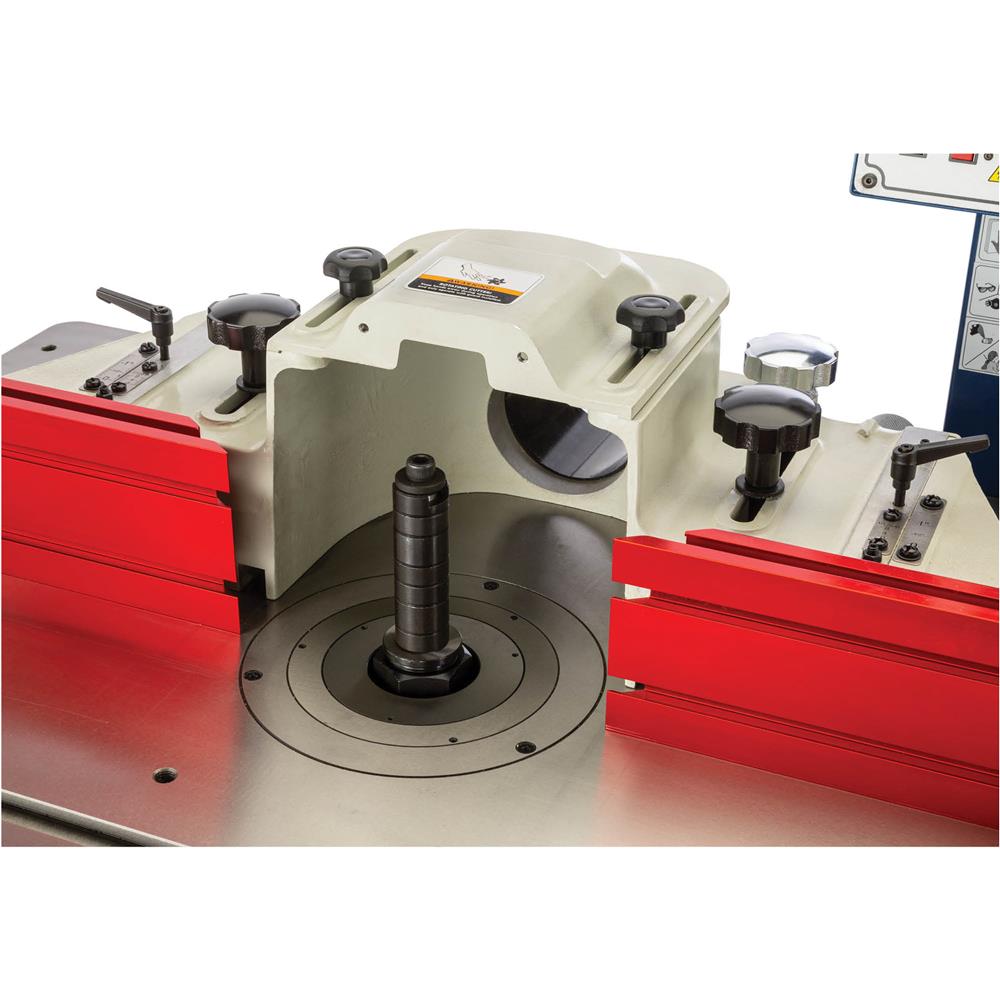

| Spindle diameters | 3/4", 1-1/4" |
| Spindle lengths | 3-7/8", 5-7/8" |
| Spindle capacities under nut | 3-1/2", 5-1/8" |
| Spindle speed | Variable, 5000–10,000 RPM |
| Spindle travel | 4" |
| Spindle openings | 2-1/2", 4-1/8", 5-3/4", 7" |
| Table counterbore | 8-1/4"dia., 3/16" depth |
| Table size | 31-1/2" x 39-1/4" |
| Floor-to-table height | 36-1/4" |
| Footprint | 25-1/2" x 31" |
| Dimensions | 39-1/2" W x 34" D x 51-1/2" H |
| Approx. shipping weight | 800 lbs. |
Warranty
This item comes with a 2 year factory warranty.
