Vevor Brushed DC Motor Kit 24V 250W 2700 RPM with Speed Controller New
Manufacturer: Vevor
SKU: ZLWSDJTJ250W1R9B9V9
Power Options
with handle or not ? Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 69.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Reverse Gearbox Go Kart Forward Reverse Gear Box New
-
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Electric Bike Motor Kit 450W 36V 3000 RPM with Upgraded Speed Controller and Thumb Throttle...
-
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor Brushed DC Motor Kit 450W 36V 3000 RPM with Controller and Twist Throttle New
-
Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM with Controller and Foot Pedal Throttle New
-
Vevor Hybrid Solar Inverter 6000W Pure Sine Wave Charger 48V DC to 220/230V AC Single Phase New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
-
Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New
-
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
Vevor Brushed DC Motor Kit 24V 250W 2700 RPM with Speed Controller New
Product Overview

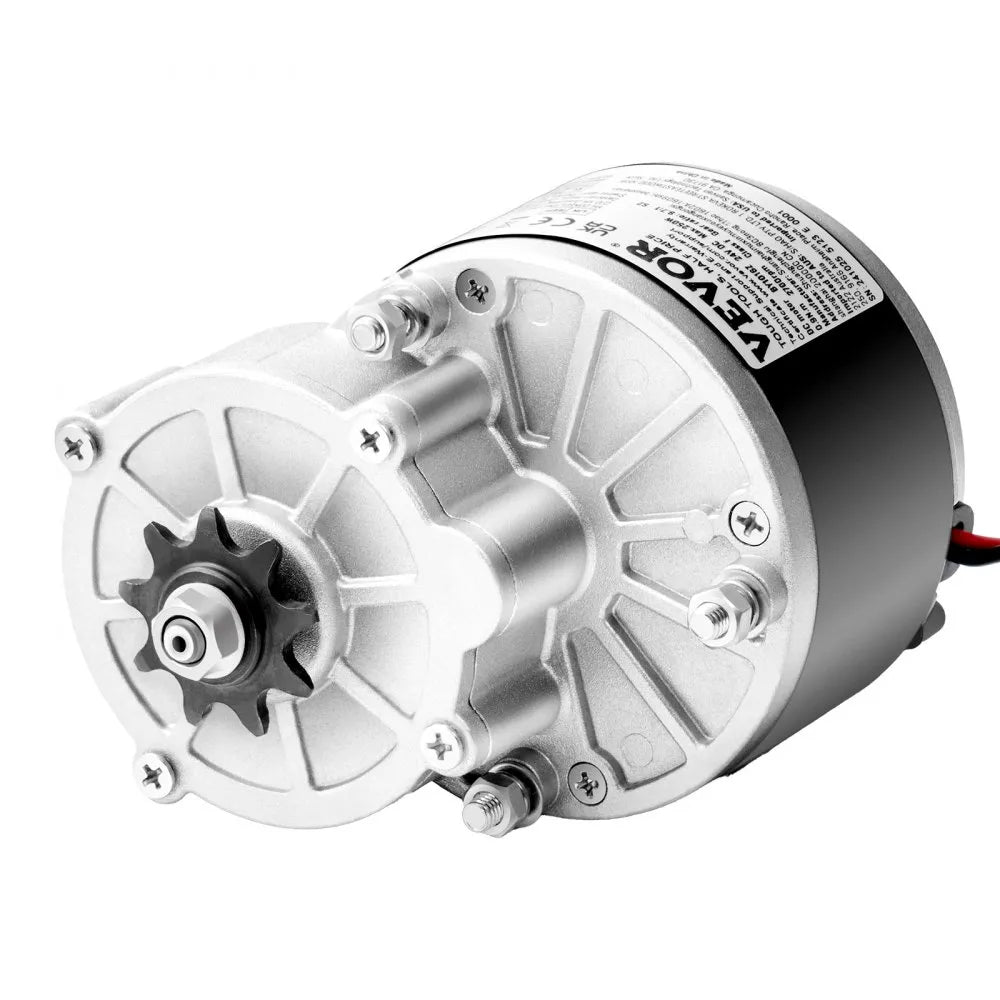

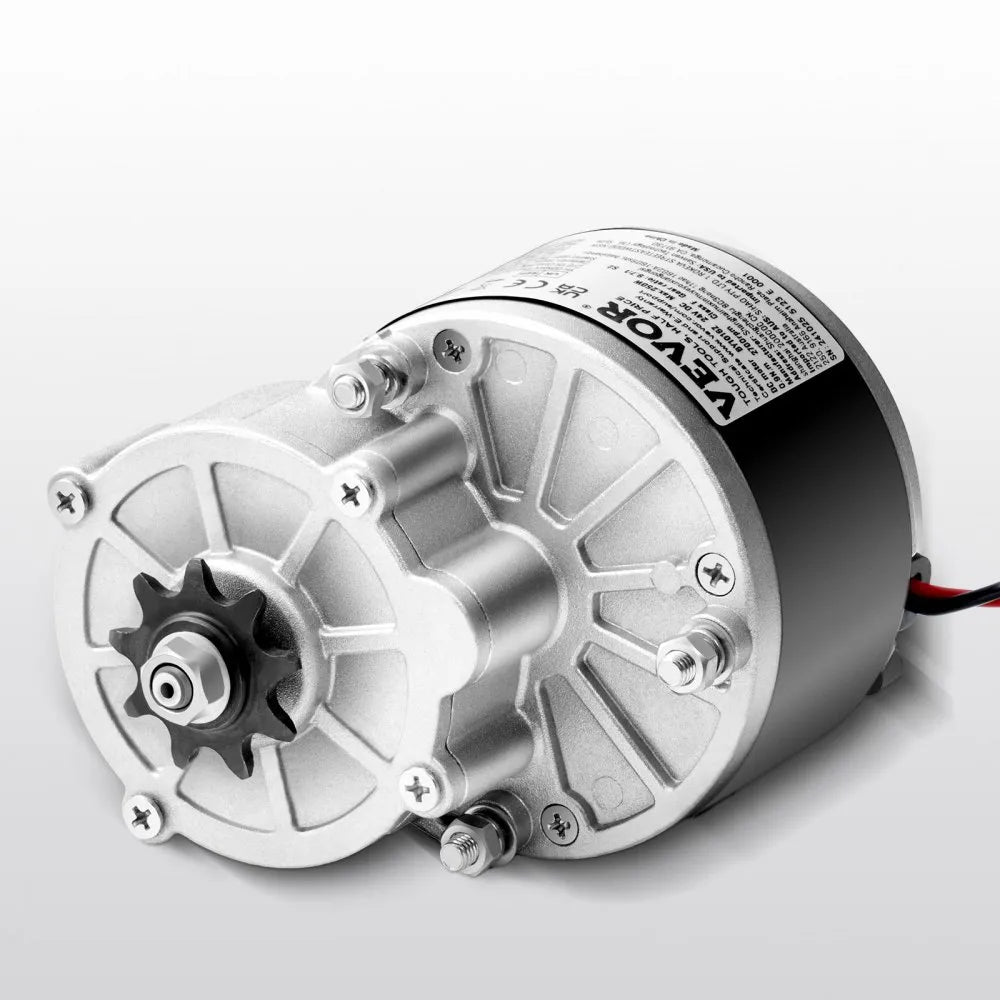

The Vevor brushed DC motor kit is a 24V, 250W power solution designed for electric bikes, scooters, go-karts, and other DIY electric vehicle projects. It features a brushed motor, upgraded speed controller, twist-grip throttle, and sprocket with flywheel for a complete installation setup. With rated speed of 2700 RPM, 0.9 N·m torque, and quiet 70 dB operation, it delivers dependable everyday performance. The copper core motor is built for stable operation in demanding conditions, while the controller adds speed control, braking, and multiple protection functions. This kit is a practical choice for custom builds and replacement motor applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our powerful brushed DC motor delivers 250W of output power and operates efficiently with ≥78% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 7.5 MPH at rated speed, and a no-load speed of 8.1 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 0.9N.m ensures reliable performance even on steep inclines and rough terrains.
- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.

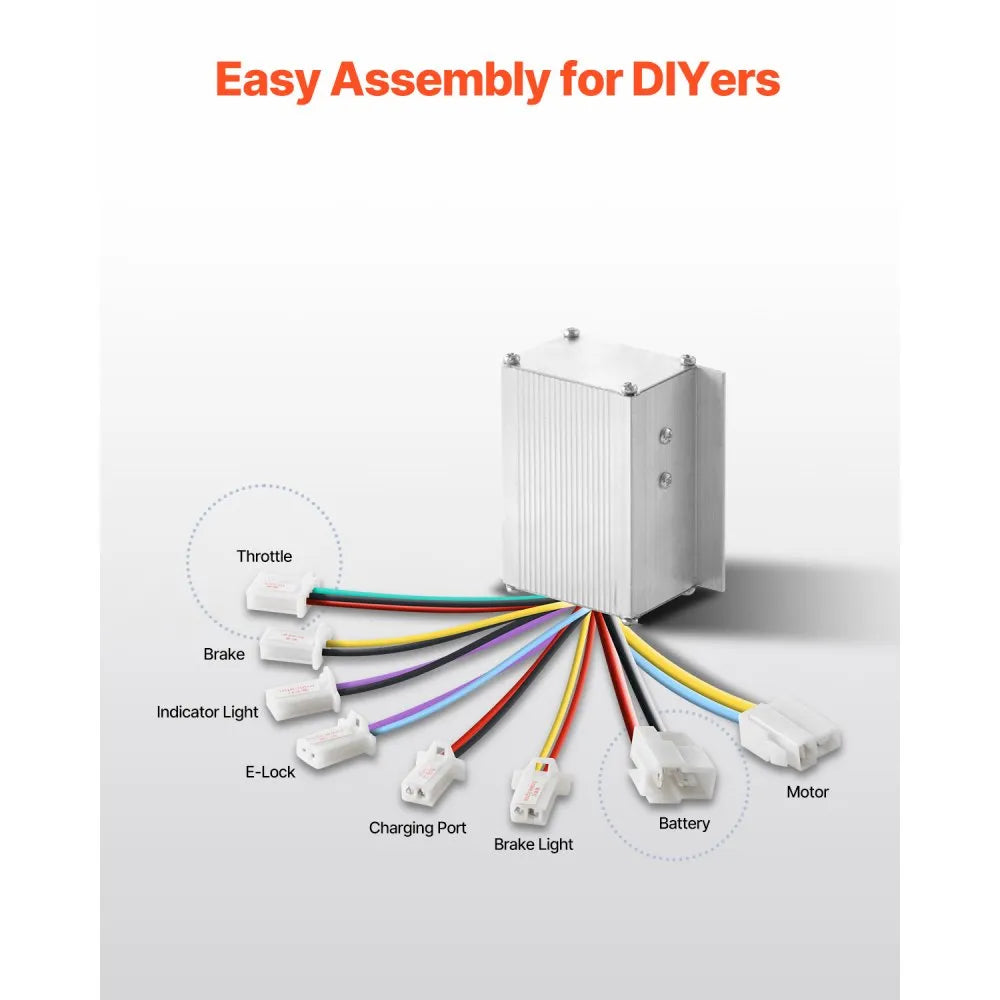

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
- Easy DIY Installation: Package includes: 1 x 24V 250W Powerful Brushed DC Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x 410-16 Tooth Sprocket with Flywheel, and 1 x Set of Assembly Hardware. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

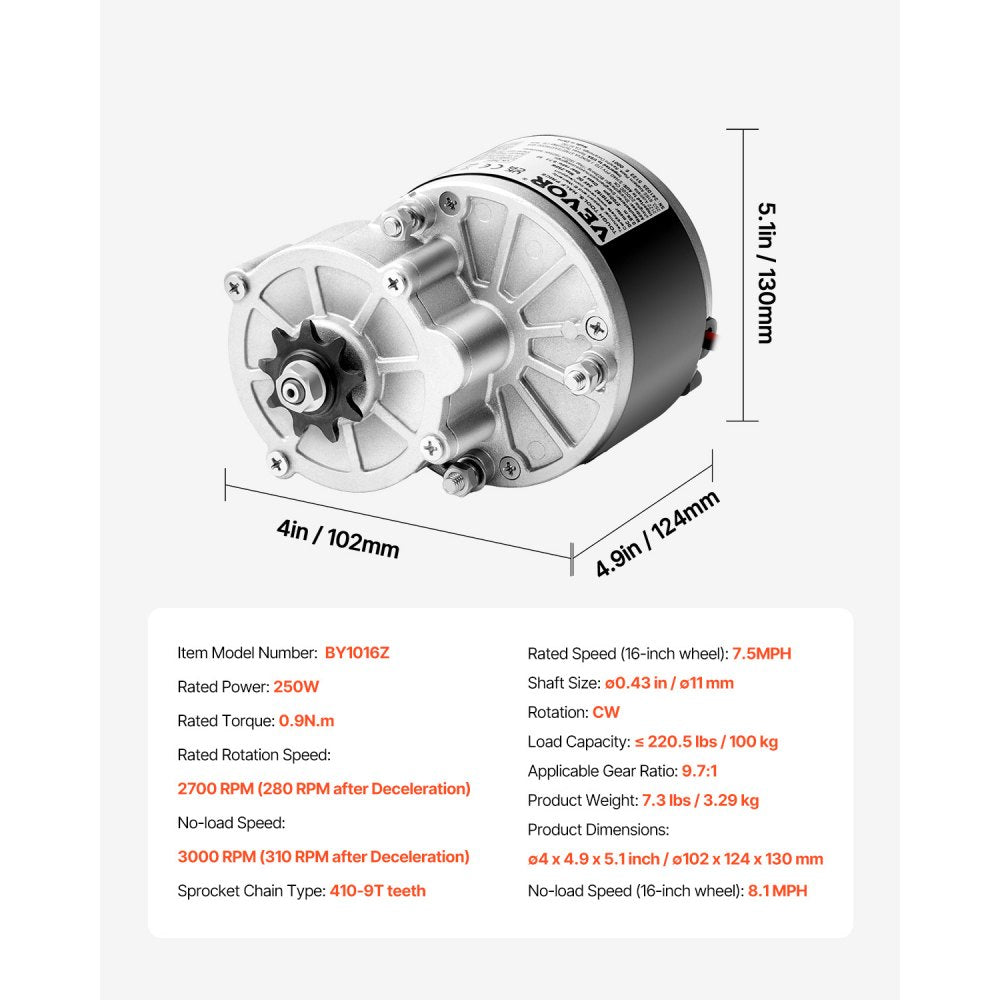

Specifications

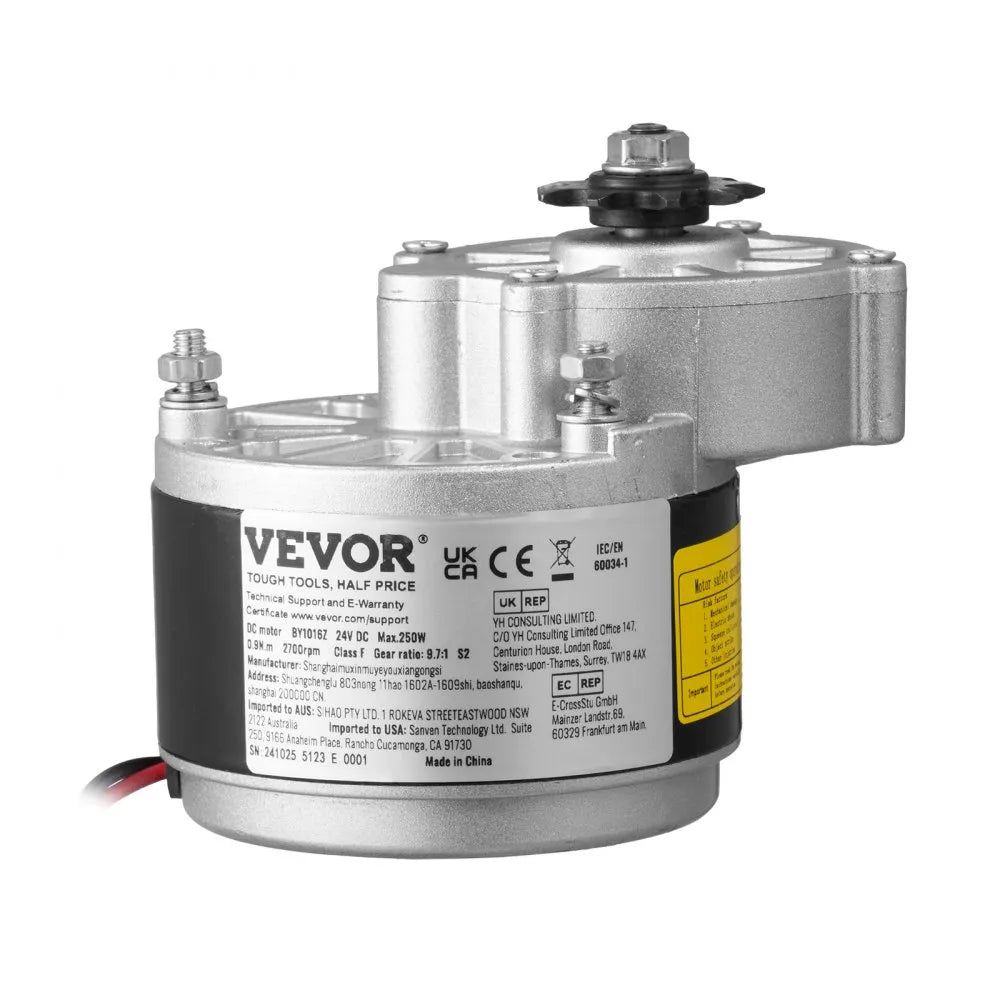

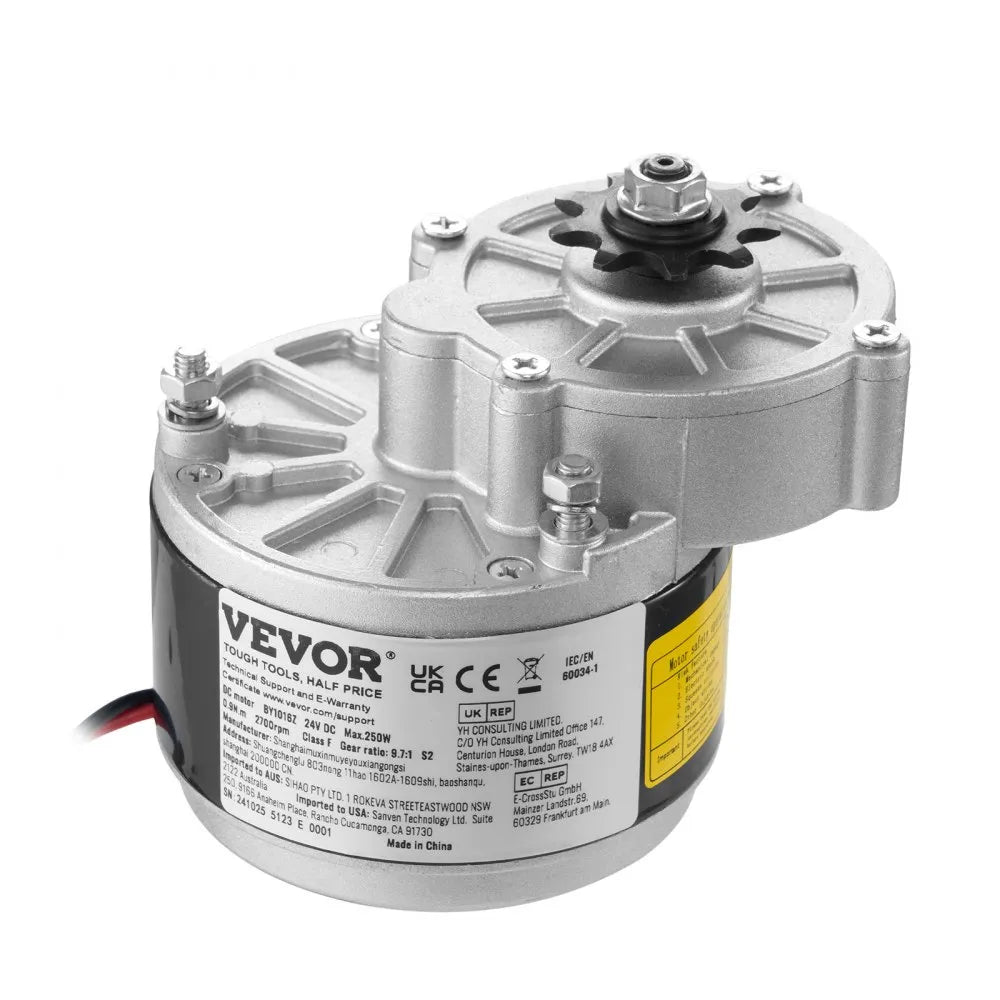

| Item Model Number | BY1016Z |
| Rated Power | 250W |
| Rated Torque | 0.9 N·m |
| Rated Rotation Speed | 2700 RPM 280 RPM after deceleration |
| No-load Rotation Speed | 3000 RPM 310 RPM after deceleration |

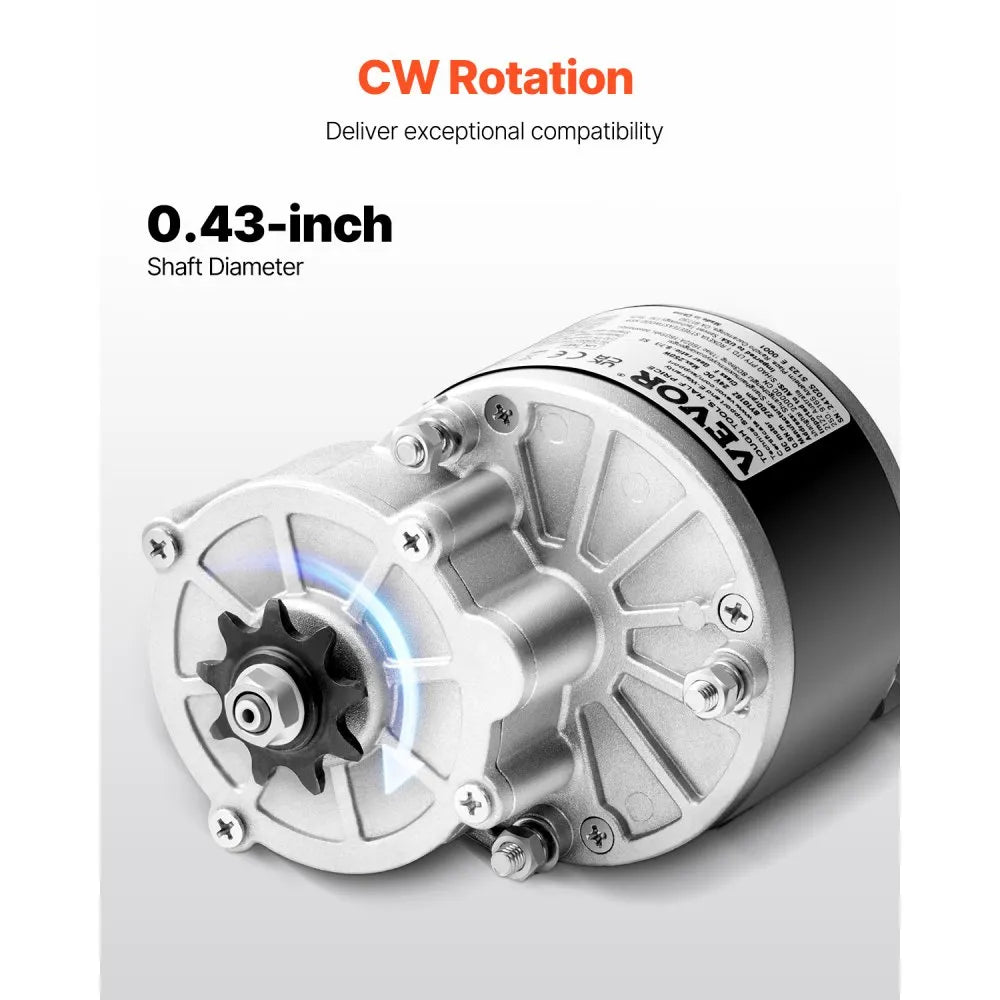

| Rotation | CW |
| Load Capacity | 220.5 lbs |
| Noise | 70 dB |
| Applicable Gear Ratio | 9.7 |
| Product Weight | 7.3 lbs |
| Product Dimensions | 4.02 x 4.88 x 5.12 in |

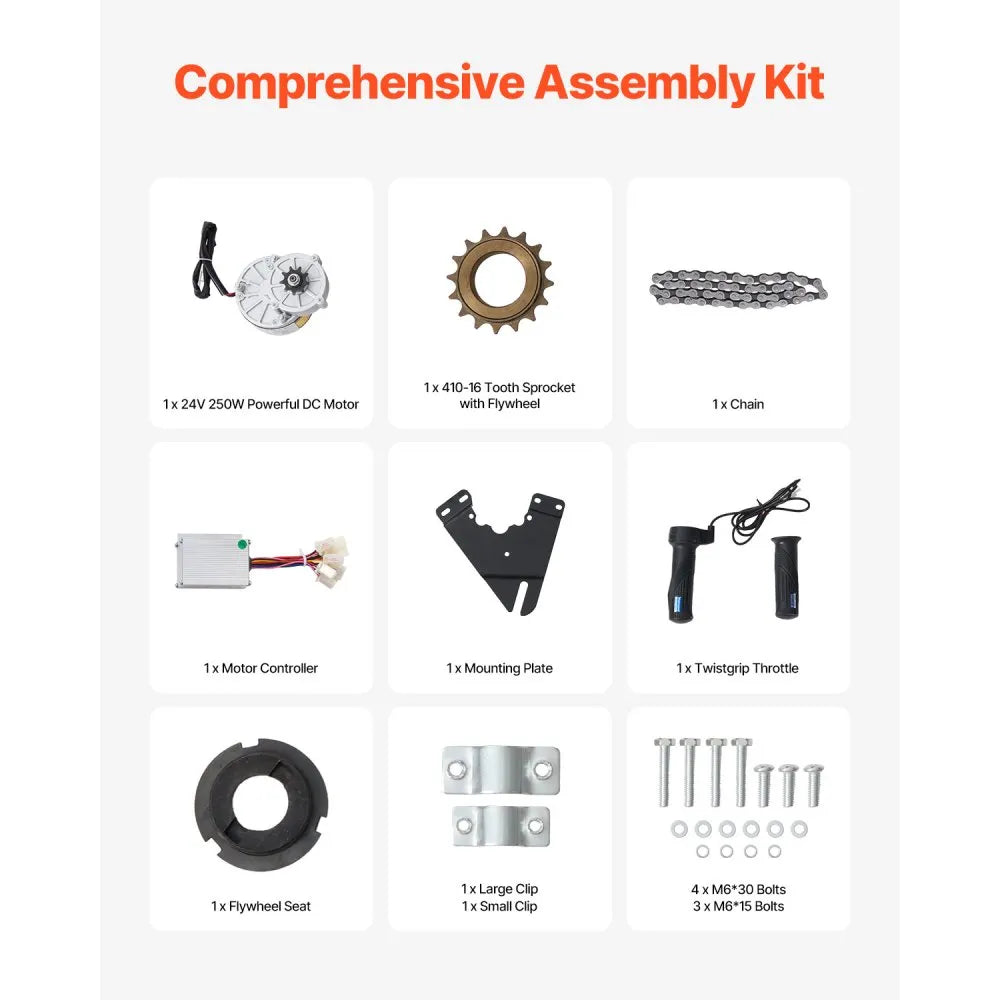

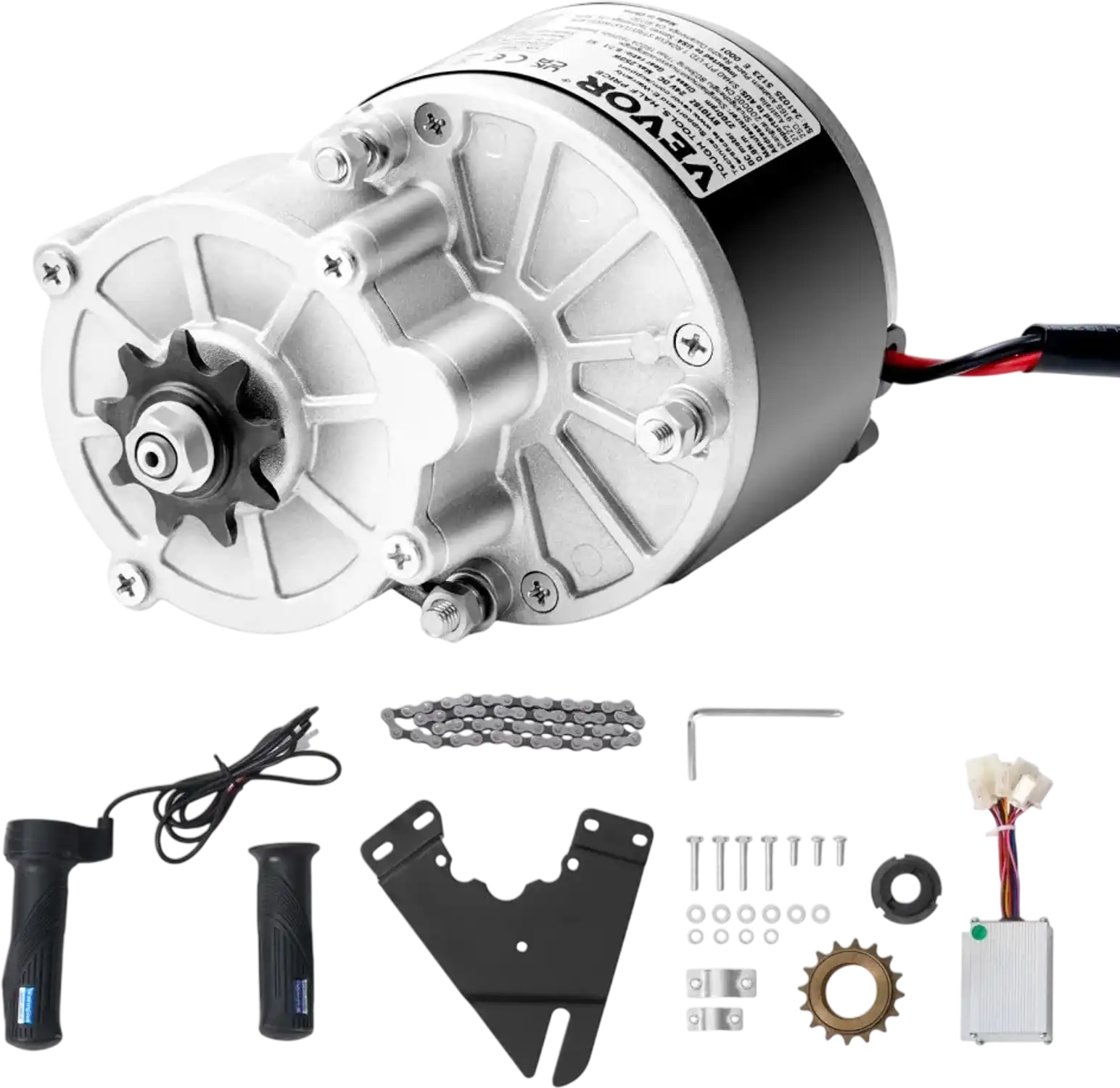

Package Contents
1 x 24V 250W Powerful Brushed DC Motor
1 x Motor Controller
1 x Twistgrip Throttle
1 x 410-16 Tooth Sprocket with Flywheel
1 x Set of Assembly Hardware
Warranty
This item comes with a 1 year factory warranty.
