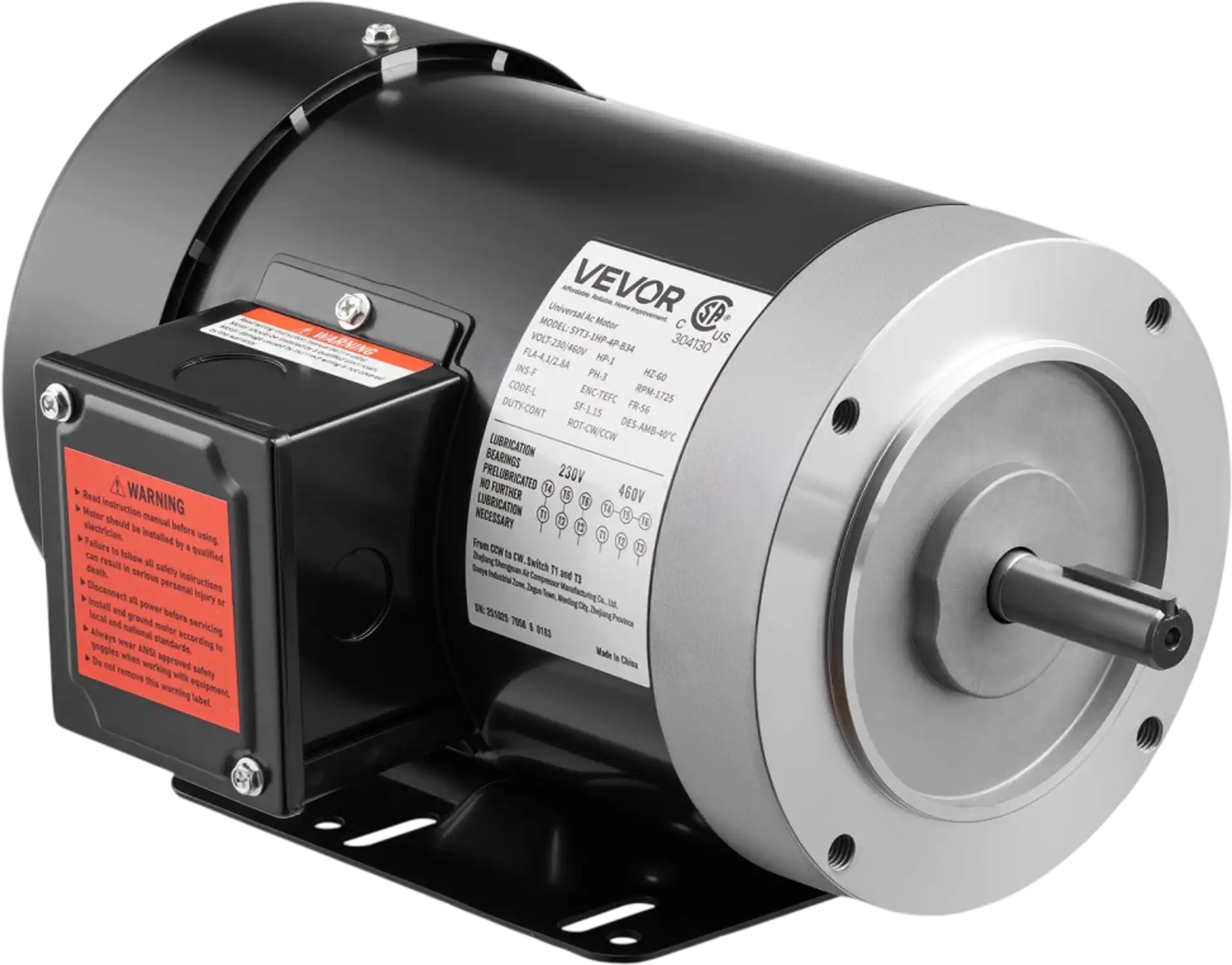

Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
Manufacturer: Vevor
SKU: TYJLDJ1HP172B19PF001V8
Power Options
QTY
(888) 999-1522
$ 139.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Variable Frequency Drive 3HP 2.2KW 3-Phase Motor Speed Control New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
-
Vevor Electric Bike Motor Kit 450W 36V 3000 RPM with Upgraded Speed Controller and Thumb Throttle...
-
Vevor Brushed DC Motor Kit 24V 250W 2700 RPM with Speed Controller New
-
Vevor Brushed DC Motor Kit 450W 36V 3000 RPM with Controller and Twist Throttle New
-
Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM with Controller and Foot Pedal Throttle New
-
Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New
-
Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New
-
Vevor Electric Motor 5 HP 3450 RPM Air Compressor Single-Phase 230V TEFC New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

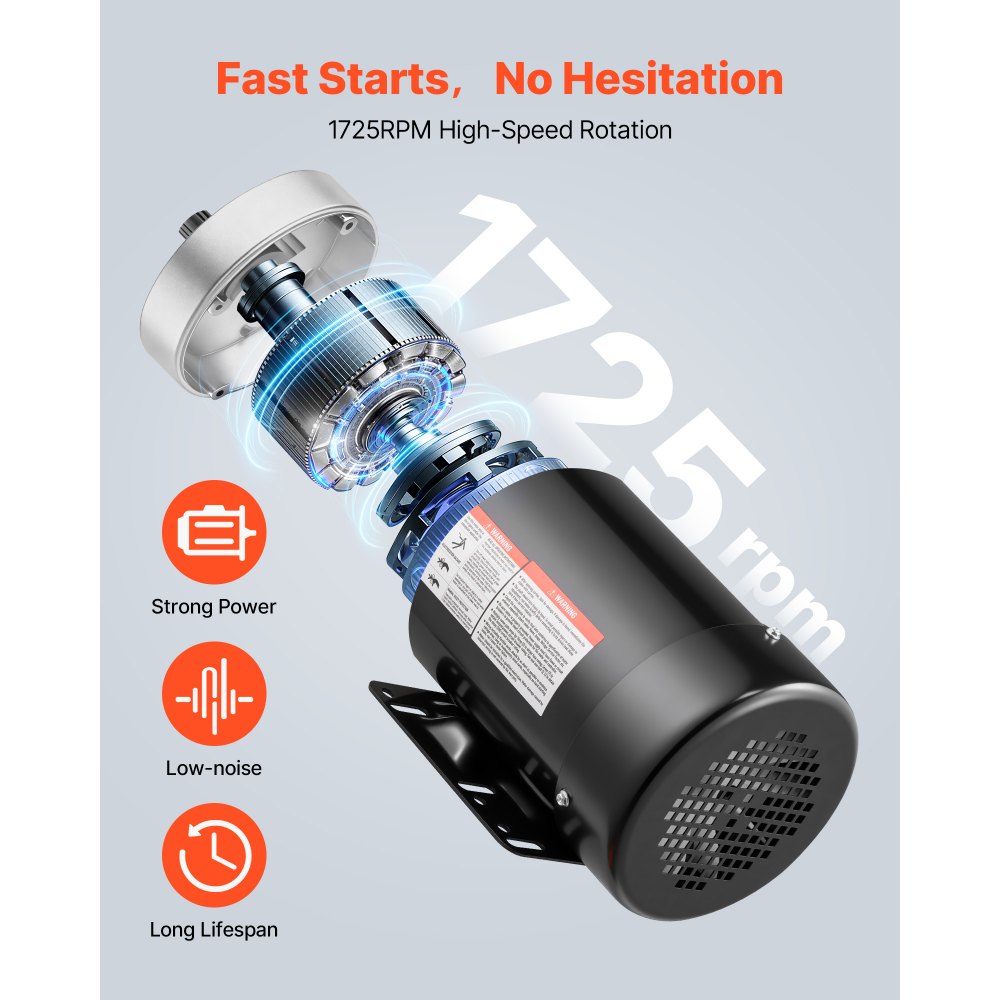

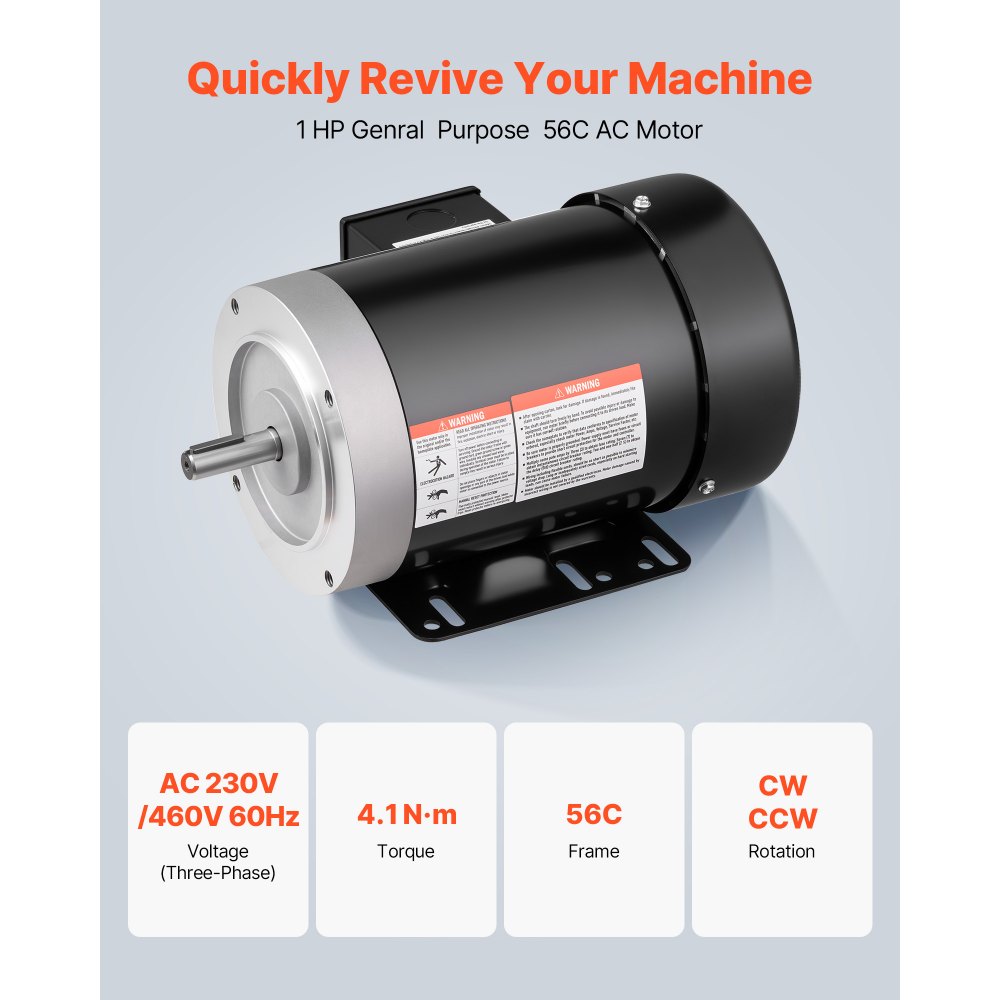

- High Performance: 1HP high-performance motor featuring 4.1 N.m rated torque. Designed for AC 230V/460V 60Hz, three-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

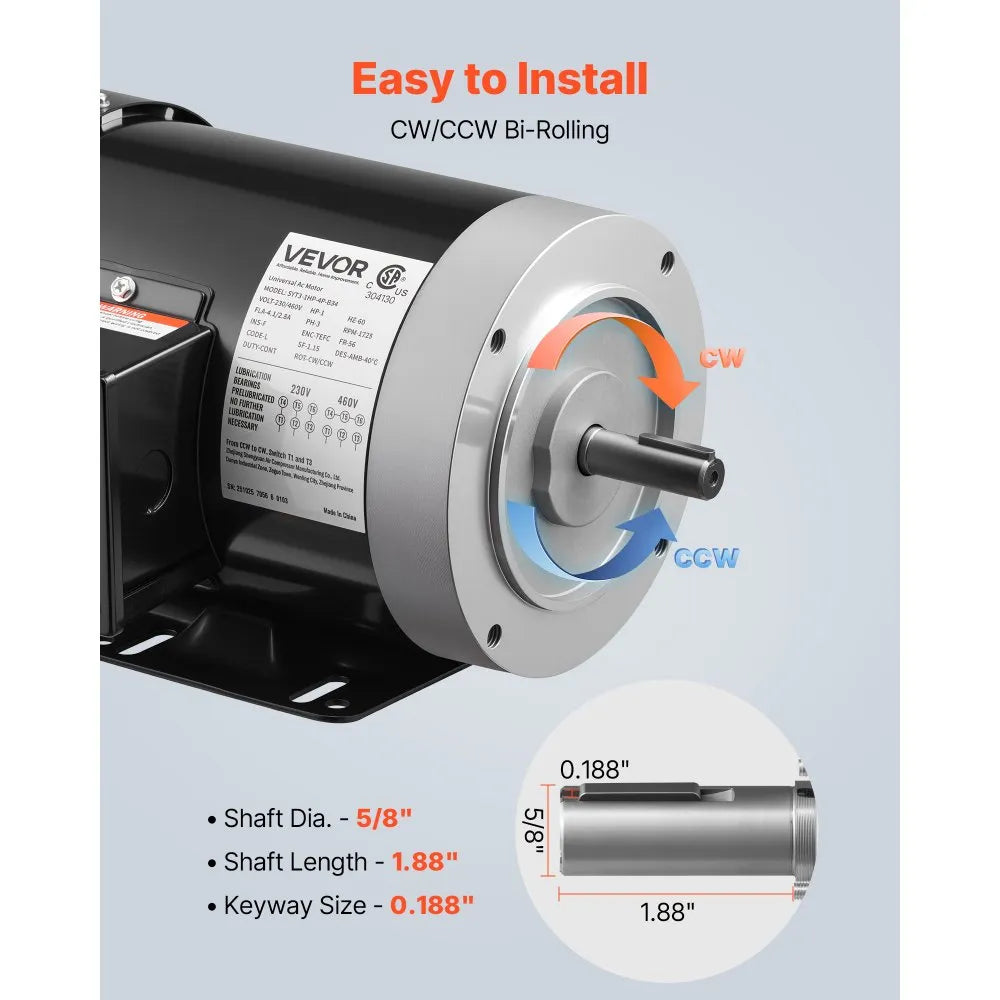

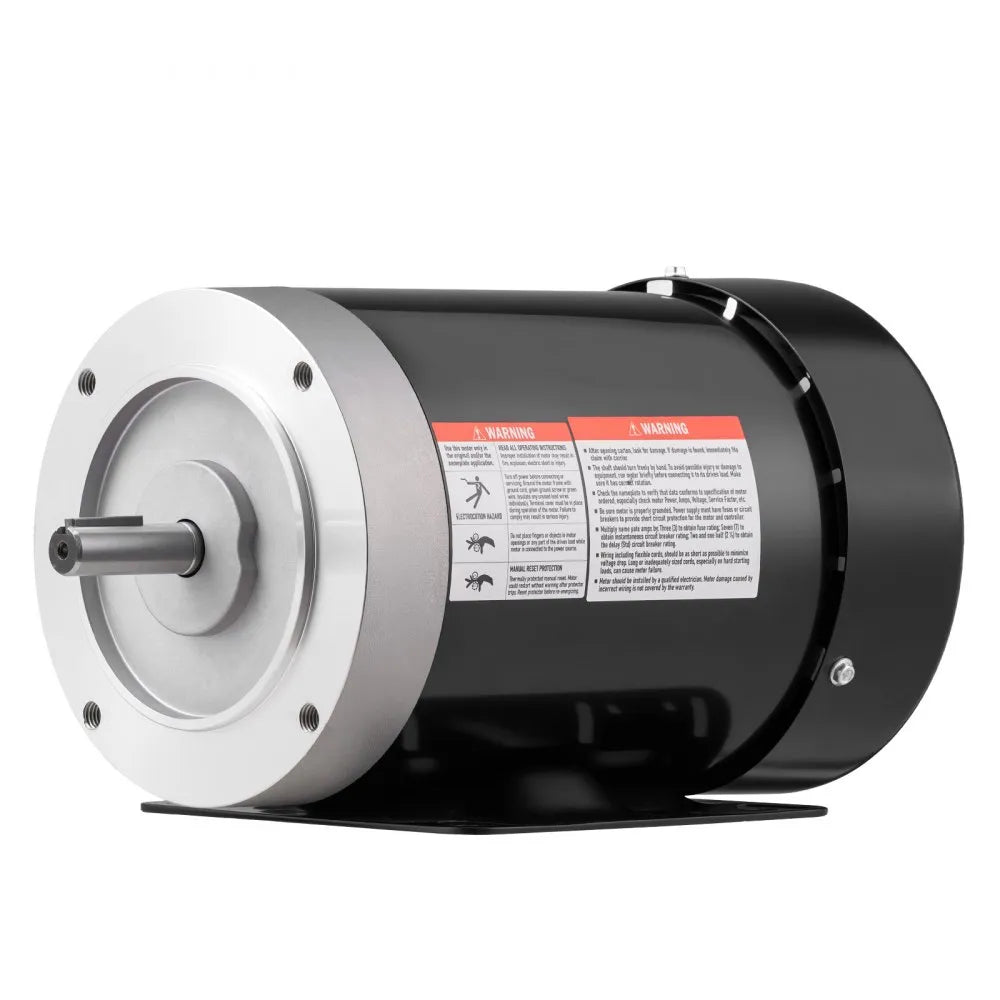

- Rugged Frame Type: The 56C frame of this electric motor includes a 5/8-inch shaft diameter, 1.88-inch shaft length, and keyway size: 0.188 inch / 4.77 mm width x 0.094 inch / 2.38 mm depth
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

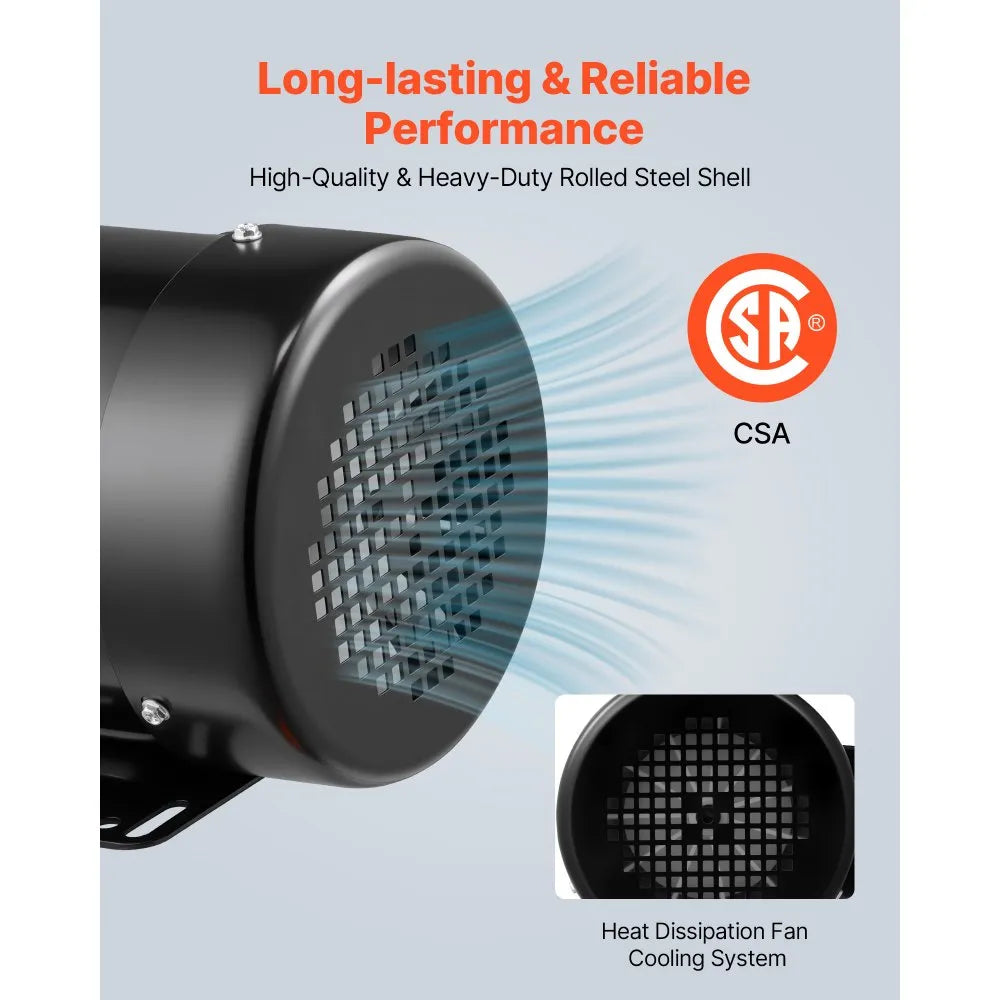

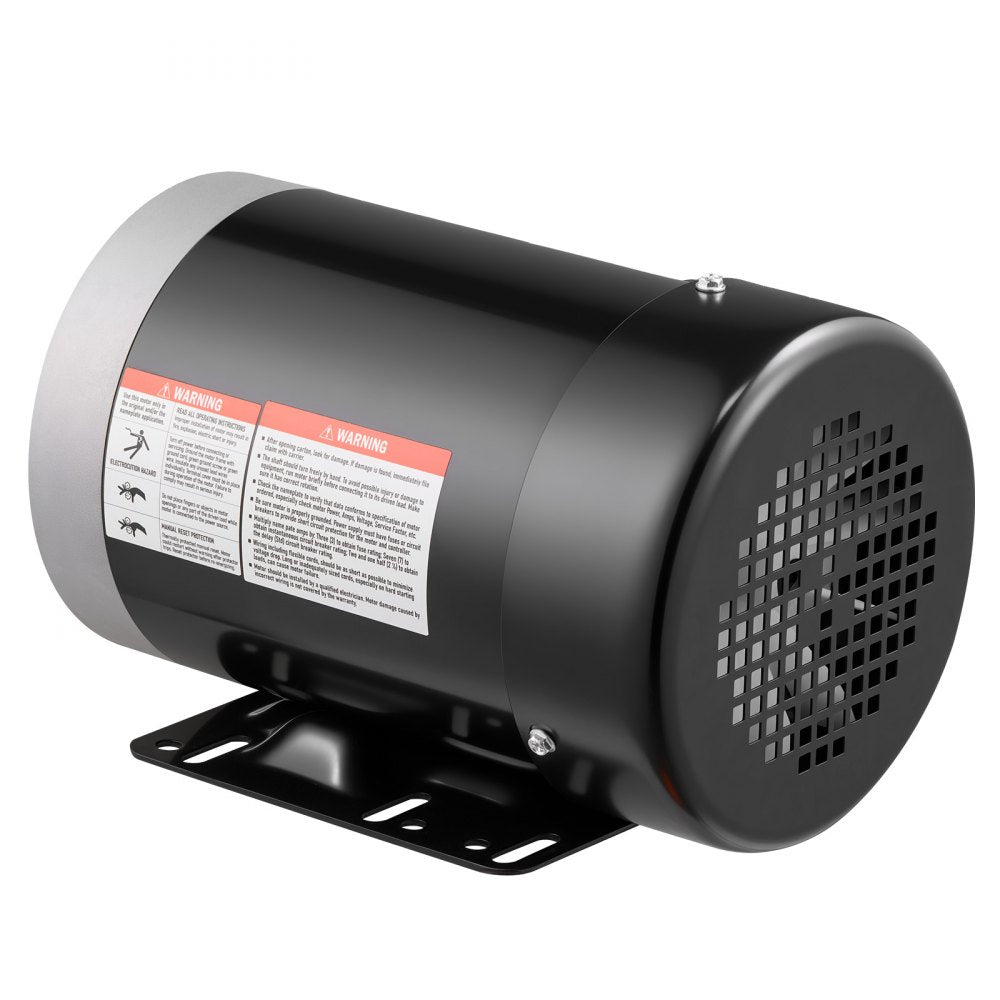

- Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
- Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

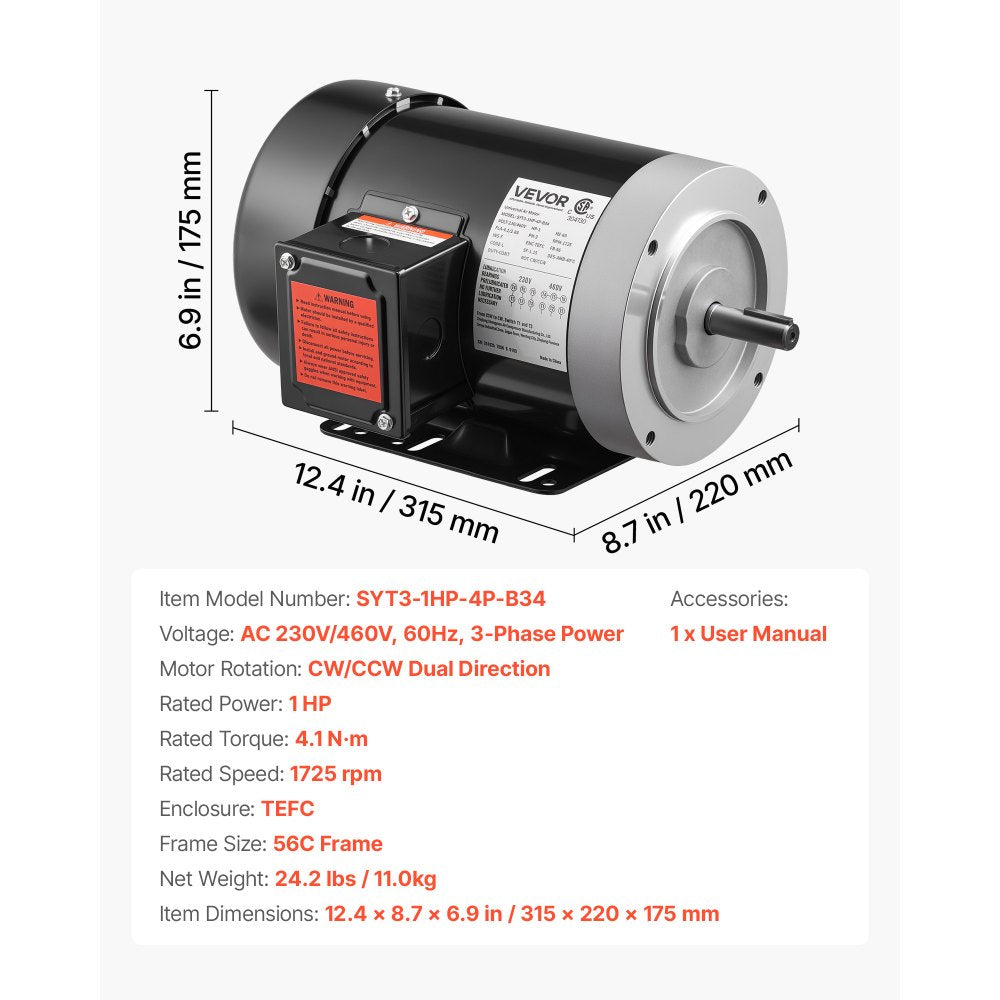

Specifications
| Item Model Number | SYT3-1HP-4P-B34 |
| Voltage / Frequency | AC 230V / 460V, 60Hz, 3-Phase Power |
| Rotation Direction | CW/CCW Dual Direction |
| Horsepower | 1 HP |
| Rated Torque | 4.1 N.m |
| Speed | 1725 RPM |
| Cooling Type | TEFC |
| Frame Type | 56C |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Keyway Size | 0.188" / 4.77 mm width x 0.094" / 2.38 mm depth |
| Main Materials | Aluminum Alloy End Covers; Steel Plate Motor Body |
| Net Weight | 24.2 lbs |
| Dimensions | 12.4 x 8.7 x 6.9" |
| Certification | CSA |
Package Contents
Vevor 1 HP electric motor
Warranty
This item comes with a 1 year factory warranty.
