    Product Overview

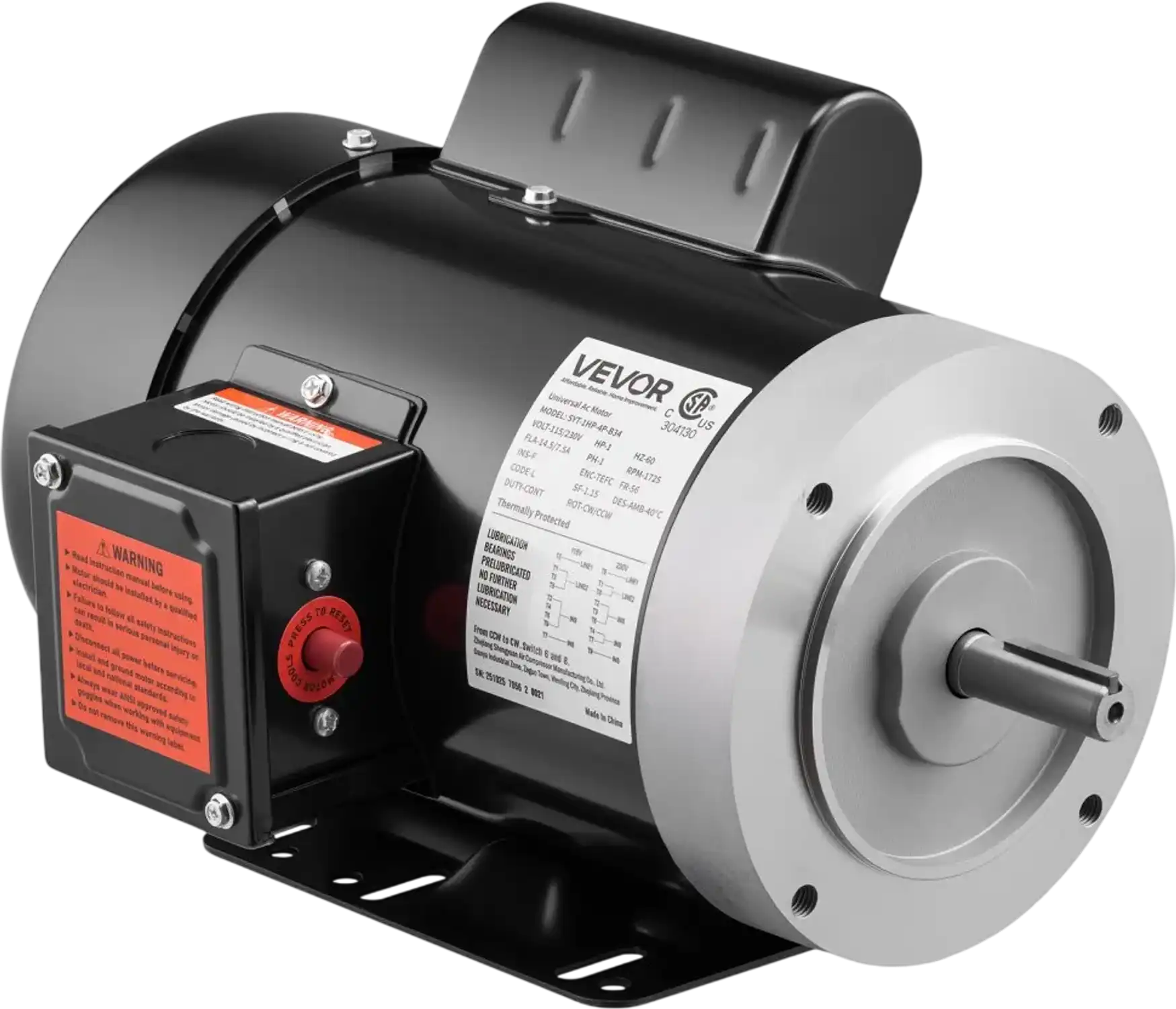

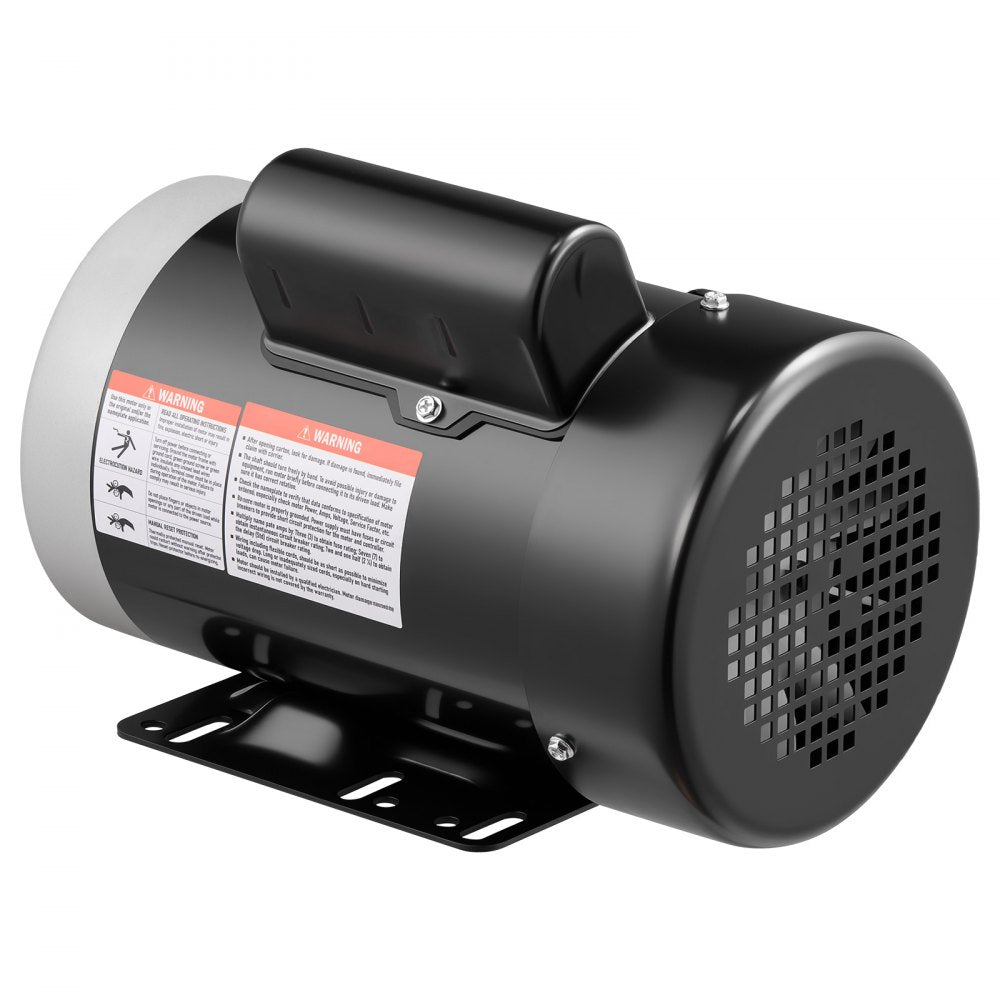

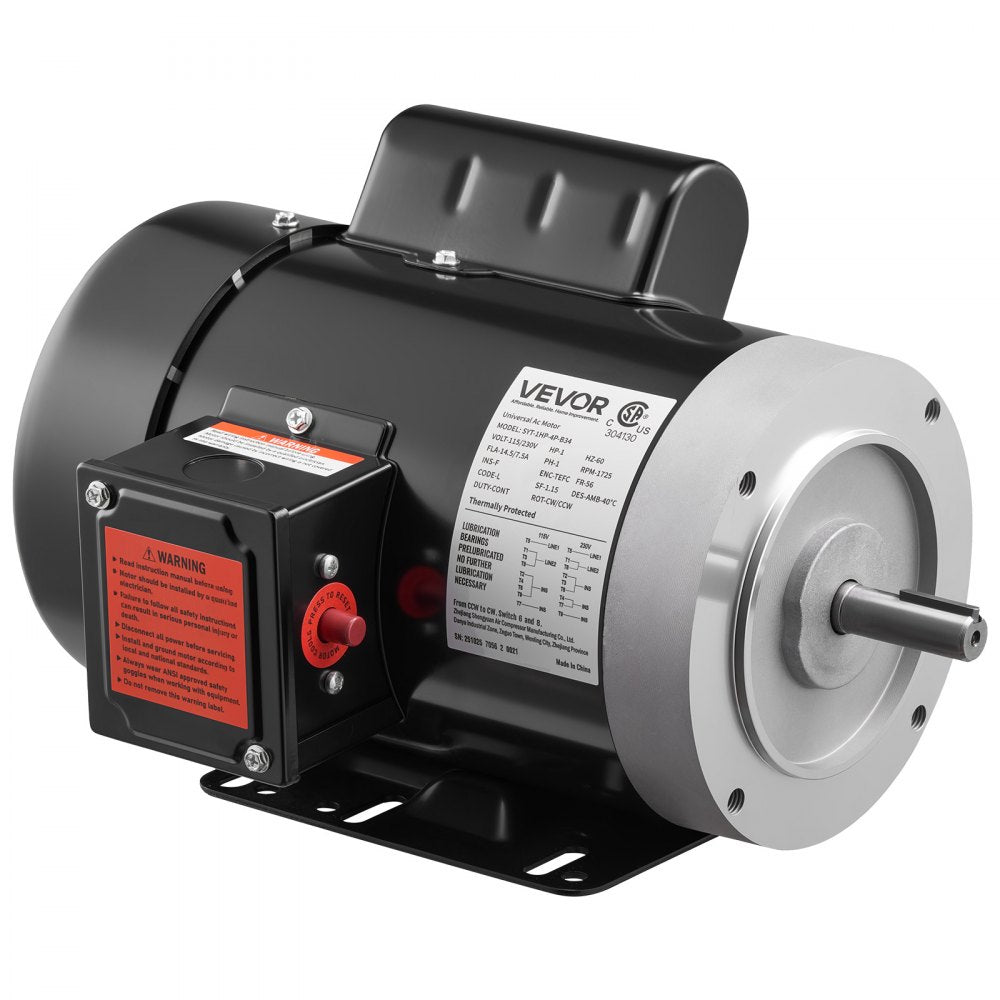

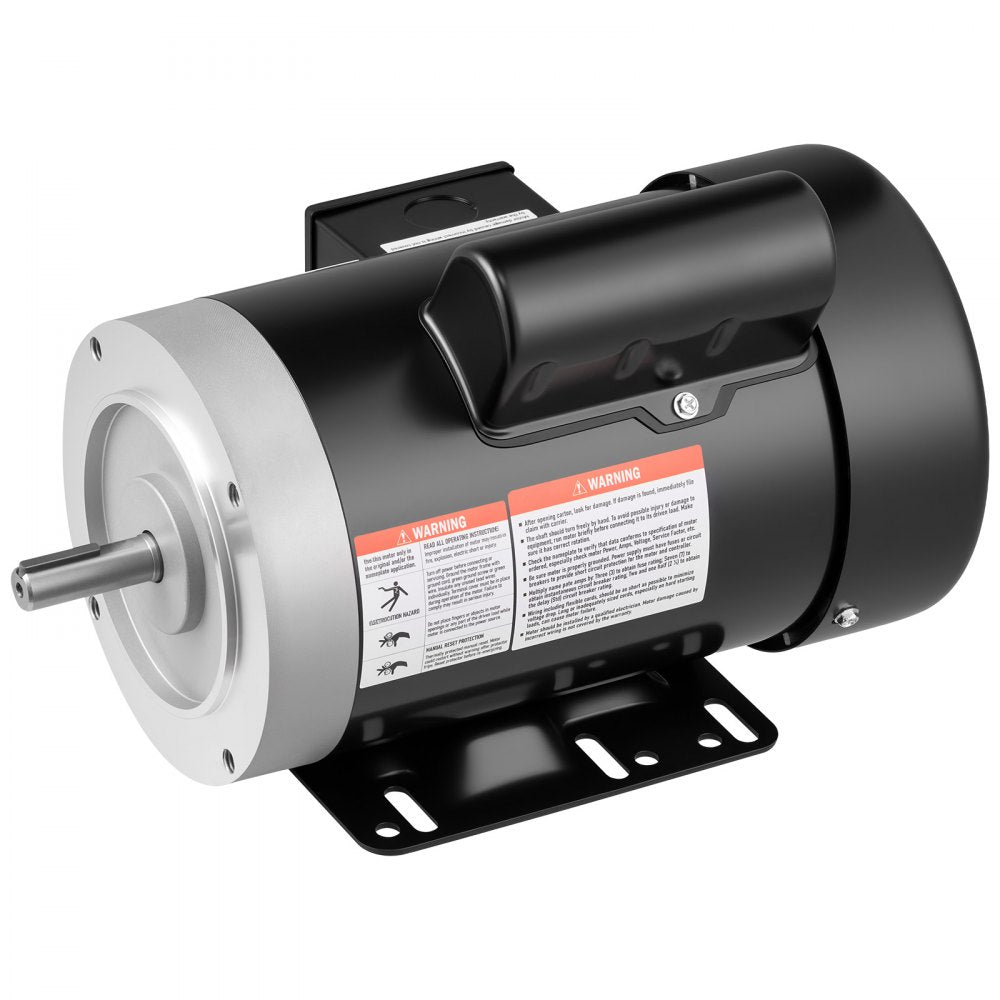

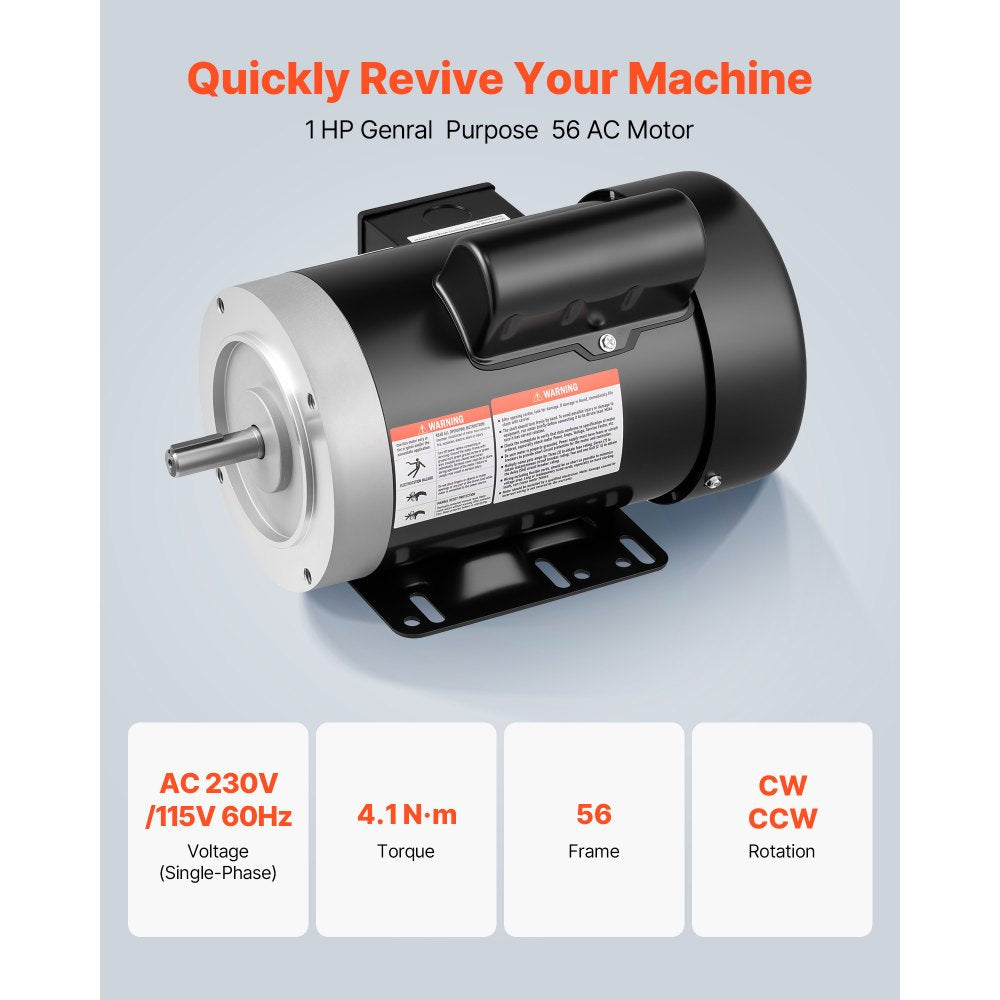

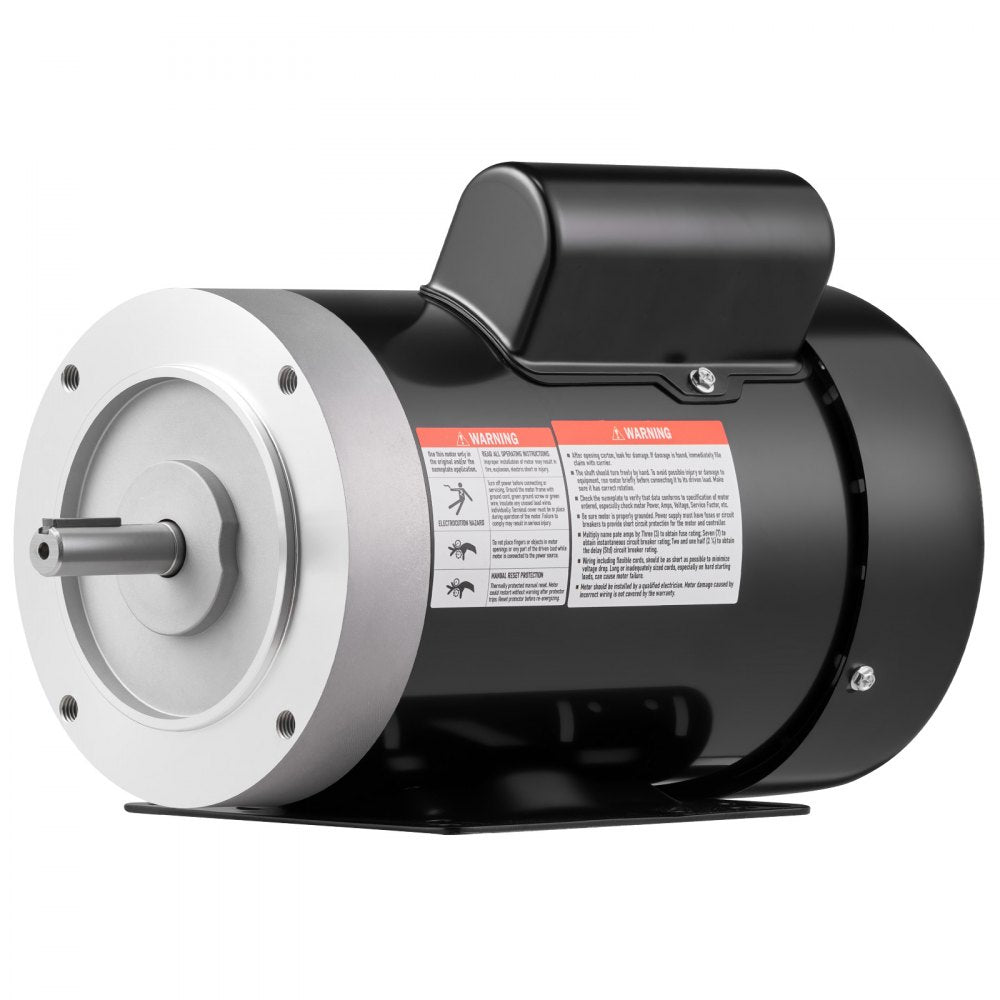

    The Vevor 1 HP electric motor is designed for air compressor and general-purpose equipment applications requiring dependable single-phase power. It operates at 1725 RPM and supports CW/CCW dual-direction rotation for flexible installation. The motor is built with TEFC cooling to help manage heat during operation and uses a durable steel motor body with aluminum alloy end covers. Its 56 frame design, 5/8" shaft diameter, and 1.88" shaft length make it suitable for repair, replacement, and DIY equipment use.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

    • High Performance: 1HP high-performance motor featuring 4.1 N.m rated torque. Designed for AC 115V/230V 60Hz, single-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

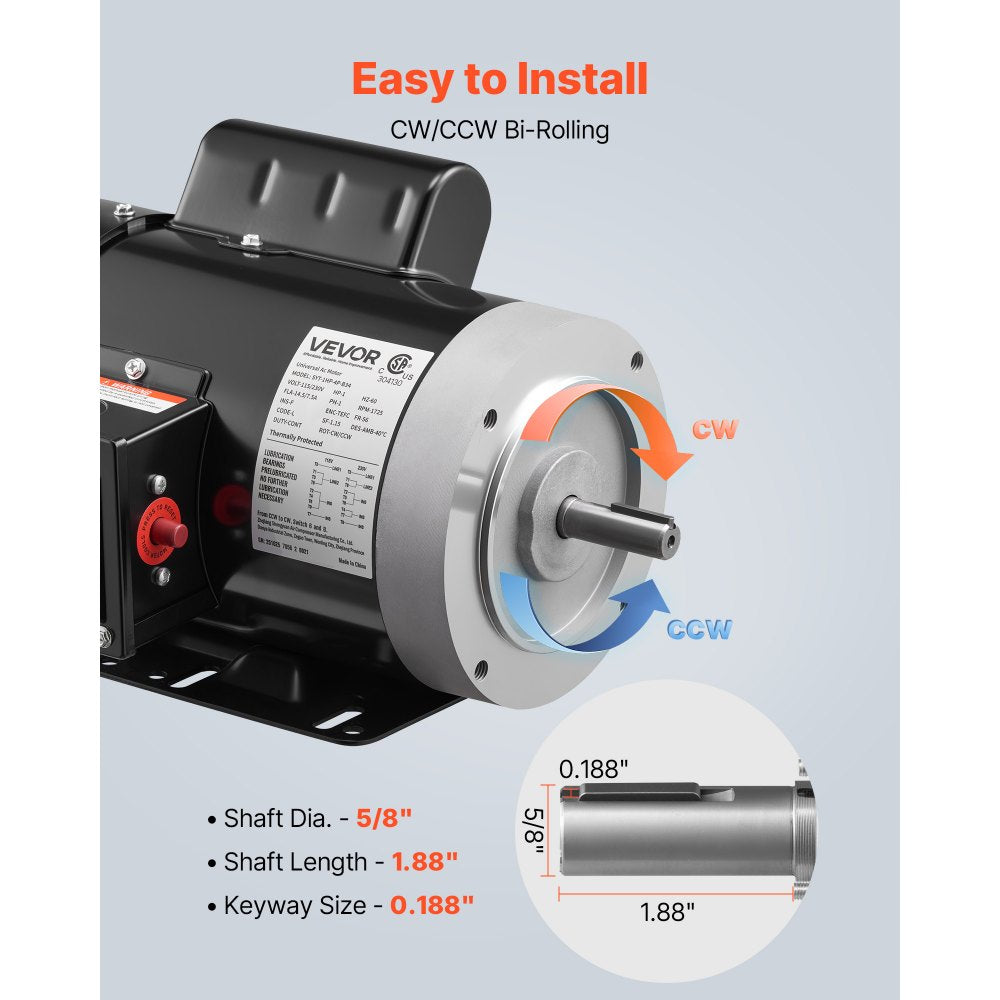

    • Rugged Frame Type: The 56 frame of this electric motor includes a 5/8-inch shaft diameter, 1.88-inch shaft length, and keyway size: 0.188 inch / 4.77 mm width x 0.094 inch / 2.38 mm depth
    • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

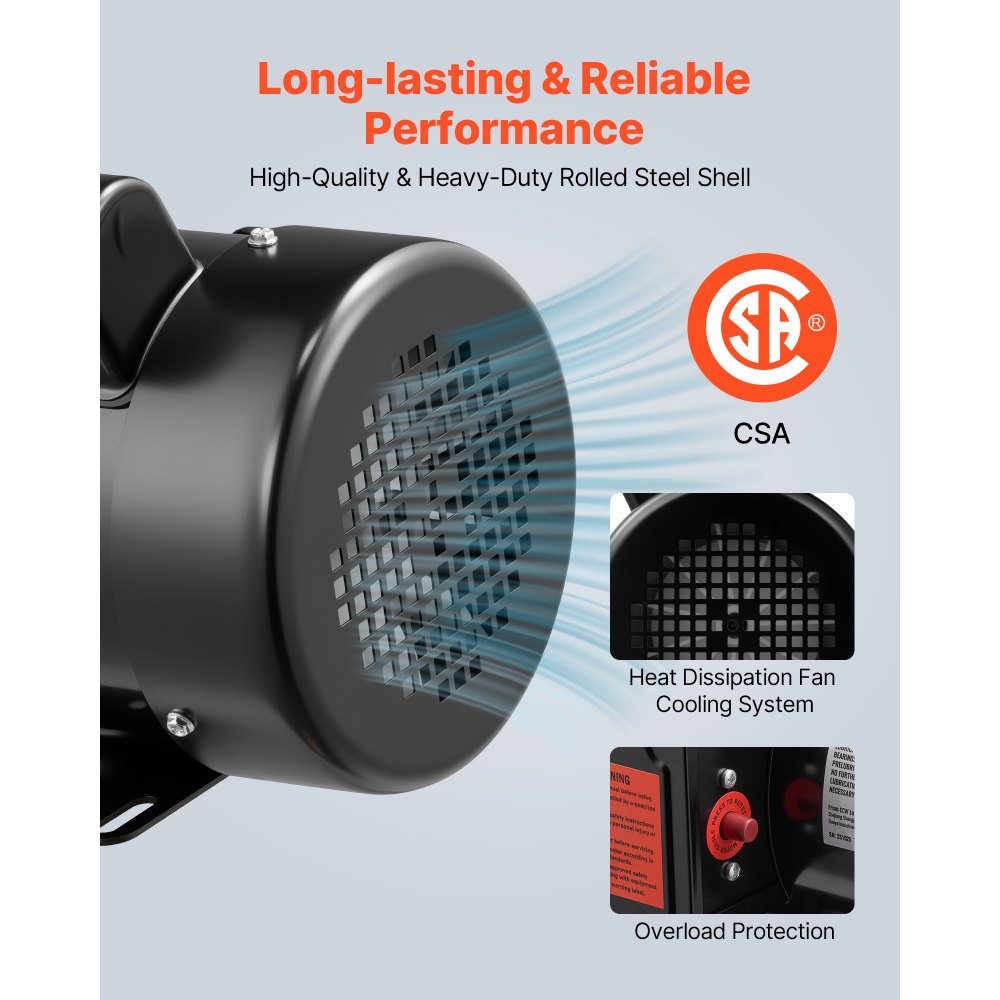

    • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance

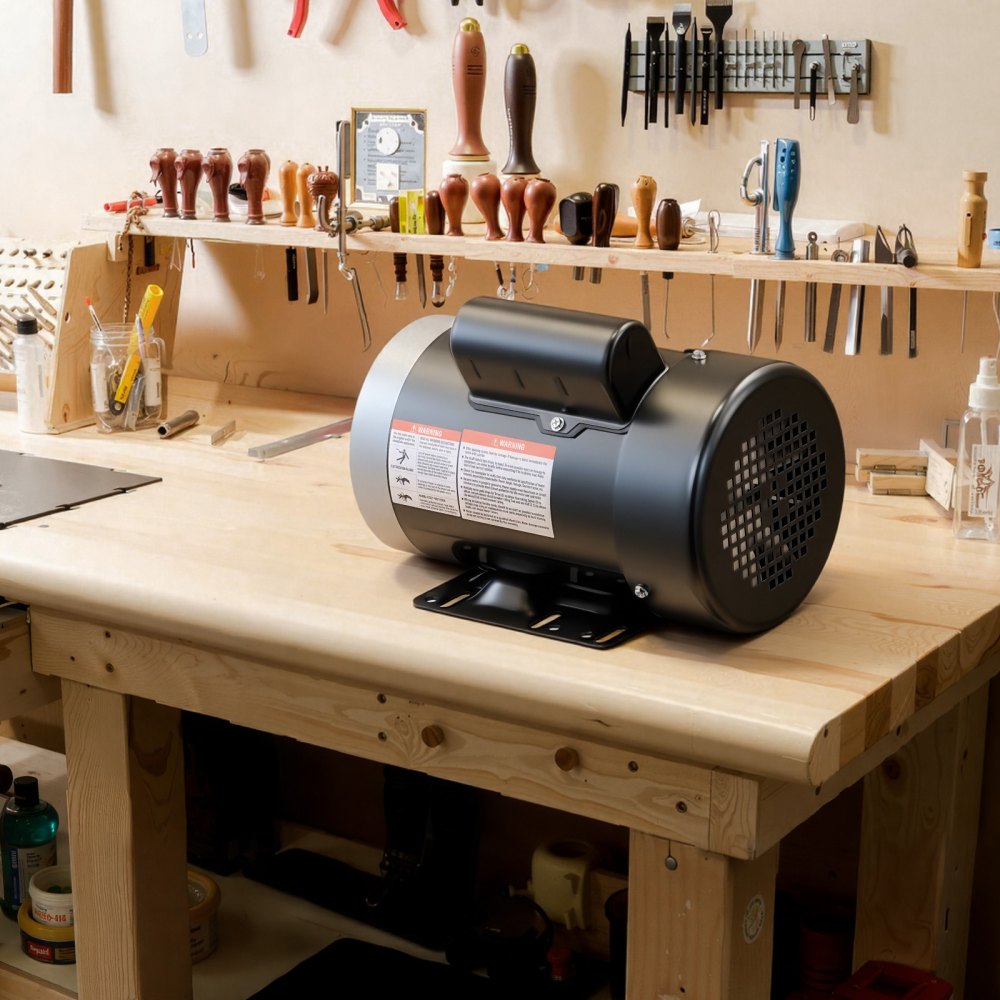

    • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

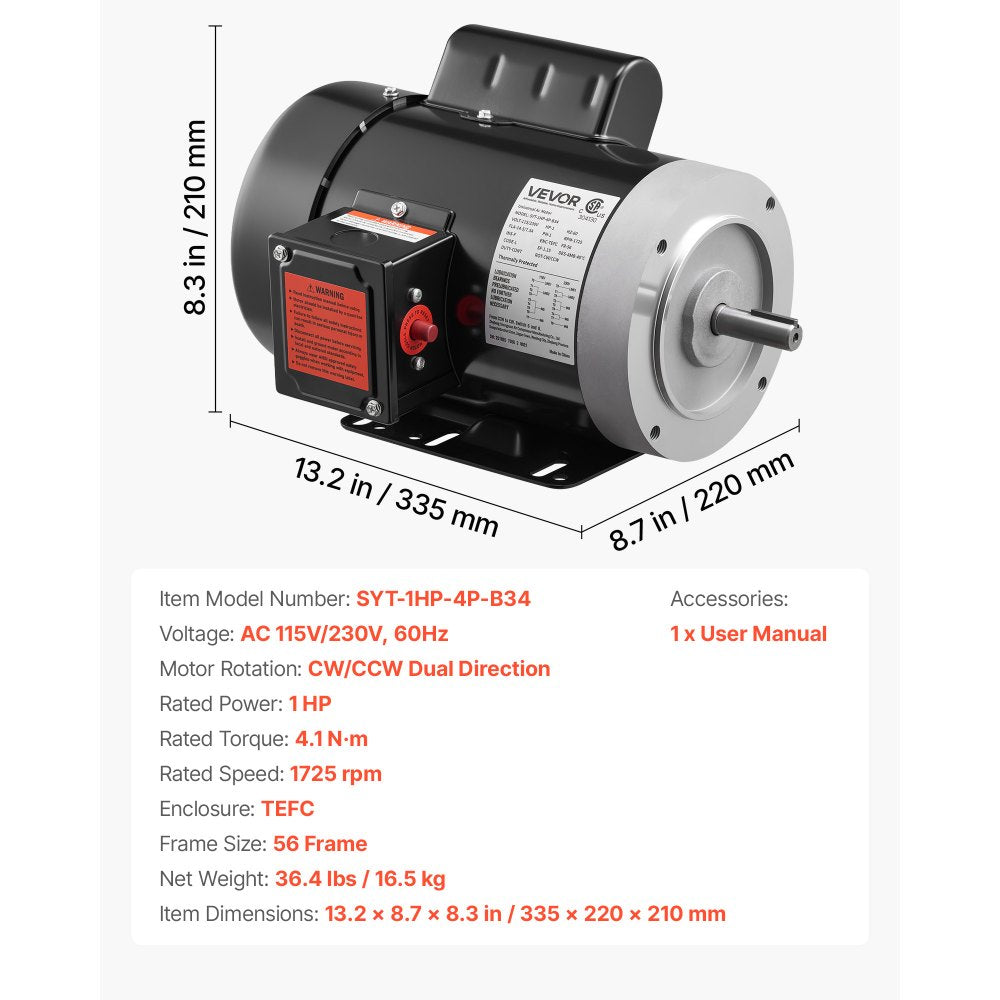

    Specifications

    Product Type Electric Motor
    Model SYT-1HP-4P-B34
    Voltage / Frequency AC 115V / 230V, 60Hz
    Phase Single Phase
    Rotation Direction CW/CCW Dual Direction
    Horsepower 1 HP
    Rated Torque 4.1 N.m
    Speed 1725 RPM
    Cooling Type TEFC
    Frame Size 56 Frame
    Shaft Diameter 5/8"
    Shaft Length 1.88"
    Keyway Size 0.188" width x 0.094" depth
    Materials Aluminum Alloy End Covers; Steel Plate Motor Body
    Net Weight 36.4 lbs
    Dimensions 15.7 x 10.0 x 9.3"
